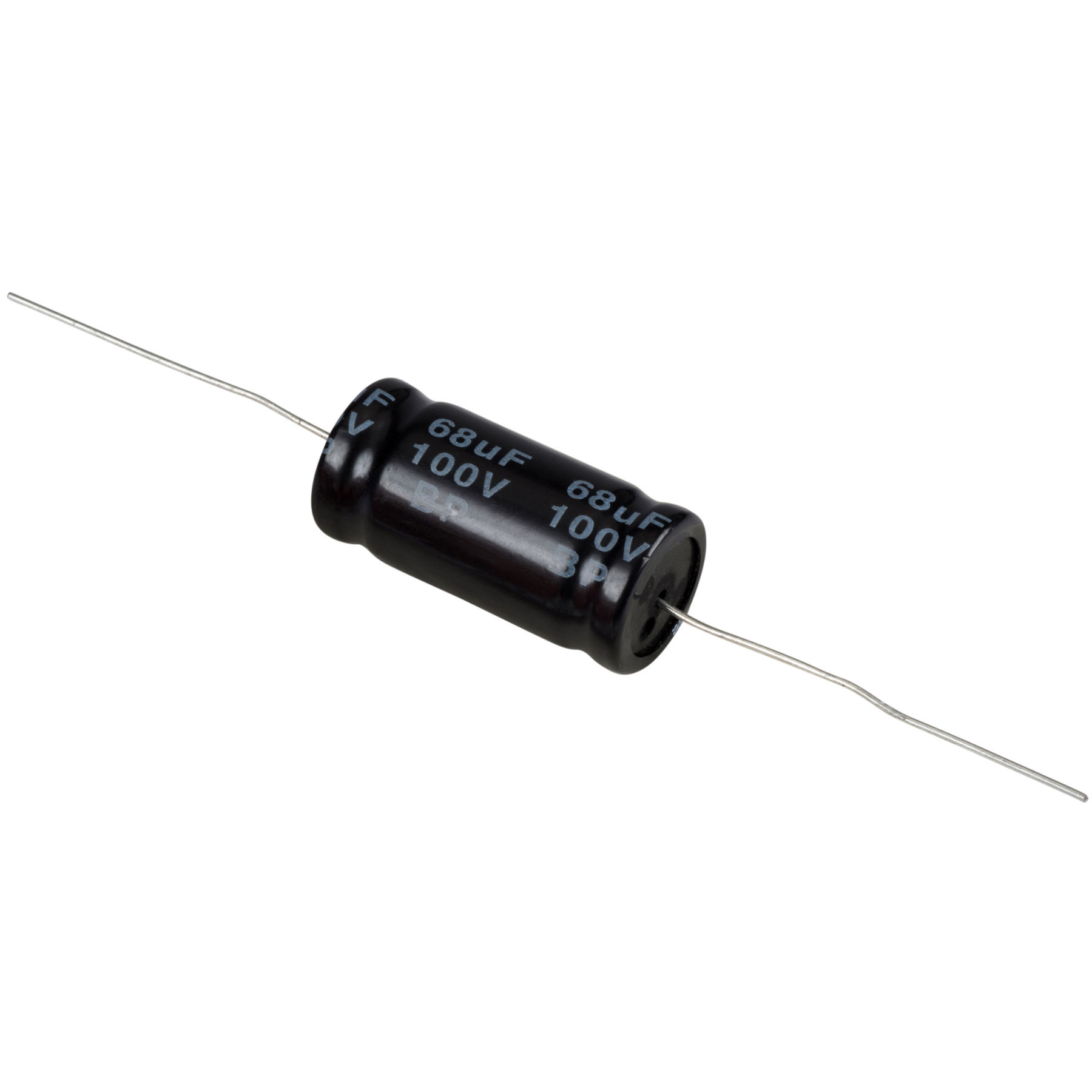

Electrolytic Non-Polarized Cap | 68 µF | 10% | 100V

Alle anzeigen Frequenzweichen-Bauteile

Vergleichen

€ 2,44€ 2,95 5 Auf Lager

These high quality bi-polar (non-polarized) electrolytic capacitors are perfect for your next crossover design. They feature a 5% dissipation factor and are rated at 100V which are effective to approximately 200 watts.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Produktbeschreibung

Highlights

68 microfarad value
16 mm diameter x 38 mm long
5% dissipation factor and 100 VDC working voltage
±10% tolerance

Product details

Electrolytic Non-Polarized Cap | 68 µF | 10% | 100V

Electrolytic non-polarized (bi-polar) capacitors are perfect low-cost solutions for use in passive speaker crossovers. These capacitors feature axial leads, a 5% dissipation factor, and are rated at a 100 VDC working voltage which equates to approximately 200 watts power handling. Sold individually.

Specifications: Value: 68 µF • Rated: 100 VDC • Tolerance: ±10% • Dissipation Factor: Max 0.5 (5%) @ 1 KHz • Dimensions: 16 mm Dia. x 38 mm L.
