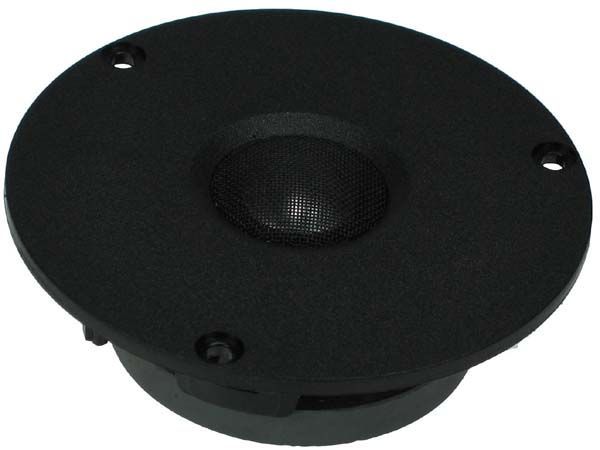

Seas Prestige 19TAFD/G - H0532-8 3/4" Aluminum Dome Tweeter
19mm High Fidelity dome tweeter with smooth, extended frequency response. Aluminum diaphragm suspended by a specially designed soft Sonotex surround which allows a low fundamental frequency.
Double magnet reduces stray fi elds around the magnet system and allows the unit to be used in close proximity to a CRT. The double magnet also gives a higher sensitivity. Fine mesh grid protects the diaphragm and carries a phase plate which compensates for a slight axial roll off towards 20 kHz.
Voice coil windings immersed in magnetic fl uid increase short term power handling capacity and reduce the compression at high power levels.
PRODUCT SPECIFICATIONS
Tweeter Type | Aluminum Dome |
Cone / Dome Diameter | 3/4" |
Impedance | 8 ohms |
Power Handling (RMS) | 90 Watts |
Frequency Response | 4,000 to 20,000 Hz |
Sensitivity | 88 dB 2.83V/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1,700 Hz |
DC Resistance (Re) | 6.20 ohms |
Voice Coil Inductance (Le) | 0.05 mH |
