Ceramic dome tweeter with fabric surround, ferrofluid-cooling, and magnetically shielded neodymium magnet.
Highlights
Product Details

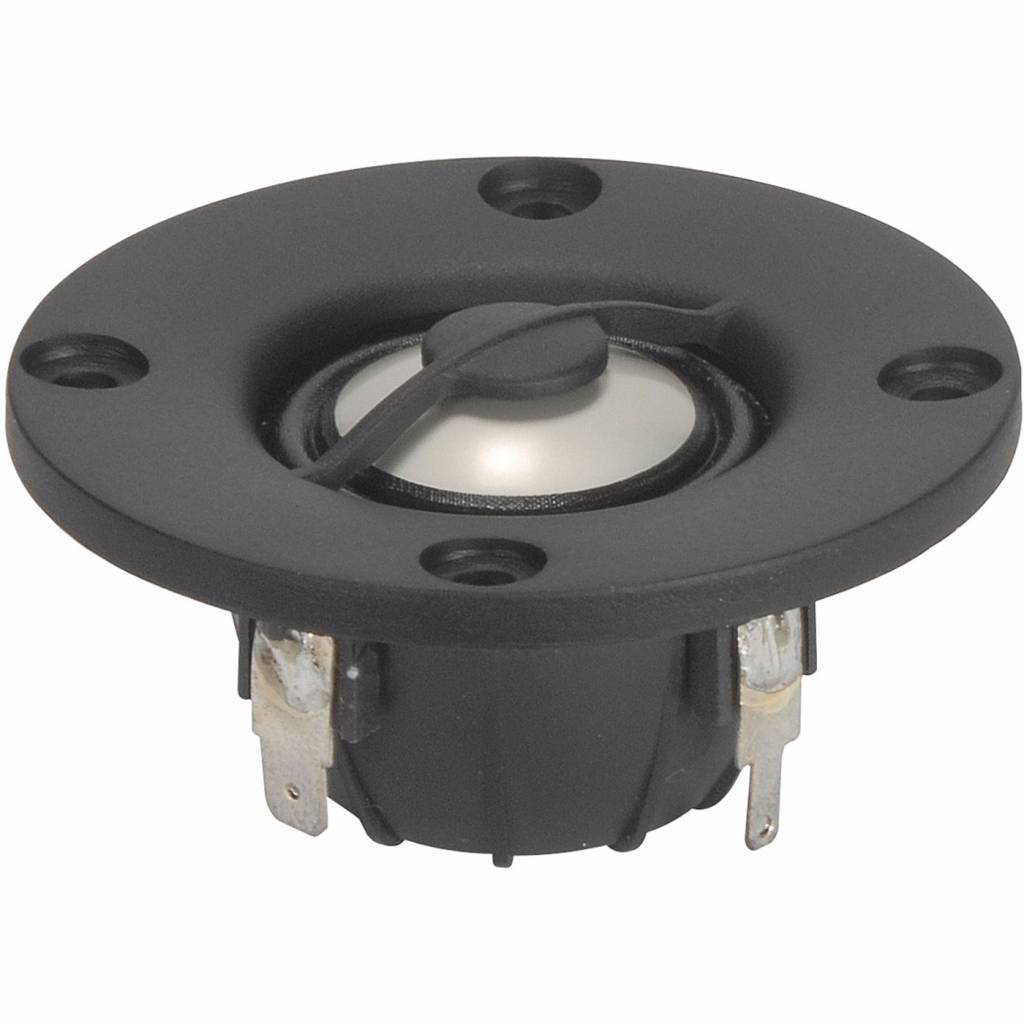

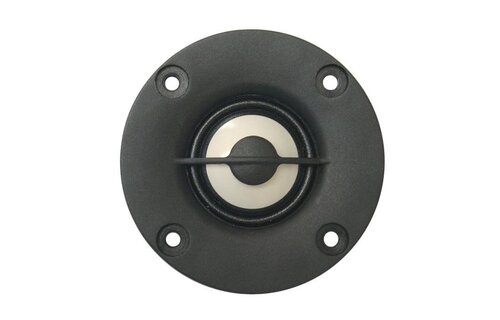

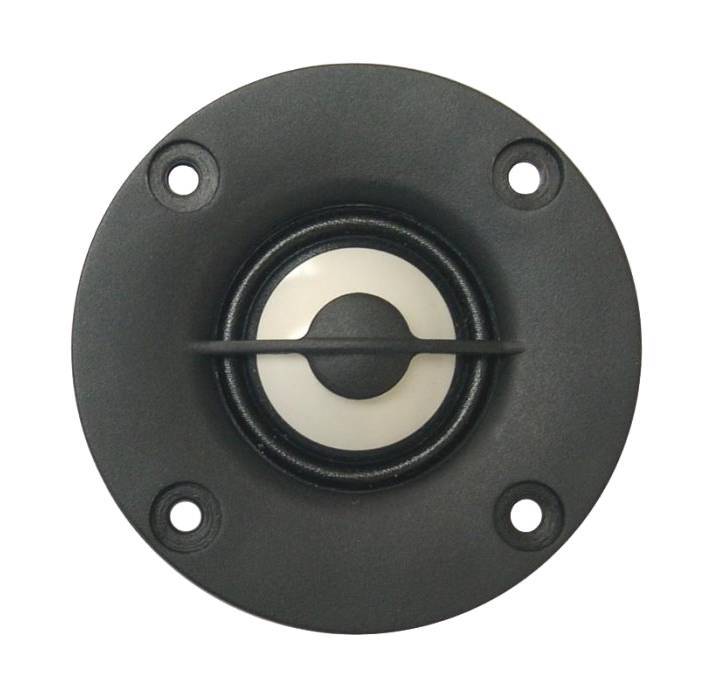

Tang Band 25-1719S 1" Ceramic Dome Tweeter
Ceramic dome tweeter with fabric surround, ferrofluid-cooling, and magnetically shielded neodymium magnet. The back chamber design provides a free air resonance of 800 Hz. The 25-1719S produces smooth, extended high frequencies with low 2nd and 3rd harmonic distortion and excellent off-axis response.
PRODUCT SPECIFICATIONS
Tweeter Type | Ceramic Dome |
Cone / Dome Diameter | 1" |
Impedance | 4 ohms |
Power Handling (RMS) | 8 Watts |
Frequency Response | 800 to 30,000 Hz |
Sensitivity | 90 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 800 Hz |
DC Resistance (Re) | 3.00 ohms |
MOUNTING INFORMATION
Overall Outside Diameter | 2.60" |
Cutout Diameter | 1.80" |
Depth | 1.05" |
