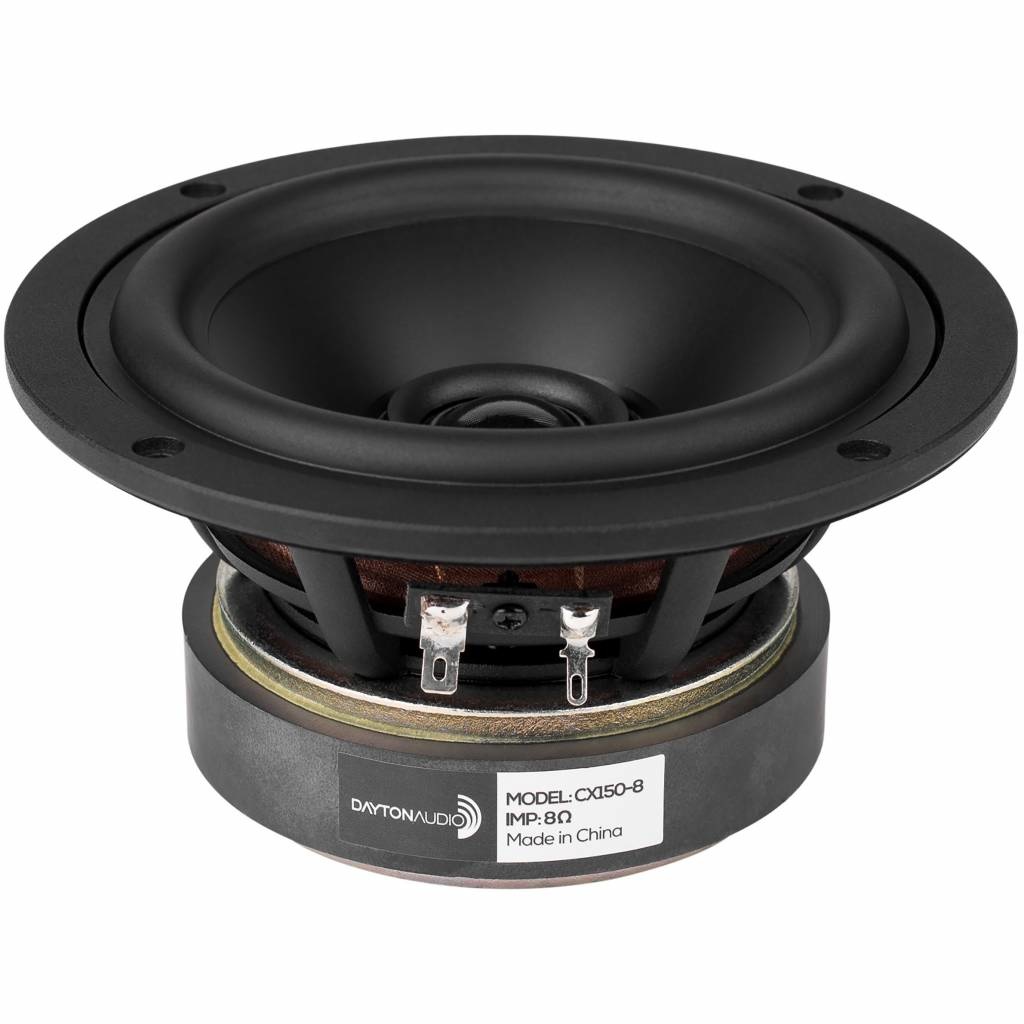

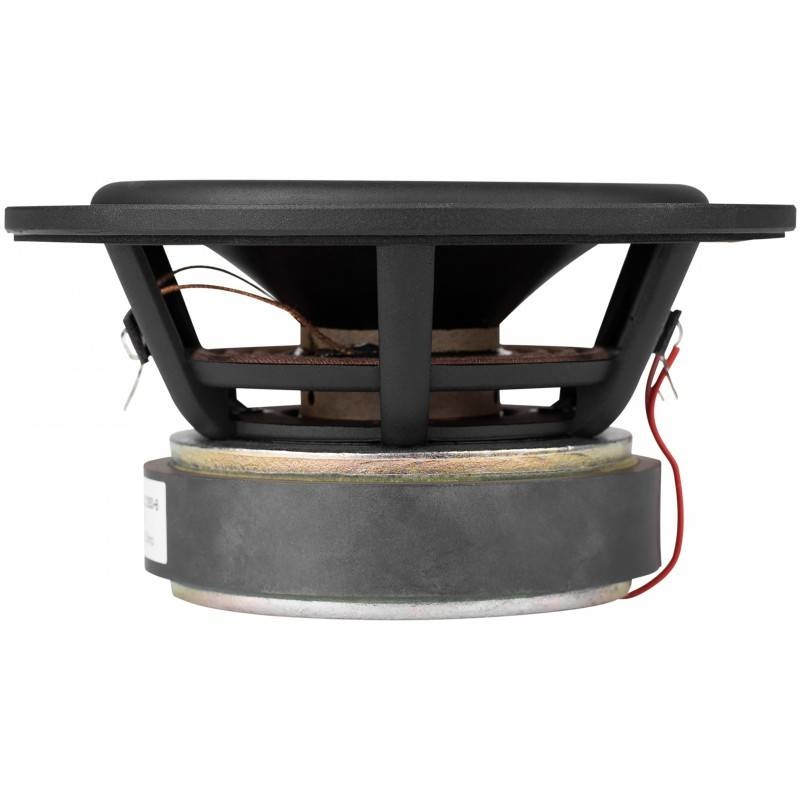

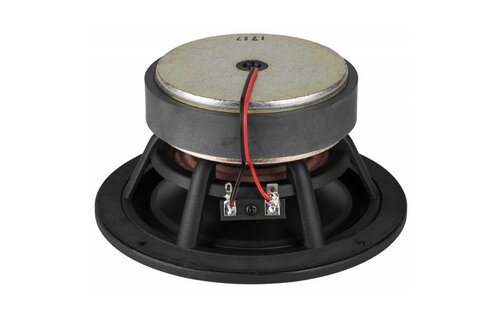

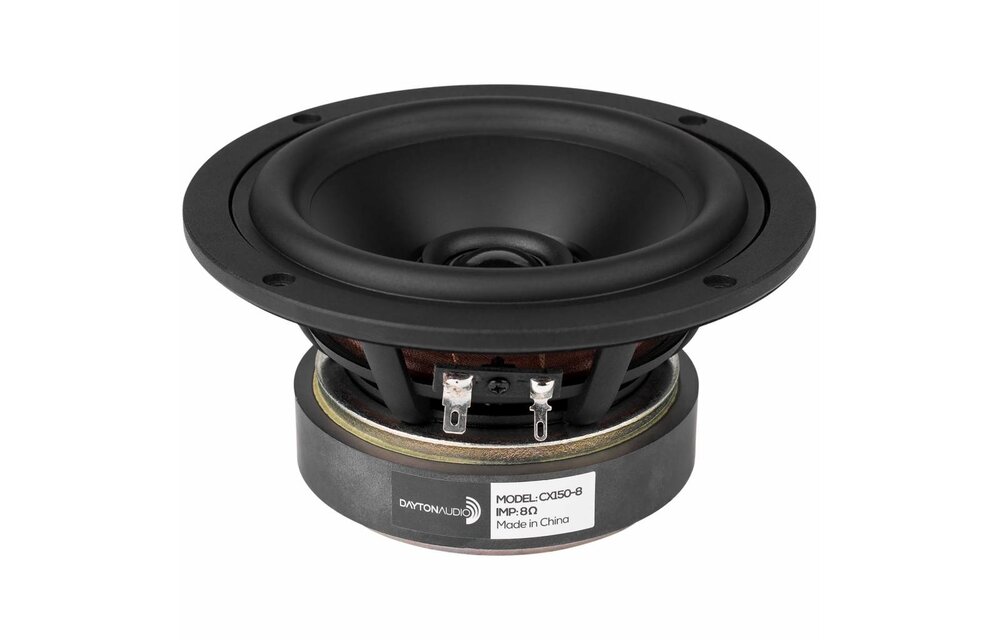

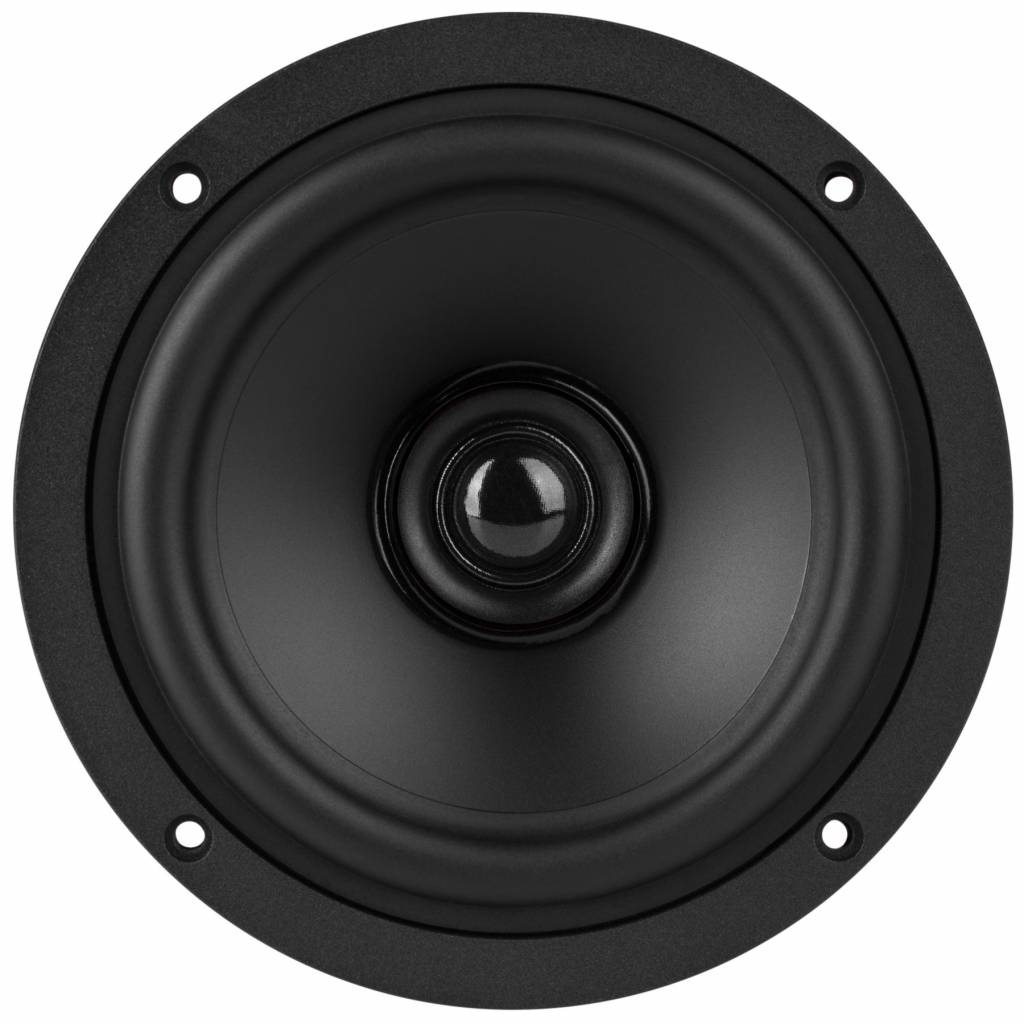

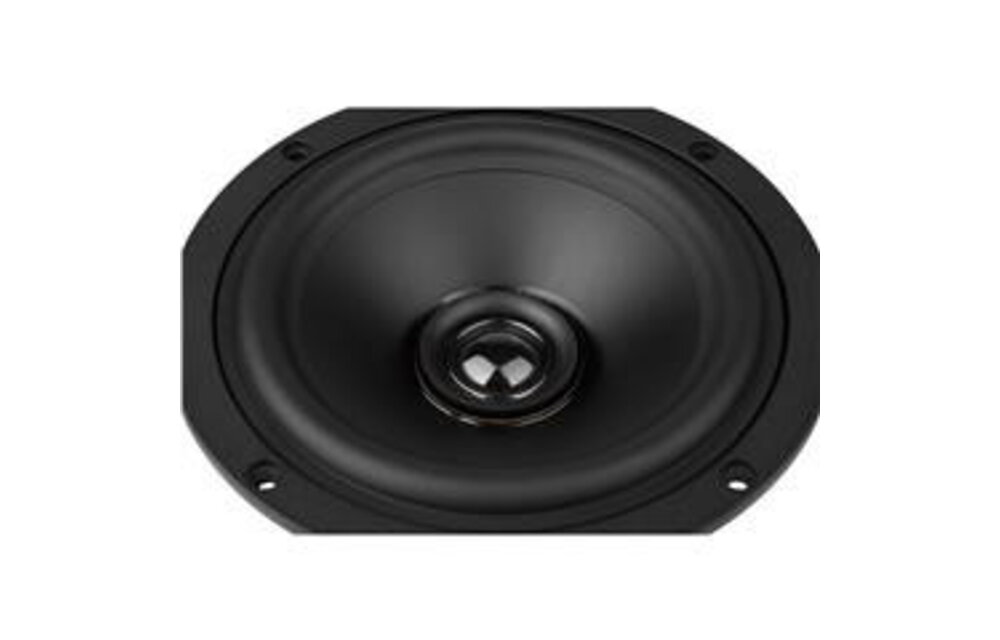

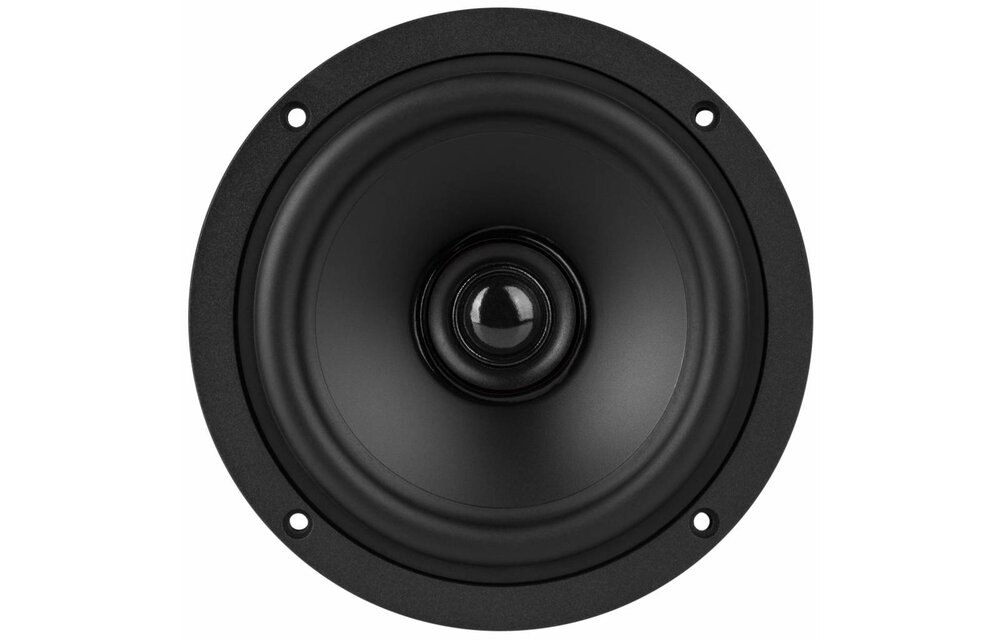

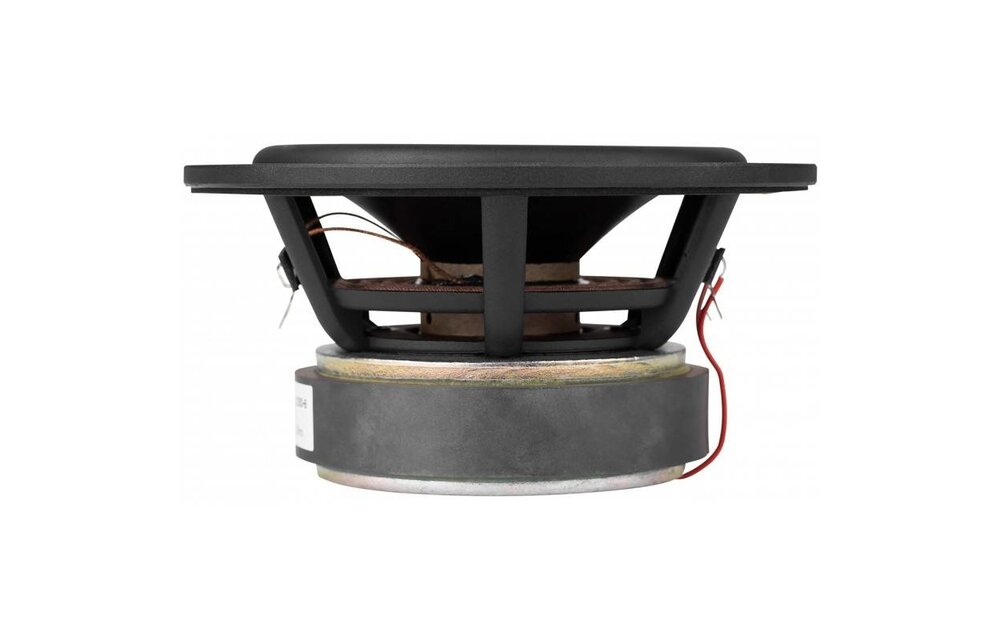

CX150-8 5" Coaxial Driver with 1" Silk Dome Tweeter

Name: Dayton Audio CX150-8 5" Coaxial Driver with 1" Silk Dome Tweeter
Brand: Dayton Audio
Price: 44.95 EUR
Availability: InStock

Alle anzeigen Audio-Komponenten

Merk: Dayton Audio

Vergleichen

€ 37,15€ 44,95 >10 Auf Lager

With a natural sounding 1" soft dome tweeter concentrically mounted in a long throw poly cone 5-1/4" woofer Dayton Audio's CX150-8 will produce extremely smooth response on and off-axis while avoiding the phase and lobing issues associated with standard 2... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Produktbeschreibung

Highlights

Full-range with accurate bass and extended high frequency response
Coaxial mounted 1" silk dome tweeter
Open cast frame for improved air flow and minimal power compression
5" curvilinear poly cone woofer with rubber half roll surround
Respectable low frequency output for a 5" driver

Product Details

Dayton Audio CX150-8 5-1/4" Coaxial Driver with 1" Silk Dome Tweeter 8 Ohm

The Dayton Audio CX150-8 is a full-range coaxial loudspeaker providing high quality sound in a very compact form featuring a 5" curved linear poly cone woofer mated with a 1” silk dome tweeter. The poly cone woofer provides a good balance between stiffness, low mass and damping making for a very natural sounding driver with a smooth frequency response. The silk dome tweeter provides detailed and clear high frequencies with minimal distortion. In addition, the optimized tweeter placement and flaring reduces the phase issues with the woofer that is commonplace with even the BIG brand coaxes. Designed for use as a full-range in a small bookshelf speaker, an extended range (i.e. midrange/tweeter) driver in a 3-way system, or even car audio systems.

5" Woofer:

Large 1.5" voice coil wound on an Kapton® former for greater linearity and high power handling
High excursion capability (5.0 mm Xmax) for ample low frequency reproduction
Curved linear shaped poly cone provides a good balance between stiffness, low mass and damping making for a natural sounding driver with a smooth frequency response
Optimized rubber surround for reduced break up in the midrange band
Attractive rigid open cast frame cast frame to minimize reflections, resonances and improve air flow
High energy ceramic magnet for greater cone control and improved efficiency

Specifications: • Power handling: 80 watts RMS/160 watts max • VCdia: 1.5" • Le: 1.03 mH • Impedance: 8 ohms • Re: 6.12 ohms • Frequency response: 60-5,500 Hz • Fs: 63.9 Hz • SPL: 88.8 dB 2.83V/1m • Vas: 0.34 cu. ft. (9.57 liters) • Qms: 5.38 • Qes: 0.51 • Qts: 0.46 • Xmax: 5.0 mm • Dimensions: Overall diameter: 5-15/16", Cutout diameter: 4-3/4", Depth: 3".

1" Tweeter:

Silk dome provides detail and clarity of high frequencies
Coaxially mounted to pole piece of woofer cone
Optimized placement and trimmed flaring to reduce phase issue interaction with woofer
Strong neodymium magnet
Trimmed flared throat to minimize phase issues causing suck-out with woofer
High pass filter required (not included)

Specifications: • Power handling: 30 watts RMS/60 watts max • VCdia: 1" • Le: 0.04 mH @ 10 kHz • Impedance: 8 ohms • Re: 5.5 ohms • Frequency response: 3,500-20,000 Hz • Fs: 1940 Hz • SPL: 91.1 dB 2.83V/1m • Qms: 2.28 • Qes: 3.86 • Qts: 1.43.
