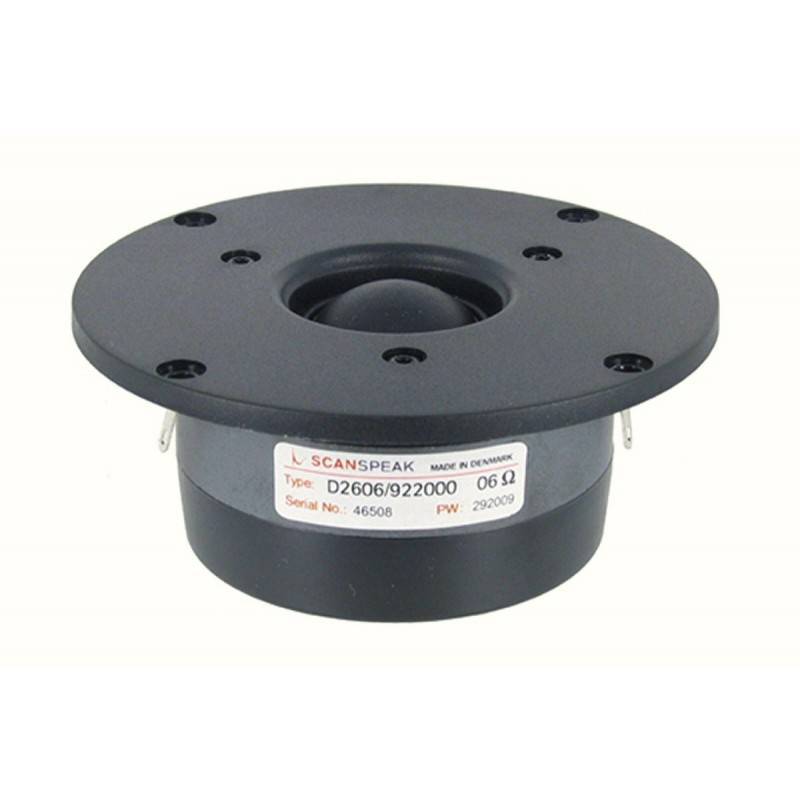

Discovery D2606/922000 1" Coated Textile Dome Tweeter

Name: Scan-Speak Discovery D2606/922000 1" Coated Textile Dome Tweeter
Brand: Scan-Speak
Price: 44.95 EUR
Availability: InStock

Alle anzeigen Audio-Komponenten

Merk: Scan-Speak

Vergleichen

€ 37,15€ 44,95 2 Auf Lager: Lieferzeit: 1-3 Werktage

The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-m... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Produktbeschreibung

Highlights

High Performance 1" Tweeter
Coated Textile Diaphragm
Braided tinsel leads
Low Damping Ferrofluid Cooling for High Stability
Double Chamber
Neutral face plate design

Product Details

Scan-Speak Discovery D2606/922000 1" Coated Textile Dome Tweeter

PRODUCT SPECIFICATIONS

Nominal Diameter	1"
Power Handling (RMS)	100 Watts
Power Handling (max)	225 Watts
Impedance	6 ohms
Frequency Response	- Hz
Sensitivity	91.4 dB 2.83V/1m
Voice Coil Diameter	1.02"

THIELE-SMALL PARAMETERS

Resonant Frequency (Fs)	850 Hz
DC Resistance (Re)	4.6 ohms
Voice Coil Inductance (Le)	0.04 mH
Mechanical Q (Qms)	1.22
Electromagnetic Q (Qes)	1.07
Total Q (Qts)	0.57
Compliance Equivalent Volume (Vas)	0.0003 ft.³
BL Product (BL)	2.8 Tm
Mechanical Compliance of Suspension (Cms)	0.11 mm/N
Diaphragm Mass Inc. Airload (Mms)	0.33g
Maximum Linear Excursion (Xmax)	0.2 mm
Surface Area of Cone (Sd)	7.1 cm²
