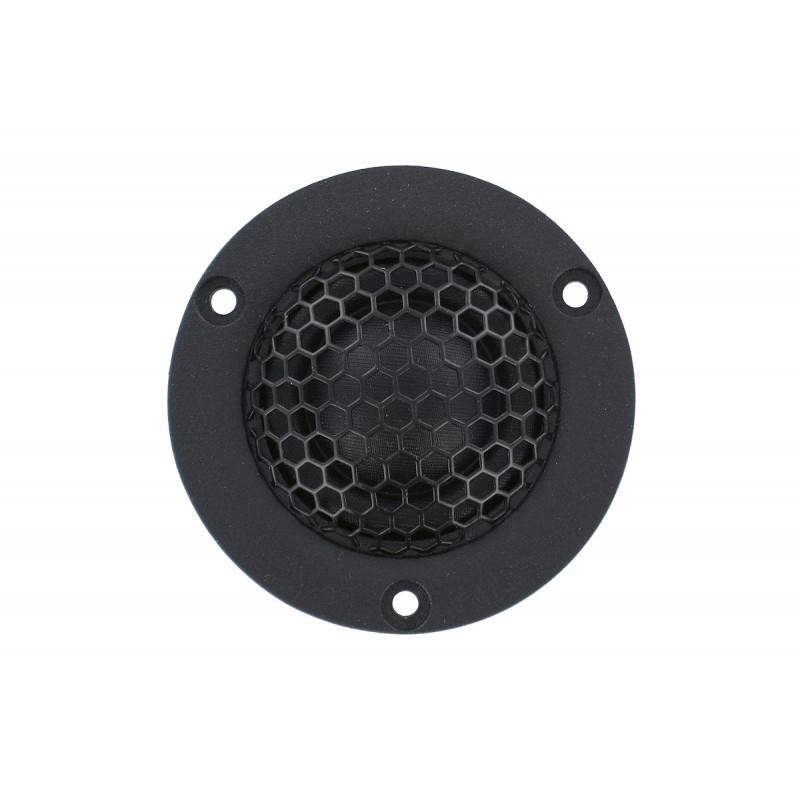

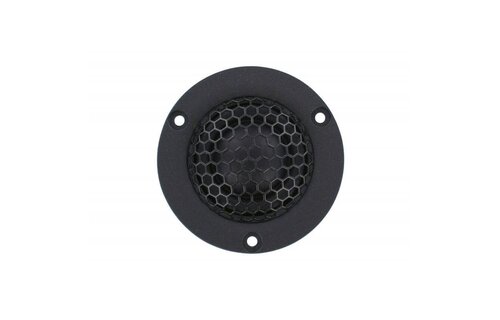

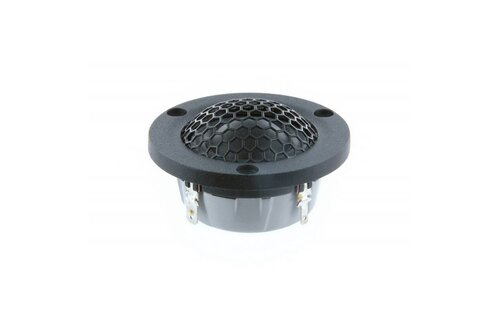

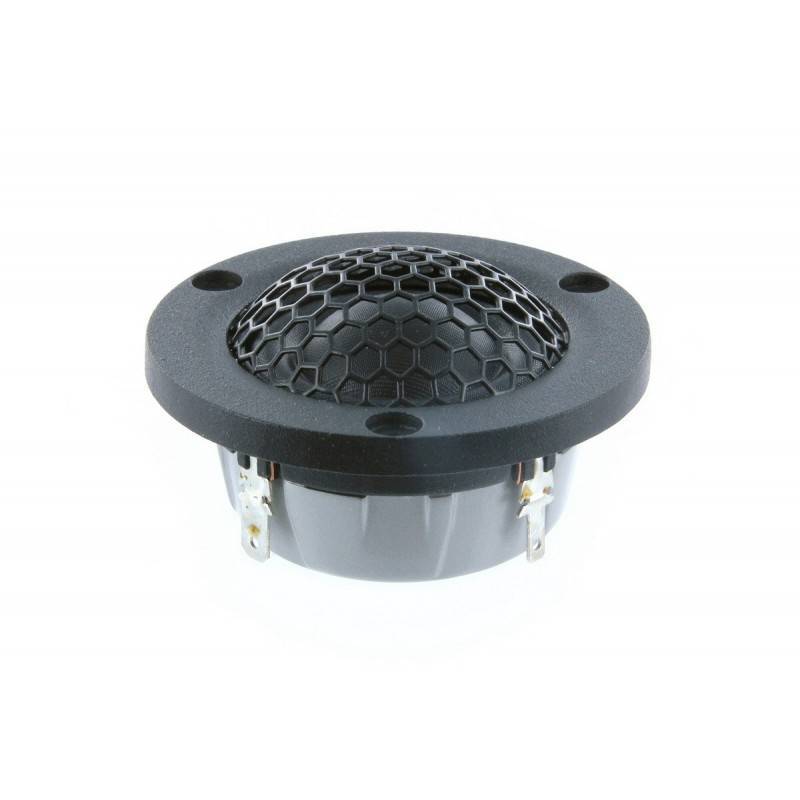

Scan-Speak Illuminator D3004/602000 1" Textile Dome Tweeter
The Illuminator tweeters continue with the heritage of the renowned Revelator series. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.
D3004-602000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.
PRODUCT SPECIFICATIONS
Nominal Diameter | 1" |
Power Handling (RMS) | 50 Watts |
Power Handling (max) | 130 Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 89.2 dB 2.83V/1m |
Voice Coil Diameter | 1.02" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 700 Hz |
DC Resistance (Re) | 3 ohms |
Voice Coil Inductance (Le) | 0.02 mH |
Mechanical Q (Qms) | 4.15 |
Electromagnetic Q (Qes) | 1.60 |
Total Q (Qts) | 1.15 |
Compliance Equivalent Volume (Vas) | 0.0003 ft.³ |
BL Product (BL) | 1.7 Tm |
Mechanical Compliance of Suspension (Cms) | 0.15 mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.35g |
Maximum Linear Excursion (Xmax) | 0.2 mm |
Surface Area of Cone (Sd) | 7 cm2 |
