With a low Fs and high efficiency, the Peerless DA25BG08-06 will be at home in any higher efficiency speaker design. This 1" aluminum dome tweeter produces extremely smooth and accurate sound with extraordinary transient response.
Highlights
Product Details

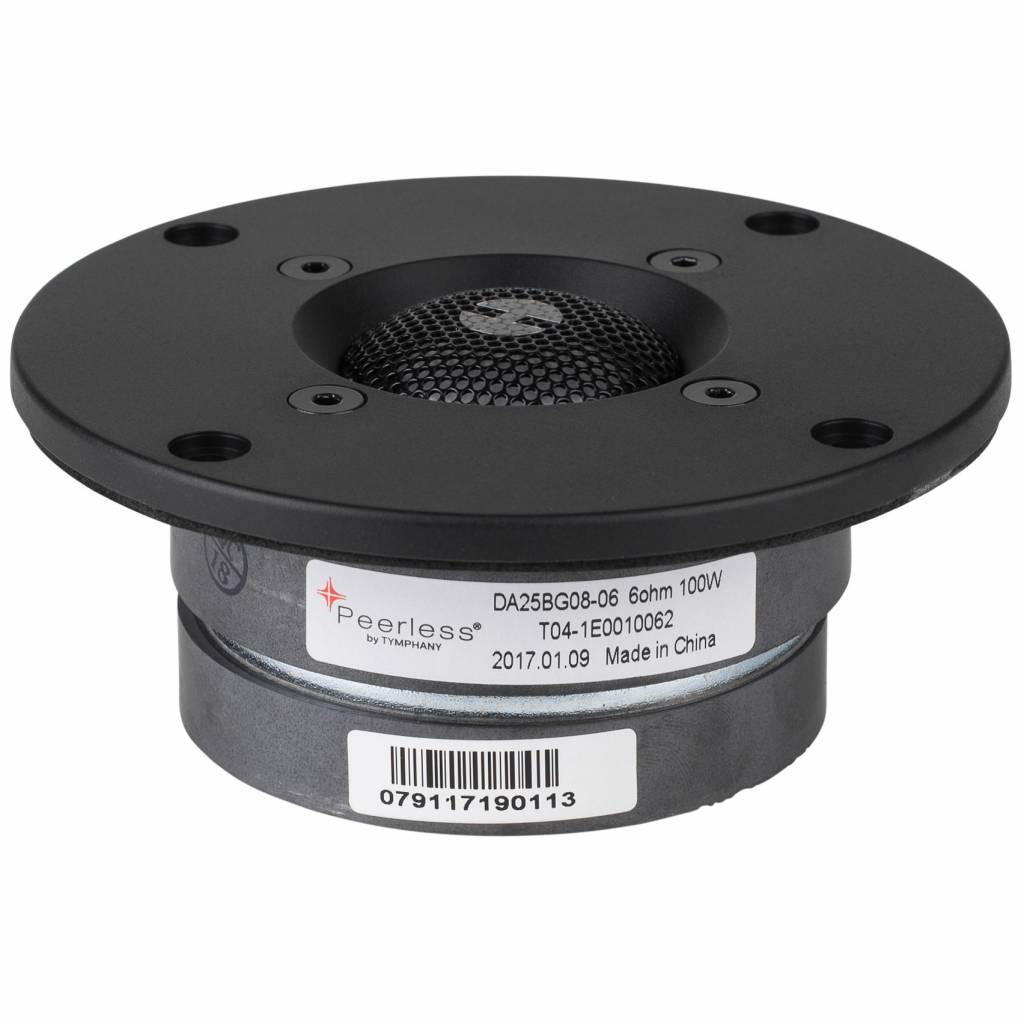

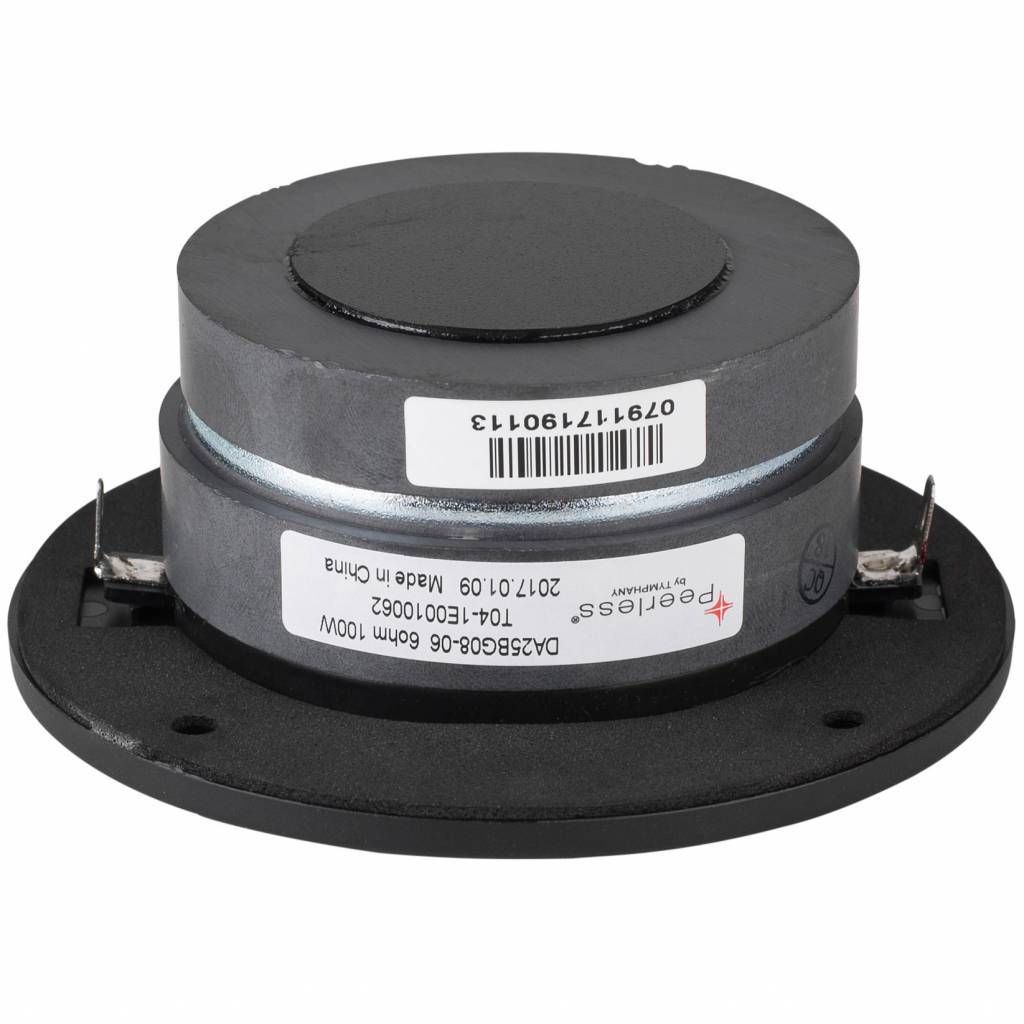

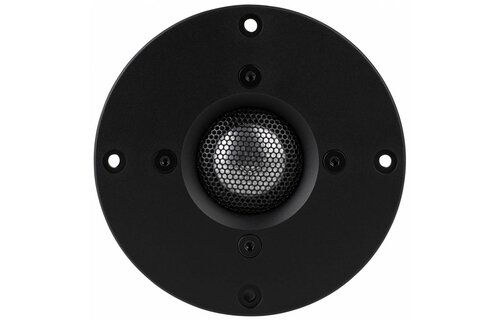

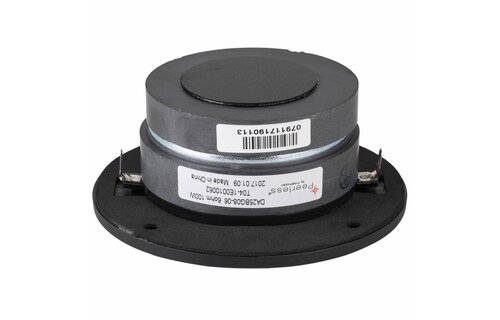

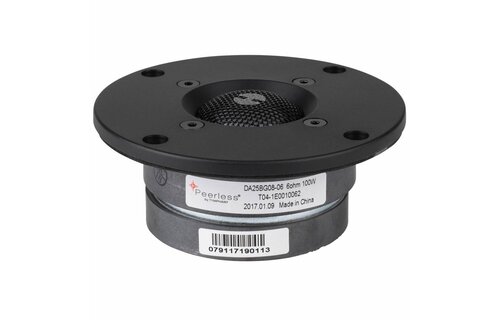

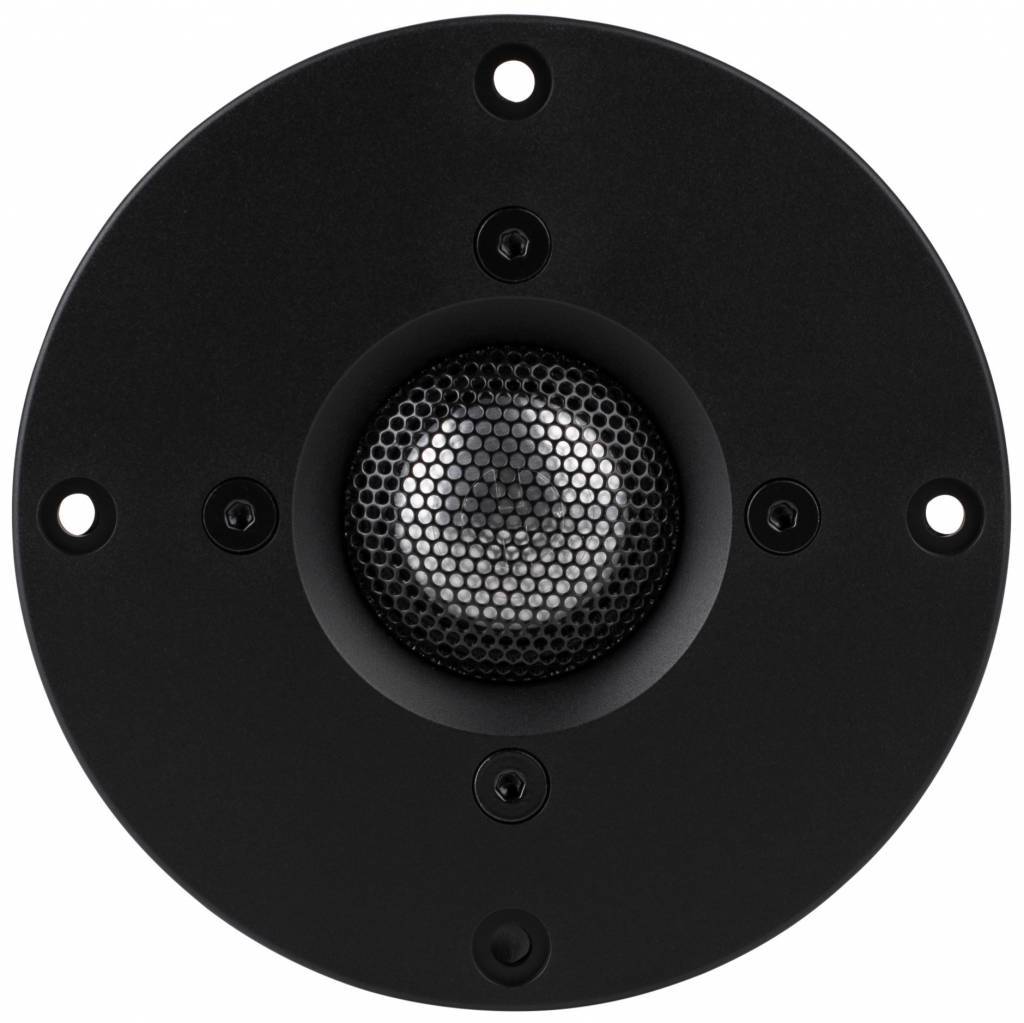

Peerless by Tymphany DA25BG08-06 1" Aluminum Dome Tweeter
This DX family tweeter features a 19mm 4 ohm voice coil, a damped silk diaphragm with large surround roll to produce a low resonant frequency, and a ferrite magnet motor which adds heat sinking for power handling capacity. The faceplate features recessed mounting holes to minimize reflections.
PRODUCT SPECIFICATIONS
Tweeter Type | Metal Dome |
Cone / Dome Diameter | 1" |
Impedance | 6 ohms |
Power Handling (RMS) | 100 Watts |
Frequency Response | 2000 to 20,000 Hz |
Sensitivity | 93.5 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 721 Hz |
DC Resistance (Re) | 5.2 ohms |
Voice Coil Inductance (Le) | 0.02 mH |
Mechanical Q (Qms) | 1.89 |
Electromagnetic Q (Qes) | 0.7 |
Total Q (Qts) | 0.51 |
MOUNTING INFORMATION
Overall Outside Diameter | 4.09” |
Cutout Diameter | 2.875” |
Depth | 1.73" |
