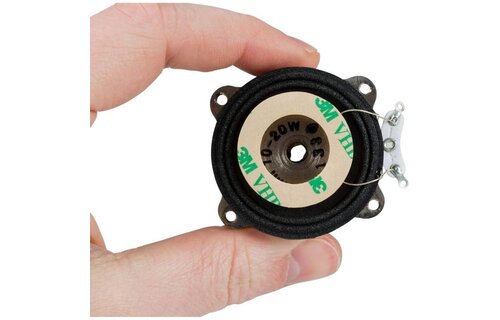

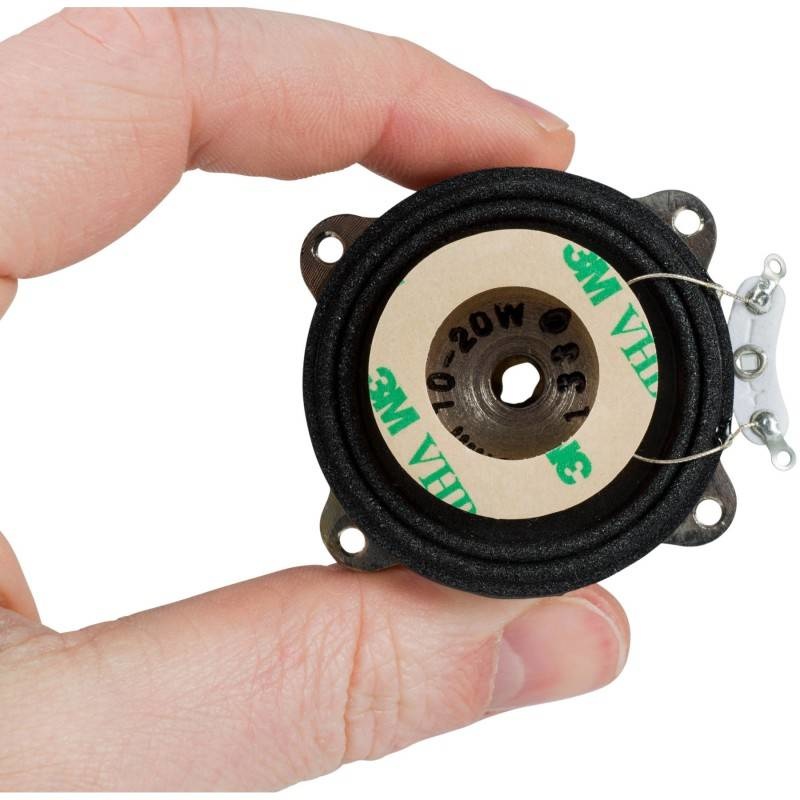

The DAEX25SHF 25 mm steered high flux exciter is one of the more powerful designs in Dayton Audio's line of exciters. A pre-attached 3M VHB adhesive ring combines with four screw-down mounting tabs for maximum energy transfer.
Highlights
- High output exciter design
- Specially designed neodymium motor and proprietary 2-layer voice coil
- 3M™ VHB™ adhesive ring with four mounting holes
- Low inductance motor for extended response
Product details

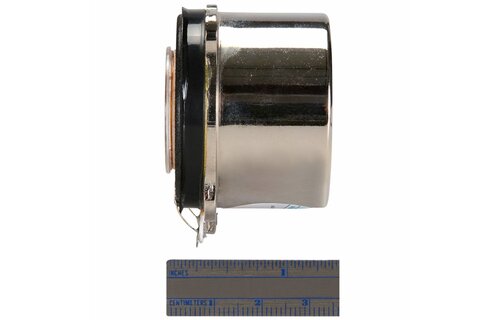

Dayton Audio DAEX25SHF-4 Steered High Flux 25mm Exciter 20W 4 Ohm

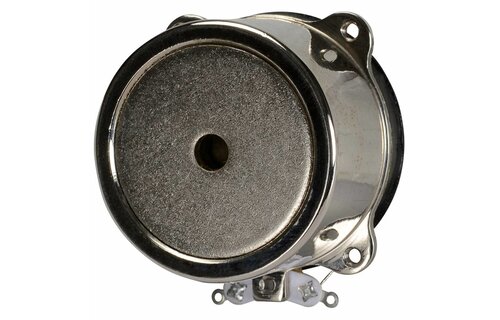

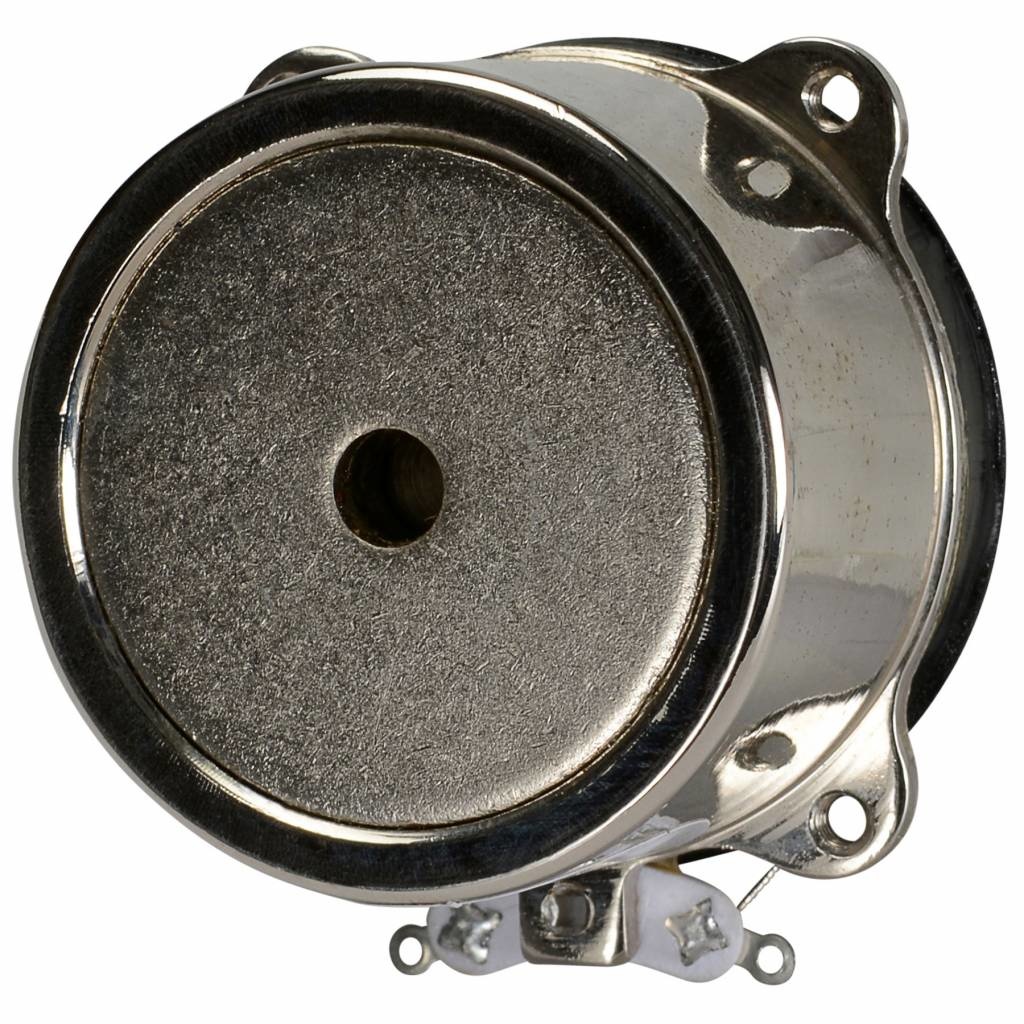

Dayton Audio's DAEX25SHF-4 steered high flux exciter can generate a force 4 times greater than most standard sound exciters. It has a specially designed neodymium motor system that imparts strong forces on even the most rigid surface for maximum loudness.
For use with small, Class D amplifiers, the steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance.

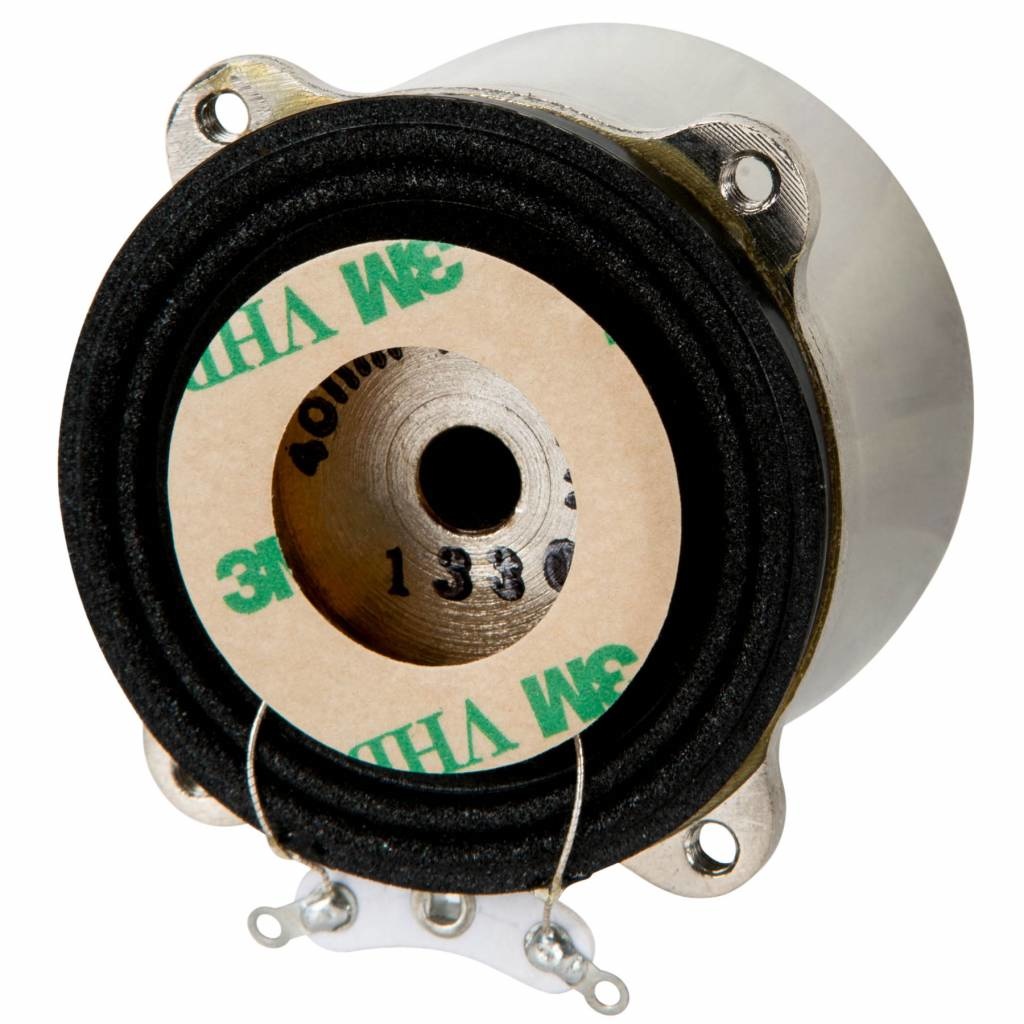

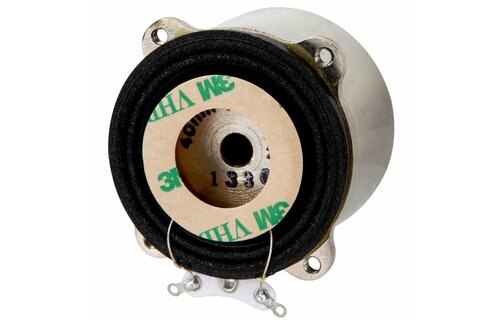

Four screw holes are integrated into the exciter's shell and combine with a 3M VHB (Very High Bond) adhesive, permitting this exciter to be securely coupled to a wide range of materials, even upside-down mounting and attaching to moving objects. Two solder tabs offer quick, permanent wire attachment.
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

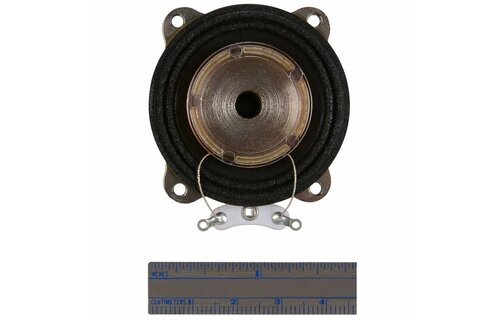

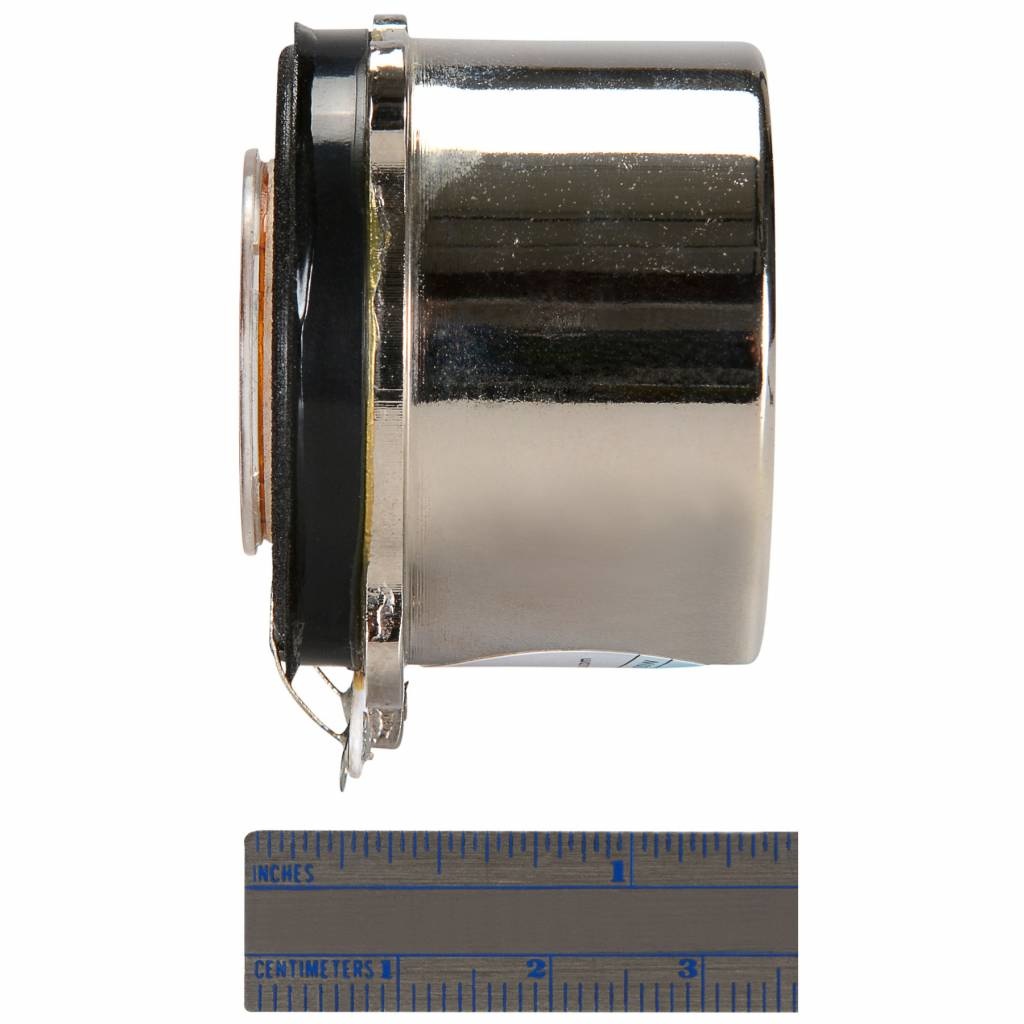

Specifications: • Power handling: 20 watts RMS • VCdia: 25 mm • Nominal impedance: 4 ohms • Re: 4.3 ohms • Le: 0.41 mH • Fs: 365 Hz • Dimensions: 2.15" (54.5 mm) dia. x 1.40" (35.5 mm) H • Adhesive dimensions: 0.62" (15.7 mm) outside diameter • Weight: 268.2 grams.
To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.
