For turning larger surfaces into speakers, and more bass output, Dayton Audio's DAEX25TP-4 features three extended arms. Cooling vents draw air across the propietary voice coil for higher power handling.
Highlights
- Unique, three arm design for exciting a large surface
- Pre-applied 3M™ VHB™ adhesive for quick, secure installation
- Rare-earth neodymium motor and a proprietary voice coil
- 4-ohm impedance for use with small, Class D amplifiers
- 20 watt RMS power handling for high output
Product details

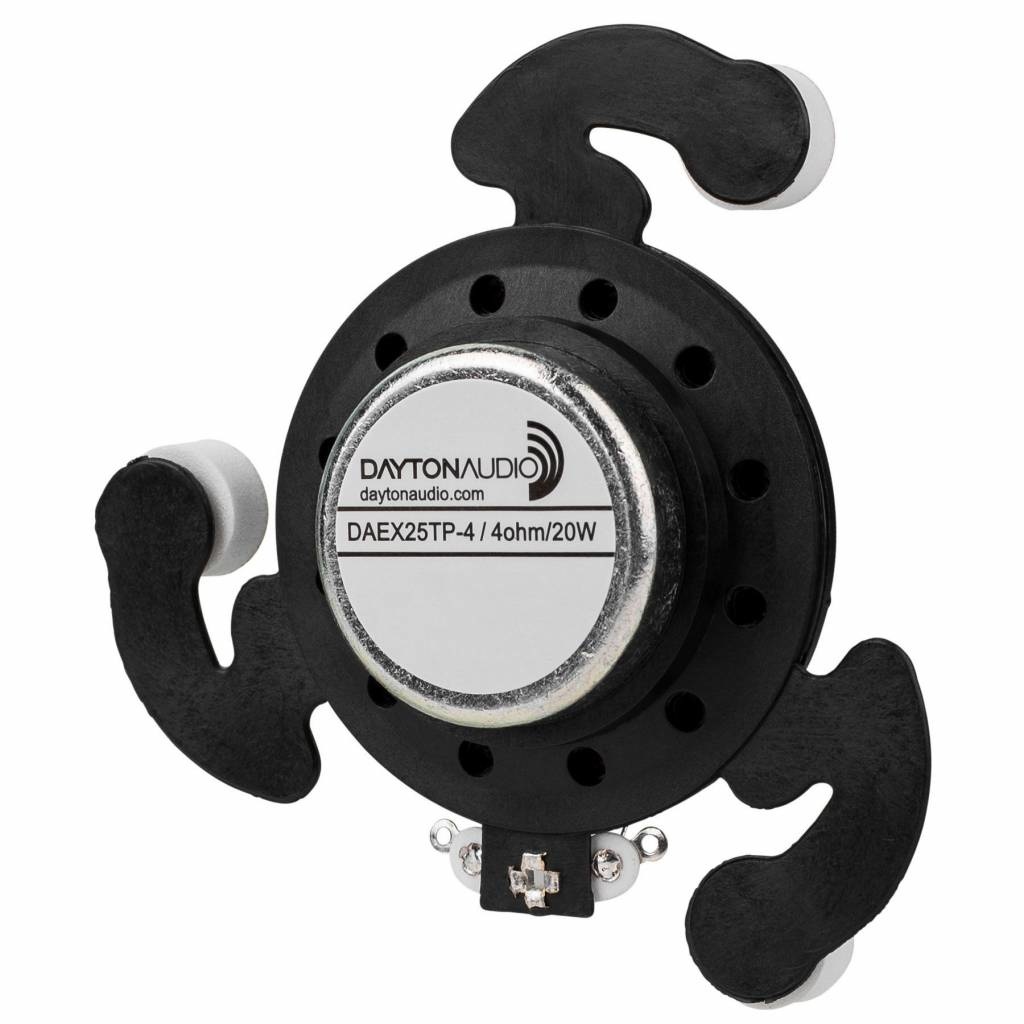

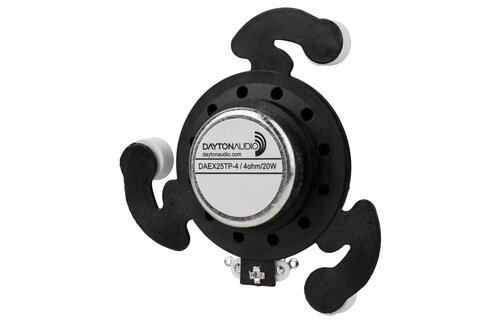

Dayton Audio DAEX25TP-4 Tripod 25mm Exciter 20W 4 Ohm
Dayton Audio's DAEX25TP-4 tripod exciter is built with three arms that extend out from the main exciter body, which allows this exciter to transfer sound to a much larger surface for lower frequency response extension (more bass).

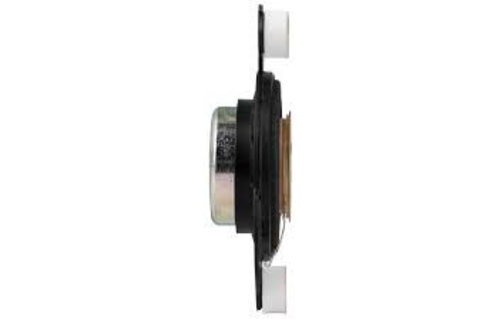

A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. The 1" voice coil, and cooling vents, allows for more input power for higher output applications while maintaining a slim-line form factor.

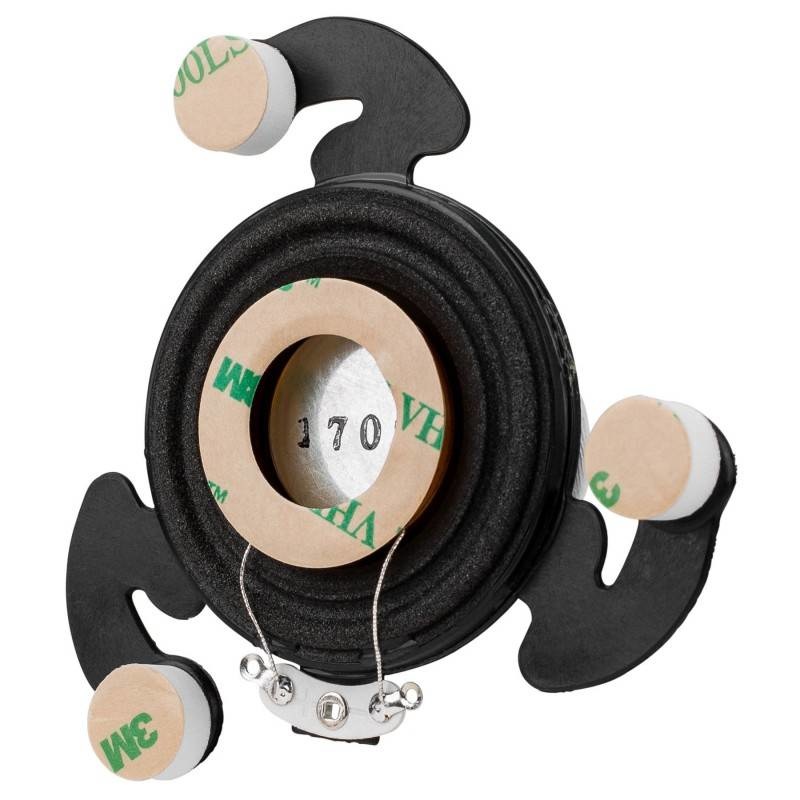

To ensure maximum acoustic energy transfer between the transducer and the surface to which it is attached, 3M VHB (Very High Bond) adhesive is pre-applied to the main body, and the three arms ... just peel and stick! Two PCB solder points keep installation and wiring as compact as possible.
Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.
To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Understanding & Using Dayton Audio Exciters.
