Add a professional finish to your Dayton Audio KAB amp board projects with this KAB panel accessory kit.

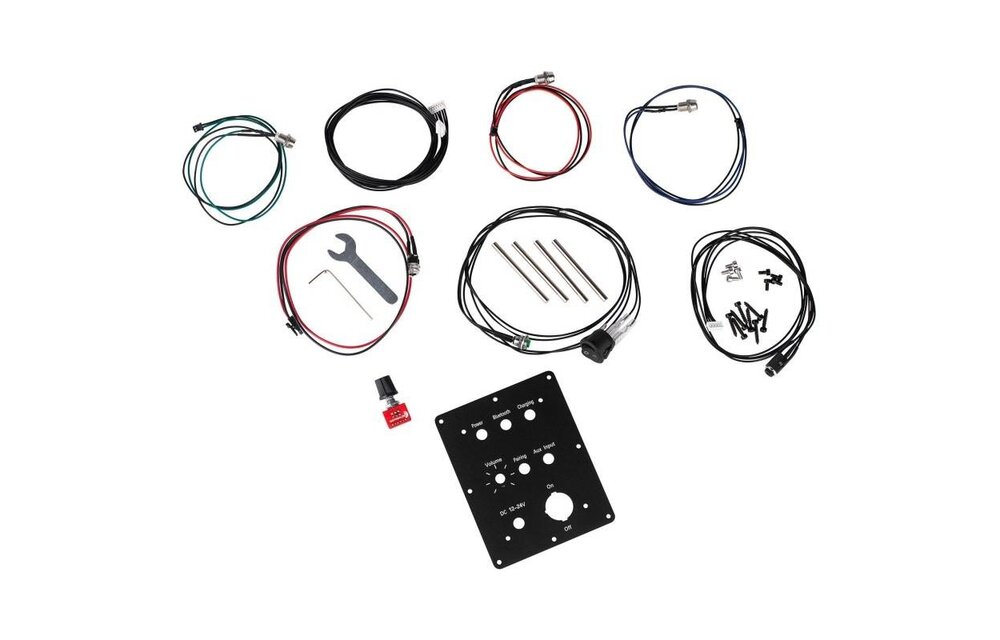

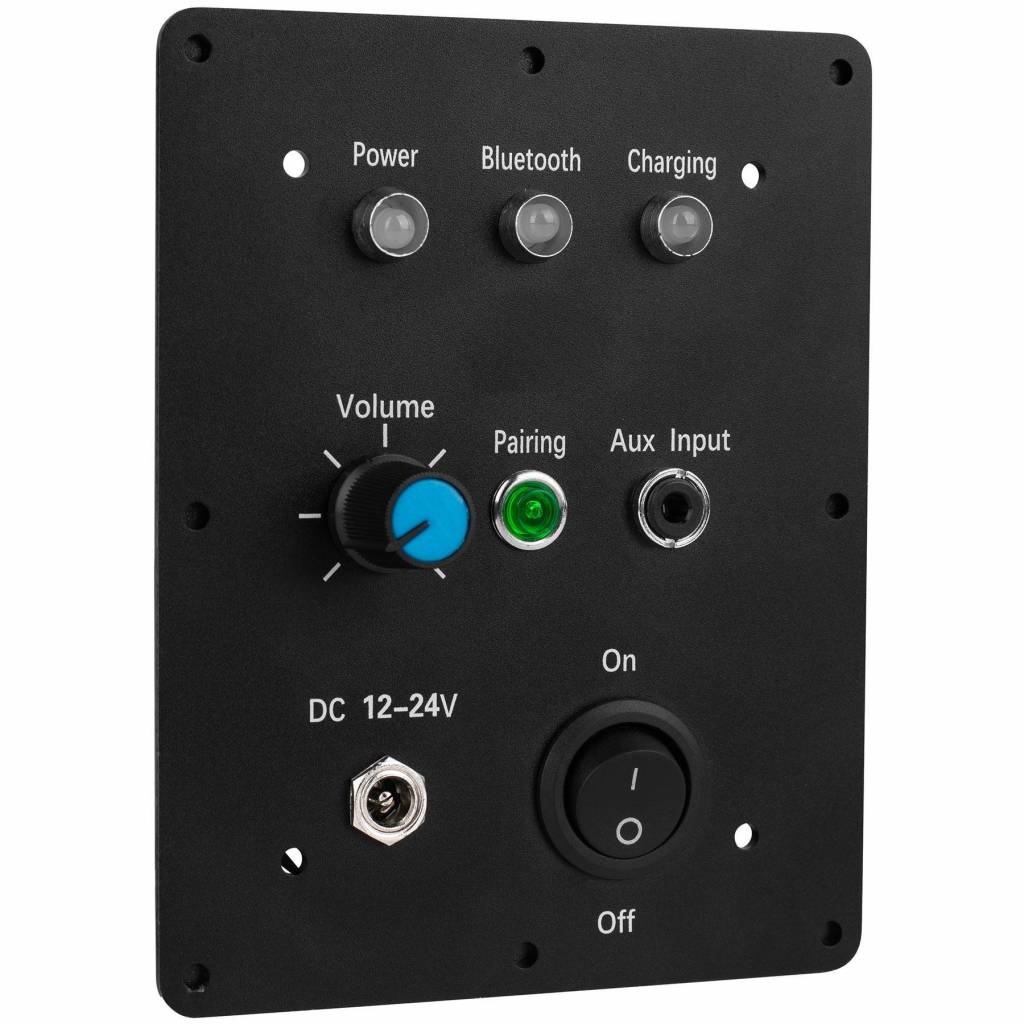

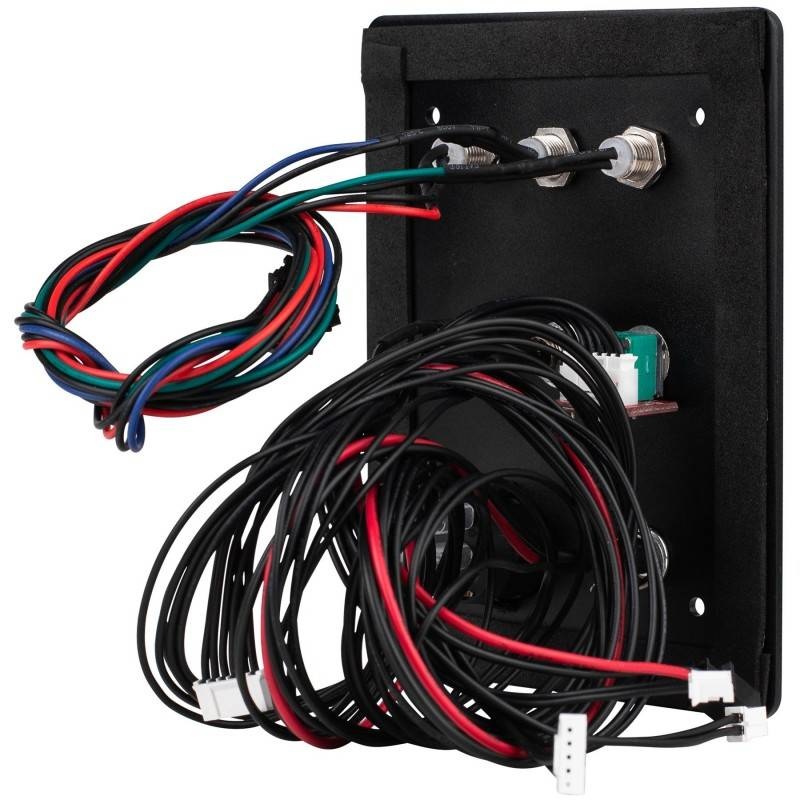

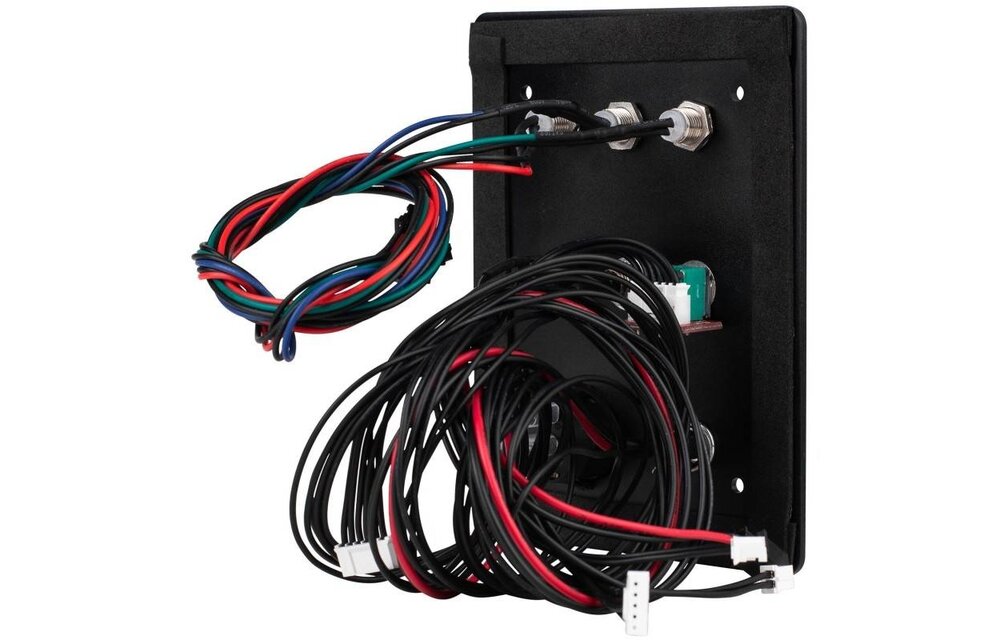

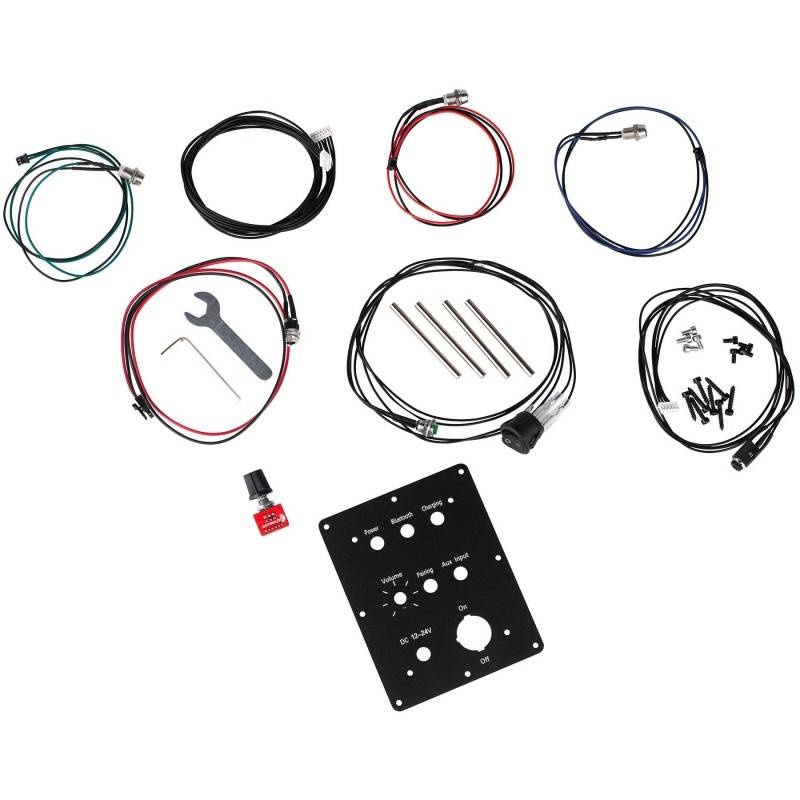

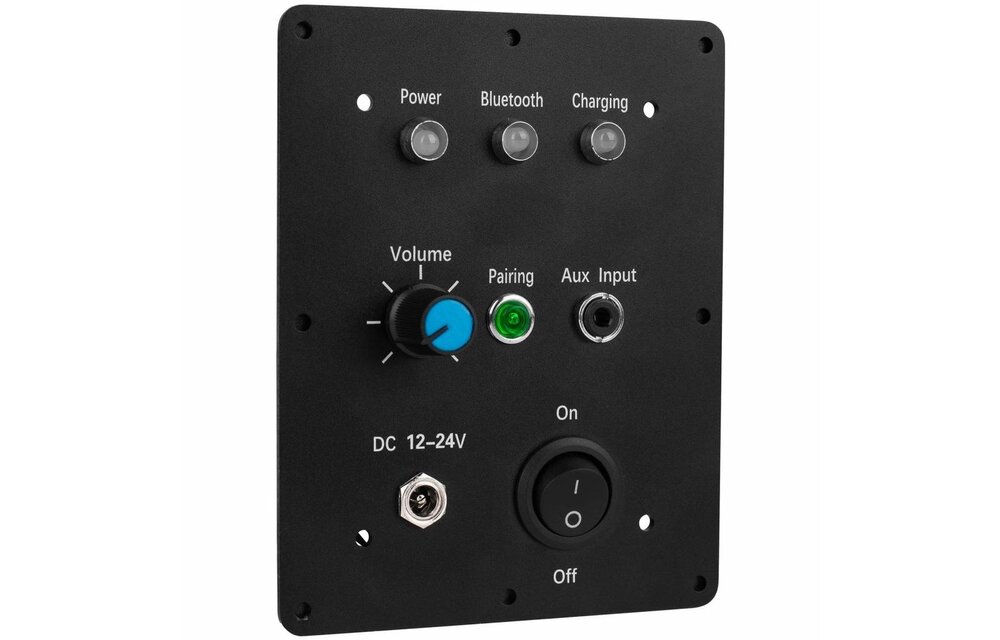

Give your Dayton Audio KAB sound projects a professional finish with the KAB-PMV3 Panel Mount Kit. It includes the function and LED light kit needed to get your KAB amp board ready for power. It also includes a DC coax 2.1 x 5.5 mm power jack, a rocker switch, standoffs, gasket tape and mounting screws to help complete the project. Each component plugs directly in the board without having to solder. Predrilled holes make installation a breeze with silk screen white labels to identify each components location and function. The standoffs hold the panel and the KAB board firmly together for one piece mounting. Gasket tape and screws securely mount the panel to your project.
Parts | Description | Specification | Qty |
Panel | Black metal | 4.75" H x 3.76" W x 0.09" D (120 x 95 x 2.3 mm) with screw hole spacing 4.37" and 3.39" (111 x 86 mm) apart for mounting | 1 |
Screws | Black for front of standoff | M3 x 6 mm | 4 |
Screws | Silver for rear of standoff | M3 x 6 mm | 4 |
Standoffs | Silver | M3 x 60 mm | 4 |
Screws | Black wood screws for mounting | M3 x 16 mm | 8 |
LEDs | Red, green, and blue with metal socket and cables | 5 mm with 20" (500 mm) leads | 3 |
Potentiometer | Volume control, knob, and cable | 1K ohm with 20" (500 mm) leads | 1 |
Push button switch | Push button and cable for Bluetooth pairing | SPST mementary N.O. with 20" (500 mm) leads | 1 |
Stereo phone Jack | Aux input and cable | 3-conductor 3.5 mm with 20" (500 mm) leads | 1 |
DC coax jack | DC input and cable | 2.1 x 5.5 mm with 20" (500 mm) leads | 1 |
Rocker Switch | On-Off switch and cable | SPST with 20" (500 mm) leads | 1 |
Gasket tape | Gasket tape for underneath the outer diameter of the panel | 4.61" L x 0.39" W (117 x 10 mm) | 2 |
Gasket tape | Gasket tape for underneath the outer diameter of the panel | 3.47" L x 0.39" W (88 x 10 mm) | 2 |
