At a depth of less than 3.4", Dayton Audio's LS10-44 10" low profile subwoofer fits into shallow spaces that ordinary subs wouldn't dream of attempting! Dual 2" 4 ohm coils provide flexible wiring, while the flat cone and innovative suspension support 10 mm of Xmax!

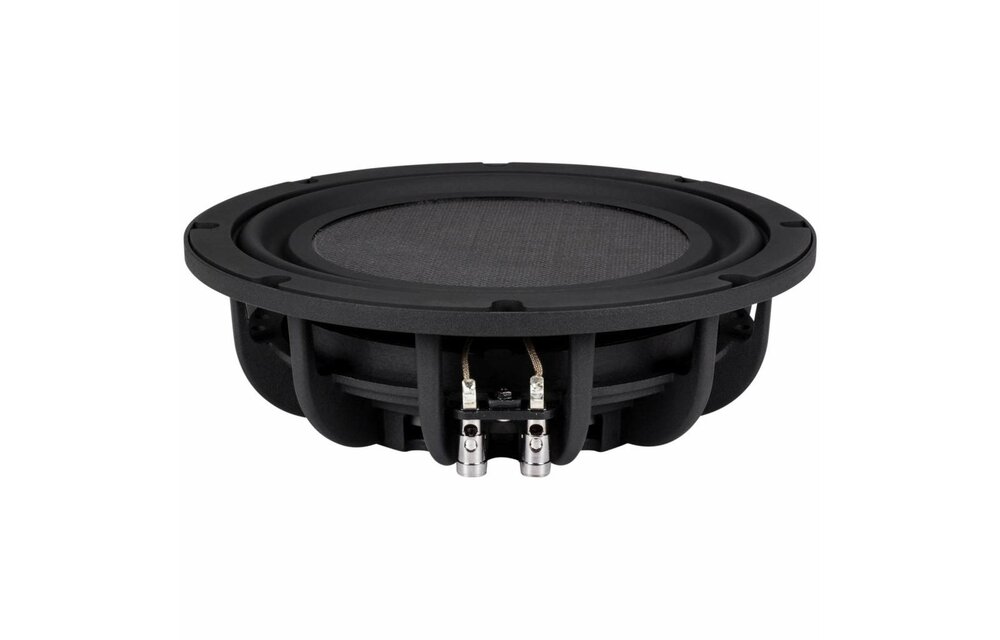

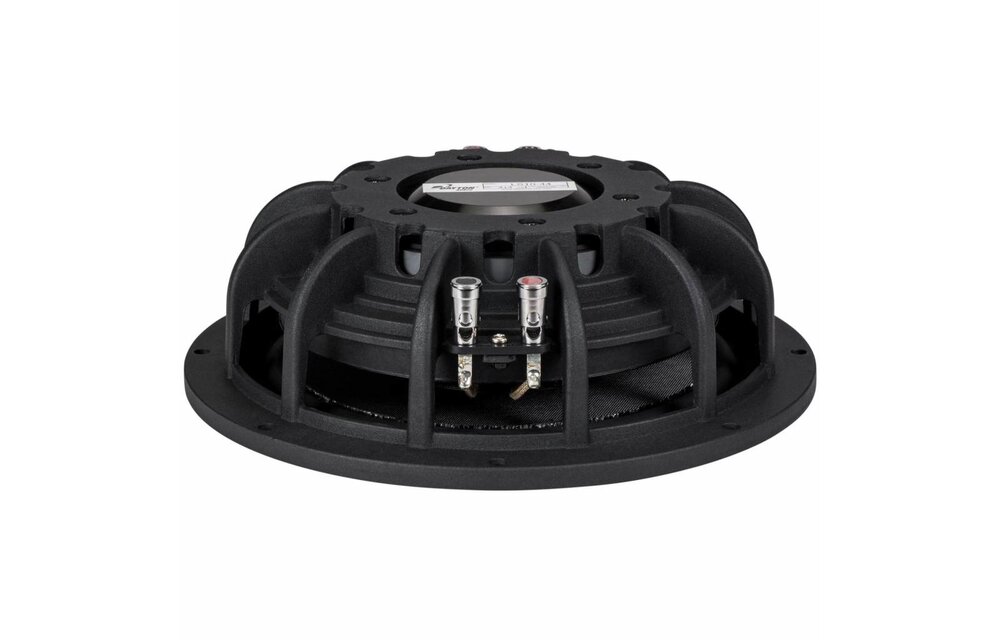

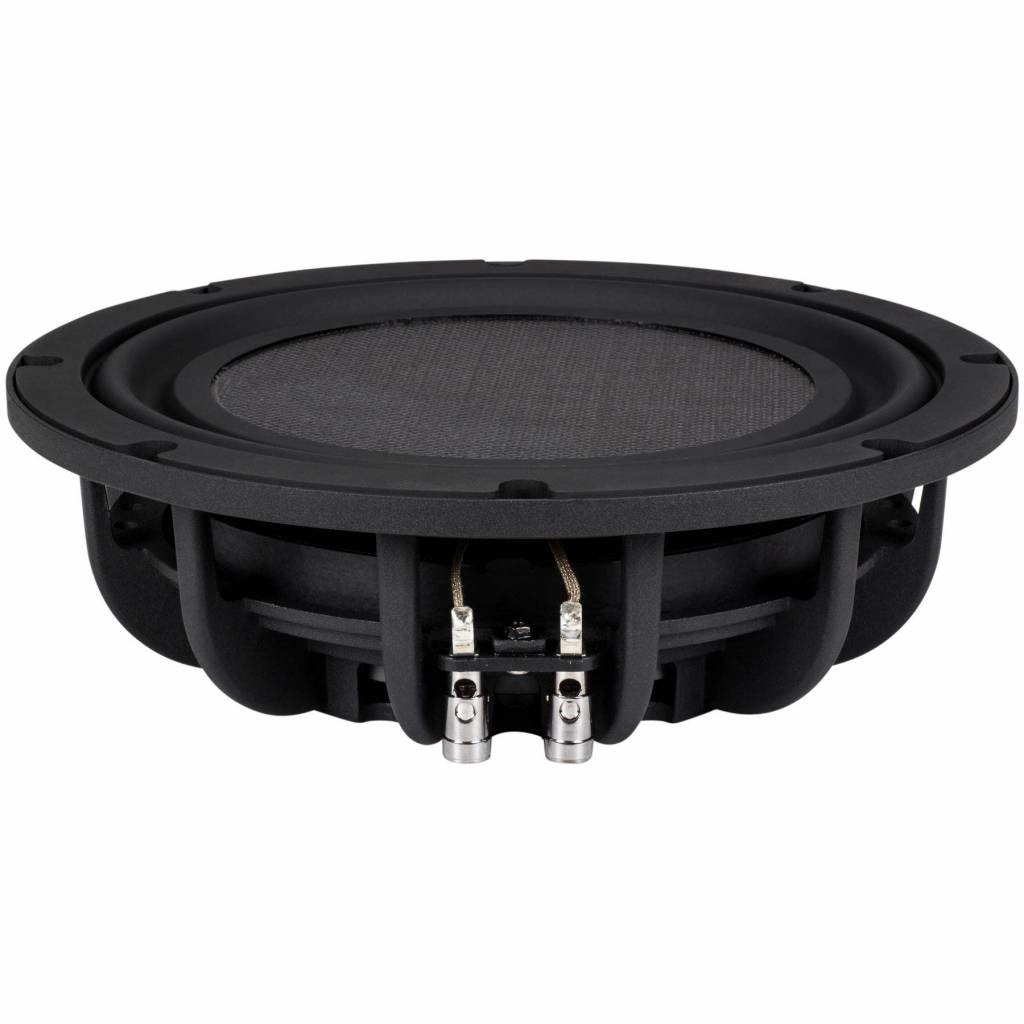

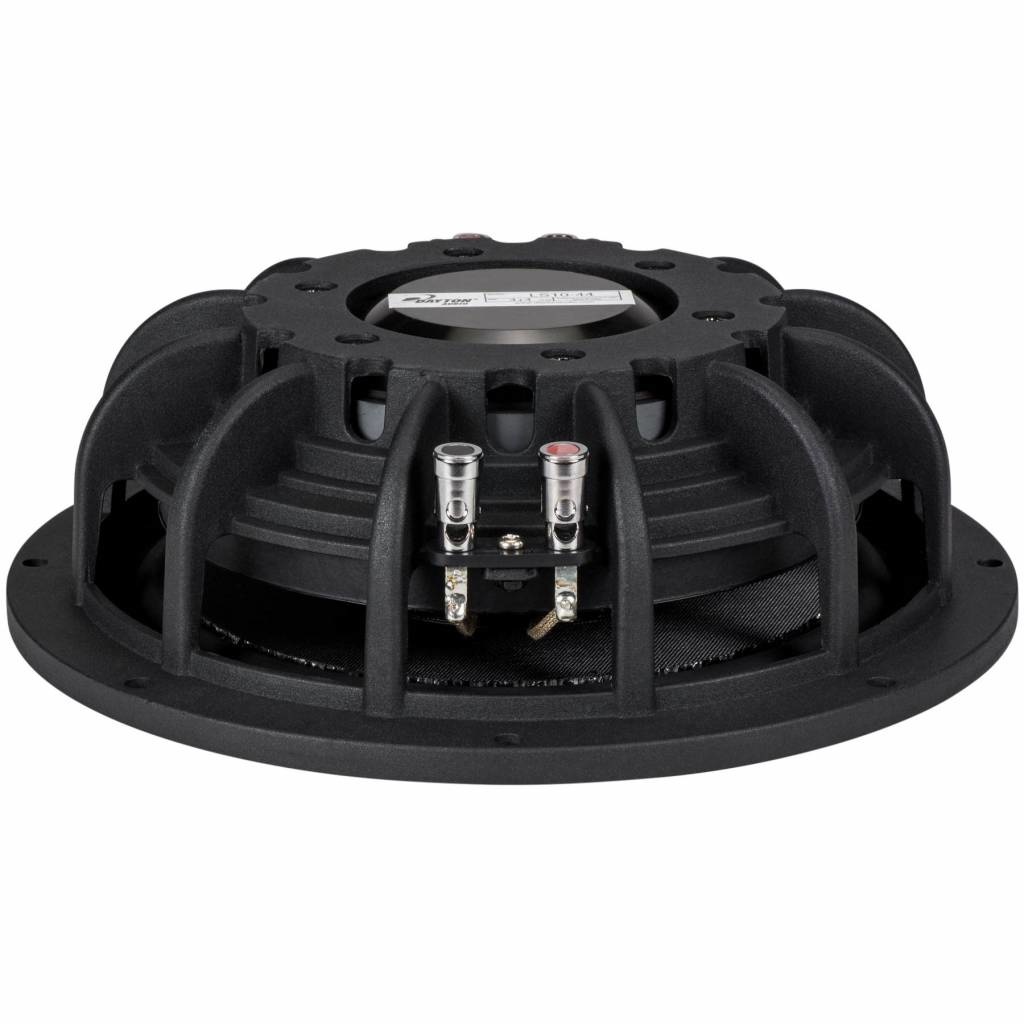

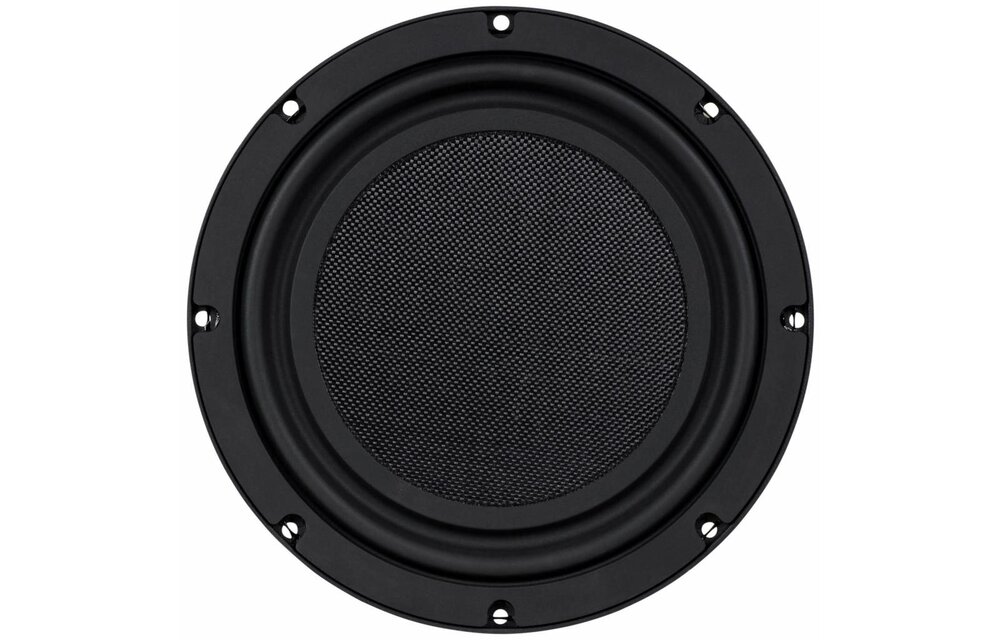

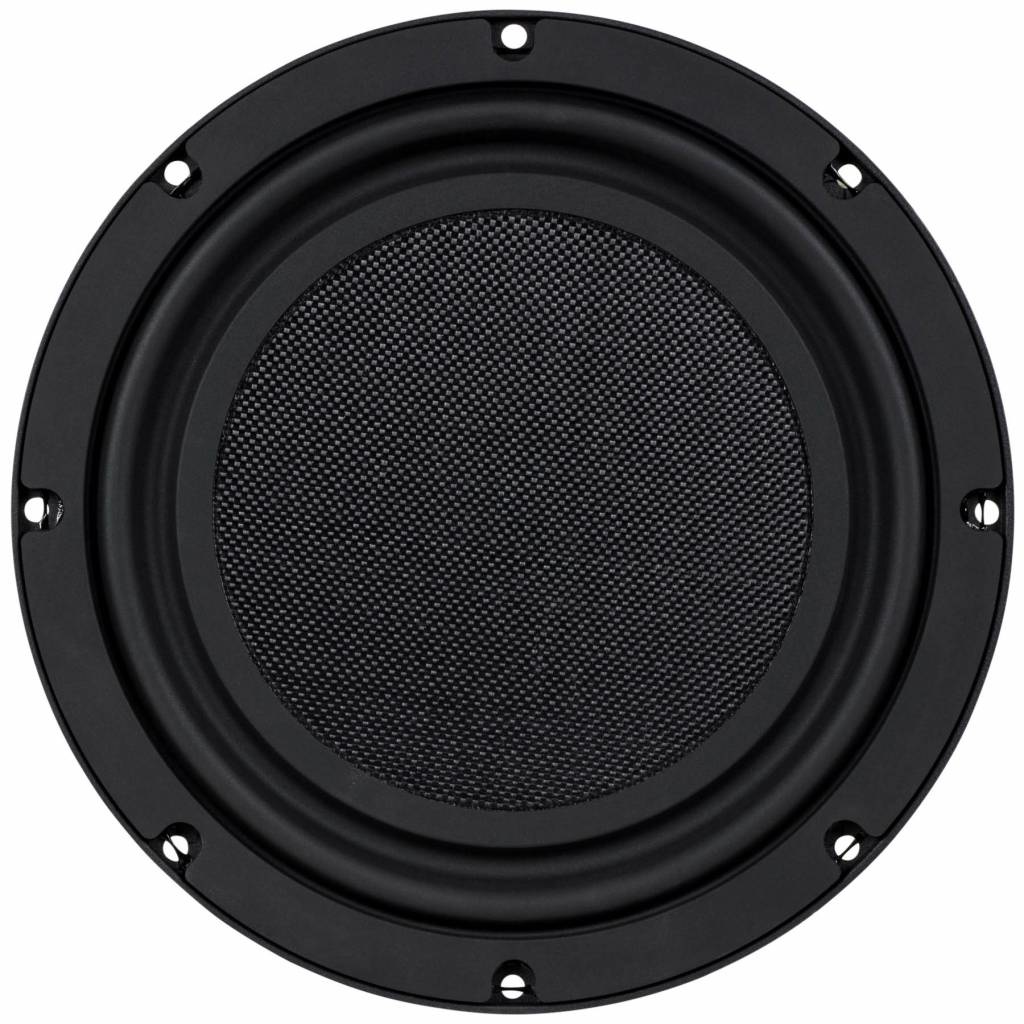

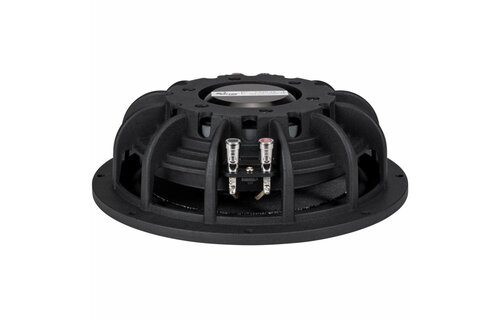

Dayton Audio LS10-44 10" Low Profile Subwoofer Dual 4 Ohm
Back with a new and improved design, Dayton Audio's shallow subwoofers let you put more bass into less space! The new LS10-44 Low Profile Subwoofer from Dayton Audio provides over 10 mm of controlled excursion, for bass that hits hard and goes deep -- even in places ordinary subwoofers just won't fit! These drivers are perfect for installation in walls, floors, and ceilings, or in limited-clearance automotive applications like the narrow space behind pickup truck seats. They might even fit under your chair or behind your sofa!
Innovative design makes the shallow form factor of the LS Series low profile subwoofers possible. A flat, rigid piston made of aluminum honeycomb with glass fiber skins replaces the conventional cone of most subwoofers, and a balanced double-roll surround design maximizes the stability of the moving symmetrical motion and minimizes distortion. The LS10-44 also features dual heavy-gauge aluminum shorting rings for low inductance and fast, impactful bass. Lastly, a 6-layer dual voice coil ensures maximum available force from the compact motor, featuring high-grade ceramic ferrite magnetic material, and enables 2 ohm or 8 ohm wiring.
Nothing has been sacrificed in creating these truly next-generation shallow subwoofers, capable of over 10 mm of linear excursion from an ultra-slim package. Trust the LS Series subwoofer drivers to deliver years of rugged, long-lasting enjoyment, wherever you install them. Wherever you would like to add more bass, Dayton Audio has you covered.
Note: All parameters derived with voice coils wired in series.
PRODUCT SPECIFICATIONS
Nominal Diameter | 10" |
Power Handling (RMS) | 250 Watts |
Power Handling (max) | 500 Watts |
Impedance | 4+4 ohms |
Frequency Response | 30 to 300 Hz |
Sensitivity | 86.5 dB 2.83V/1m |
Voice Coil Diameter | 2" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 34.3 Hz |
DC Resistance (Re) | 7.4 ohms |
Voice Coil Inductance (Le) | 5.25 mH |
Mechanical Q (Qms) | 5.15 |
Electromagnetic Q (Qes) | 0.47 |
Total Q (Qts) | 0.43 |
Compliance Equivalent Volume (Vas) | 1.08 ft.³ |
Mechanical Compliance of Suspension (Cms) | 0.16 mm/N |
BL Product (BL) | 21.1 Tm |
Diaphragm Mass Inc. Airload (Mms) | 132g |
Surface Area of Cone (Sd) | 366.4 cm² |
MATERIALS OF CONSTRUCTION
Cone Material | Fiberglass |
Surround Material | Rubber |
Basket / Frame Material | Cast Aluminum |
Magnet Material | Ferrite |
MOUNTING INFORMATION
Overall Outside Diameter | 10.75" |
Baffle Cutout Diameter | 9.4375" |
Depth | 3,32" |
Bolt Circle Diameter | 10.125" |
# Mounting Holes | 8 |
OPTIMUM CABINET SIZE (DETERMINED USING BASSBOX 6 PRO HIGH FIDELITY SUGGESTION)
Sealed Volume | 0.45 ft.³ |
Sealed F3 | 63 Hz |
Vented Volume | 1.1 ft.³ |
Vented F3 | 32 Hz |
