Features a ferro fluid cooled aluminum voice coil and a rubber surround. The 1" titanium dome and precision phase lens, provide very natural sounding high frequency reproduction.
Highlights
Product Details

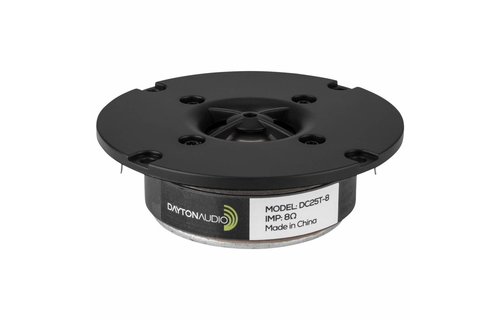

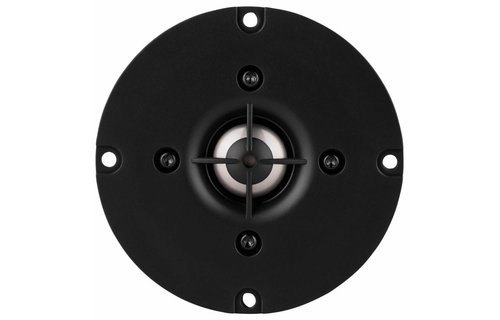

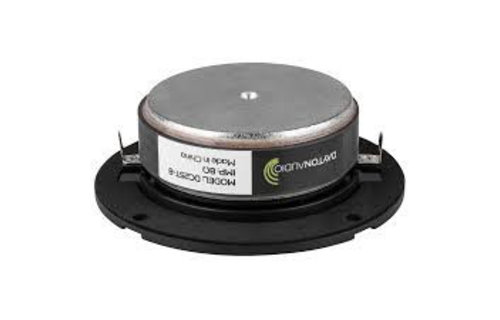

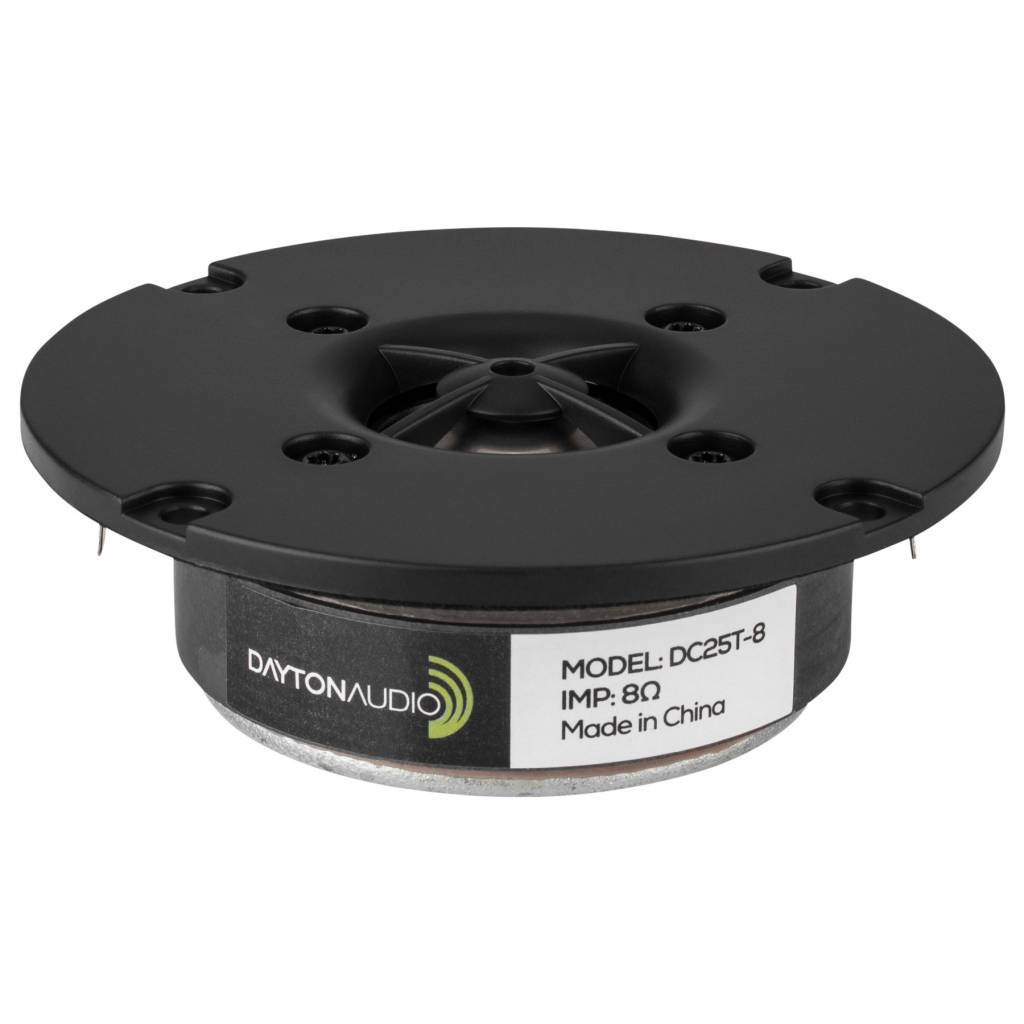

Dayton Audio DC25T-8 1" Titanium Dome Tweeter
Features a ferro fluid cooled aluminum voice coil and a rubber surround. The 1" Titanium dome and precision phase lens, provides very natural sounding high frequency reproduction.
PRODUCT SPECIFICATIONS
Tweeter Type | Metal Dome |
Cone / Dome Diameter | 1" |
Impedance | 8 ohms |
Power Handling (RMS) | 50 Watts |
Frequency Response | 3,000 to 20,000 Hz |
Sensitivity | 93 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1468 Hz |
DC Resistance (Re) | 7.70 ohms |
Voice Coil Inductance (Le) | 0.59 mH |
Mechanical Q (Qms) | 0.58 |
Electromagnetic Q (Qes) | 2.55 |
Total Q (Qts) | 0.47 |
MOUNTING INFORMATION
Overall Outside Diameter | 3.92" |
Cutout Diameter | 2.76" |
Depth | 1.08" |
