Produktbeschreibung

The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction.



Product Details

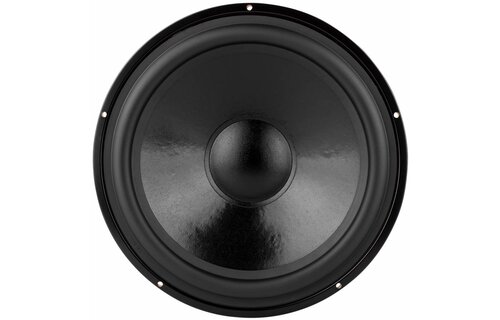

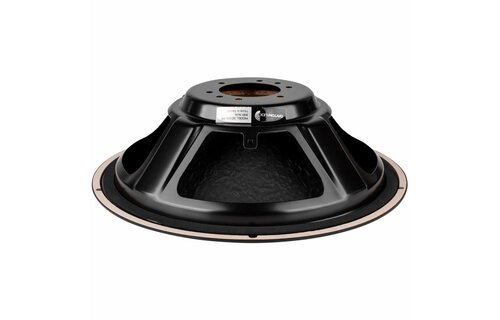

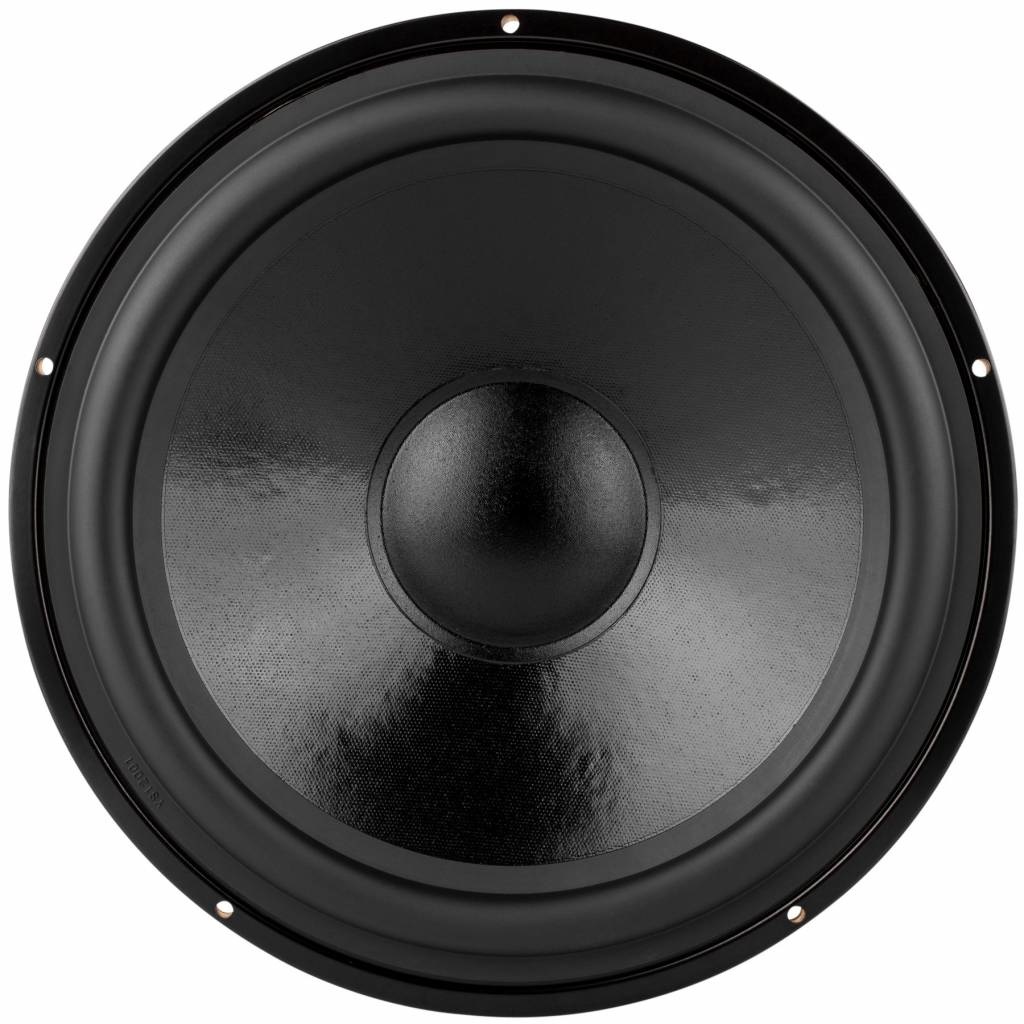

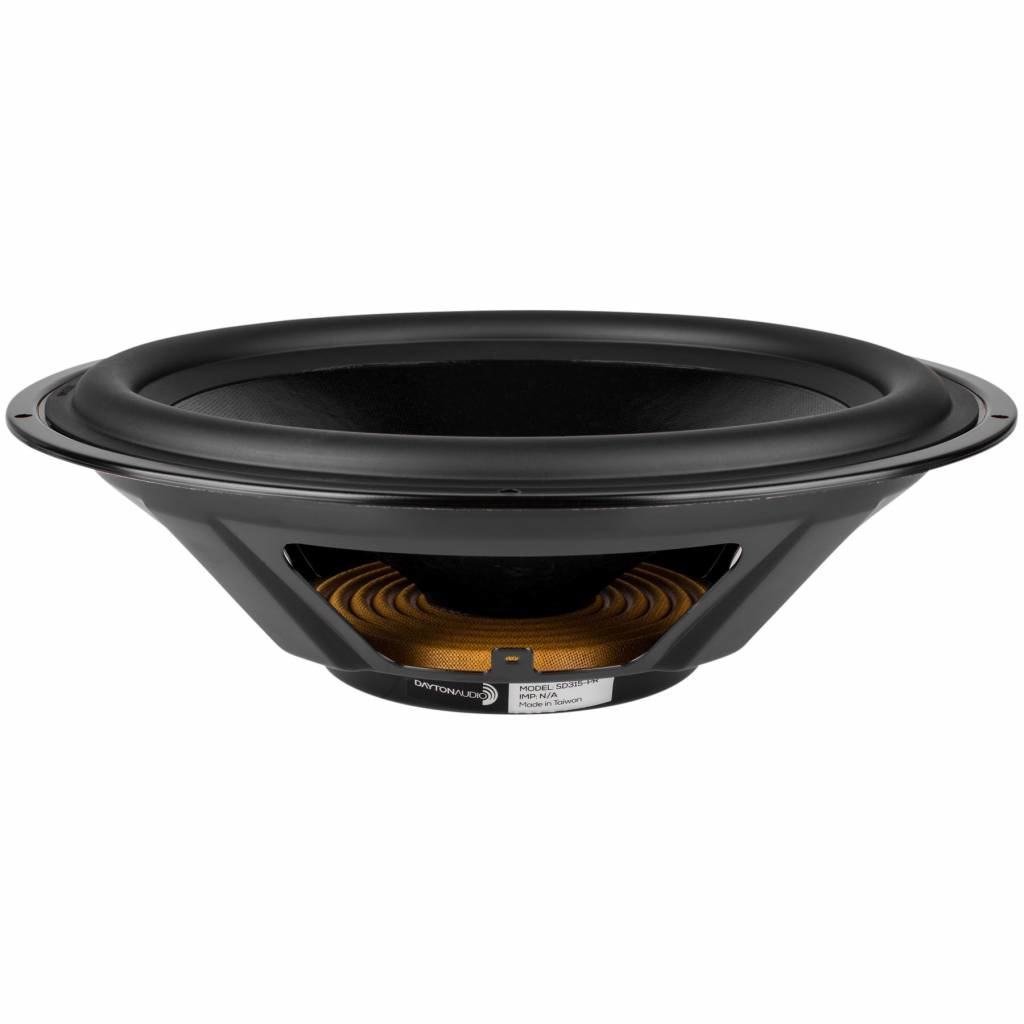

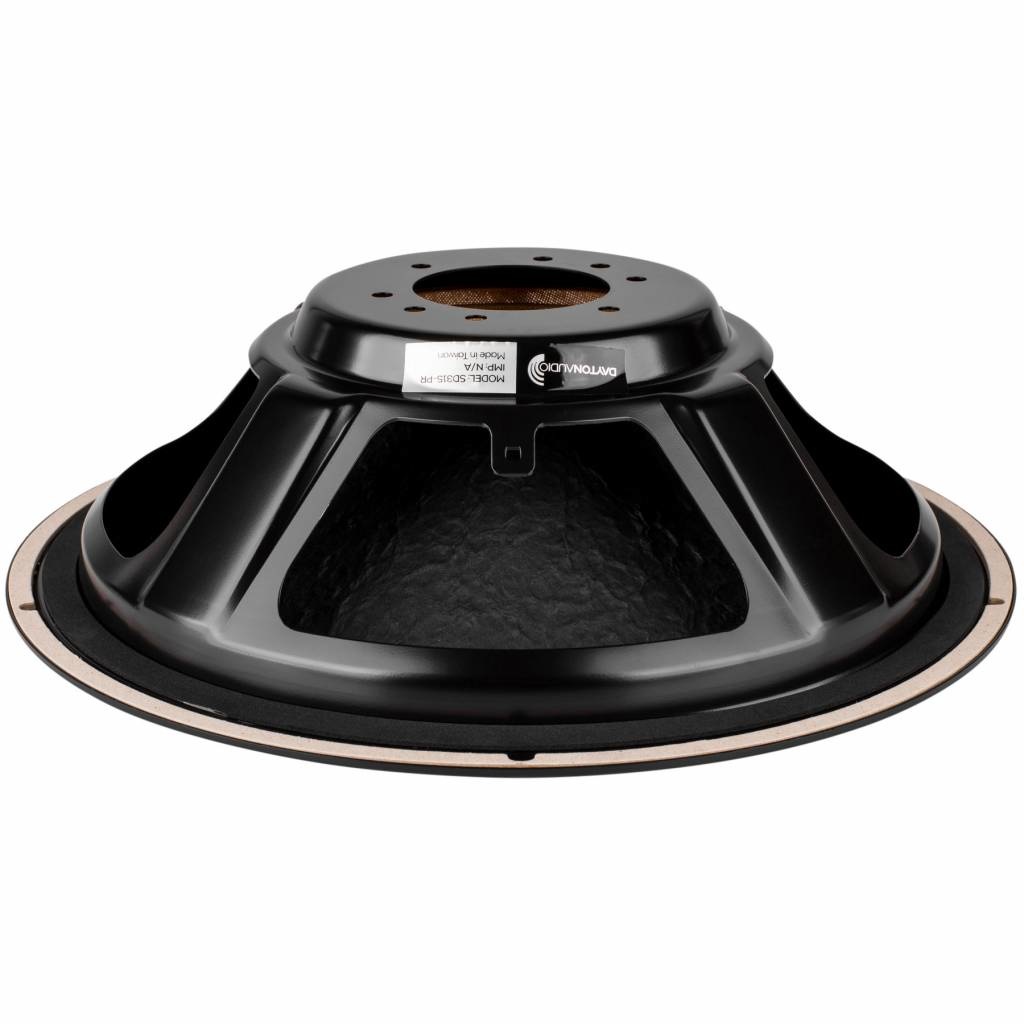

Dayton Audio DS315-PR 12" Passive Radiator



The Dayton Audio Passive Radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, the passives match the Shielded DVC line of subwoofers, with a poly coated paper cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from floor standing two-ways to small active/passive subwoofer systems.



Specifications: • Fs: 17 Hz • Vas: 5.20 cu. ft. • Qms: 3.00 • Cms: 0.45 mm/N • Mms: 200 g • Rms: 7.03 kg/s • Sd: 480 sq. cm. • Xmax: 10 mm • Dimensions: Overall diameter: 12.36", Cutout diameter: 10.71", Depth: 3.50".



Note: Adding mass to the passive radiator will decrease Fs and increase Qms.



Tip: As a general rule the passive radiator(s) should be able to move double the volume of air as the active woofer(s)/subwoofer(s) in the system. For example: A passive radiator system for a 12" woofer/subwoofer that has 10mm of X-max would require 2-12" passive radiators with 10mm of X-max. For single passive radiator systems, it is common to use a passive that is larger than the active woofer(s)/subwoofer(s).

Eigenschaften

Artikelnummer:
DS315-PR

Bewertungen

0 from 5Based on 0 reviews
Eigene Bewertung erstellen

Es wurden noch keine Bewertungen für dieses Produkt abgegeben..

DS315-PR 12" Passive Radiator
€ 40,04
€ 48,45
DS315-PR 12" Passive Radiator
2 Auf Lager
Zum Warenkorb hinzufügen
