Tymphany's H26TG45-06 horn loaded treated silk dome tweeter features smooth response from 2,000 to 20,000 Hz and high efficiency, making it an excellent choice for any high efficiency speaker system.
Highlights
Product Details

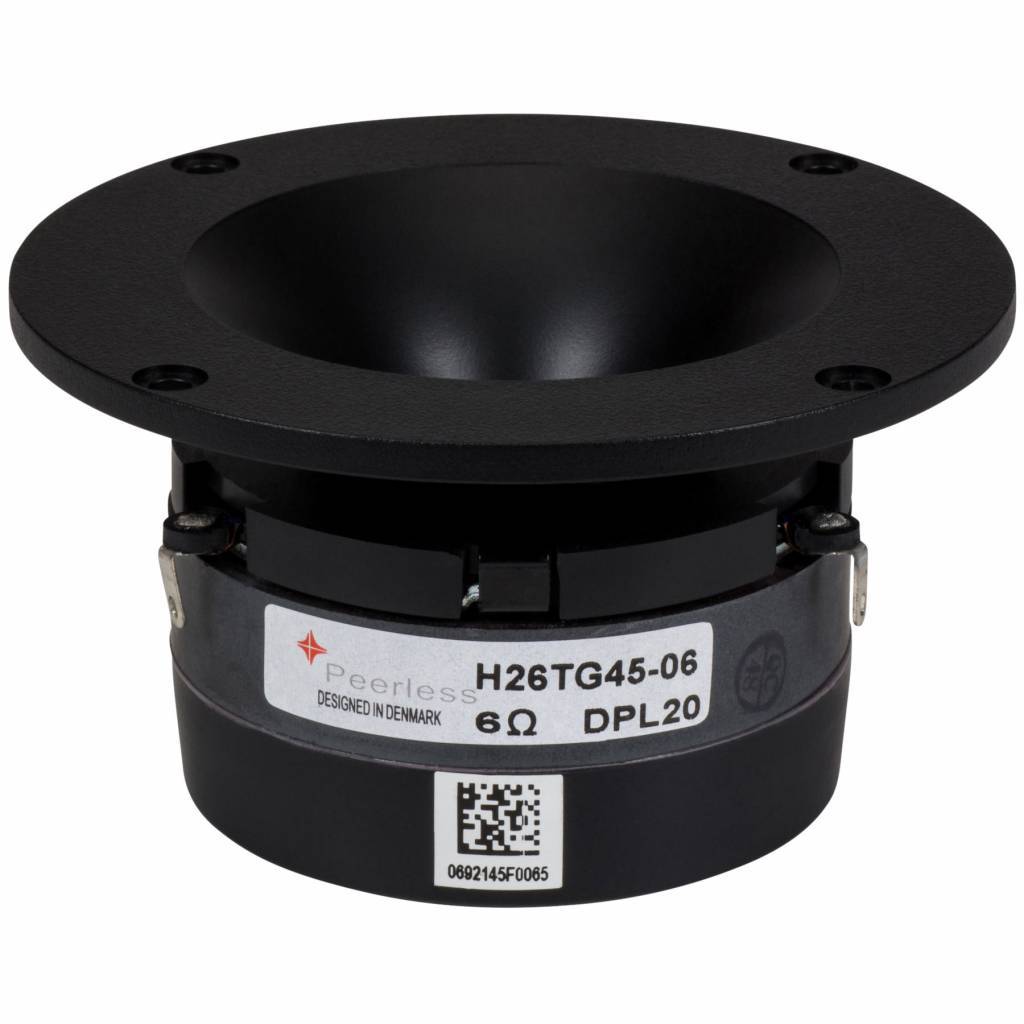

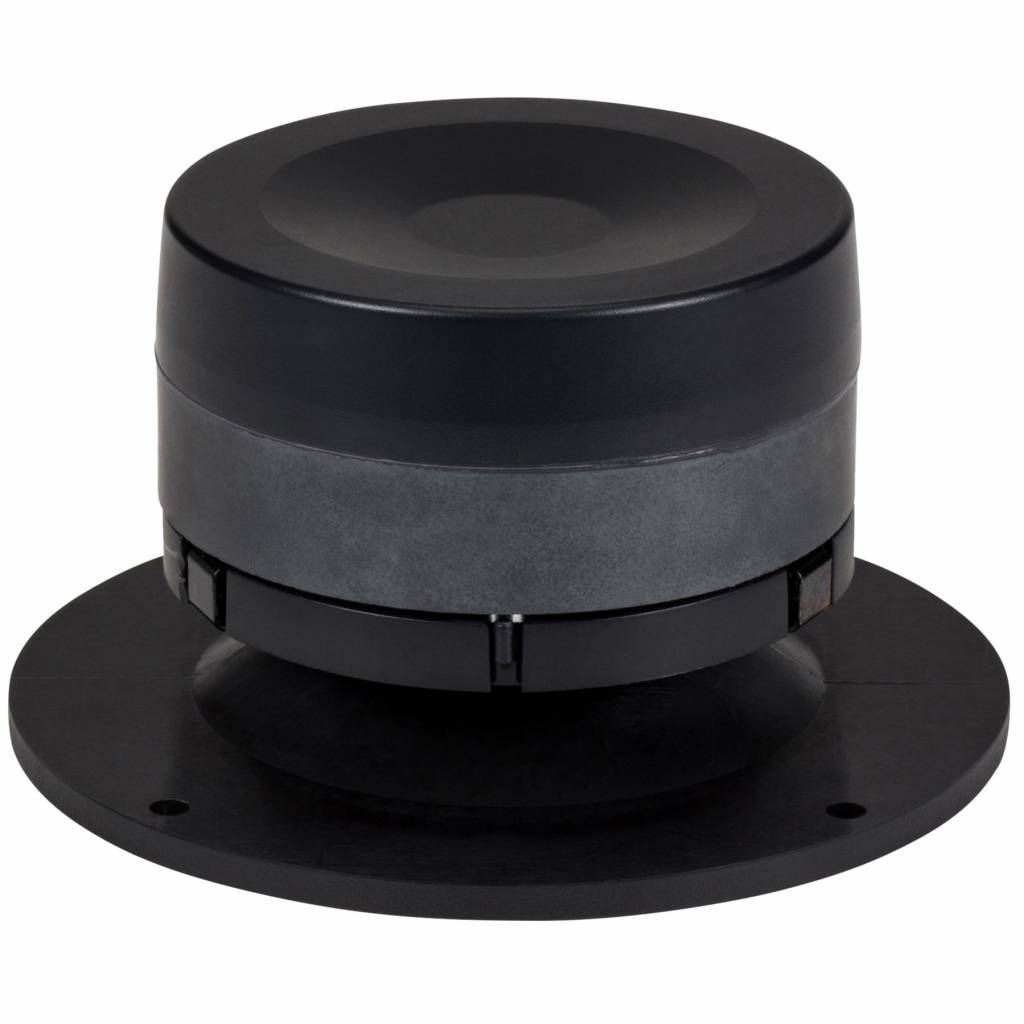

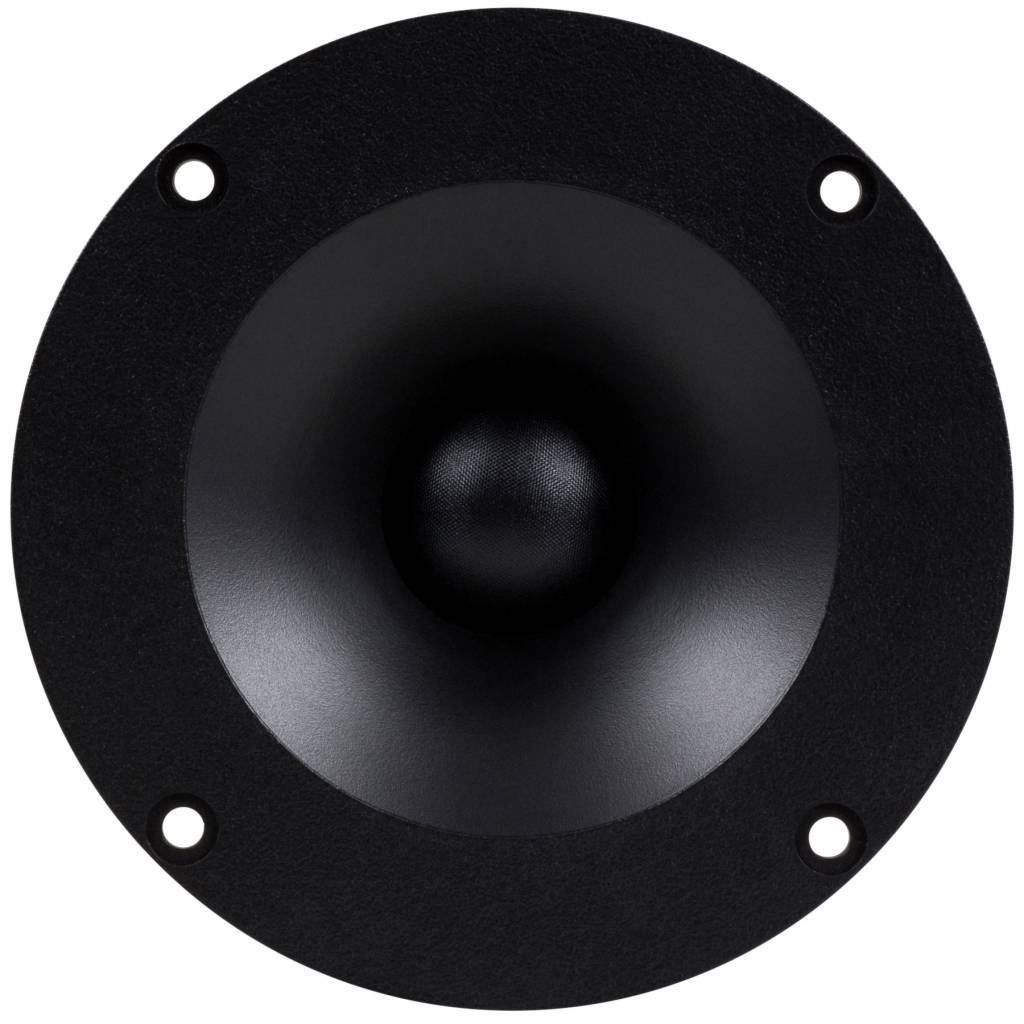

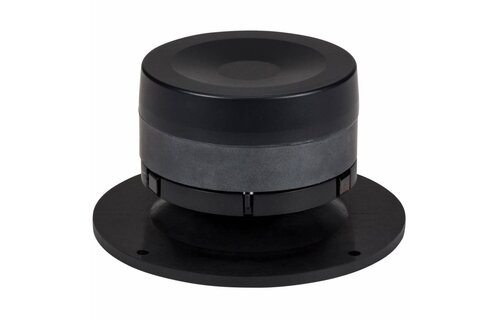

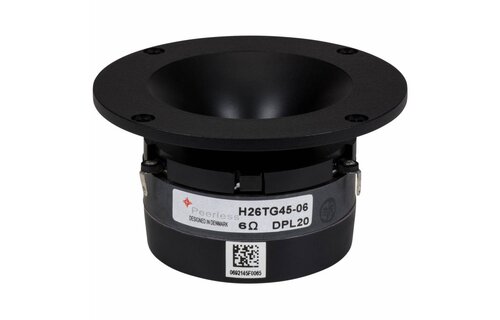

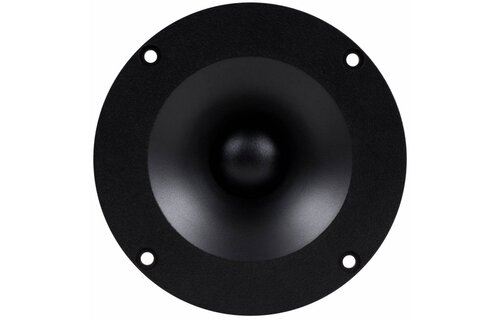

Peerless by Tymphany H26TG45-06 1" Silk Dome Tweeter with Waveguide
This H family tweeter features a 25 mm 6 ohm voice coil, a treated silk dome, a large rear chamber for low resonant frepuency,and a ferrofluid-cooled ferrite motor. The large motor and rear chamber allows for robust power handling capacity. The tweeter comes with a faceplate with recessed mounting holes, for easy installation into the desired application. The faceplate has a horn geometry for increased sensitivity.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 1" |
Impedance | 6 ohms |
Power Handling (RMS) | 100 Watts |
Frequency Response | 2500 to 20,000 Hz |
Sensitivity | 94.3 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1,060 Hz |
DC Resistance (Re) | 4.8 ohms |
Voice Coil Inductance (Le) | 0.02 mH |
Mechanical Q (Qms) | 1.3 |
Electromagnetic Q (Qes) | 1.54 |
Total Q (Qts) | 0.69 |
MOUNTING INFORMATION
Overall Outside Diameter | 4” |
Cutout Diameter | 3” |
Depth | 2.25" |
