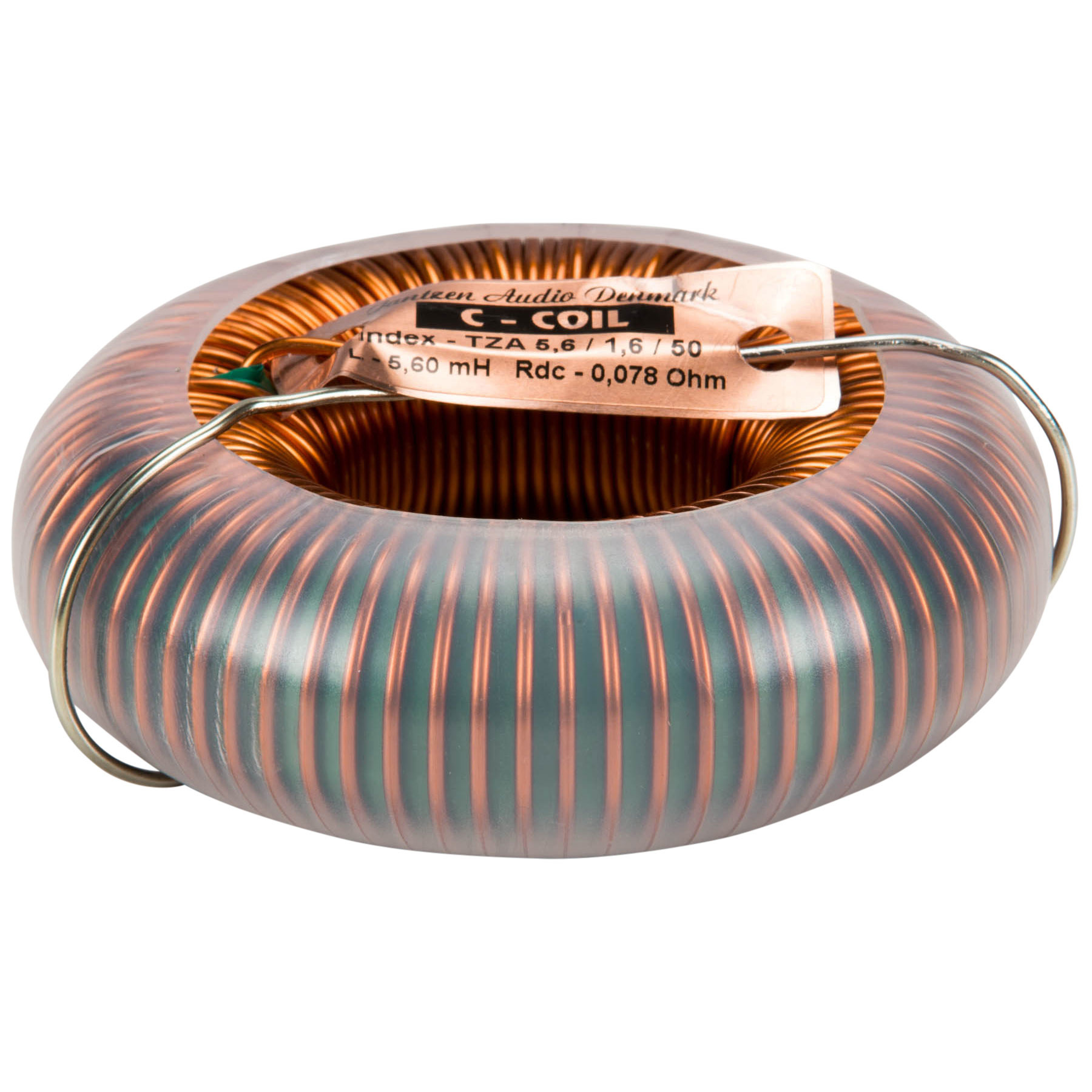

      000-6295 | 5,6 mH | 0,08 Ω | 5% | 14 AWG | C-Coil

      000-6295 | 5,6 mH | 0,08 Ω | 5% | 14 AWG | C-Coil

      Alle anzeigen Frequenzweichen-Bauteile
      Merk: Jantzen Audio
      € 41,28€ 49,95 4 Auf Lager expected on //doc.soundimports.nl/pdf/brands/Jantzen%20Audio/Data%20sheets/Iron%20Core%20Coils%20with%20Discs/Pdf_Jantzen%20Audio_Iron%20Core%20coils%20with%20discs_2.pdf
      The C-Coil is wound around a toroidal sandwich core, and it has extremely low resistance and can shift a large amount of power without getting over heated. If the stated maximum wattage is not exceeded the core will never saturate. The C-Coil is designed... Mehr anzeigen
      +-
      Zum Warenkorb hinzufügen
      • Versicherter Versand mit Sendungsverfolgung
      • Kostenloser Versand ab 149€ (DE, A)
      • Versand am selben Tag
      • Hausinterner technischer Support
      000-6295 | 5,6 mH | 0,08 Ω | 5% | 14 AWG | C-Coil

      Produktbeschreibung

      The C-Coil is wound around a toroidal sandwich core, and it has extremely low resistance and can shift a large amount of power without getting over heated. If the stated maximum wattage is not exceeded the core will never saturate. The C-Coil is designed for the bass section of crossovers and for passive Sub-Woofers.



      Highlights

      • Wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire
      • Toroidal (sandwich) core made from epoxy laminated steel plates
      • All C-Coils are measured after being wound, using a professional CLIO system @ AC 1V 1kHz
      • Not suitable for crossovers with an XO point above 1.20 kHz



      Product details

      Jantzen Audio 000-6295 | 5,6 mH | 0,08 Ω | 5% | 14 AWG | C-Coil



      The C-Coil is an audio inductor, unique to Jantzen Audio. It is a toroidal core audio inductor with a very high-power handling and extremely low resistance (RDC). The extremely high-power handling makes it the ultimate inductor for the bass section for certain crossover design. Wound on a toroidal sandwiched steel core and using shrink foil to reduce microphonic effect. The C-Coil is specifically designed for the bass section for crossovers and is not recommended for the mid-range or tweeter section.



      All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



      Specifications: Power handling: 1500 Watt RMS • Inductance tolerance: +/- 5% • Resistance (RDC) tolerance: +/- 10%.

      Eigenschaften

      Artikelnummer:
      000-6295
