001-0522 | 0,56 µF | 2% | 800 V | Superior Z-Cap

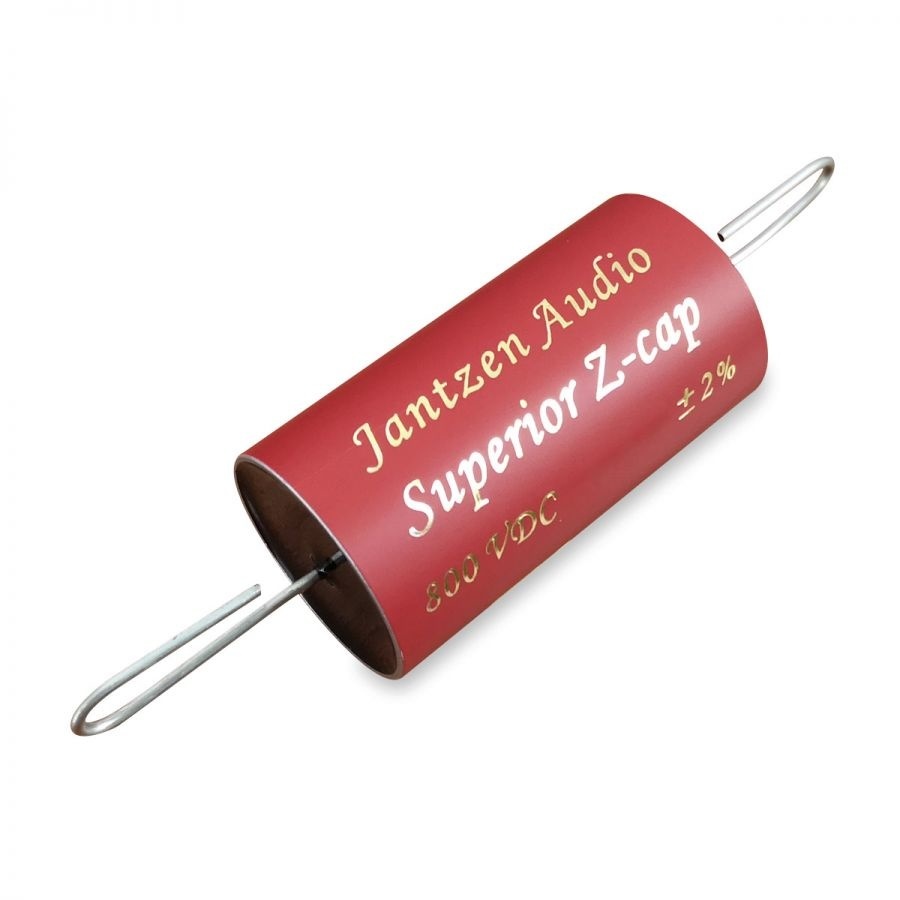

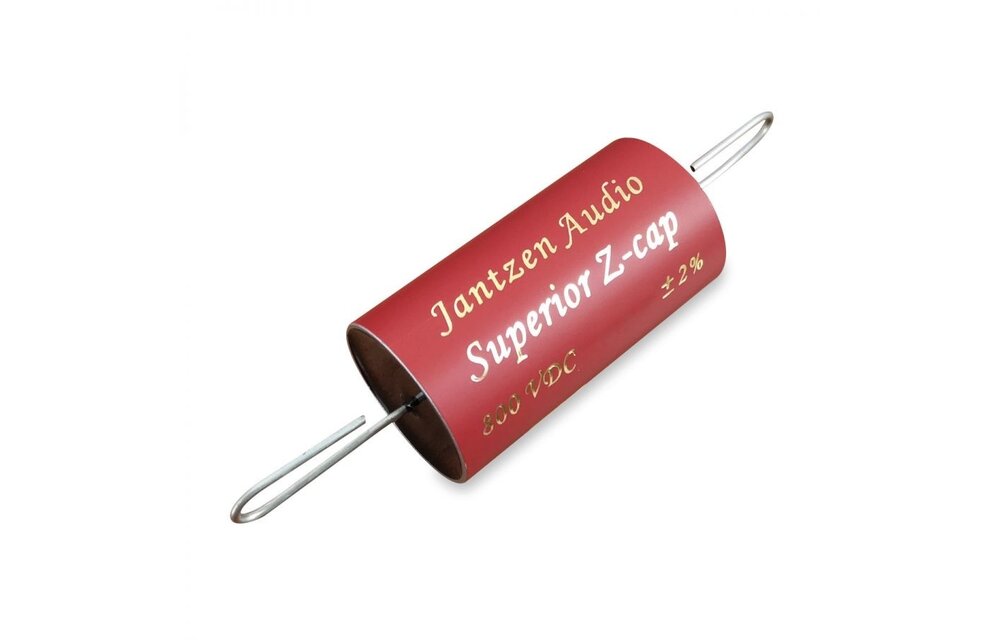

Name: Jantzen Audio 001-0522 | 0,56 µF | 2% | 800 V | Superior Z-Cap
Brand: Jantzen Audio
Price: 10.45 EUR
Availability: InStock

Alle anzeigen Frequenzweichen-Bauteile

Merk: Jantzen Audio

Vergleichen

€ 8,64€ 10,45 4 Auf Lager

With the Superior Z-Cap even the finest nuances can be heard. The sound never gets over-edged, superb naturalness with a somewhat bright top-end.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Produktbeschreibung

With the Superior Z-Cap even the finest nuances can be heard. The sound never gets over-edged, superb naturalness with a somewhat bright top-end.

Highlights

Capacitor foil: Metalized (ZnAl) polypropylene foil
Dielectric insulation: Polypropylene film
Terminal leads: PCOCC copper wire
Capacitance tolerance: +/- 2%
Signal direction: None (non-polarized capacitor)

Product details

Jantzen Audio 001-0522 | 0,56 µF | 2% | 800 V | Superior Z-Cap

All Jantzen Audio Z-Caps are nitrogen filled, which means that you get more foil per capacitor and no risk of the evaporation that can occur in oil/dielectric fluid filled capacitors. Highly recommended for use as a high-end tweeter capacitor or as a coupling cap in an amplifier. For the best performance, signal should enter on the left-hand side (From reading direction).

Specifications: Metallization: Aluminium and Zinc particles • Ends: Are made from copper thread • Dielectric: Polypropylene • Tolerance: 1% - 2% • Loss angle tan = 0.00002 to 1K • Loss angle tan = 0.00001 to 10K • Film: Metallized polypropylene • Dimension dia- 17/ 43 mm. hor • Axial • Non inductive construction • 0,47 uF - 22 uF AC value of the voltage rating 800 VDC / 425 VAC. • Loss factor: 1K 0.00002 • Working Temperature Range: - 30C to + 85C.
