USBStreamer is a native 24/192kHz multi-channel (10x10) USB audio to Toslink/I2S/ADAT interface.

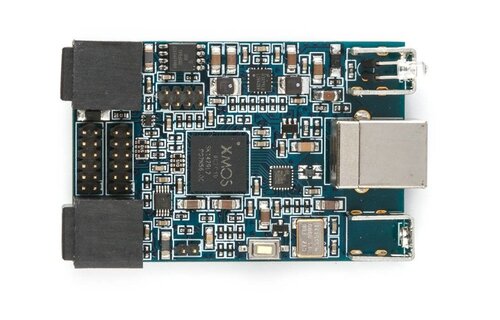

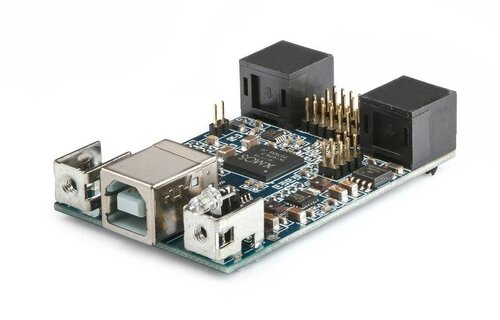

USBStreamer Kit Multi-Channel 10x10 USB audio to Toslink/I2S/ADAT interface
Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.
The USBStreamer is a miniature 24/192 multi-channel USB to Toslink/ADAT/I2S/ TDM interface. Packaged on a tiny PCB of only 2.4" by 1.4" (40x62mm), this interface is the perfect fit for OEM integration or as an element of a customized high performance A/V product for up to 10 channels of bidirectional audio streaming.
The USBStreamer utilizes high speed USB2.0 along with the Audio Class 2.0 implementation to simultaneously provide up to 10channels of playback along with 10channel of recording. Out of the 10channels, 2ch are provided on the Toslink interface with the remaining provided on the I2S expansion connector. The dongle is up & running in a matter of seconds with compatible drivers for both Mac/Windows platforms. An easy and flexible system integration that follows the footsteps of the miniDSP product line. From a high end stereo USB interface to a multi-channel USB interface, the USBStreamer is an innovative yet cost effective USB 2.0 audio interface for a wide range of custom A/V products.
What's in the box?
Mechanical Specifications
PRODUCT SPECIFICATIONS
Item | Description |
USB Streaming engine | XMOS L2 core / USB 2.0 full speed - USB Audio class 2.0 compliant |
Capabilities
| I2S + Toslink firmware: 8ch via I2S + 2ch Toslink (bidirectional) Stereo firmware: 2ch I2S + 2ch Toslink (bidirectional) ADAT: 8ch @ 48k bidirectional on optical receiver/transmitter TDM: 8ch audio bidirectionnal |
Drivers
| Driverless interface for Mac OS X v10.6.4 and up Thesycon Windows ASIO driver provided (XP/Vista/7/8/Win10) Linux Alsa compliant driver Apple IoS (ipad/iphone) using Camera kit - multichannel audio streaming |
I2S/TDM format for input/outputs
| 24 bits I2S master mode Sample rate: 8/11.025/12/16/22.05/24k/32k/64k 44.1/48/88.2/96/176.4/ 192kHz TDM mode: 8ch @ 48k / input and output on I2S_data_in1/out1. |
Optical input
| Toslink sample rate: 44.1/48/88.2/96/176.4 kHz ADAT sample rate: 8ch ADAT mode @ 48/44.1k |
Optical output
| Toslink sample rate: 44.1/48/88.2/96/176.4 kHz ADAT sample rate: 8ch ADAT mode @ 48/44.1k |
Expansion connector | 2 x 12pin, 2mm pitch expansion connector for connectivity to hardware. |
Mounting | 2 x Right Angle brackets allow easy chassis mounting with M3 threaded hole |
Power supply | USB powered OR 5Vdc external supply via header - 300mA requirement |
Dimensions (H x W x D) mm | 13 x 40 x 62 mm |
