MRH-200 260 x 165mm Constant Directivity Horn

Name: Monacor MRH-200 260 x 165mm Constant Directivity Horn
Brand: Monacor
Price: 49.95 EUR
Availability: InStock

Alle anzeigen Zubehör

Merk: Monacor

Vergleichen

€ 41,28€ 49,95 2 Auf Lager expected on //doc.soundimports.nl/pdf/brands/Monacor/

260 x 165mm lightweight plastic constant directivity horn with 25mm throat with flange connection using the standard 2-hole and 3-hole bolt connection.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Produktbeschreibung

Robust 320 x 198mm constant directivity horn with 25mm throat with flange connection using the standard 2-hole and 3-hole bolt connection.

Highlights

1’’ throat diameter
CD design (constant directivity)
Low-resonance horn design

Product details

Monacor MRH-200 260 x 165mm Constant Directivity Horn

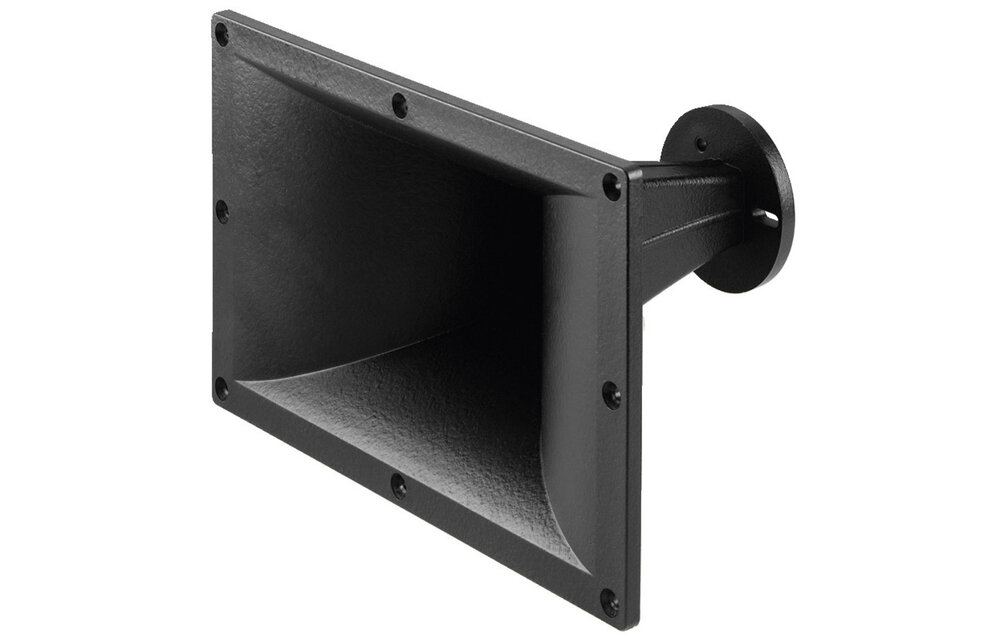

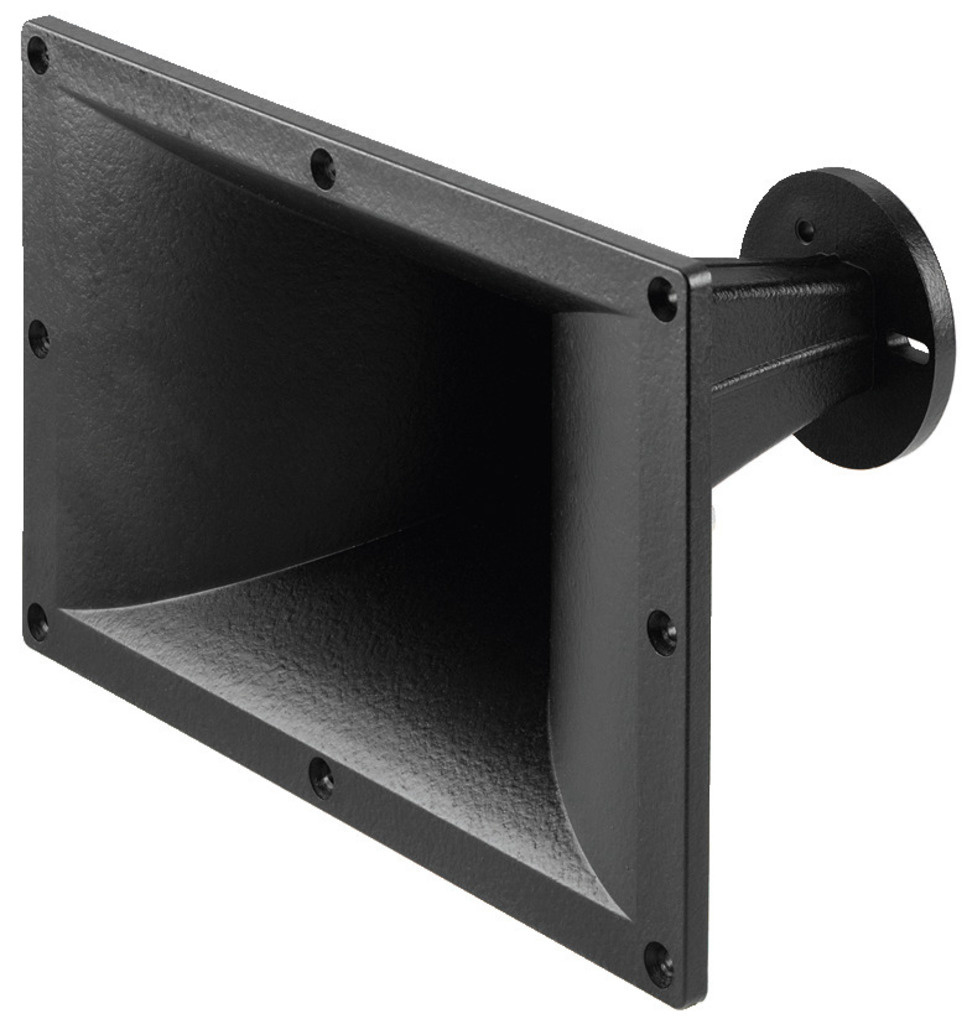

The Monacor MRH-200 is a constant directivity horn made out of 8mm glass fiber reinforced ABS plastic, thus suppressing possible resonances. It has an effective throat diameter of 25mm with flange connection using the standard 2-hole and 3-hole bolt connection. Measuring 320 x 198mm, it provides useful acoustical loading down to 700Hz.

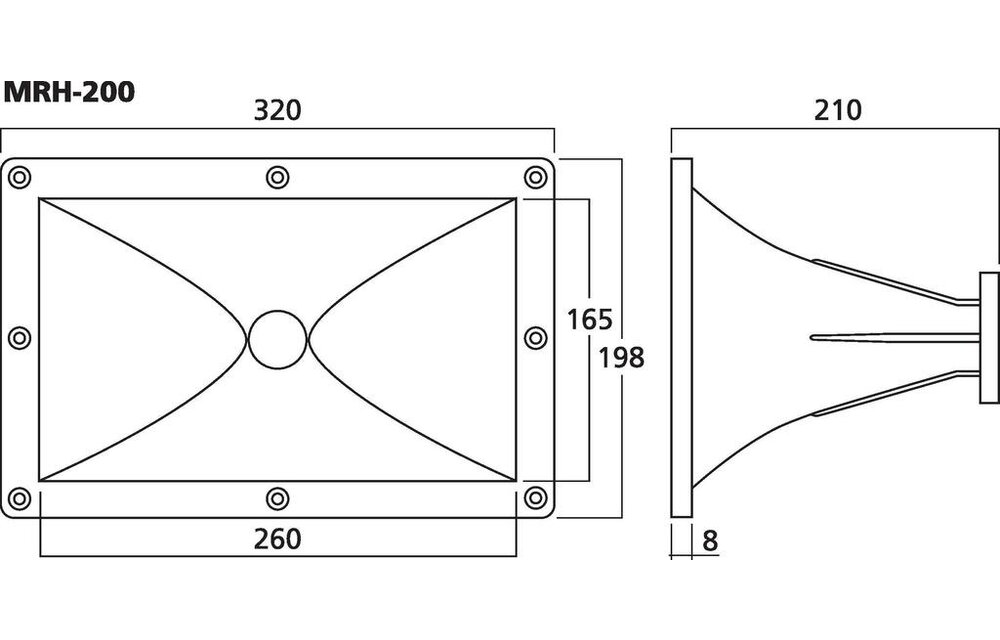

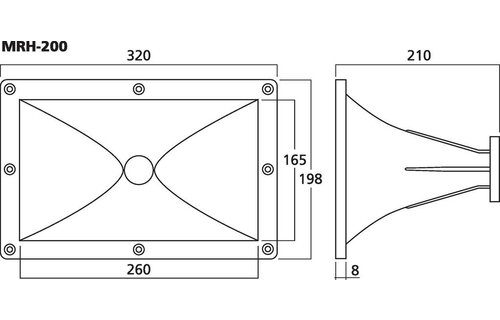

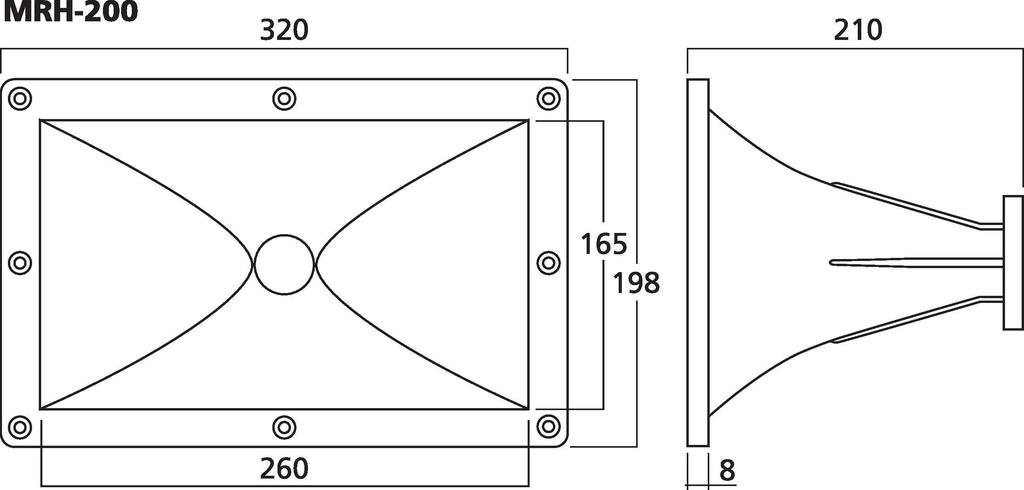

Dimensions: 320 x 198 x 210 mm (W x H x D)

Cutoutdimensions: 260 x 165 (W x H)

Radiationangle: 60°/100°

Recommended minimum crossover frequency: 1 kHz
