MRH-83 242 x 198mm constant directivity horn 1-3/8"- 18 TPI

Name: Monacor MRH-83 242 x 198mm constant directivity horn 1-3/8"- 18 TPI
Brand: Monacor
Price: 15.95 EUR
Availability: InStock

Alle anzeigen Zubehör

Merk: Monacor

Vergleichen

€ 13,18€ 15,95 4 Auf Lager expected on //doc.soundimports.nl/pdf/brands/Monacor/MRH-83/pdf_monacor_MRH-83_2.pdf

PA mid-high range horn for MRD-80. 242x198mm lightweight plastic constant directivity horn. With the standard 35mm thread and 25mm throat.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Produktbeschreibung

242x198mm lightweight plastic constant directivity horn. With the standard 35mm thread and 25mm throat.

Highlights

1’’ throat diameter
35 mm (1⅜") standard thread
CD design (constant directivity)

Product details

Monacor MRH-83 242x198mm constant directivity horn 1-3/8"- 18 TPI

The Monacor MRH-83 is a constant directivity horn made out of plastic, thus keeping the weight down. It has an effective throat diameter of 25mm and uses the standard 35mm thread to attach to most of the available compression drivers out there. Measuring 242x198mm, it provides useful acoustical loading down to 1,800Hz.

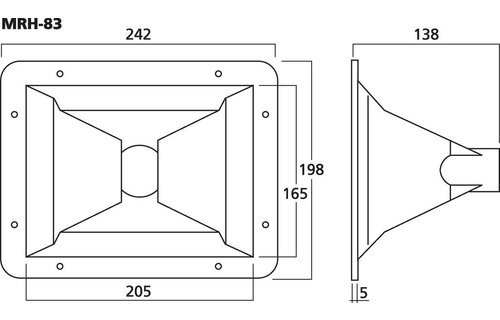

Dimensions: 242 x 198 x 138 (W x H x D)

Cutoutdimensions: 205 x 165 (W x H)

Radiationangle: 60°/90° (vert./hor.)
