Fountek’s Neo X 1.0 ribbon tweeter features Fountek’s third-generation ribbon tweeter technology, with a new 12 mm wide diaphragm that increases efficiency and extends range.
Highlights
Product Details

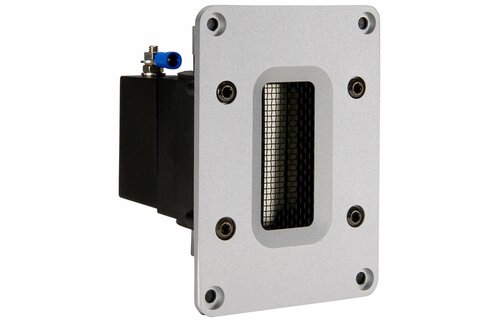

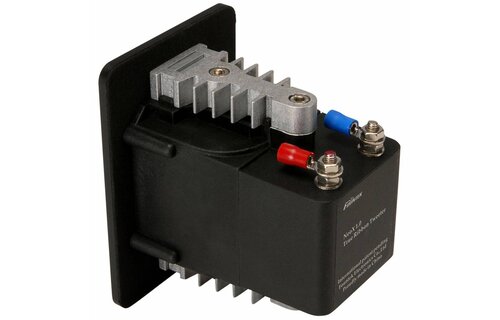

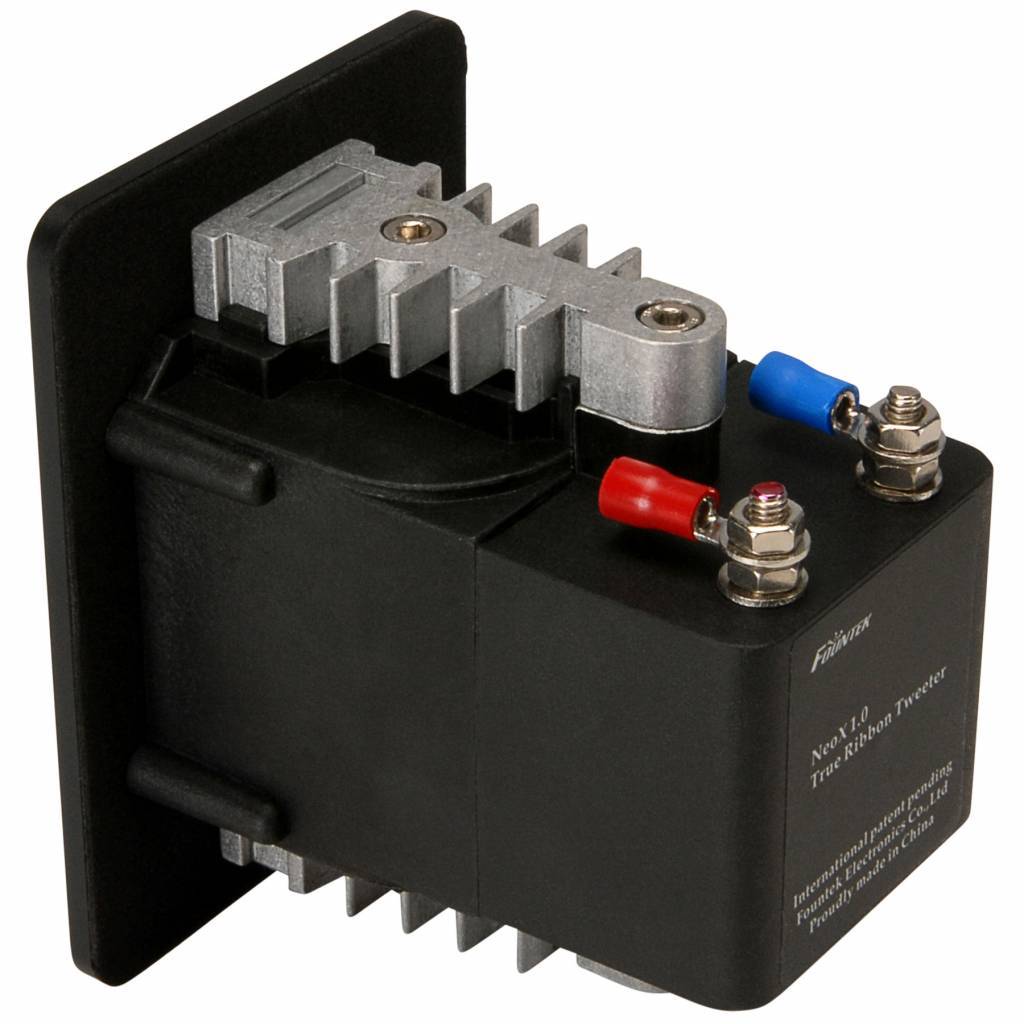

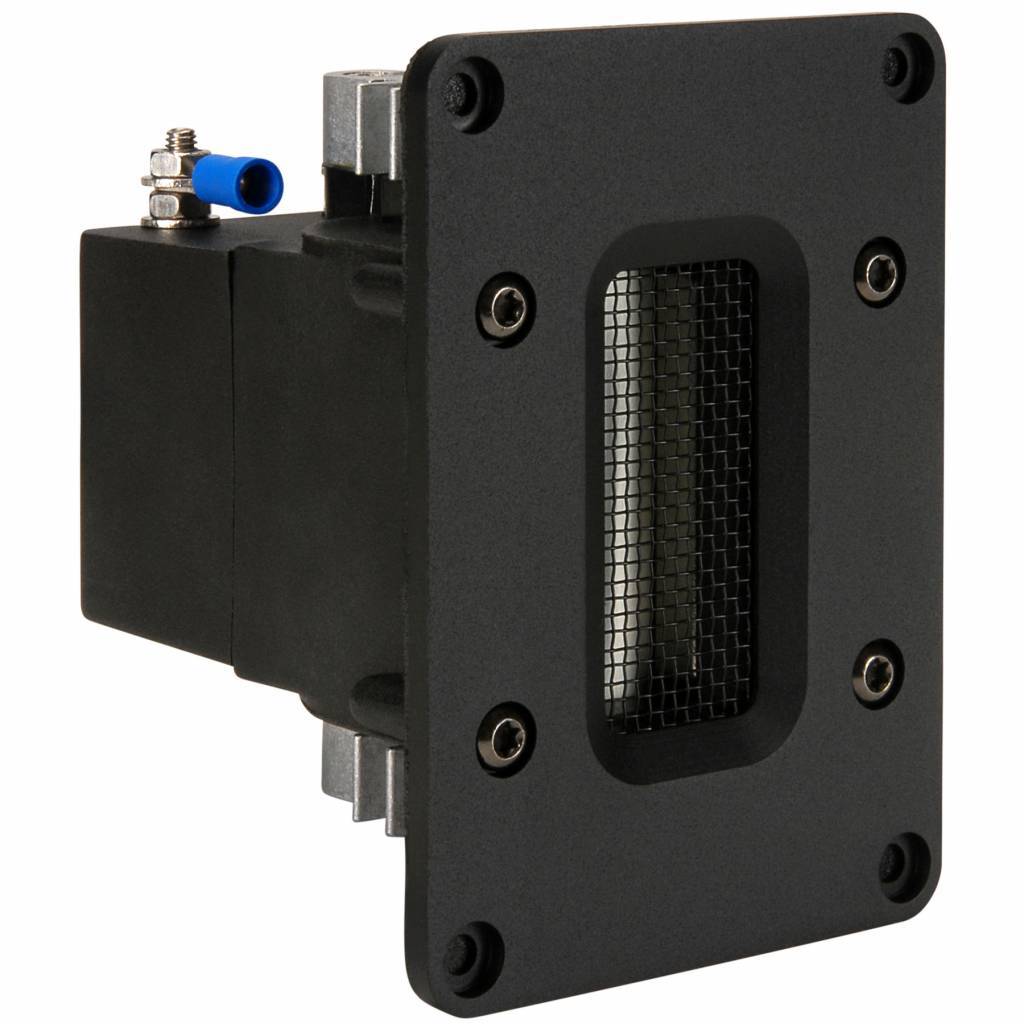

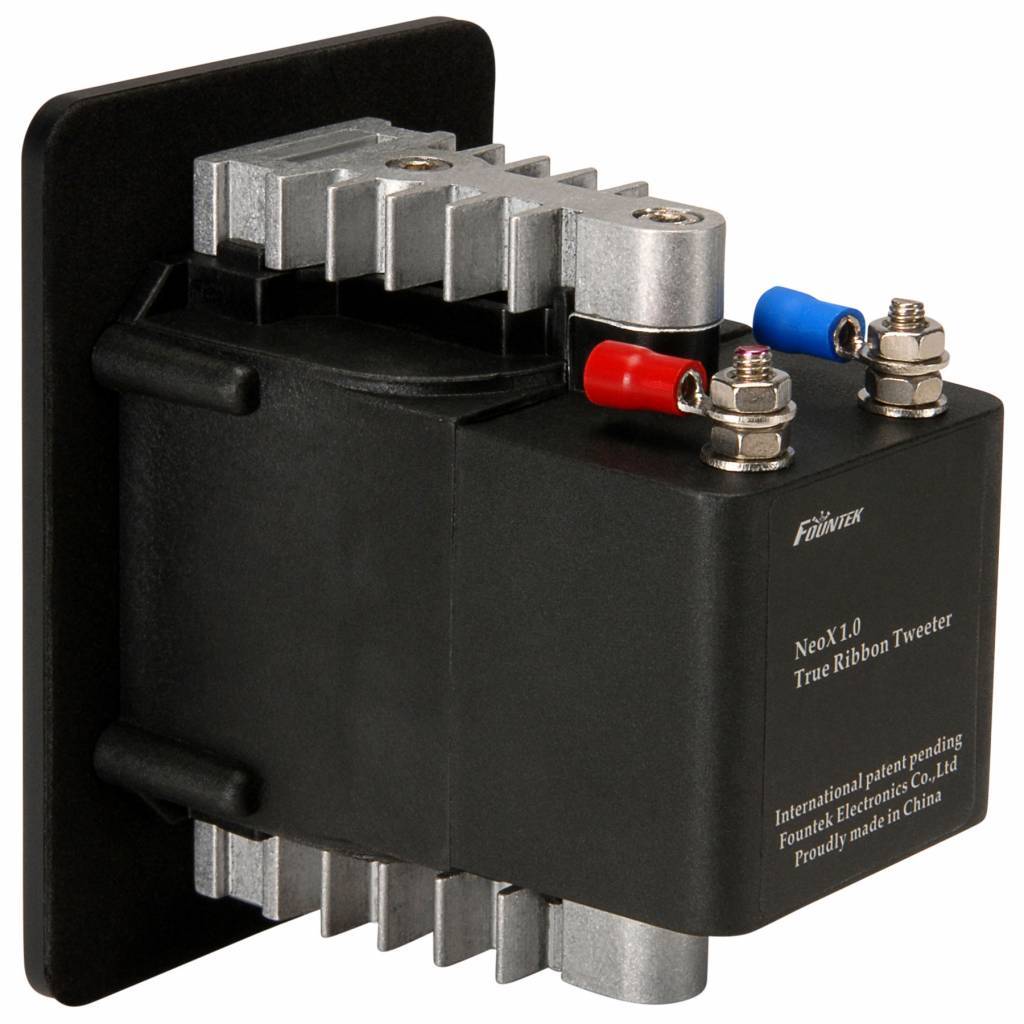

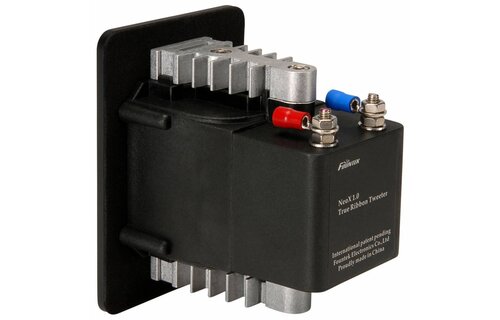

Fountek Neo X 1.0 Ribbon Tweeter
Fountek's reputation as an innovator in ribbon transducer technology continues with the Neo X series of ribbon tweeters. The Neo X 1.0 is built using third-generation Fountek ribbon driver technology, a strong neodymium motor structure, and built-in transformer to contribute to the responsiveness of this tweeter. A 12 mm wide sandwiched aluminum ribbon diaphragm increases sensitivity and power handling.
All of this combines to make the Neo X 1.0 an incredible, true ribbon tweeter with a super-wide (and flat) frequency response that extends from 1,200 Hz out to 40,000 Hz, while the wide horizontal off-axis dispersion makes for a larger listening sweet spot. The benign impedance makes the Neo X 1.0 a safe speaker to use with temperamental tube amplifiers. Recommended minimum crossover frequency: 2,500 Hz @ 18 dB/octave.
PRODUCT SPECIFICATIONS
Tweeter Type | Ribbon |
Impedance | 8 ohms |
Power Handling (RMS) | 20 Watts |
Frequency Response | 1,200 to 40,000 Hz |
Sensitivity | 92 dB 2.83V/1m |
THIELE-SMALL PARAMETERS
DC Resistance (Re) | 0.02 ohms |
MOUNTING INFORMATION
Overall Outside Diameter | 3.86" x 2.74" |
Cutout Diameter | 3.19" x 1.97" |
Depth | 3.06" |
