The OC25SC65-04 tweeter from Tymphany features a coated textile diaphragm, high-energy neodymium magnet, and does not include a faceplate.
Highlights
Product Details

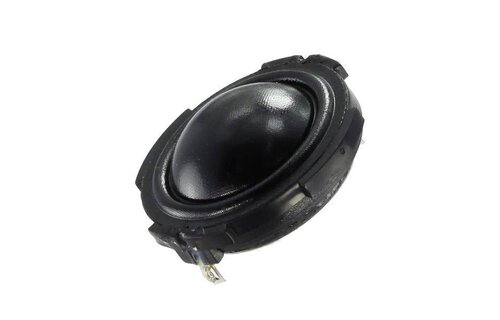

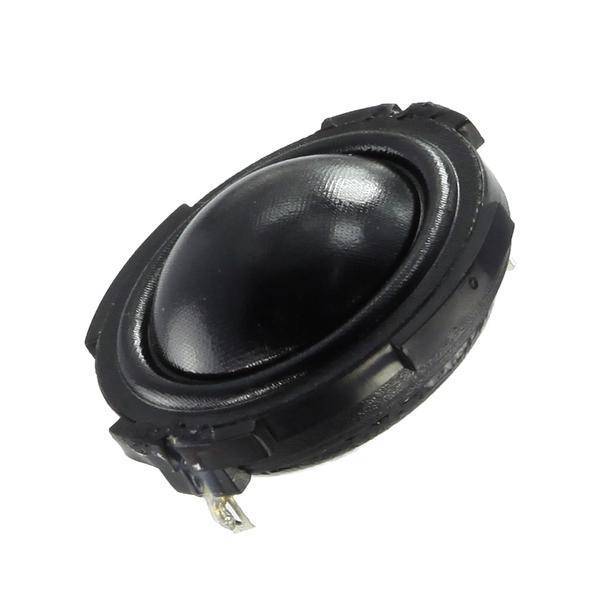

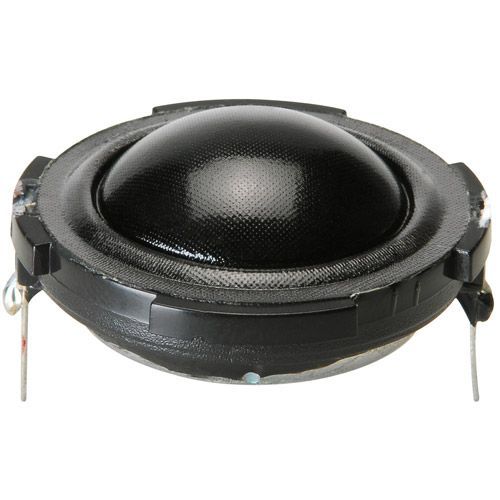

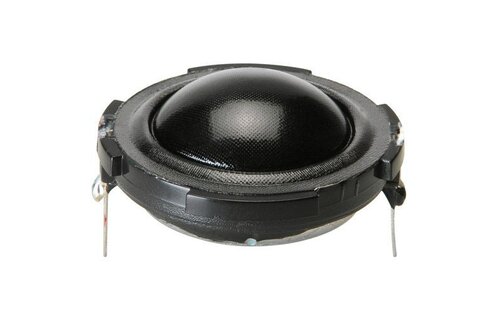

Peerless by Tymphany OC25SC65-04 1" Textile Dome Tweeter

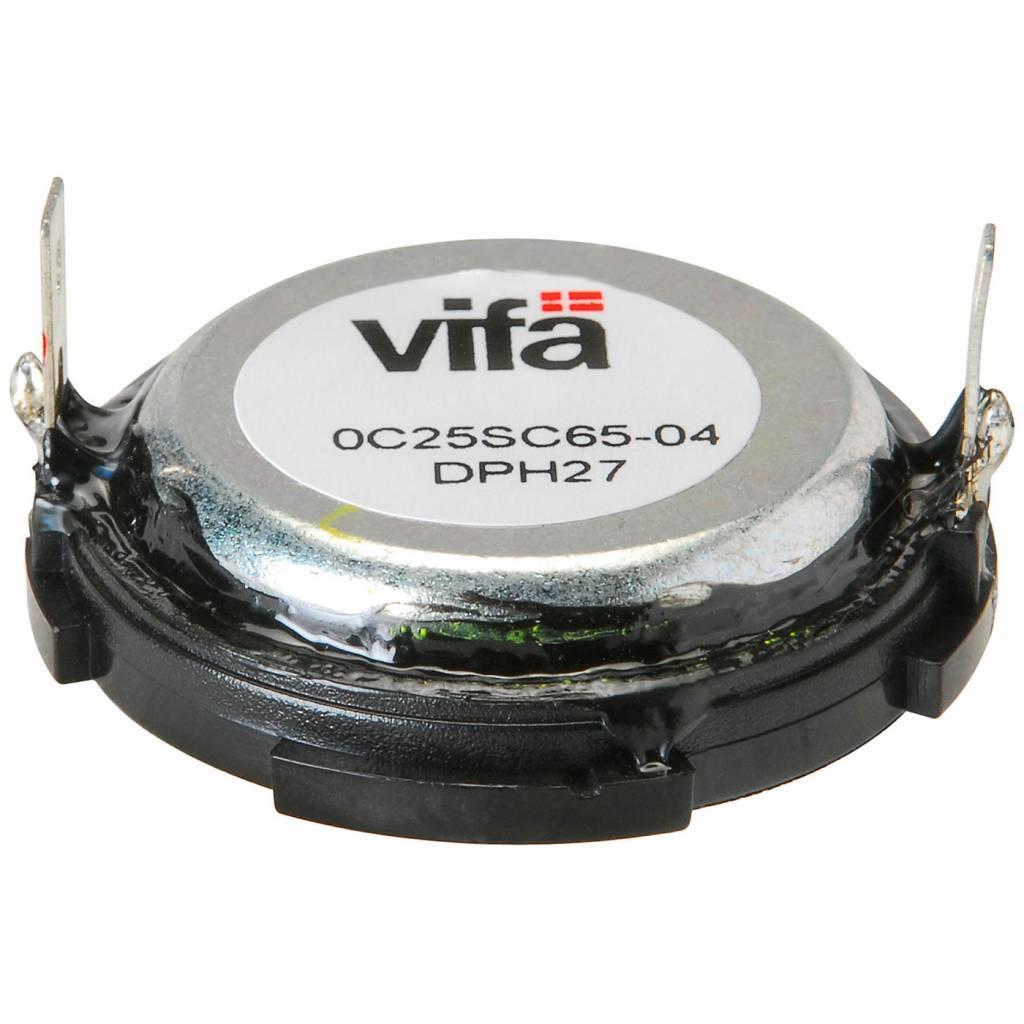

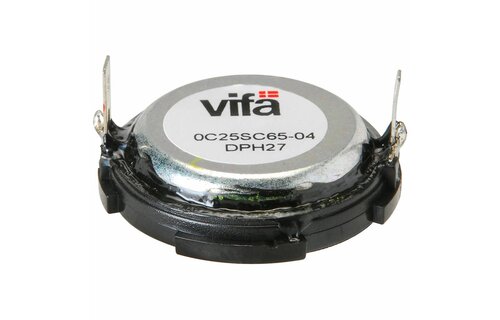

This OC family tweeter features a 25 mm 4 ohm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the neodymium magnet motor, providing enhanced cooling of the voice coil. The tweeter comes with a twist-lock mating feature, to allow for easy installation into custom faceplates.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 1" |
Impedance | 4 ohms |
Power Handling (RMS) | 25 Watts |
Frequency Response | 2500 to 28,000 Hz |
Sensitivity | 90 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1,520 Hz |
DC Resistance (Re) | 3.20 ohms |
Voice Coil Inductance (Le) | 0.02 mH |
Mechanical Q (Qms) | 2.43 |
Electromagnetic Q (Qes) | 3.00 |
Total Q (Qts) | 1.30 |
MOUNTING INFORMATION
Overall Outside Diameter | 1.6" |
Depth | 1" |
