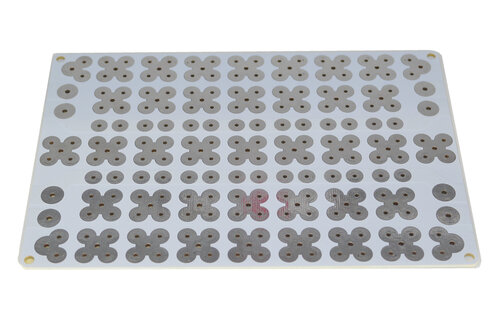

Designed with speaker builders in mind, these white cloverleaf pitches boards are perfect for passive crossover designs. The cloverleaf pitches allows for fast & easy connections.

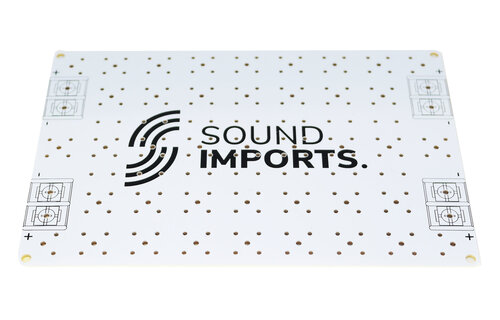

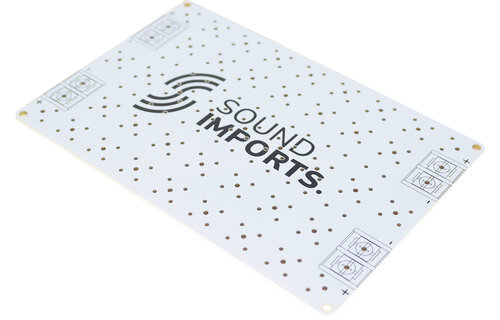

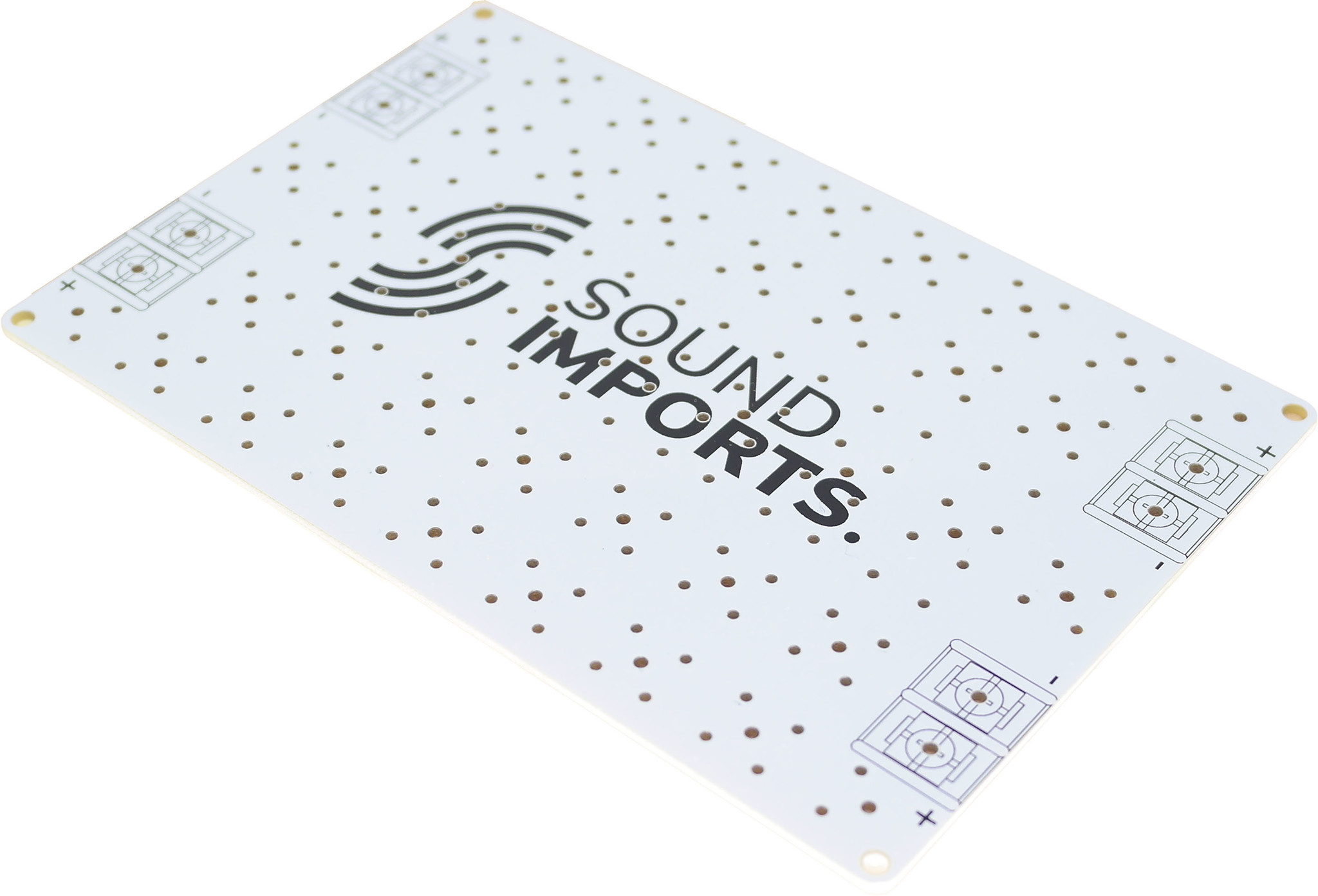

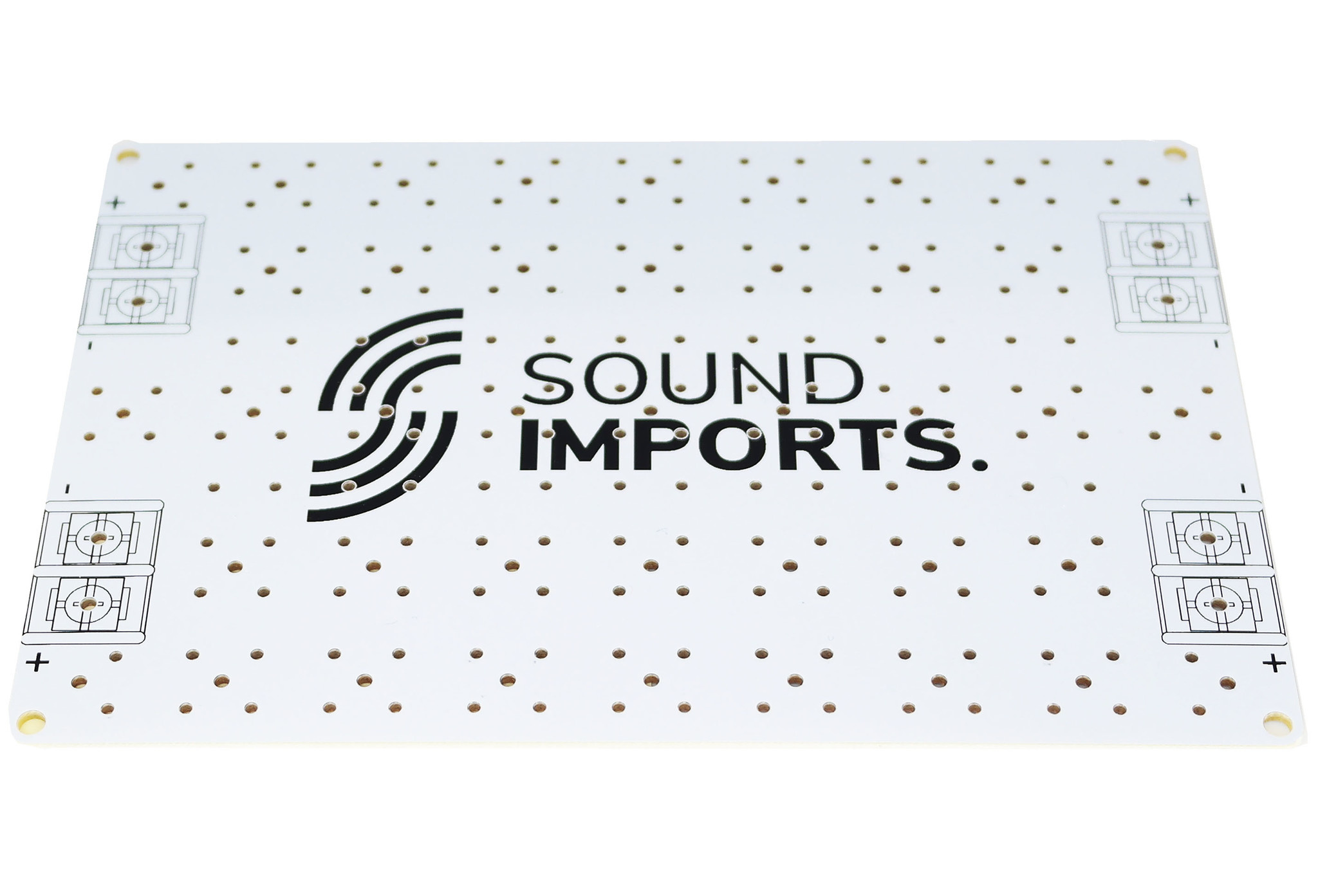

PCB-S01 has been designed for prototyping and assembly of crossover filters. The board bases have been designed to greatly simplify the assembly of a crossover filter, since they are equipped with holes suitable for the considerable dimensions of the rheophores of inductors and capacitors, as well as cloverleaf pitches in order to be able to connect more components together without having to create "bridges" ".

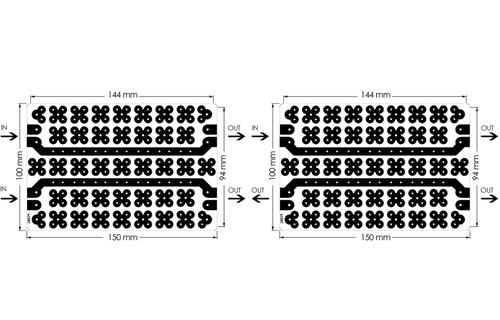

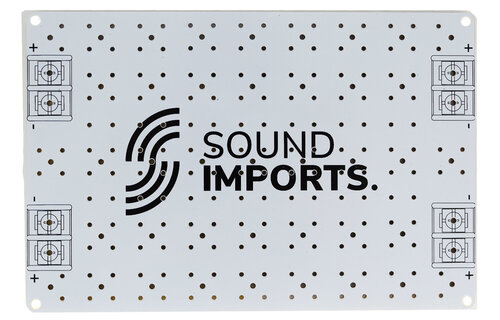

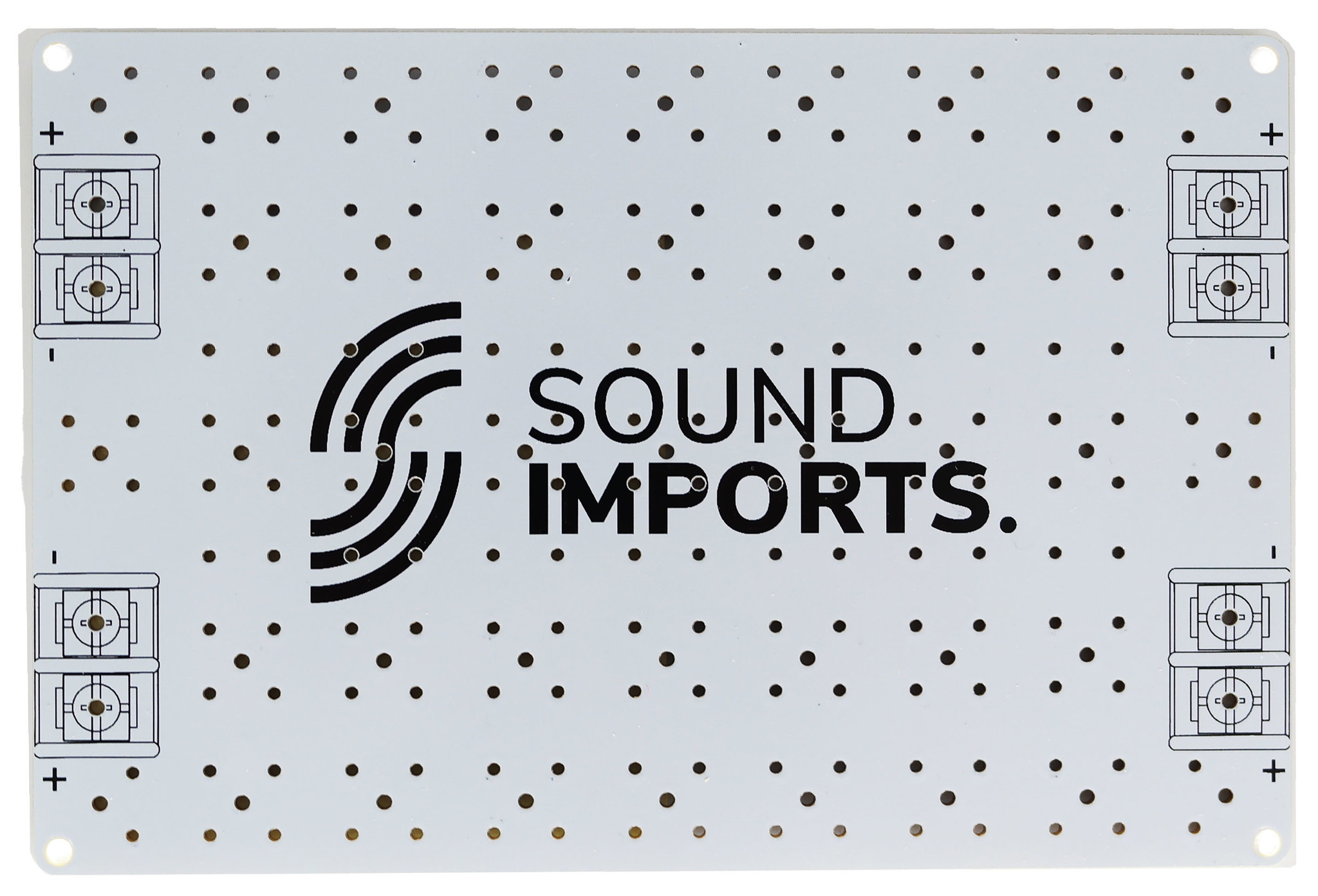

PCB-S01 has a size of 10x15 cm and allows the assembly of a small two-way bi-wiring filter or three-way mono-wiring filter.

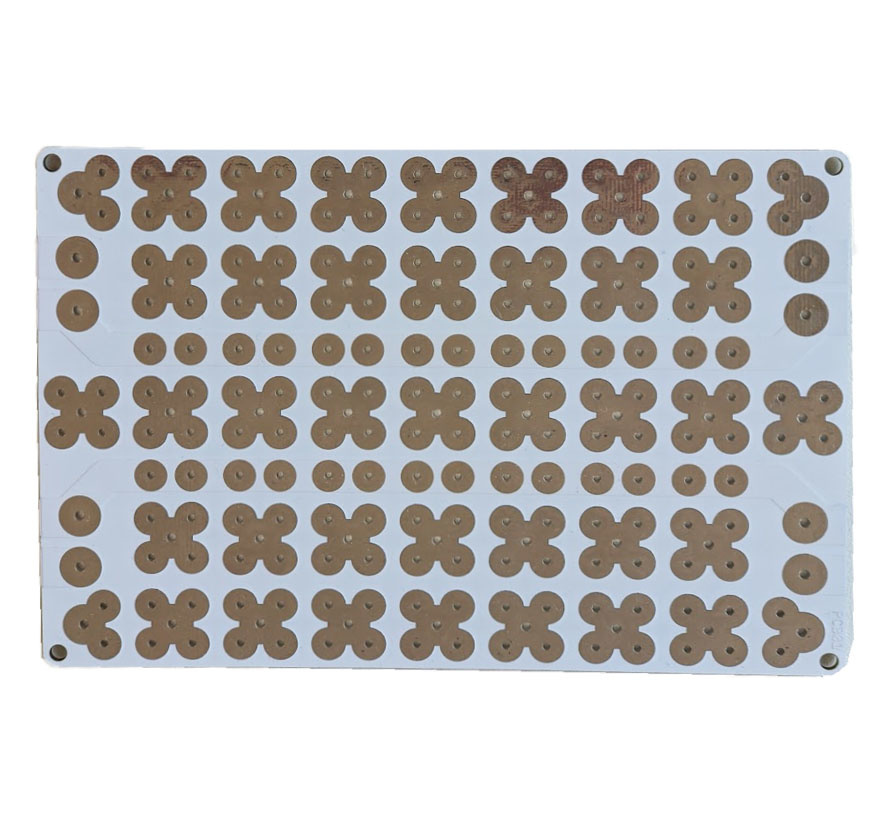

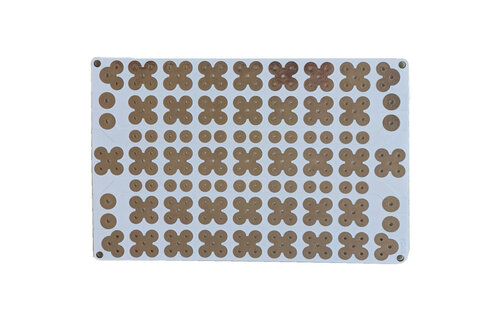

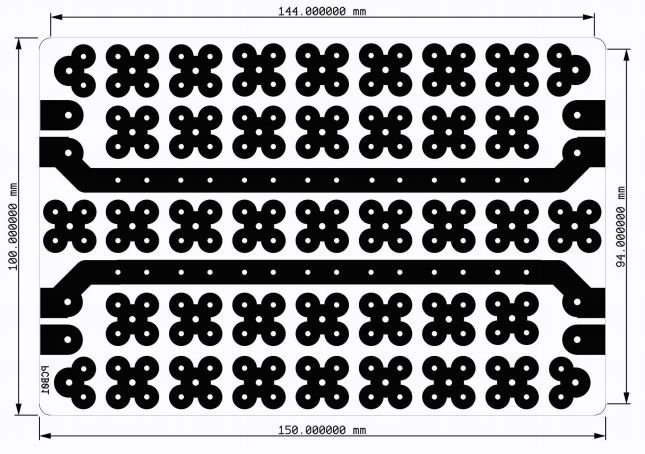

The PAD consists of 4 pitches with a 1.2mm hole and a central with 1.6mm hole to allow the interconnection of more components without having to make jumpers. It is also possible to connect two or more components, if they are not in the same PAD, using the rheophores of the components themselves to short-circuit the various PADs.

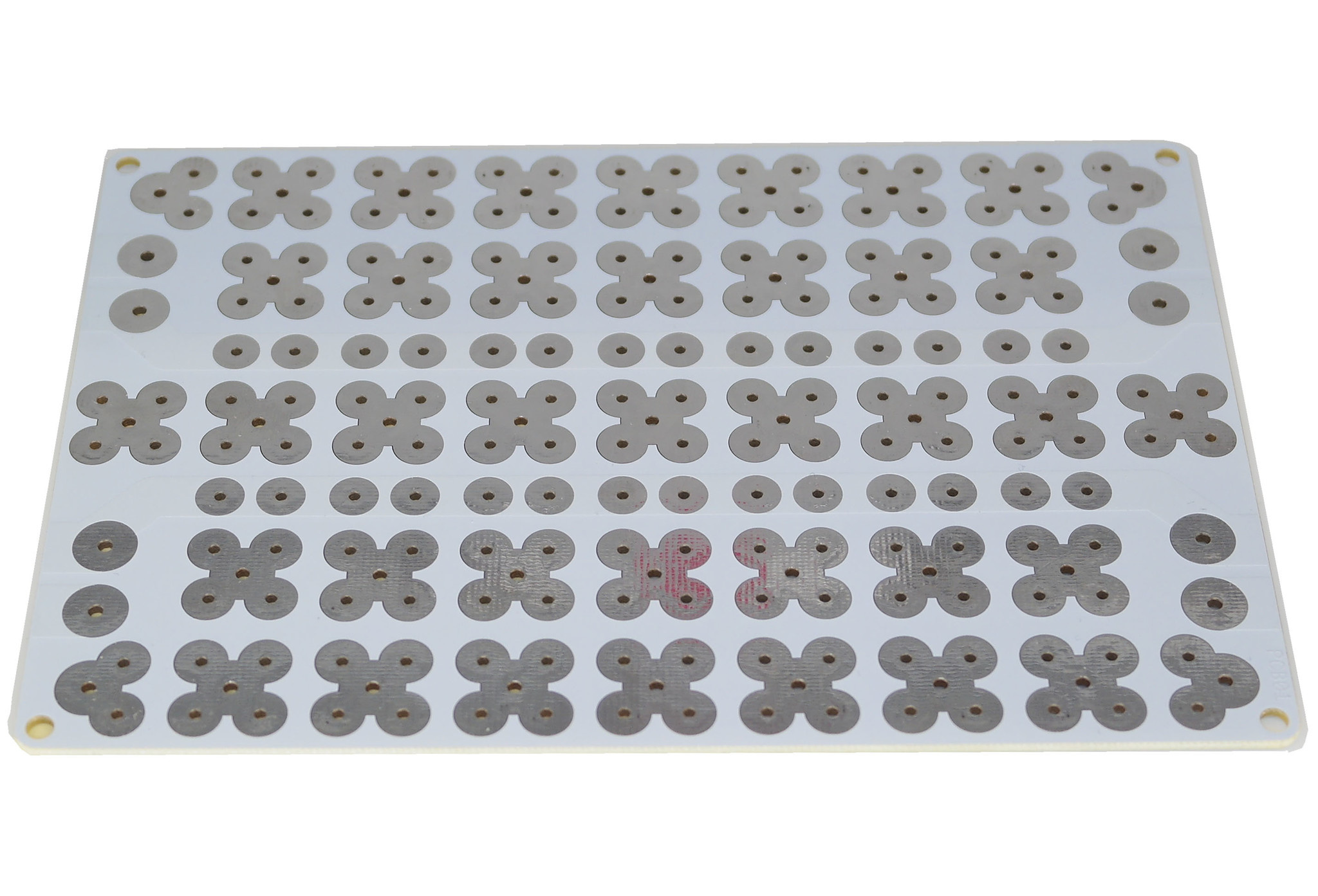

All PADs are pre-tinned with silver tin to ensure maximum ease in welding and maximum conductivity. The entry and exit pads include the installation of a high quality clamp or the possibility of welding a cable. Price per single PCB.

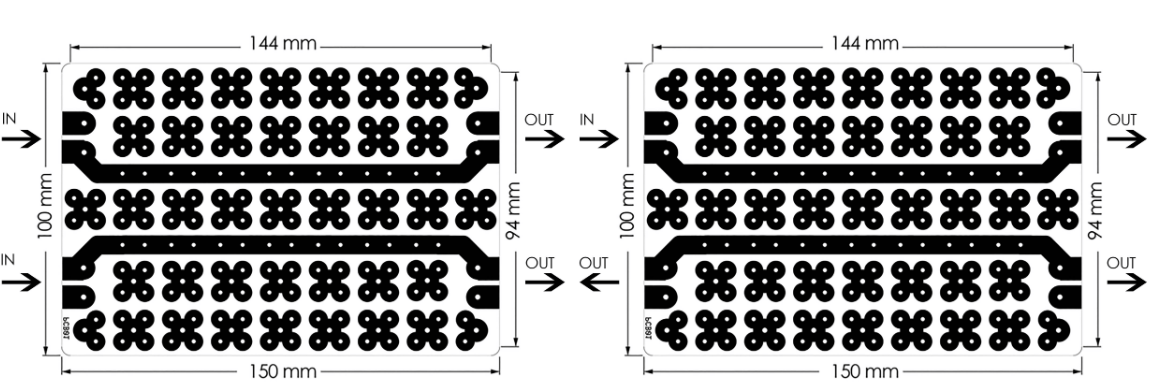

Dimensions: 10 x 15 cm
