A precisely manufactured German diaphragm is mated to a large shielded motor structure. The result is a tweeter with excellent timbre and low distortion characteristics.
Highlights
Product Details

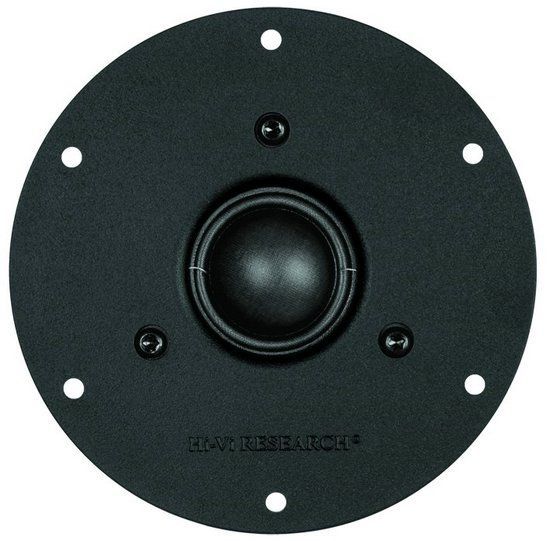

HiVi Q1R 1-1/8" Textile Dome Tweeter
A precisely manufactured German diaphragm is mated to a large shielded motor structure. The result is a tweeter with excellent timbre and low distortion characteristics. Transient response is improved via the use of ferrofluid and a copper-clad aluminum voice coil. Some of our customers have used this tweeter as a drop in replacement for the popular classic AR3a speaker from the 70"s. Note that they have recommended adding a .07mh 18 gauge inductor in parallel with the tweeter to more mimic the original AR3a sound.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 1-1/8" |
Impedance | 6 ohms |
Power Handling (RMS) | 15 Watts |
Frequency Response | 2,500 to 20,000 Hz |
Sensitivity | 89 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1,000 Hz |
DC Resistance (Re) | 5.3 ohms |
MOUNTING INFORMATION
Overall Outside Diameter | 4.56" |
Cutout Diameter | 3.63" |
Depth | 1.63" |
