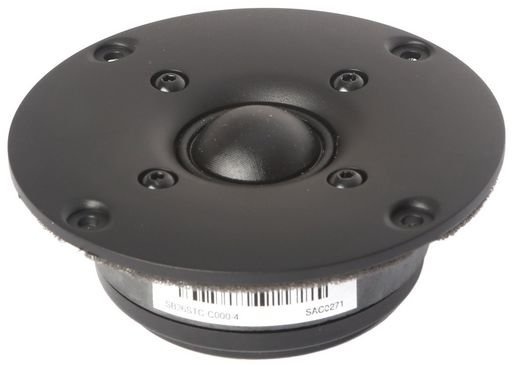

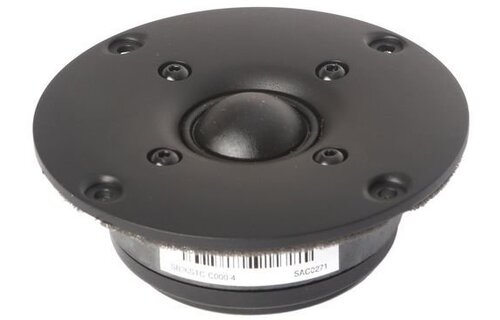

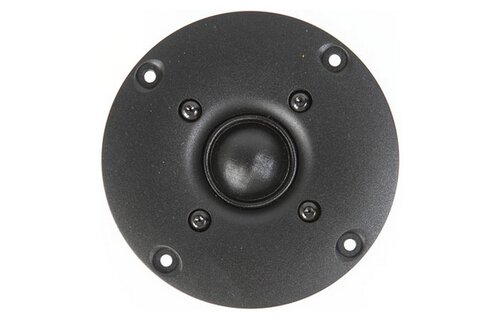

SB26STC-C000-4 Textile Dome Tweeter

Name: SB Acoustics SB26STC-C000-4 Textile Dome Tweeter
Brand: SB Acoustics
Price: 29.95 EUR
Availability: InStock

Alle anzeigen Audio-Komponenten

Merk: SB Acoustics

Vergleichen

€ 24,75€ 29,95 3 Auf Lager

The SB26STC-C000-4 Textile Dome Tweeter is a surprisingly well designed tweeter for its price. The 1’’ tweeter has a low resonance frequency allowing for a lower crossover point and better integration.... Mehr anzeigen

Versicherter Versand mit Sendungsverfolgung
Kostenloser Versand ab 149€ (DE, A)
Versand am selben Tag
Hausinterner technischer Support

Produktbeschreibung

The SB Acoustics SB26STC-C000-4 Textile Dome Tweeter is a surprisingly well designed tweeter for its price. The 1’’ tweeter has a low resonance frequency allowing for a lower crossover point and better integration.

Highlights

Copper cap for reduced voice coil inductance and minimum phase shift
Non-reflective rear chamber with optimized damping for improved dynamics
Flow optimized vented pole piece for optimum coupling to rear chamber
Fine weave soft fabric dome for smooth frequency response
Saturation controlled motor system for low distortion
CCAW voice coil for low moving mass
Long life silver lead wires
Low resonance frequency

Product details

SB Acoustics SB26STC-C000-4 1'' Tweeter

The SB Acoustics SB26STC-C000-4 tweeter has a large rear chamber lowering the fs to 750Hz and reducing back wave reflections from the dome. Its copper cap pole piece, coated textile dome, 1” voice coil and the recessed faceplate give it a partially horn loaded profile. A very linear response, high efficiency output at 91.5dB sensitivity and extension past 35,000Hz make it an excellent tweeter for larger two-way speakers.

Specifications: BL Product (BL): 1.6 Tm • Diaphragm Mass Inc. Airload (Mms): 0. 3 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm²
