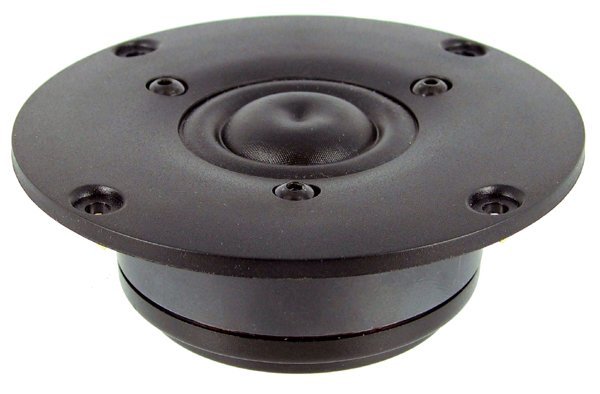

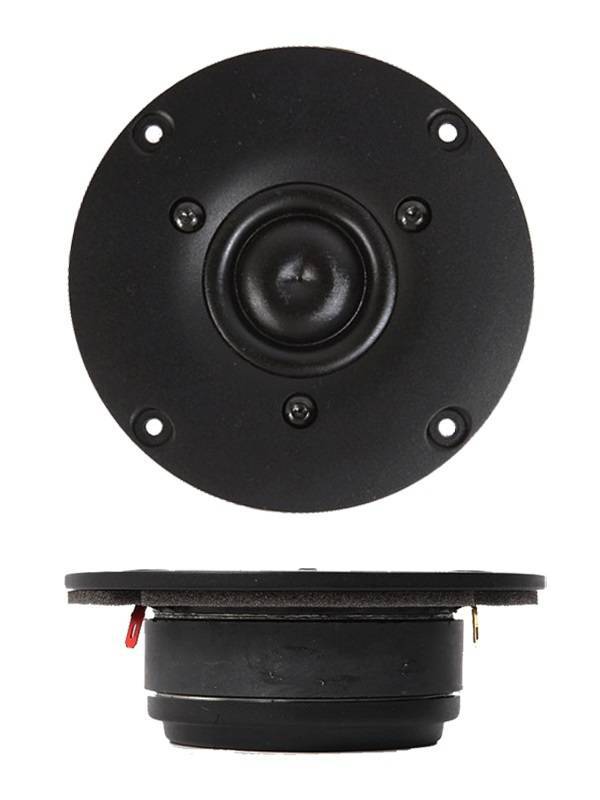

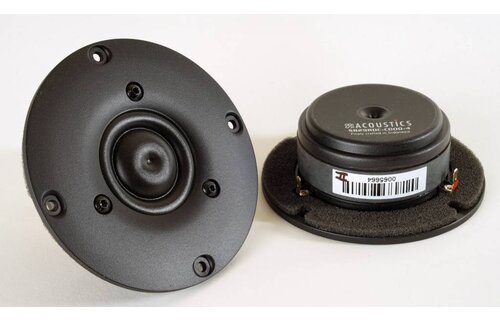

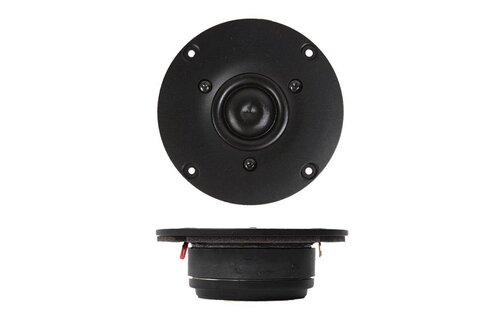

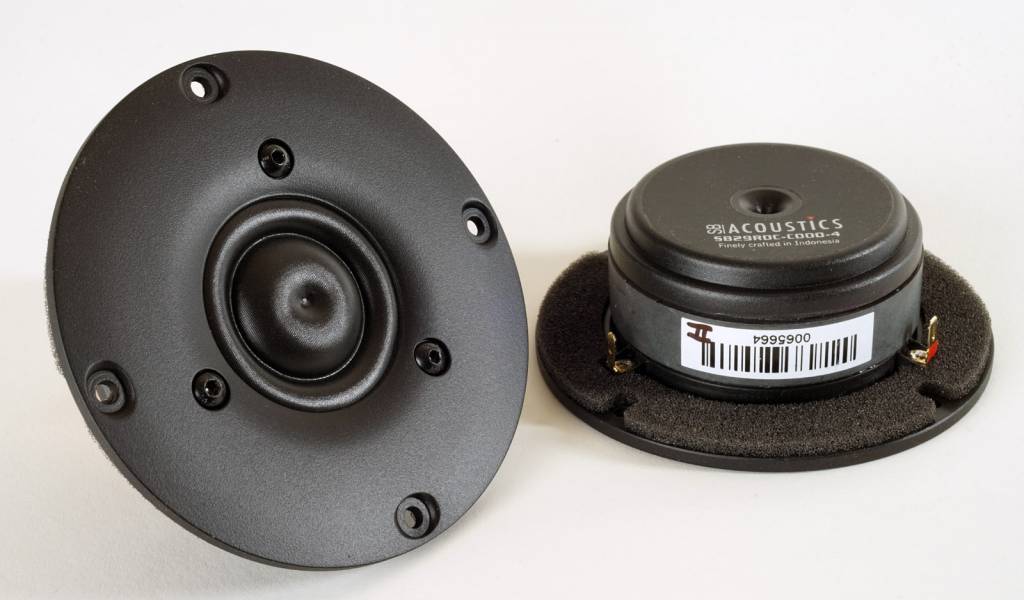

SB Acoustics SB29RDC-C000-4 Ring Dome Tweeter

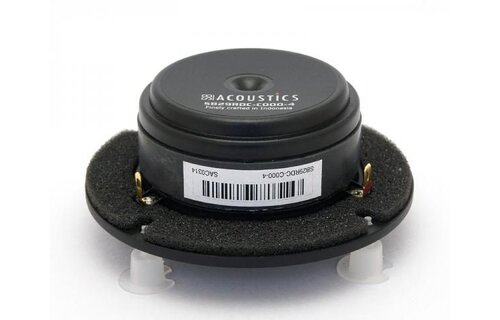

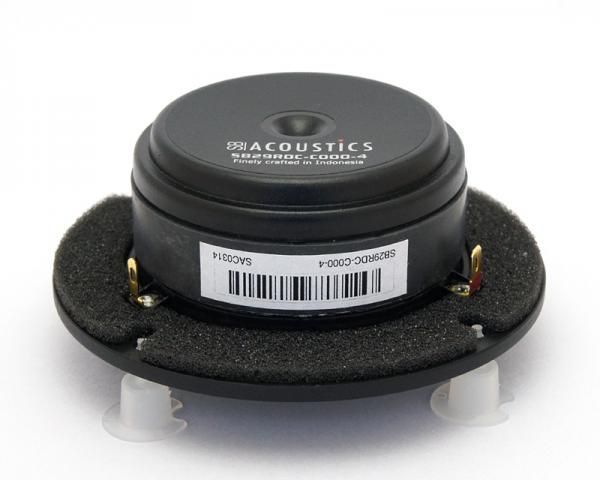

This tweeter features a proprietary fabric ring dome with a large roll surround. Stabilizing the center of the dome greatly reduces distortion and brings the acoustic center of the tweeter back to the voice coil, with the added benefit of increased sensitivity. The tweeter has a chambered back designed to provide a lower resonance frequency and reduce back wave reflections from the dome. A copper cap is used on the pole piece. Large surface area.
PRODUCT SPECIFICATIONS
Nominal Diameter | -" |
Power Handling (RMS) | 100 Watts |
Power Handling (max) | - Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 93 dB 2.83V/1m |
Voice Coil Diameter | 1.14" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 600 Hz |
DC Resistance (Re) | 3 ohms |
Voice Coil Inductance (Le) | 0.05 mH |
Mechanical Q (Qms) | 2.2 |
Electromagnetic Q (Qes) | 0.9 |
Total Q (Qts) | 0.65 |
Compliance Equivalent Volume (Vas) | - ft.³ |
BL Product (BL) | - Tm |
Mechanical Compliance of Suspension (Cms) | - mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.45g |
Maximum Linear Excursion (Xmax) | 0.25 mm |
Surface Area of Cone (Sd) | 9.6 cm2 |
