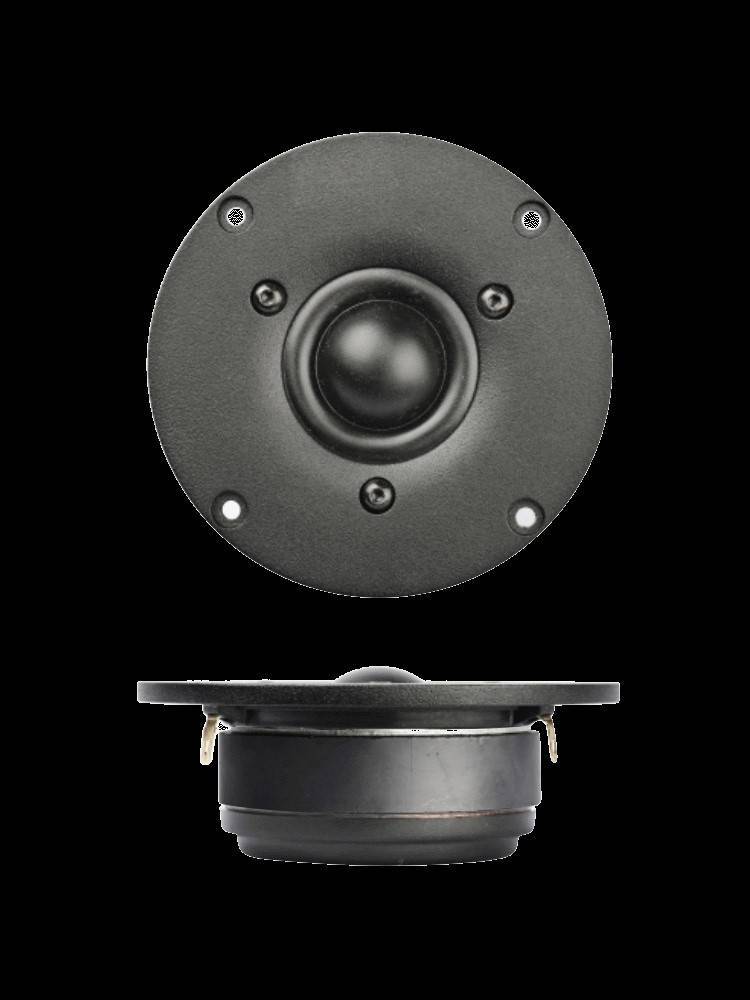

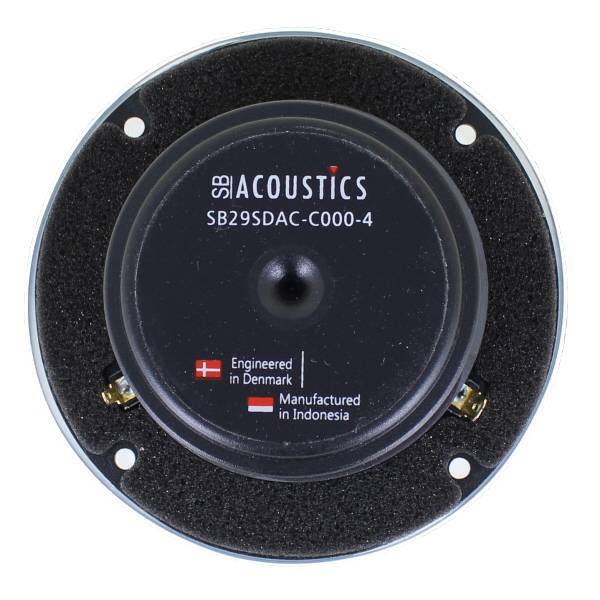

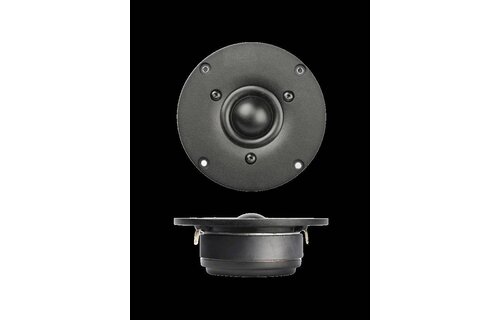

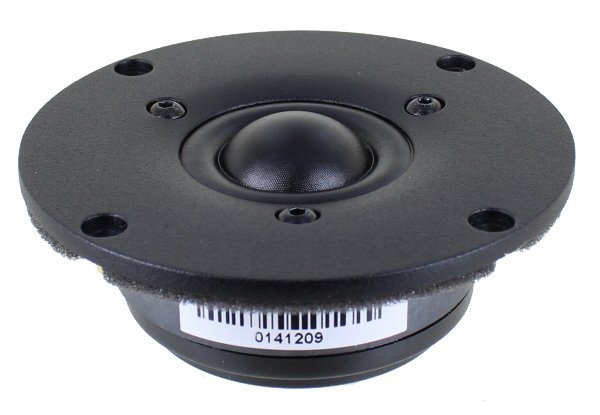

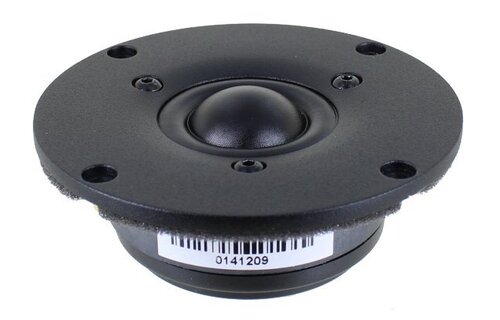

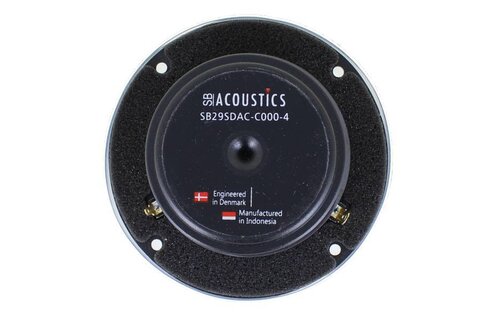

SB Acoustics SB29SDAC-C000-4 Textile Dome Tweeter
The SB29SDAC-C000-4’s large surround dome allows the increase of its acoustic output. Dual balanced compression chamber for improved dynamics. CCAW voice coil for low moving mass. Saturation controlled motor system for low distortion and low resonance frequency. Cast aluminum faceplate.
PRODUCT SPECIFICATIONS
Nominal Diameter | -" |
Power Handling (RMS) | 60 Watts |
Power Handling (max) | - Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 93 dB 2.83V/1m |
Voice Coil Diameter | 1.14" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 600 Hz |
DC Resistance (Re) | 3 ohms |
Voice Coil Inductance (Le) | 0.05 mH |
Mechanical Q (Qms) | 2.94 |
Electromagnetic Q (Qes) | 1.09 |
Total Q (Qts) | 0.8 |
Compliance Equivalent Volume (Vas) | - ft.³ |
BL Product (BL) | 2.4 Tm |
Mechanical Compliance of Suspension (Cms) | - mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.45g |
Maximum Linear Excursion (Xmax) | 0.25 mm |
Surface Area of Cone (Sd) | 9.6 cm2 |
