This high-quality tweeter utilizes a precisely coated diaphragm and a damping ring located below the dome. A special cast alloy faceplate offers excellent physical protection of the diaphragm, while also helping improve off-axis response.
Highlights
Product Details

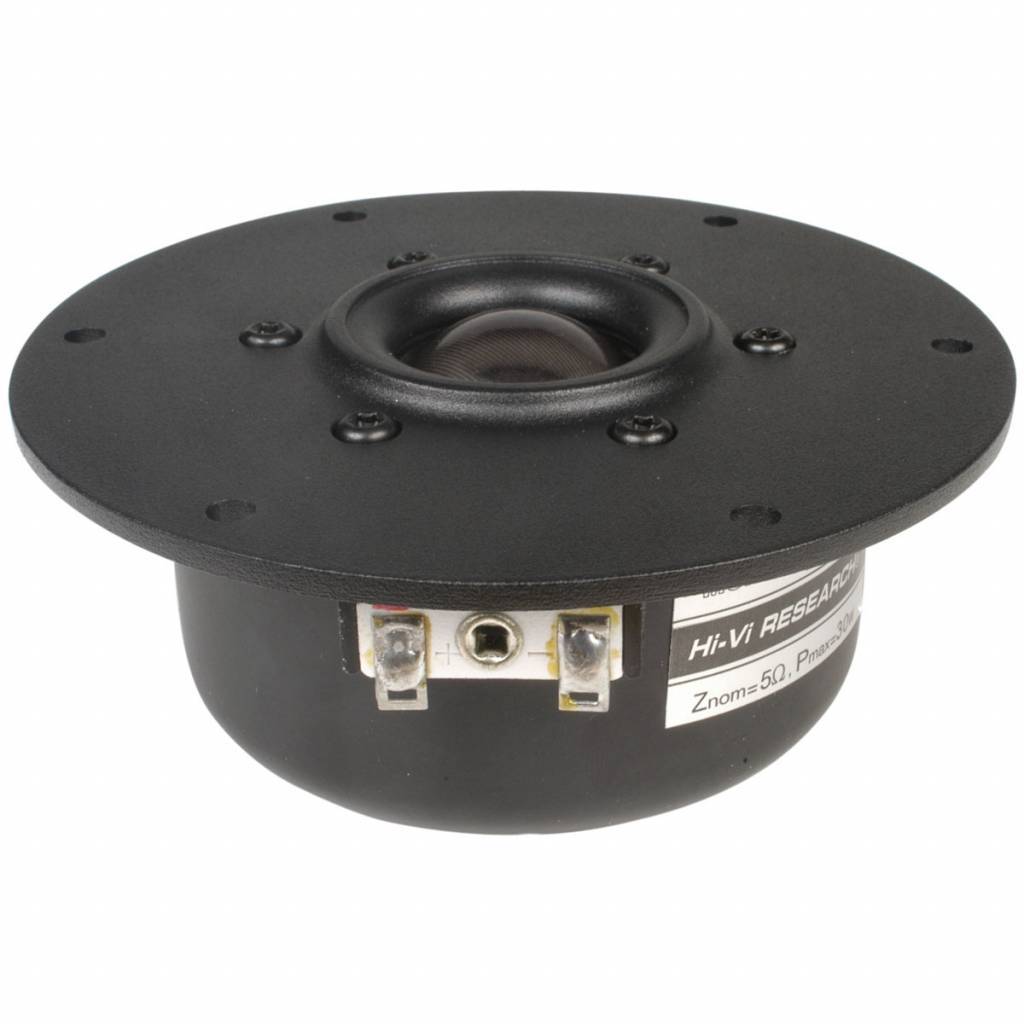

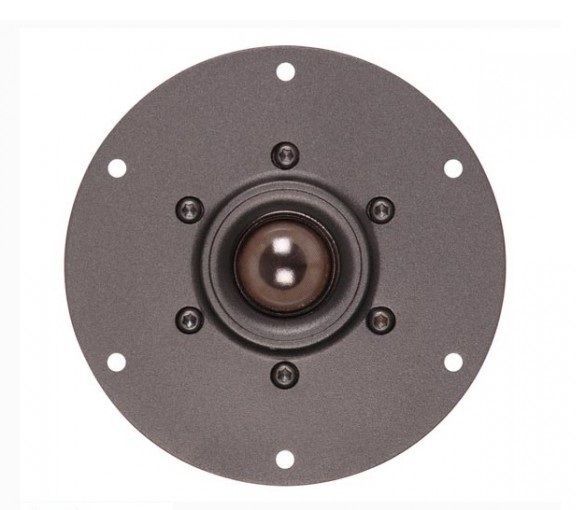

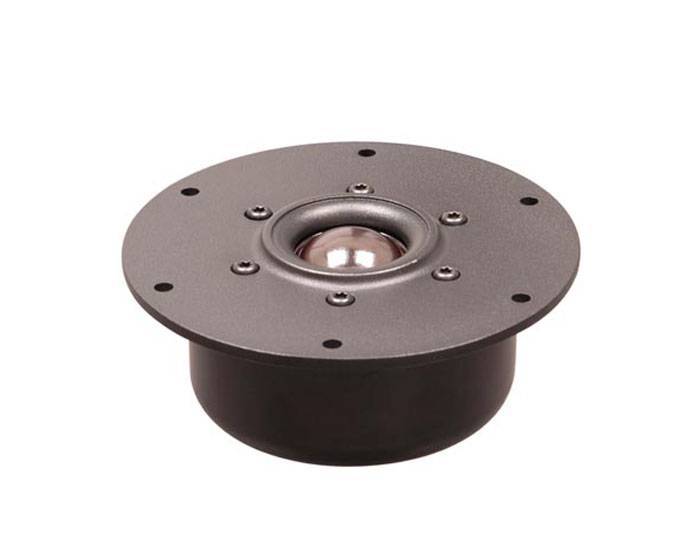

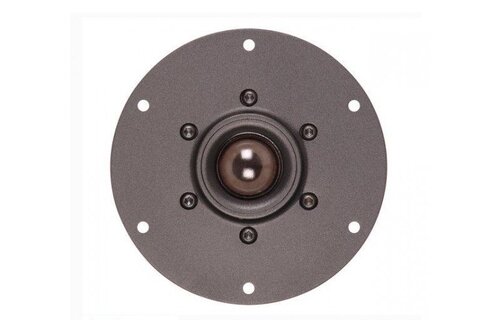

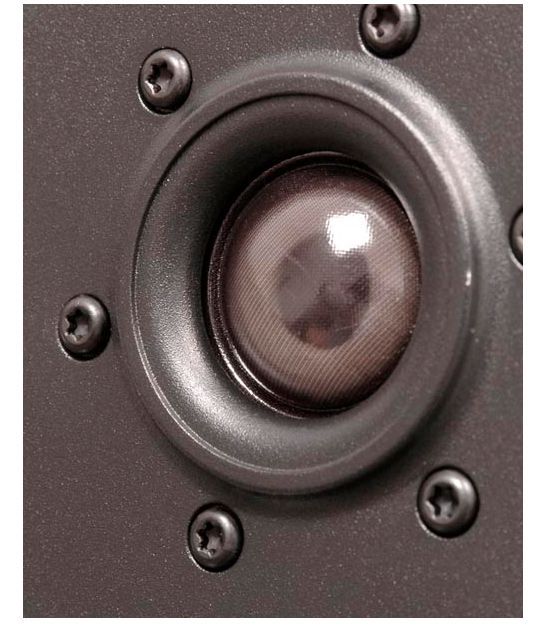

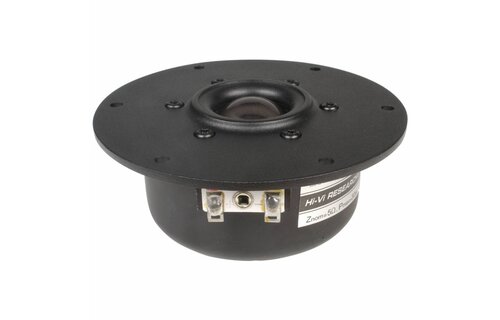

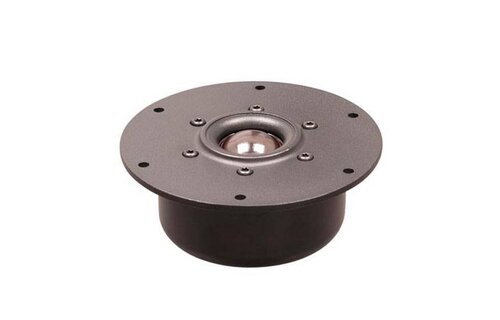

HiVi SD1.1-A 1" Textile Dome Tweeter
This high-quality tweeter utilizes a precisely coated diaphragm and a damping ring located below the dome. A special cast alloy faceplate offers excellent physical protection of the diaphragm, while also helping improve off-axis response. With a large, fully shielded magnet structure, ferrofluid, and aluminum former, the power handling is very good.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 1" |
Impedance | 6 ohms |
Power Handling (RMS) | 15 Watts |
Frequency Response | 2,000 to 20,000 Hz |
Sensitivity | 91 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1,200 Hz |
MOUNTING INFORMATION
Overall Outside Diameter | 4.56" |
Cutout Diameter | 3.31" |
Depth | 1.63" |
