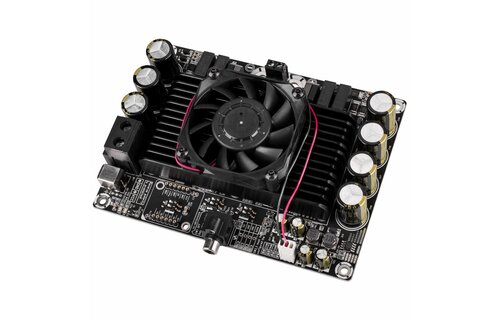

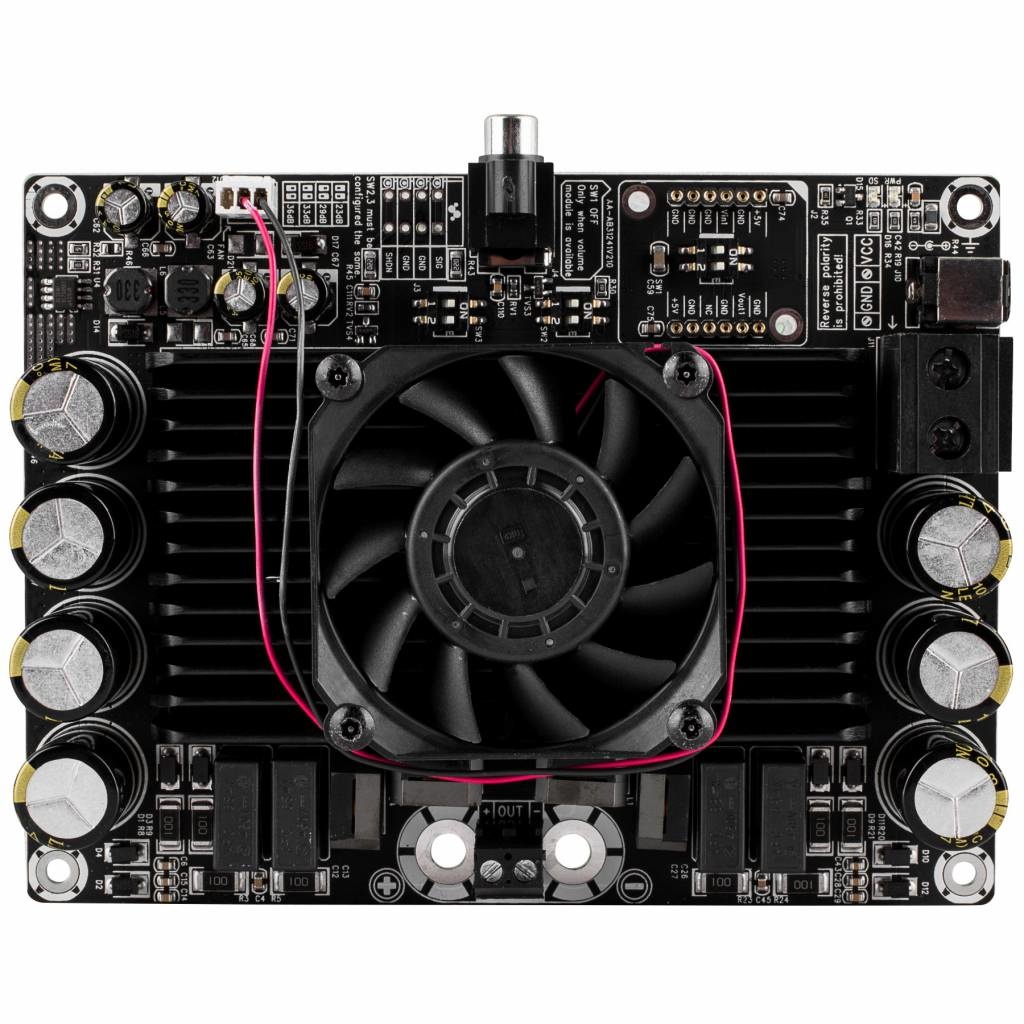

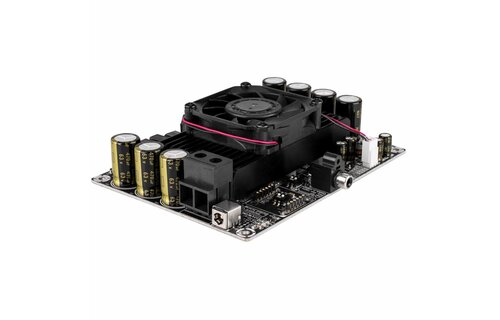

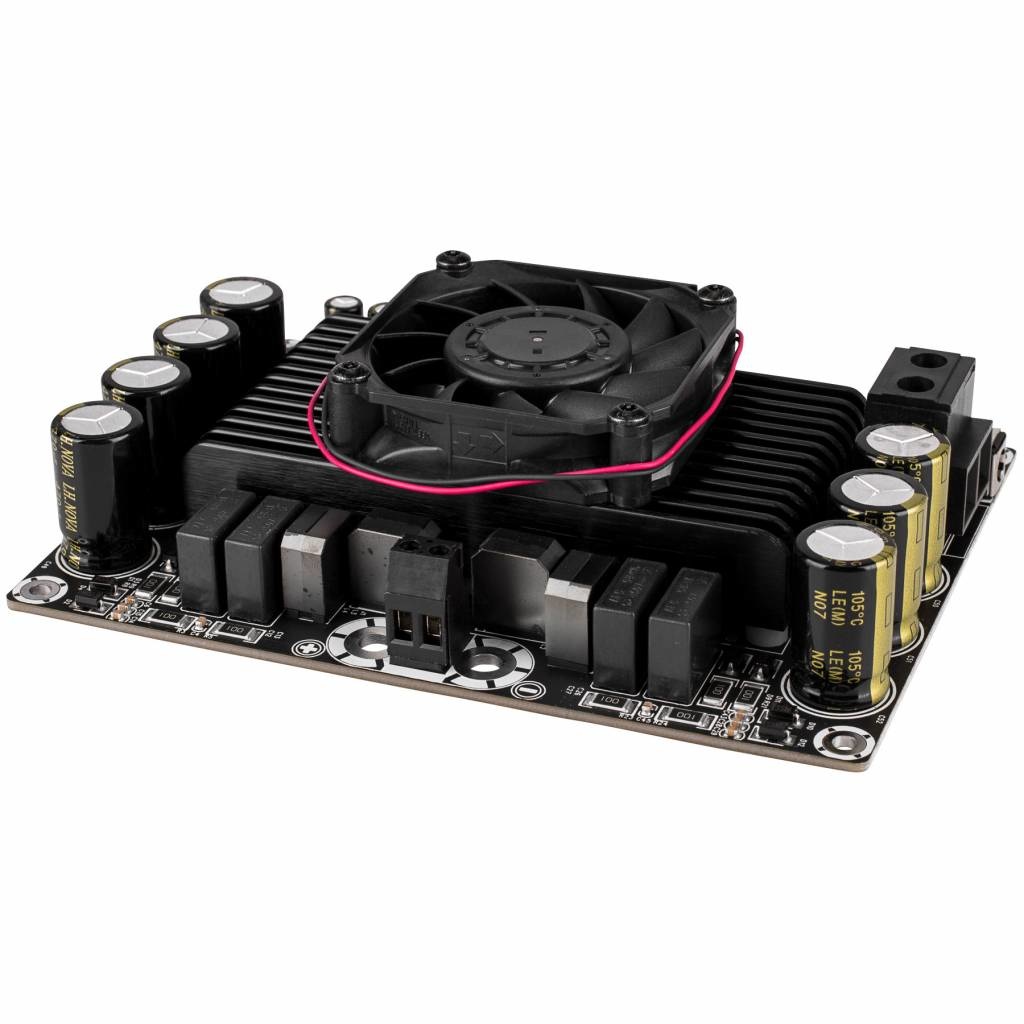

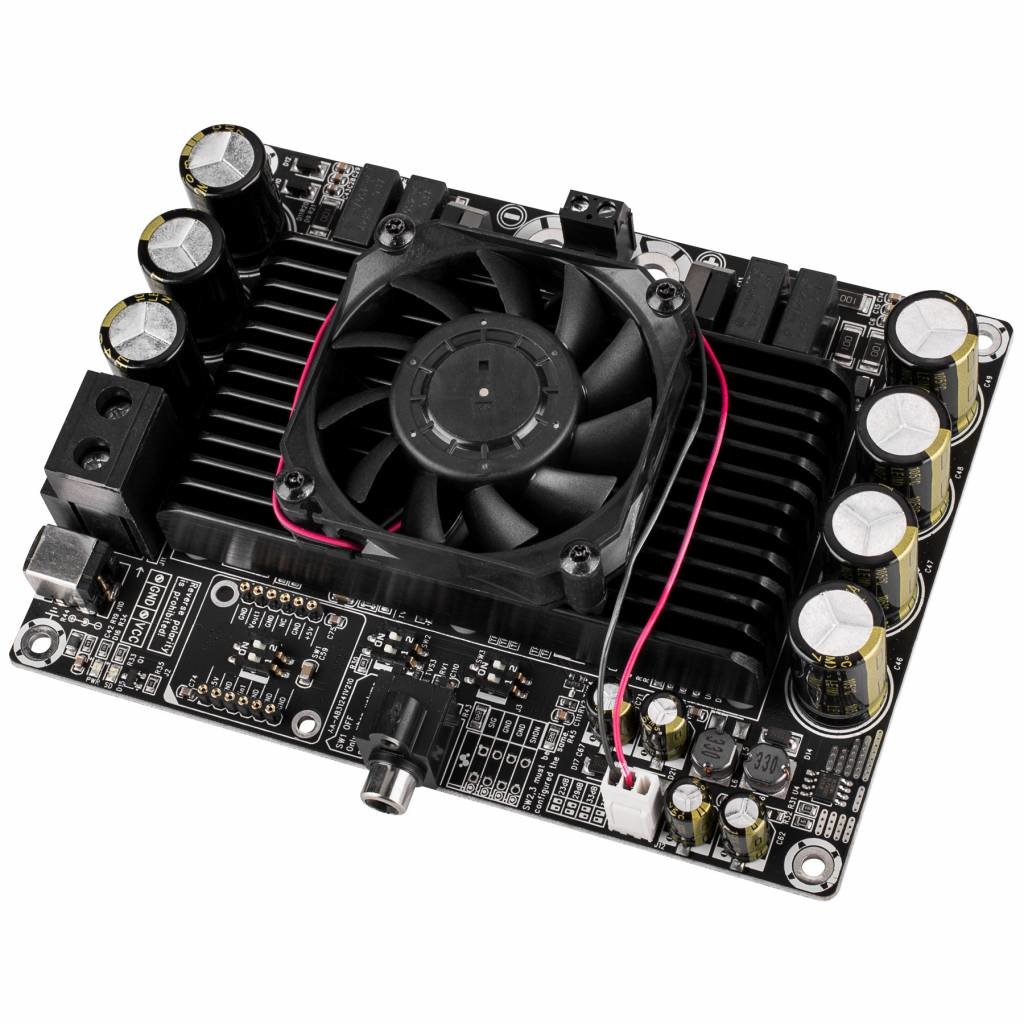

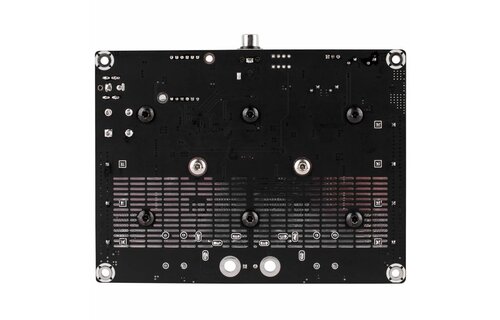

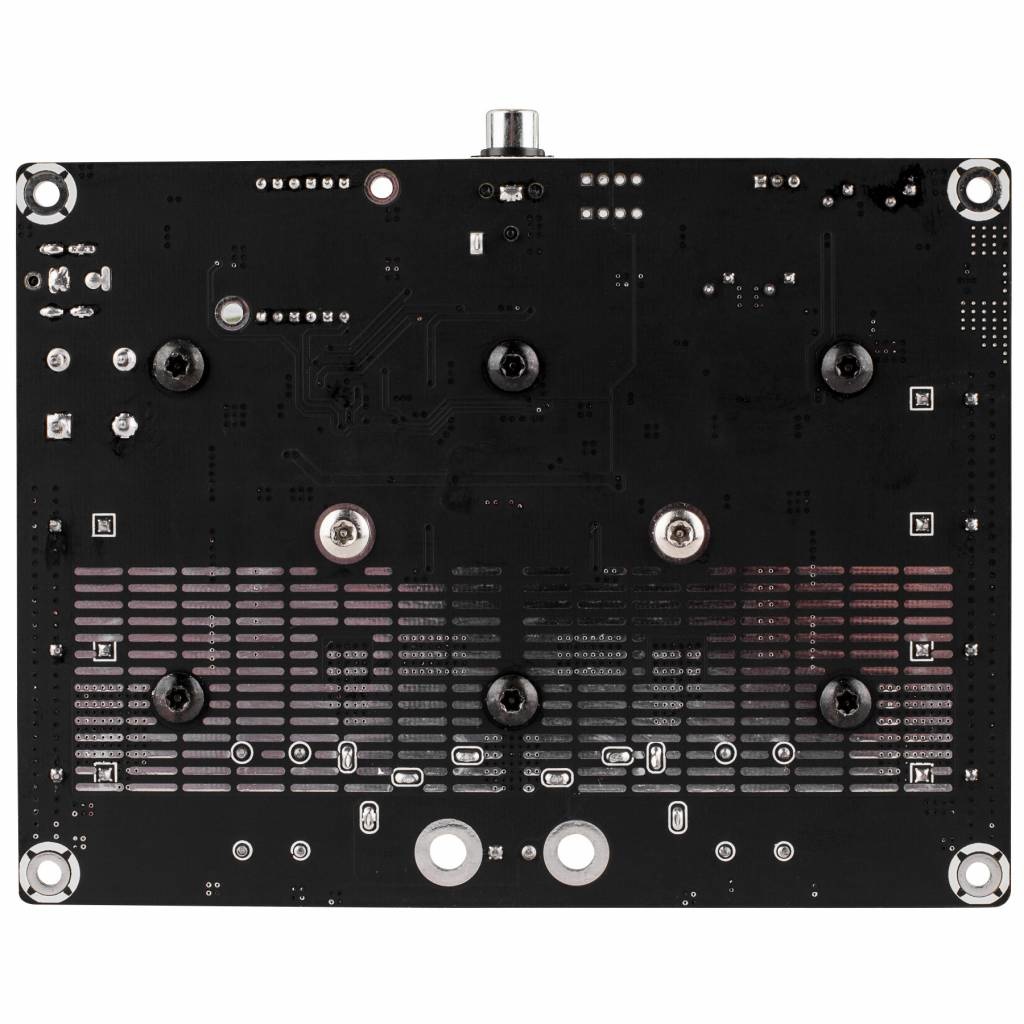

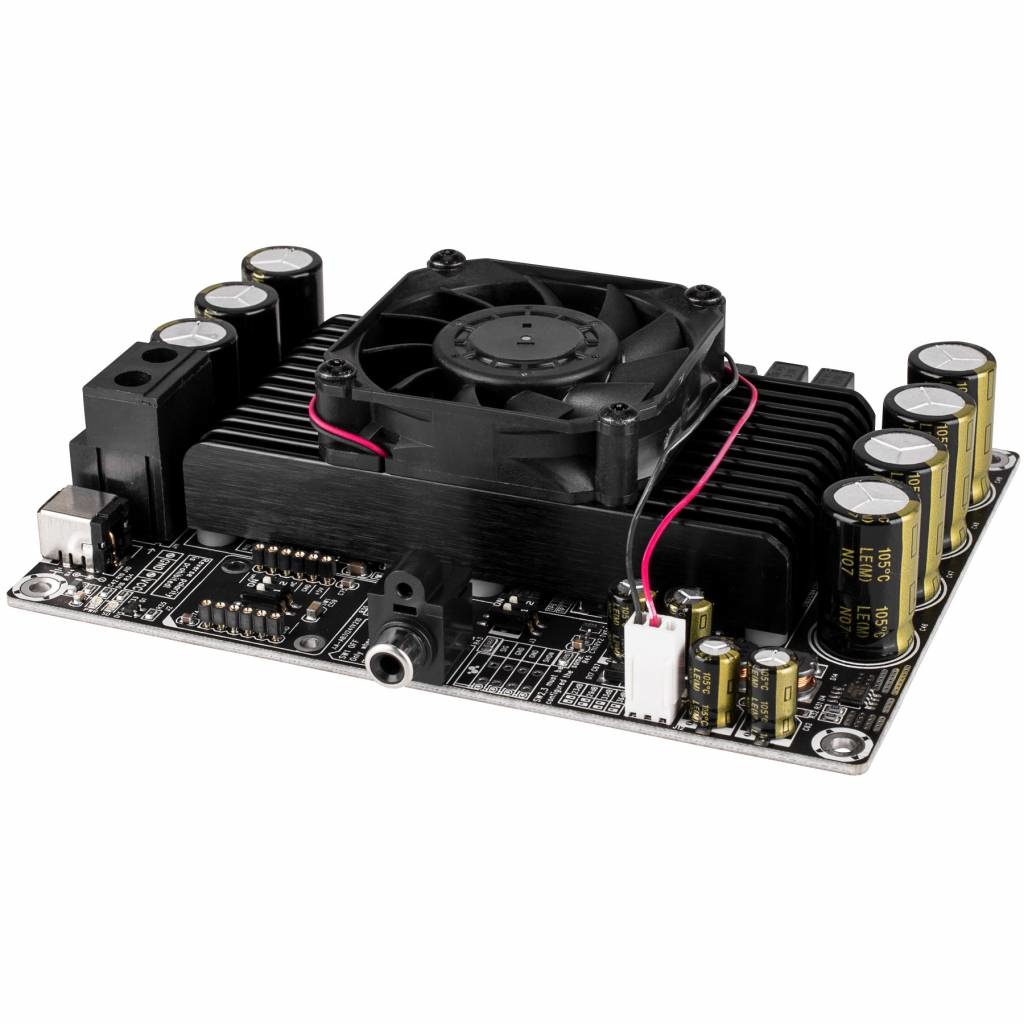

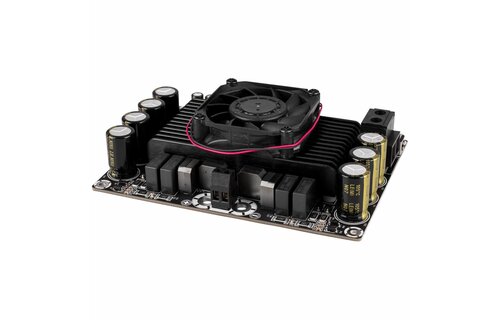

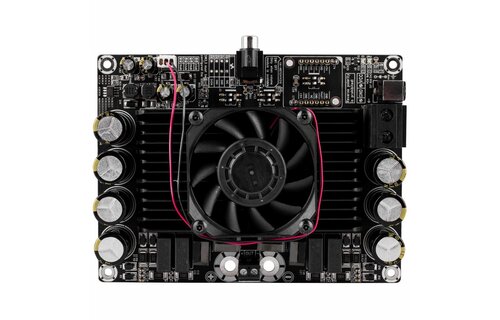

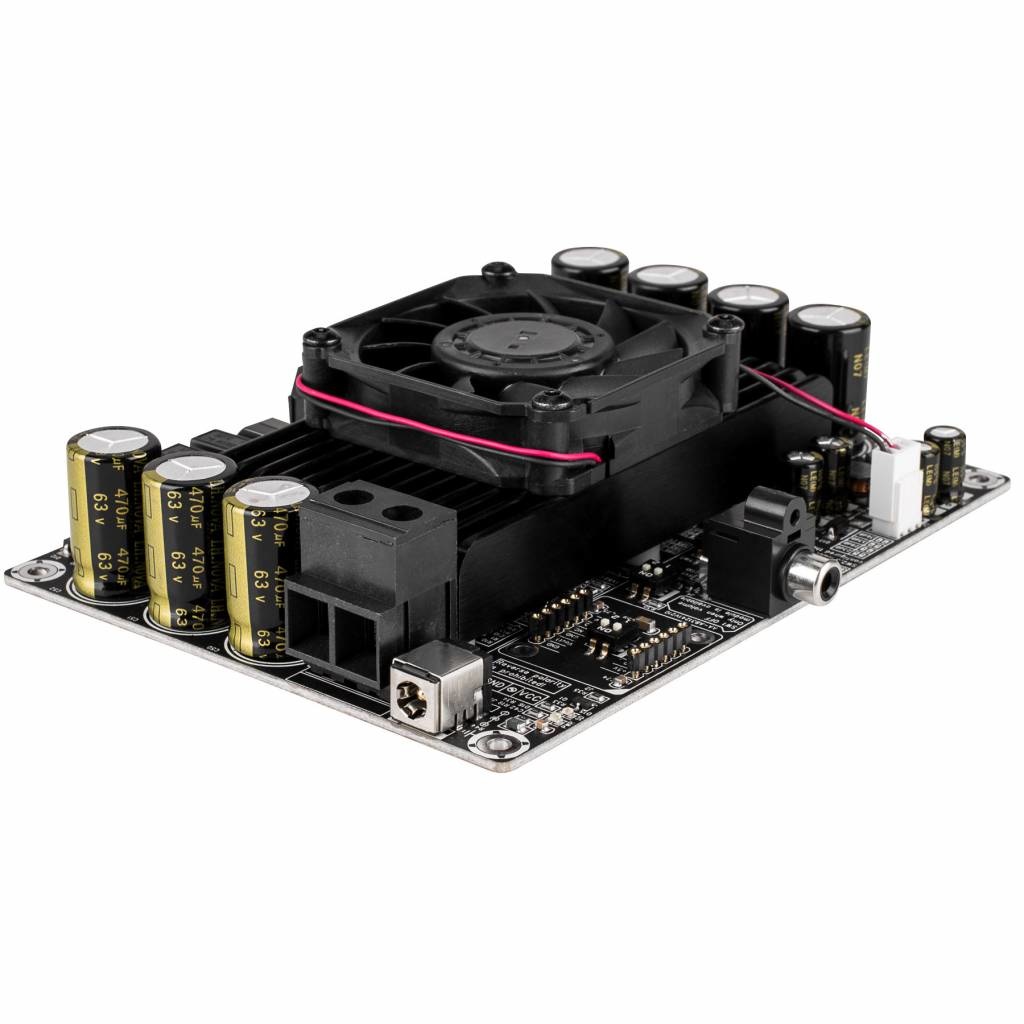

AA-AB31241 1x600W TAS5630 Class-D Amplifier Board

€ 76,41€ 92,45 4 Auf Lager
Amplifiers this powerful used to take up as much room and generate as much heat as a space heater! Up to 600W of pure Class-D power is on tap and ready for you to use this amplifier board with the meanest subwoofer you can find.... Mehr anzeigen
  • Versicherter Versand mit Sendungsverfolgung
  • Kostenloser Versand ab 149€ (DE, A)
  • Versand am selben Tag
  • Hausinterner technischer Support

Produktbeschreibung

Amplifiers this powerful used to take up as much room and generate as much heat as a space heater! Up to 600W of pure Class-D power is on tap and ready for you to use this amplifier board with the meanest subwoofer you can find.



Highlights

  • Perfect for use as a subwoofer amplifier
  • Up to 600W of Class-D power
  • 1.5-ohm stable
  • Over-engineered protection circuits
  • Requires 25 to 52 VDC power supply



Product Details

Sure Electronics AA-AB31241 1x600W TAS5630 Class-D Amplifier Board

Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



This mono-block amplifier board means serious business! A Class-D Texas Instruments TAS5630 with PurePath™ HD enabled integrated feedback develops up to 600W into a single channel with complete control and accuracy. For do-it-yourselfers looking for a subwoofer amplifier—look no further!



A robust heatsink, two-stage cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Four fixed gain settings allow you to match the amplifier to your source, and use your source as the volume control. A 25 to 52 VDC power supply is required.



Note: The minimum recommended wire gauge to be used for power is 16 AWG.



Features:
• Class-D Texas Instruments TAS5630 with PurePath™ HD enabled integrated feedback
• Robust heatsink with two-stage cooling fan
• Pre-drilled mounting holes
• Over/under voltage, over current, short circuit, and over temperature protection circuits
• Click and pop noise reduction
• Phoenix-type speaker terminals
• One line-level RCA inputs
• Large screw-down power input terminals



Connection:



Typical Performance Graphs:

Frequency response:



Noise Floor:



 THD+N VS Frequency:





Thermal Image:

All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.

Eigenschaften

Artikelnummer:
AA-AB31241
