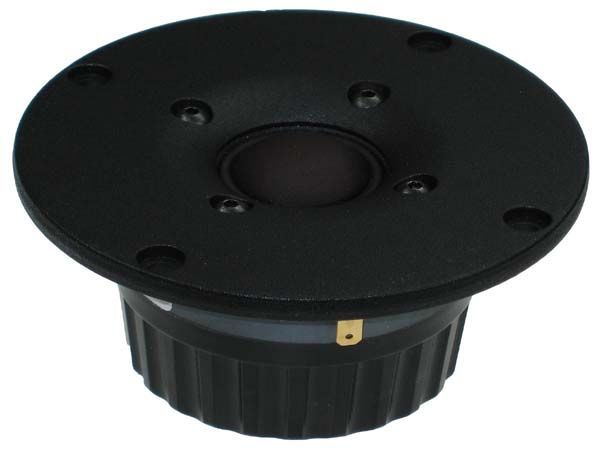

Seas Excel T25CF001 - E0006-06 1" Fabric Dome Tweeter
The T25CF001 is a 25mm fabric dome with moderately high efficiency. An optimally shaped dome and a wide SONOMEX surround, both manufactured by SEAS, ensure excellent performance and consistency. Low viscosity magnetic fluid which provides excellent cooling while maintaining a low resonance frequency.
6 mm solid metal front plate with a slight loading characteristic which ensures linear frequency response, and a stiff and stable connection to the cabinet. A substantial injection-molded rear chamber, with complex internal shape and reinforcing ribs, which eliminate unwanted chamber resonances and reflections.
A double magnet system which increases sensitivity and provides better control of the voice coil. This system also reduces the magnetic stray fields, making the T25CF001 an ideal choice in high end A/V applications.
PRODUCT SPECIFICATIONS
Tweeter Type | Fabric Dome |
Cone / Dome Diameter | 1" |
Impedance | 6 ohms |
Power Handling (RMS) | 90 Watts |
Frequency Response | 2,000 to 25,000 Hz |
Sensitivity | 91 dB 2.83V/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 700 Hz |
DC Resistance (Re) | 4.6 ohms |
Voice Coil Inductance (Le) | 0.05 mH |
