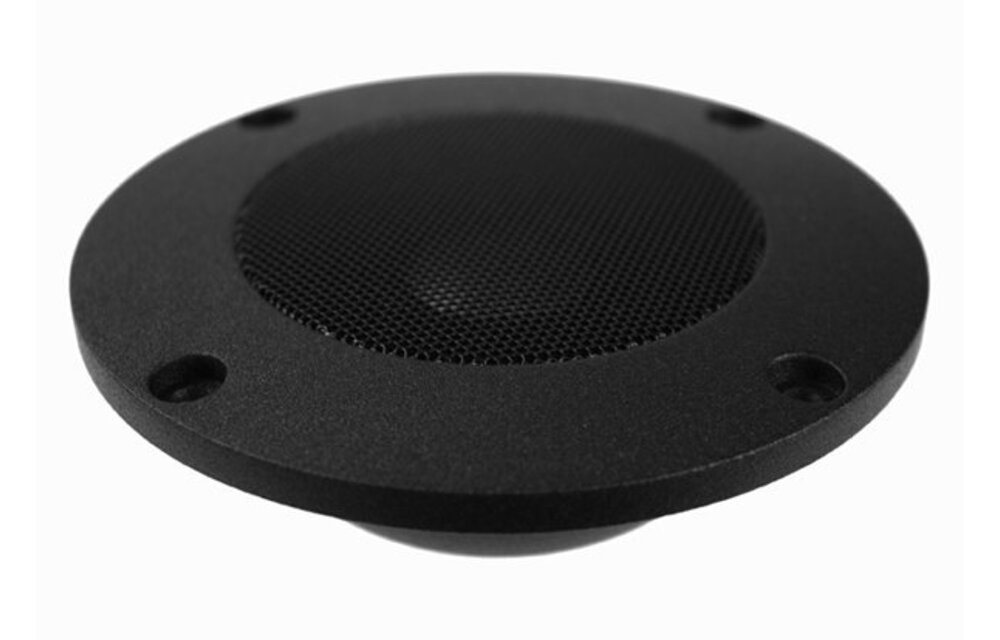

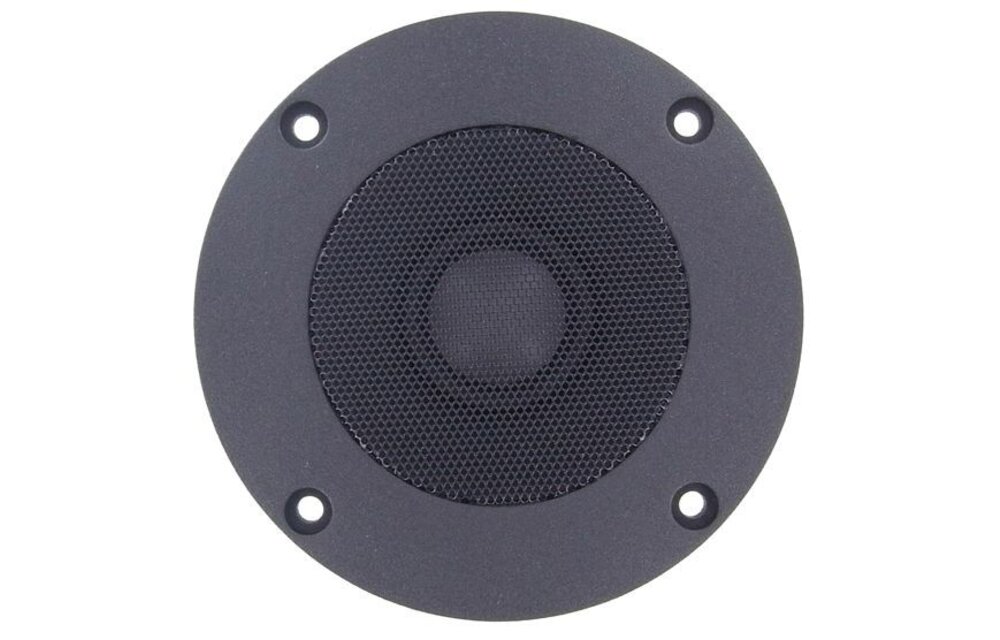

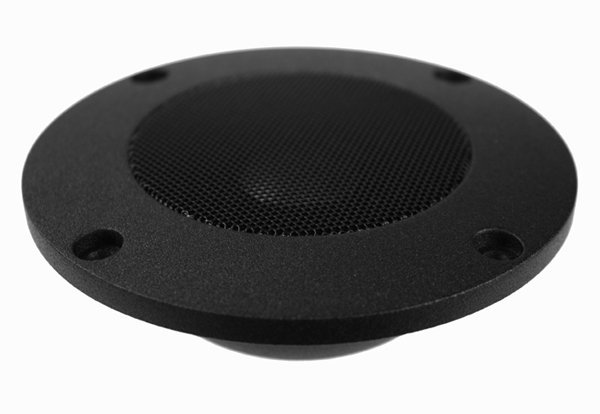

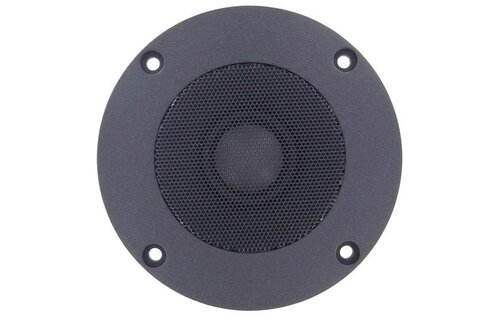

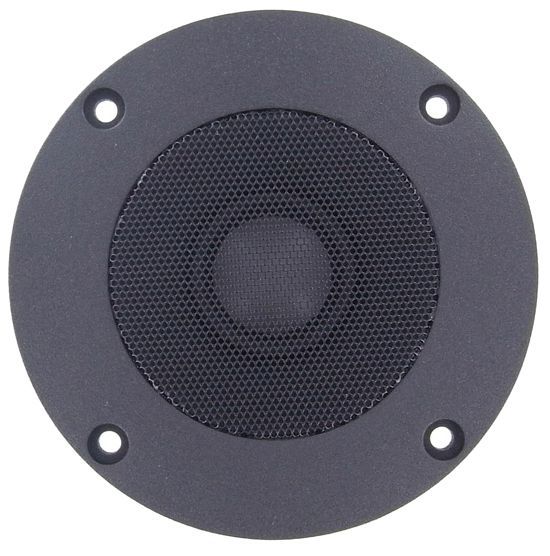

Seas Excel T29B001 - E0058-06D 1-1/8" Beryllium Dome Tweeter
The SEAS T29B001 is an ultra high performance 29mm dome tweeter, featuring high sensitivity and a smooth, extended frequency response. The dome is made from high purity Beryllium and manufactured to SEAS specifications by Truextent® in the USA. Being extremely stiff and lightweight, this precision dome ensures excellent performance and consistency. The newly designed magnet system employs a high efficiency Neodymium ring magnet, combined with shorting rings, to reduce non-linear and modulation distortion.

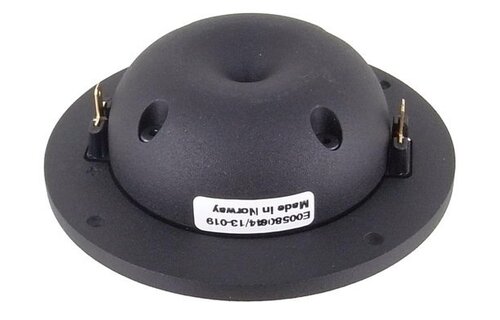

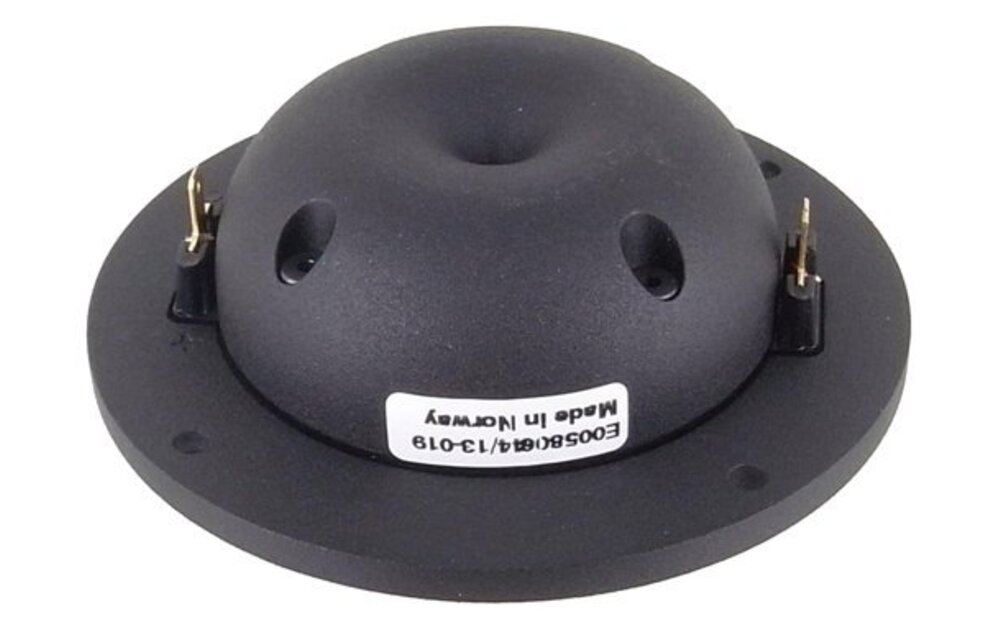

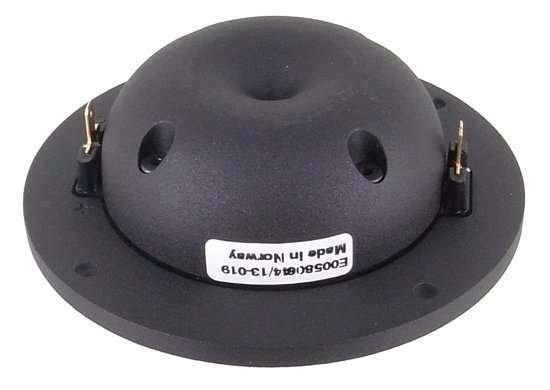

A well-damped vented pole and a rigid rear chamber ensure a low resonance frequency and smooth response. The 1.5 mm voice coil uses flexible lead-out wires and venting holes in the aluminum coil former, reducing noise to a minimum. A 7 mm thick precision die-cast aluminum front plate with moderate horn loading ensures linear frequency response and represents an extremely stable platform for the magnet system and the moving parts.
PRODUCT SPECIFICATIONS
Tweeter Type | Beryllium Dome |
Cone / Dome Diameter | 1-1/8" |
Impedance | 6 ohms |
Power Handling (RMS) | 90 Watts |
Frequency Response | 2,000 to 25,000 Hz |
Sensitivity | 93.6 dB 2.83V/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 533 Hz |
DC Resistance (Re) | 4.6 ohms |
Voice Coil Inductance (Le) | 0.01 mH |
