The Dayton Audio TD20F-4 uses a 3/4" silk dome to produce smooth response with excellent dispersion. At only 2-1/2" diameter and just over 1/2" deep, this tweeter is ideal for use in any compact design.
Highlights
Product Details

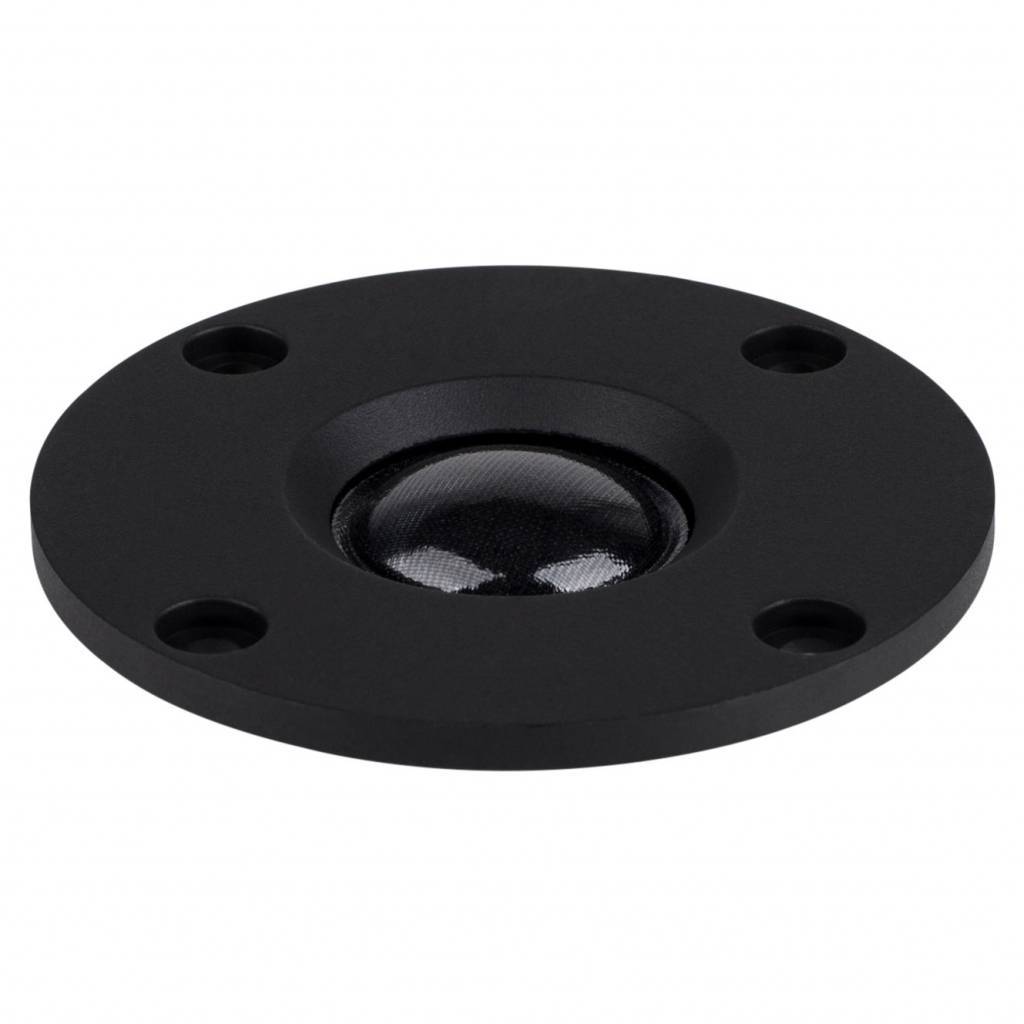

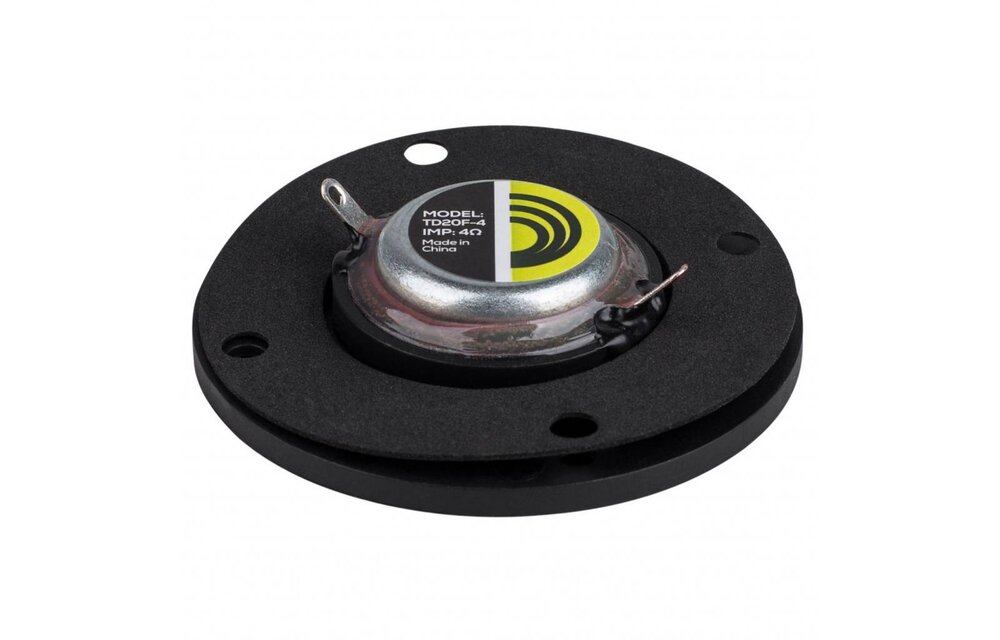

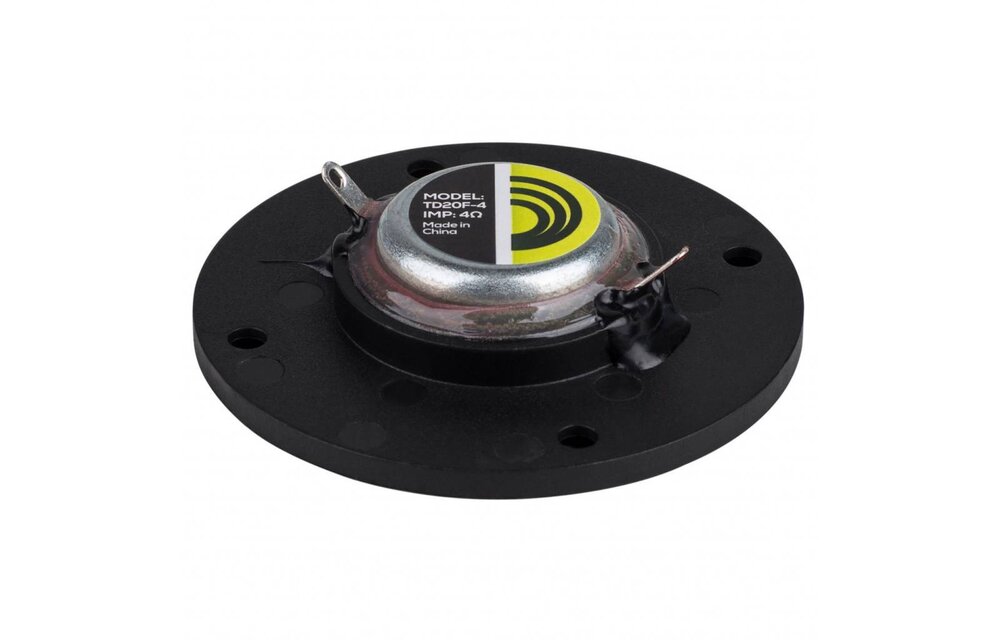

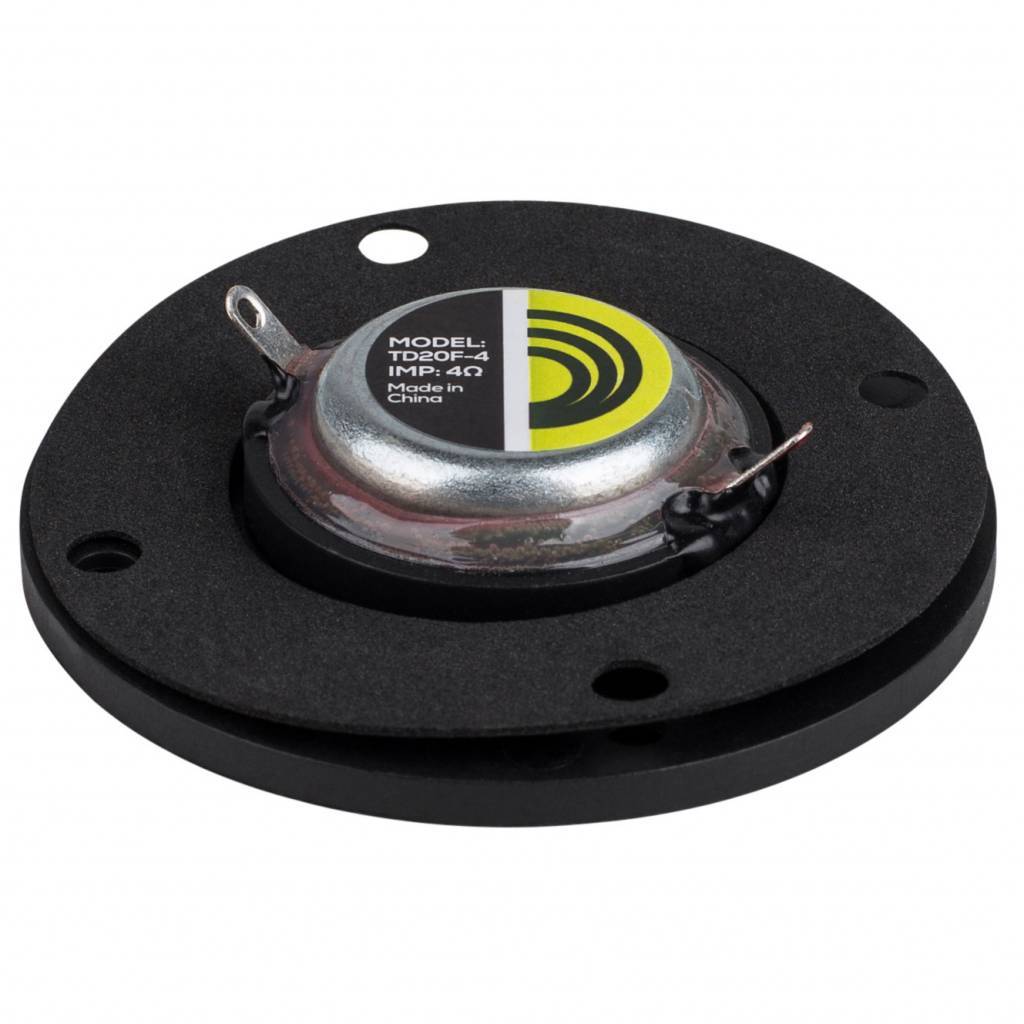

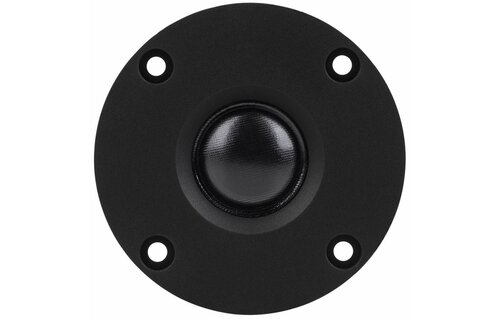

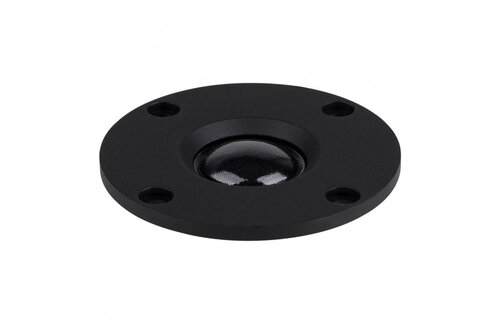

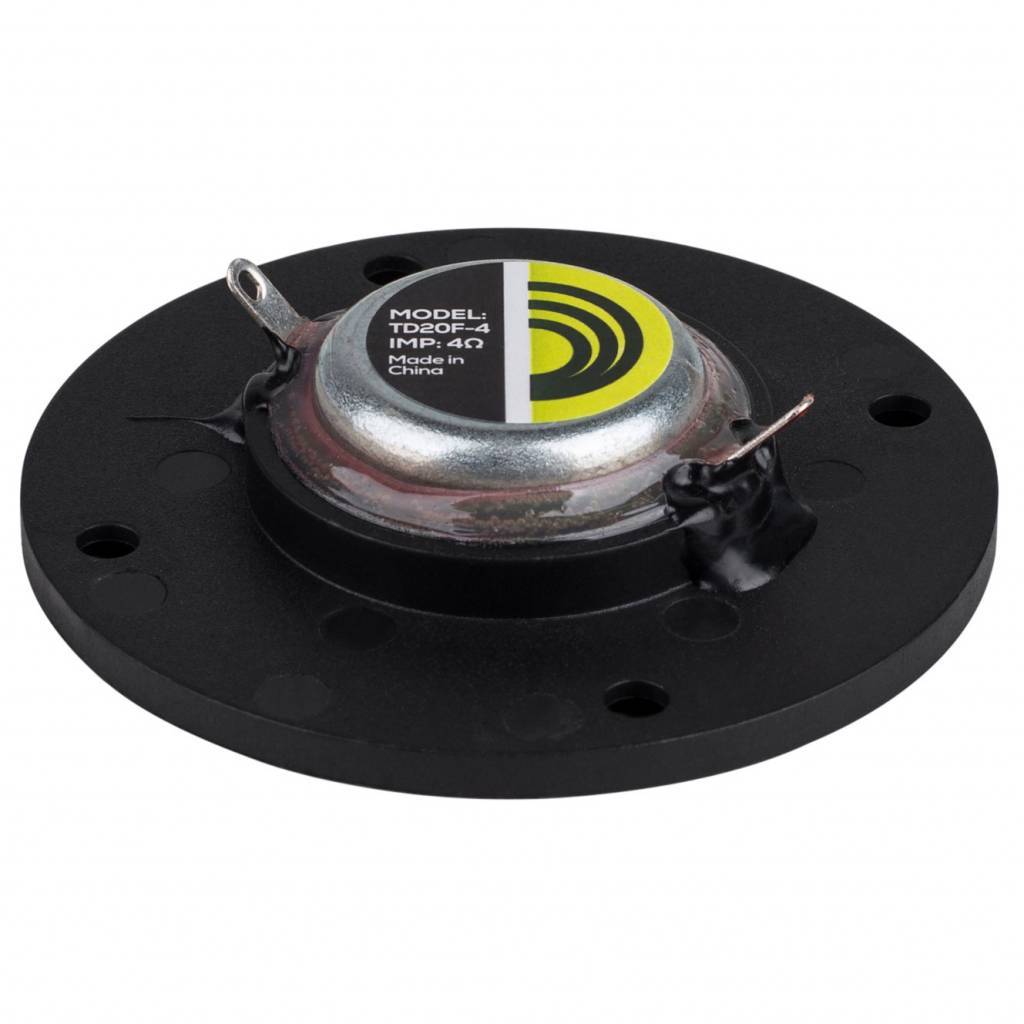

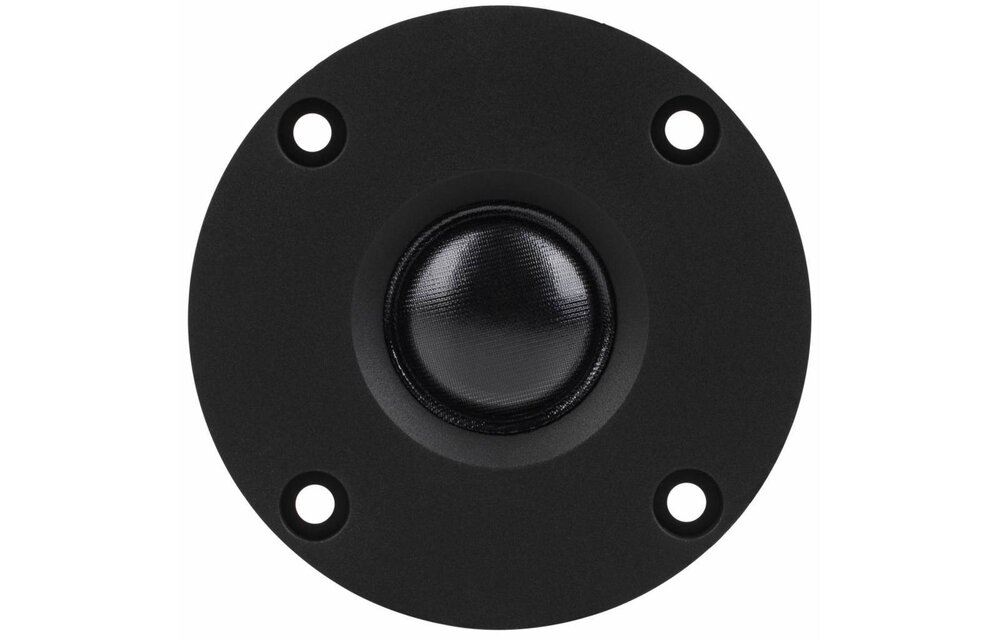

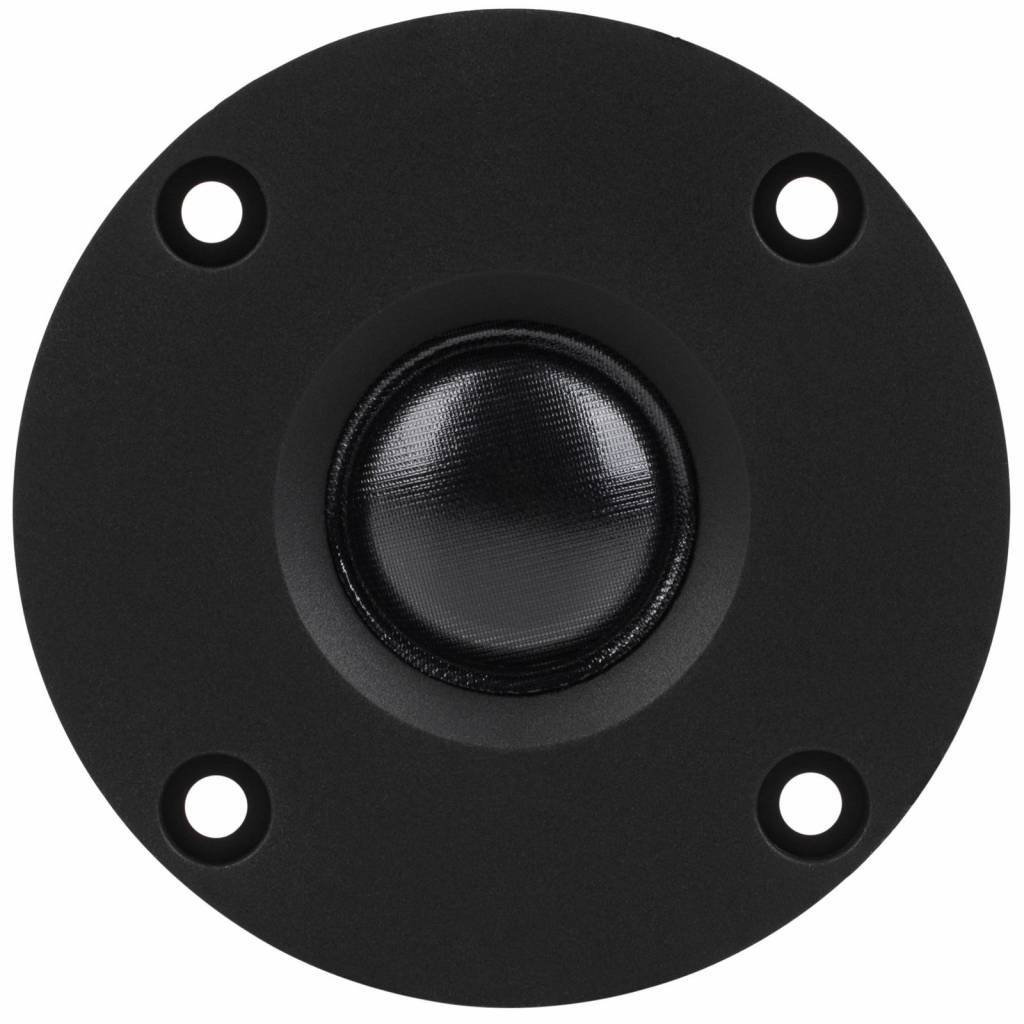

Dayton Audio TD20F-4 3/4" Soft Dome Neodymium Tweeter 4 Ohm
Dayton Audio's TD20F-4 3/4" silk dome tweeter incorporates an optimized diaphragm that combines low mass, superb damping, and a carefully calculated dome profile offering an exceptionally flat frequency response. This, along with the low distortion neodymium motor system, ensures that high frequency content is reproduced as transparently as possible.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Nominal Diameter | 3/4" |
Impedance | 4 ohms |
Power Handling (RMS) | 20 Watts |
Frequency Response | 3,000 to 20,000 Hz |
Sensitivity | 90 dB 2.83V/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1,696 Hz |
DC Resistance (Re) | 3.4 ohms |
MOUNTING INFORMATION
Overall Outside Diameter | 2.56" |
Cutout Diameter | 1.69" |
Depth | 0.59" |
