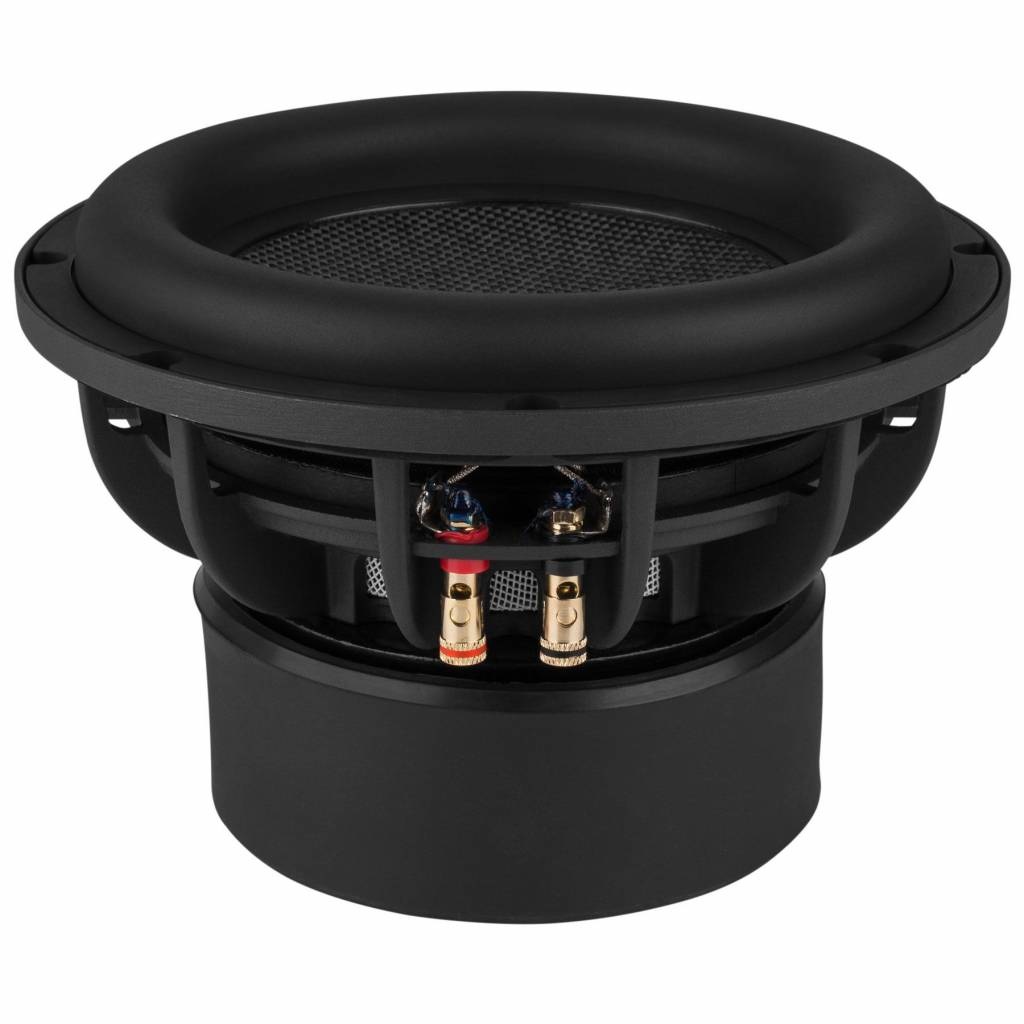

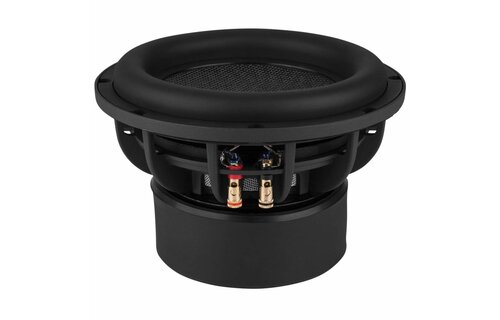

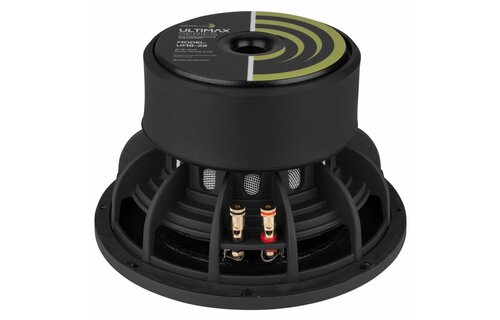

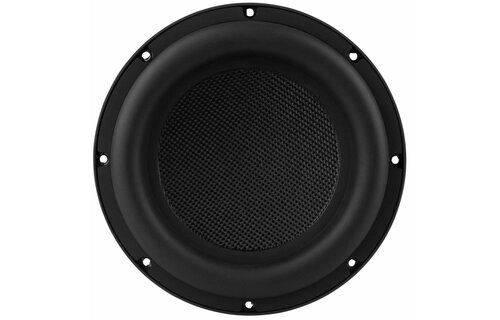

UM8-22 8" Ultimax DVC Subwoofer
- Versicherter Versand mit Sendungsverfolgung
- Kostenloser Versand ab 149€ (DE, A)
- Versand am selben Tag
- Hausinterner technischer Support
Dayton Audio's Ultimax Series DVC subwoofers are purpose-built to move air and create clean, articulate, fast bass. Optimized for small enclosures and with over 1-1/4" of throw, the UM8-22 8" subwoofer is perfect for providing deep bass without taking up much space. Experience the apex of subwoofer design.
Highlights
Product Details
Dayton Audio UM8-22 8" Ultimax DVC Subwoofer 2 Ohms Per Coil
If you want outrageous amounts of bass, you gotta move some air
The Ultimax Series of dual voice coil subwoofers, from Dayton Audio, are not for the faint of heart. Built using the latest in subwoofer technology, Ultimax subwoofers are the pinnacle of low frequency driver design. An Ultimax subwoofer tests the strength of your foundation with fast, articulate, gut-wrenching bass.
The versatility you need for mobile, home, or pro subwoofer excellence
Dual 2 ohm voice coils allow for stereo 2 ohm and mono 1 ohm wiring configurations when connecting to high current car audio and professional audio amplifiers to extract maximum power. For home audio applications, simply wire the voice coils in series for a benign 4 ohm load for greater amplifier compatibility.
Built to produce massive low frequency output and keep on doing it
To improve power handling, increase thermal management, and reduce power compression, Dayton Audio designed the Ultimax Series with large black anodized formers and vented pole pieces, under-spider ventilation, and two-layer copper voice coils.
Over 1-1/4" of travel (.67" Xmax) is kept completely linear through the use of dual spiders that also limit distortion and rocking modes. "Tall-boy" rubber surrounds with integrated gaskets maintain driver surface area during extreme excursion moments. The thick, one-piece Nomex honeycomb cone is covered with woven, heavy-duty glass fibers creating an ultra-stiff surface that resists deformation.
A strong motor takes you to wherever you want to be
A large copper sleeve and copper pole cap in the motor reduce energy storage from inductance, with the side benefit of lowering distortion for "faster" response. Large dual-stacked, high-energy magnets handle the heavy lifting and bring Qts down to a level where Ultimax subwoofers can be used in vented or sealed cabinets and enclosures.
Cabinet recommendations:
Note: All parameters derived with voice coils wired in series.
