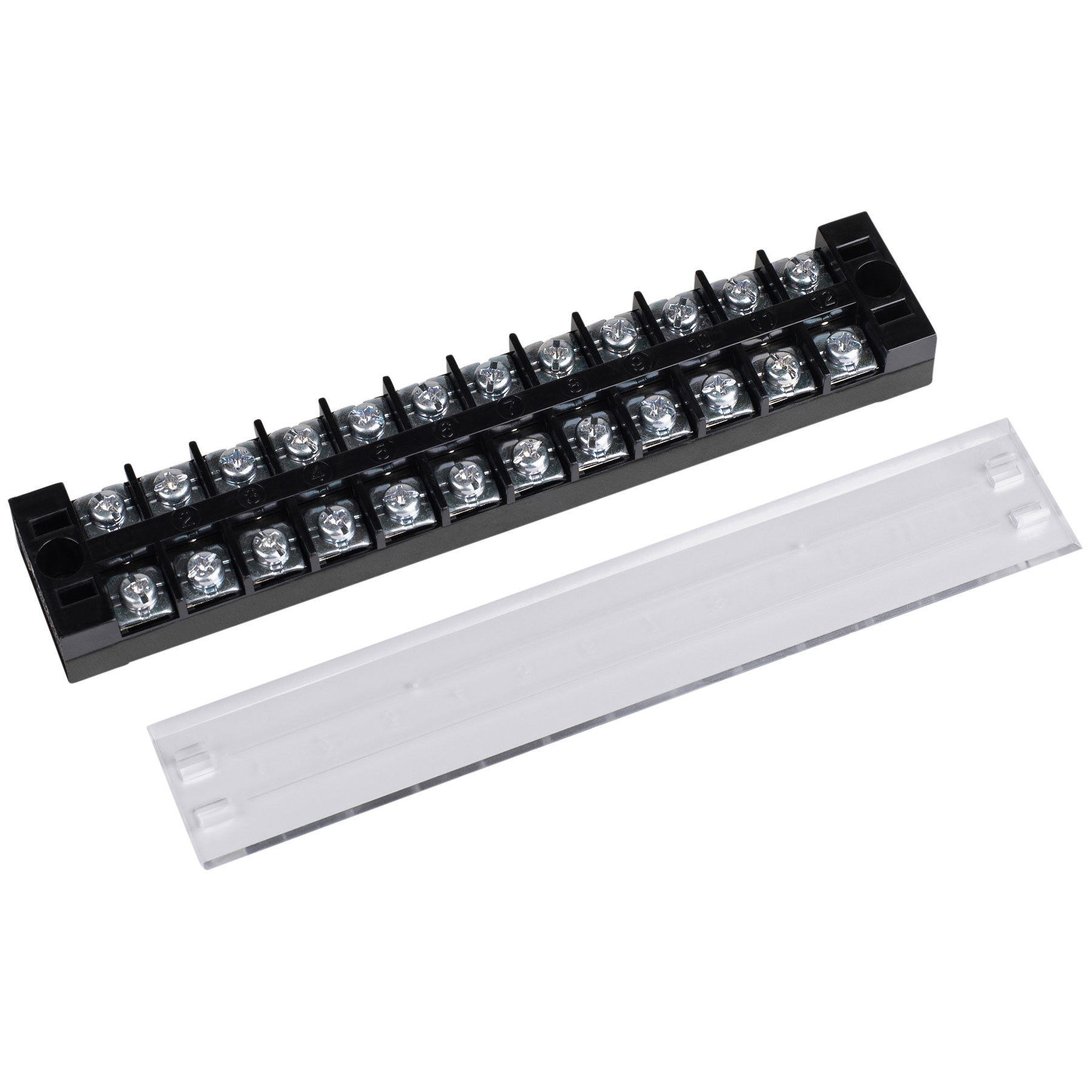

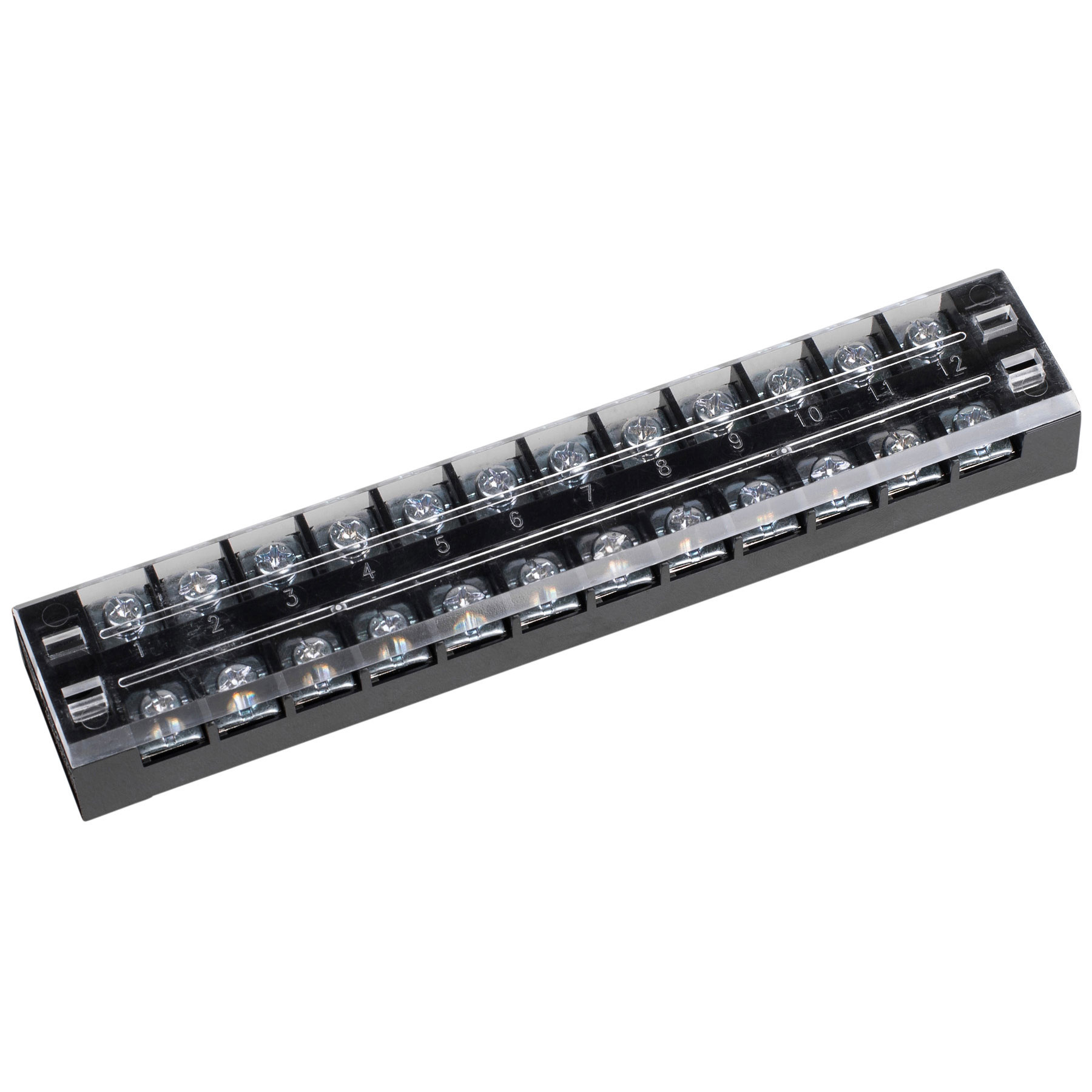

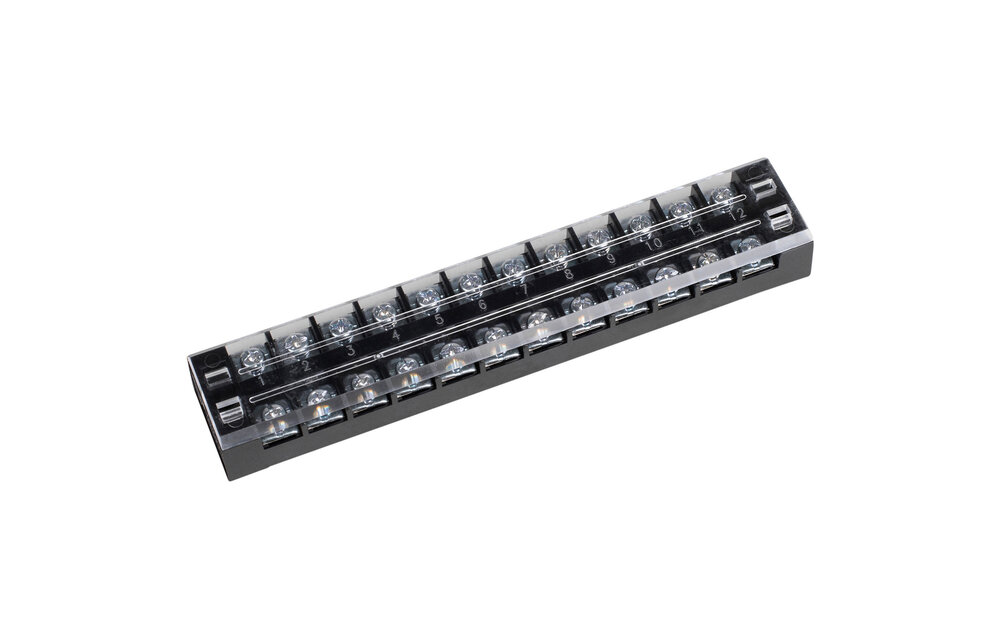

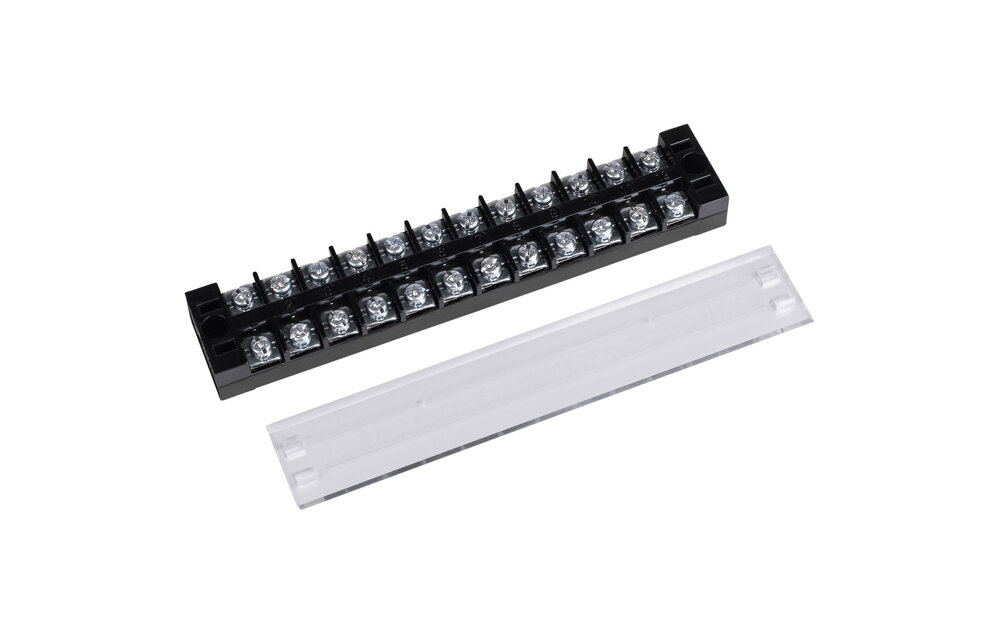

    12 Pole 25A Barrier Terminal Strip with Snap-on Clear Plastic Cover

    € 5,74€ 6,95 7 In stock
    Double row barrier strip made from heavy-duty thermoplastic. Clear plastic cover and 25 amp current rating make it great for automotive power distribution.... Show more
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping
    • In-house technical support

    Product description

    Double row barrier strip made from heavy-duty thermoplastic. Clear plastic cover and 25 amp current rating make it great for automotive power distribution.



    Highlights

    • Made with heavy-duty UL 94-2 flame rated plastic for durability and safety
    • Brass conductors provide great connectivity
    • Snap-on clear plastic cover helps prevent accidental short circuits
    • One 5.1 mm mounting hole on each side for a secure hold



    Product Details

    12 Pole 25A Barrier Terminal Strip with Snap-on Clear Plastic Cover



    This heavy-duty double row barrier strip is perfect for running multiple automotive accessories from one power source. On one side of the terminal strip, connect all twelve screws together with short jumper wires. From that same side run a hot wire to the fuse box or positive battery terminal. The other side of the strip now has twelve hot terminals to power twelve different accessories items as long as their amperage does not add up to over 25 amps. This eliminates running multiple wires to one terminal on the fuse box or battery. Ground the accessory item to a metal chassis screw closest to it and you're done. Snapping the clear plastic cover over the top of the terminal strip helps prevent accidental contact with metal materials. Recommend fusing the main hot wire.



    Specifications: • Dimensions: 164 mm L x 30 mm W x 19.5 mm • Gap: 10 mm • Pitch: 12 mm • Screws: M4 • Max voltage: 600 V • Max current: 25A • Max temperature: 110° C (230° F) • Poles: 12.

    Specifications

    Article number
    090-849
