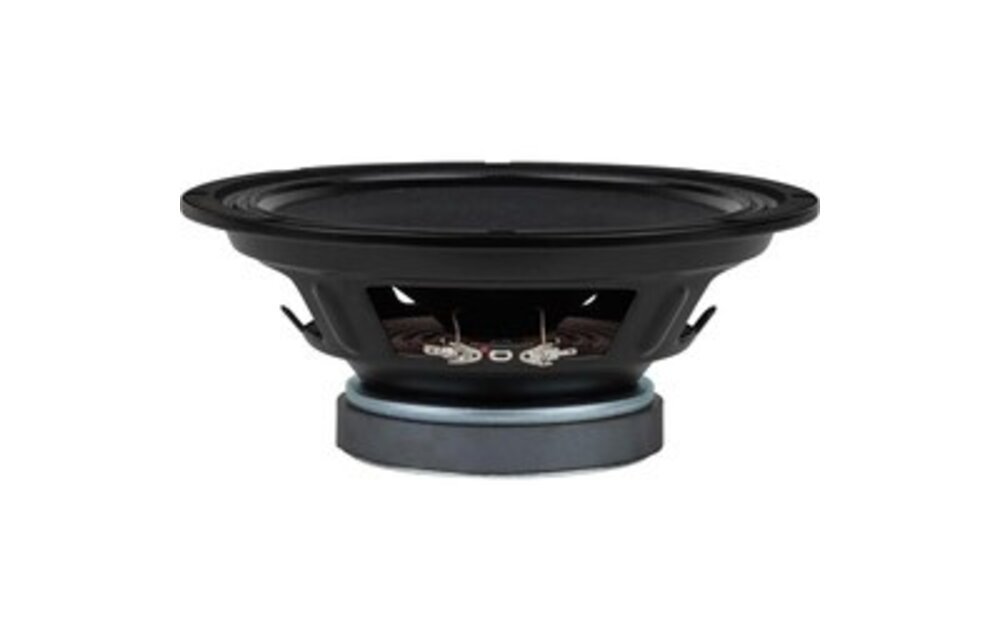

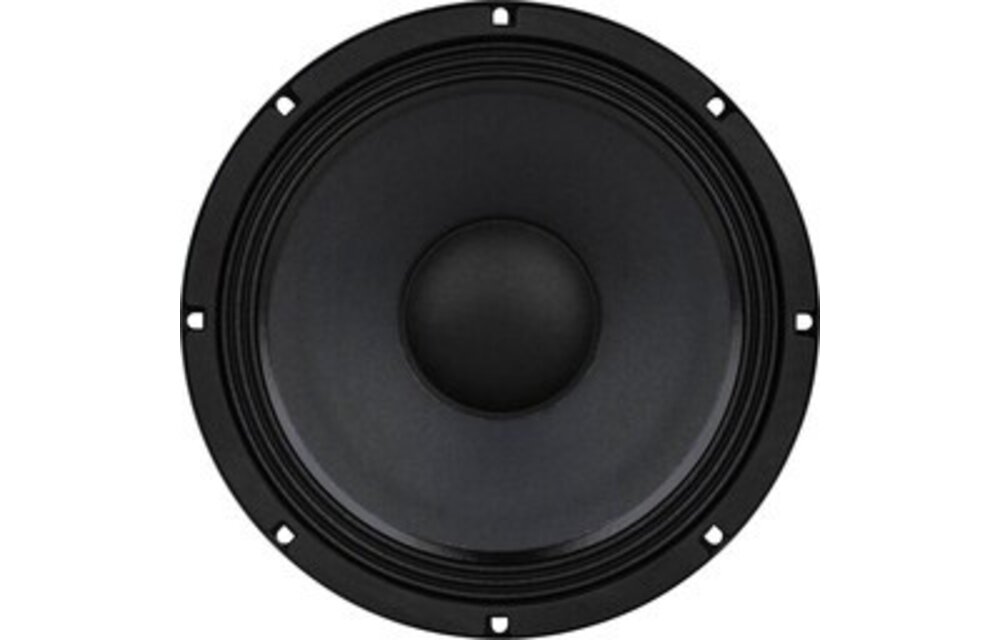

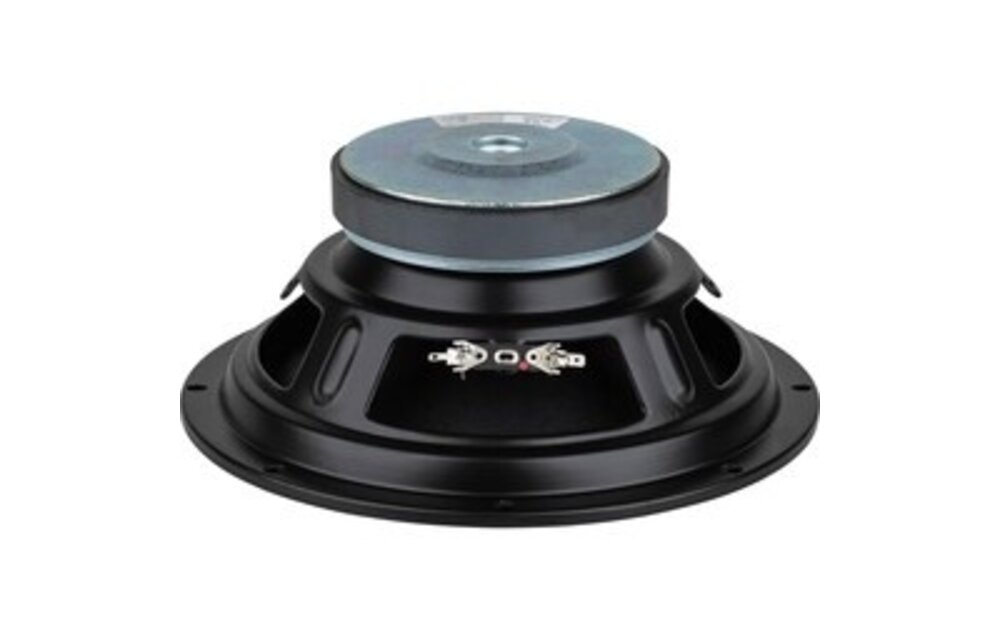

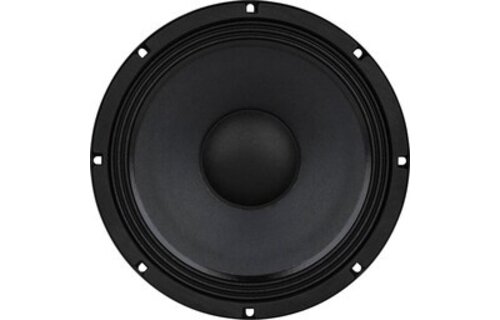

The FaitalPRO 10FE400-4F is a 10" 4 Ohm bass-midwoofer with 200 W AES power handling, 95 dB sensitivity and a usable frequency range from 60 Hz to 4500 Hz.
Highlights of the FaitalPRO 10FE400-4F
- 10" bass-midwoofer with 4 Ohm nominal impedance
- 200 W AES power handling and 400 W maximum power handling
- 95 dB sensitivity for efficient output
- 60 Hz to 4500 Hz frequency range
- 44 mm copper voice coil on an aluminium former
- Ferrite ring magnet, steel basket and triple-roll treated polycotton surround
Product details FaitalPRO 10FE400-4F
FaitalPRO 10FE400-4F 10" Bass-midwoofer 4 Ohm
The FaitalPRO 10FE400-4F is a 10" bass-midwoofer designed for strong output and efficient performance. With 200 W AES power handling, 400 W maximum power handling and 95 dB sensitivity, it is well suited for demanding loudspeaker designs that need a capable low and mid-frequency driver.
This 4 Ohm woofer has a frequency range of 60 Hz to 4500 Hz, making it suitable for bass-mid duties where extended midrange reach is useful. Key motor parameters include a 44 mm copper voice coil, aluminium former, 1.10 T flux density and a ferrite ring magnet.
The mechanical design uses a steel basket and a triple-roll treated polycotton surround. Installation-relevant measurements include a 233 mm baffle cutout, 111 mm depth, 7 mm flange and gasket thickness, and a net weight of 2.95 kg.
For builders working with professional audio components, the 10FE400-4F offers practical Thiele and Small parameters including Fs 60 Hz, Qts 0.41, Vas 33.6 dm³, Sd 362 cm² and 5.62 mm Xmax. These values help with enclosure planning and system integration.
