The SICA 12 D 1,5 CS - 8 Full-range driver is a robust 12-inch loudspeaker designed for high performance in a variety of audio applications. Featuring a dual cone design and a powerful ferrite magnet circuit with a copper demodulating ring, this speaker delivers exceptional sensitivity and broad frequency coverage. With a continuous program power handling of 260 W and a sensitivity of 96.9 dB at 1W/1m, it offers clarity and output suitable for both home and professional audio systems. Its construction incorporates quality materials such as a Kapton voice coil former and a pressed steel basket, ensuring durability and reliable sound reproduction.
Highlights of the SICA 12 D 1,5 CS - 8
- 1.5-inch voice coil with Kapton former for high thermal stability
- Dual cone design for extended frequency response up to 15,000 Hz
- Ferrite magnet circuit with copper demodulating ring for reduced distortion
- High sensitivity of 96.9 dB for powerful audio output
Product details SICA 12 D 1,5 CS - 8

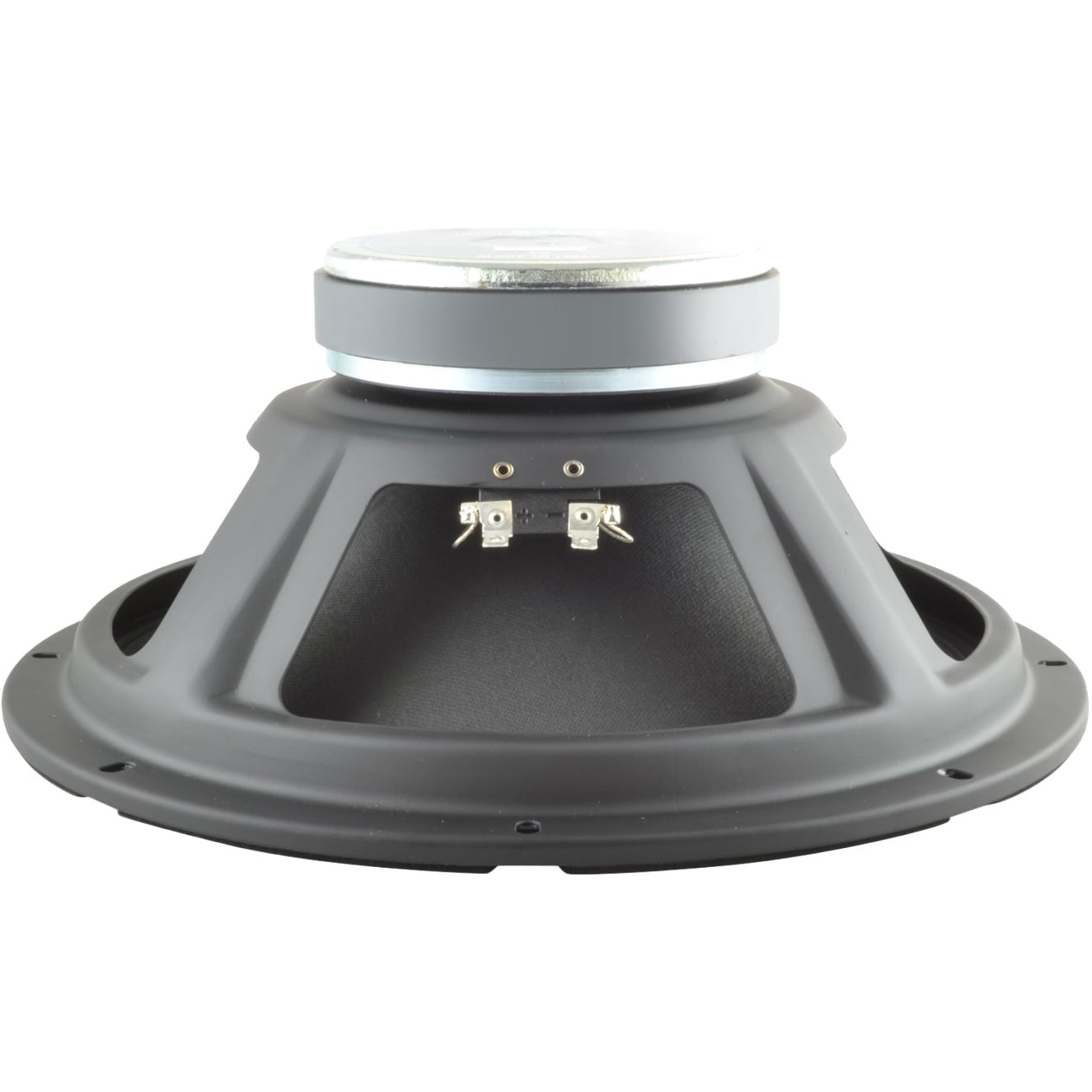

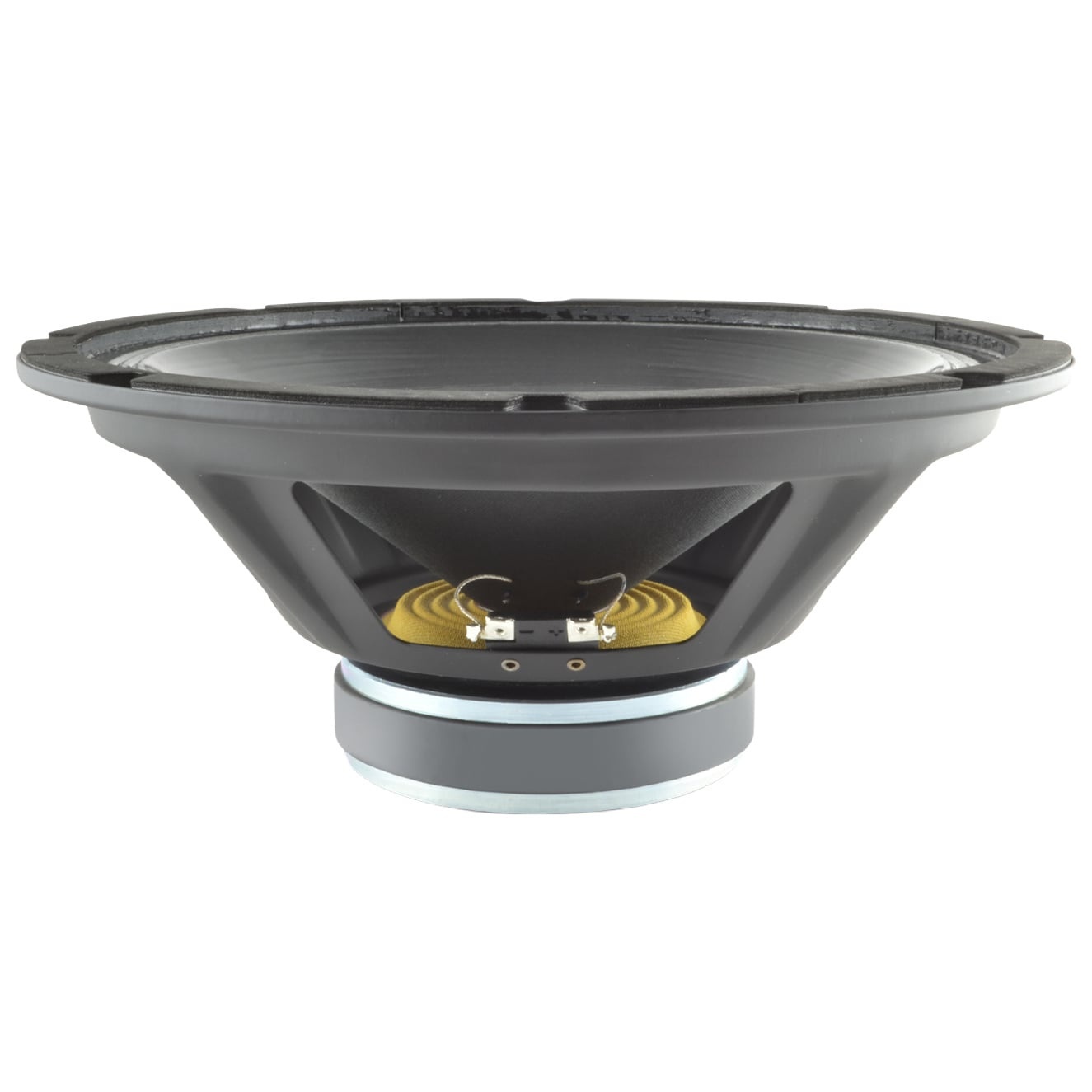

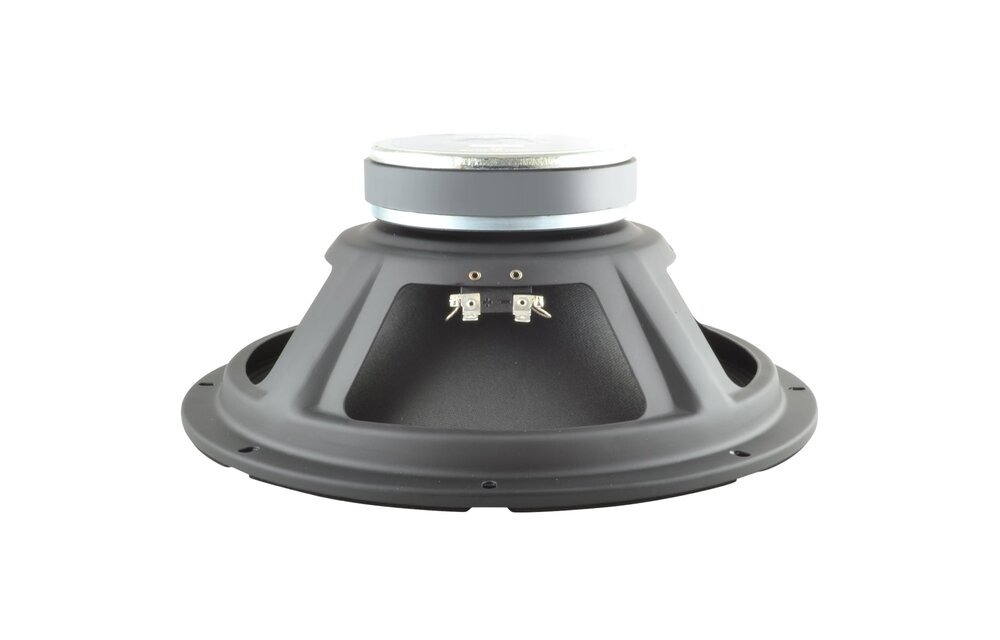

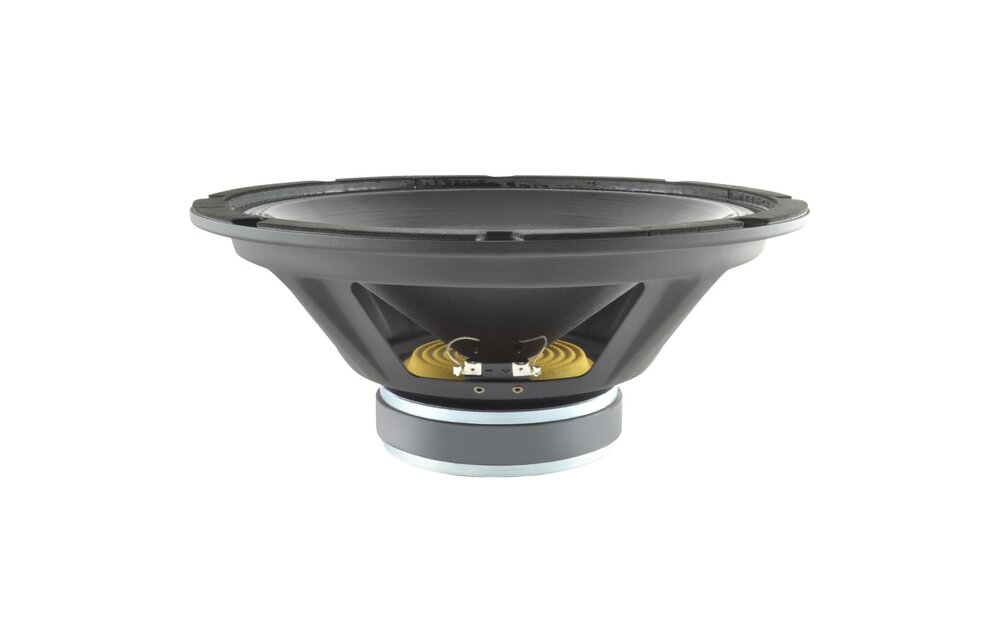

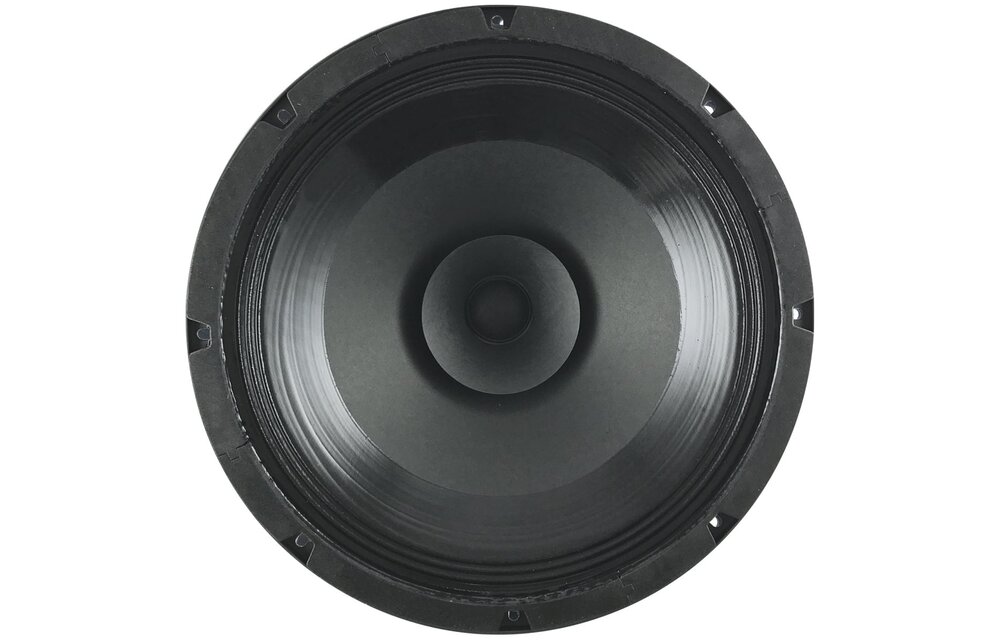

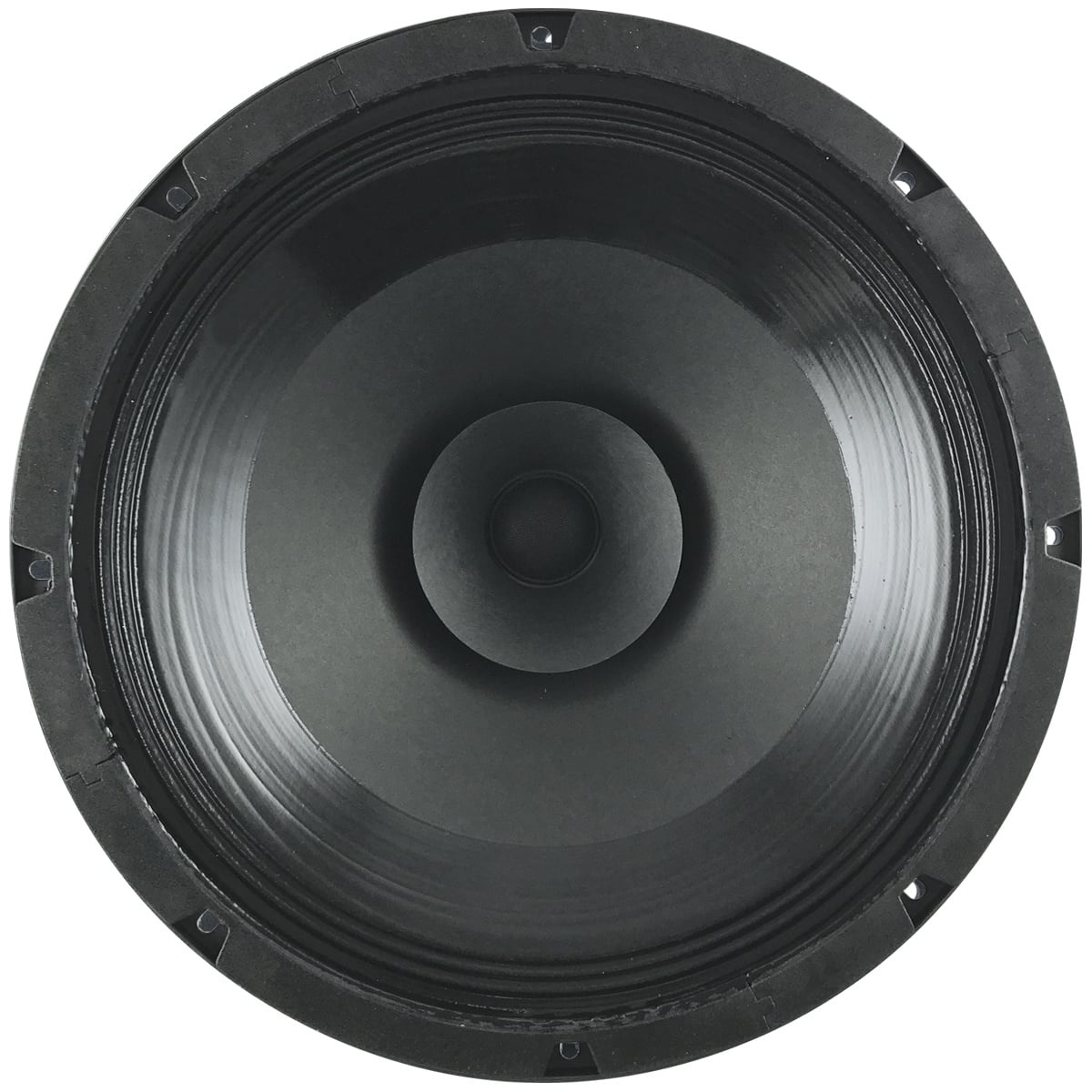

SICA 12 D 1,5 CS - 8 Full-range driver
Engineered with precision, the SICA 12 D 1,5 CS - 8 is equipped with a 318 mm (12-inch) paper cone and a 1.5-inch copper voice coil wound on a Kapton former. The combination of a dual cone and an integrated paper surround allows for smooth frequency transitions and accurate reproduction across the 65 Hz to 15,000 Hz range. The robust ferrite magnet and pressed steel basket provide a solid foundation for consistent performance, while the non-treated cloth dust dome ensures diaphragm stability during high-output sessions.
This full-range driver is ideal for speakers and woofers in both home and professional environments, offering the versatility to be used in vented enclosures or custom DIY projects. With a continuous program power rating of 260 W and AES rated power of 130 W, it is well-suited for systems requiring both efficiency and durability. Its high sensitivity guarantees substantial output even with moderate amplification, making it compatible with a wide range of amplifiers.
Thanks to its detailed Thiele & Small parameters, the SICA 12 D 1,5 CS - 8 is easy to integrate into DIY speaker kit builds and custom projects. The 8-ohm impedance and standard mounting dimensions allow for straightforward replacement or upgrade in many existing speaker cabinets. The dual cone construction ensures extended midrange and treble response, making it a practical choice for full-range and two-way system designs.
Whether you are an audio enthusiast building a new sound system or a professional seeking a reliable driver for audio components, the SICA 12 D 1,5 CS - 8 delivers high-quality performance and flexibility. Its durable build, broad frequency response, and efficient output make it a standout solution for a wide array of audio reproduction needs.
