The Radian 12CRF6430 is a premium 12-inch coaxial loudspeaker featuring an advanced planar ribbon high-frequency driver for exceptional clarity and resolution. Engineered for high-performance applications, this coaxial system delivers outstanding sound quality with a balanced frequency response from deep bass to extended highs, making it ideal for demanding audio setups where accuracy and transparency are crucial.

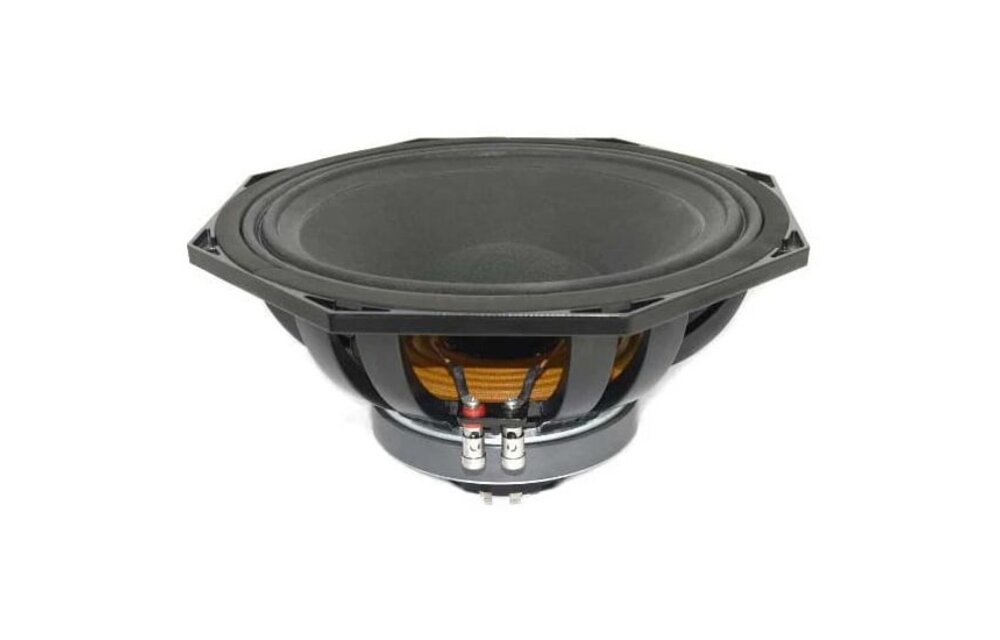

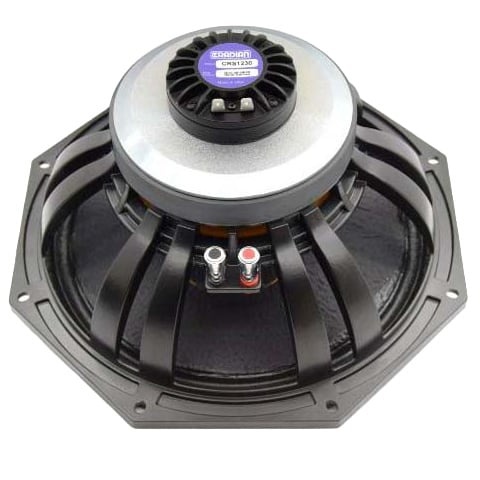

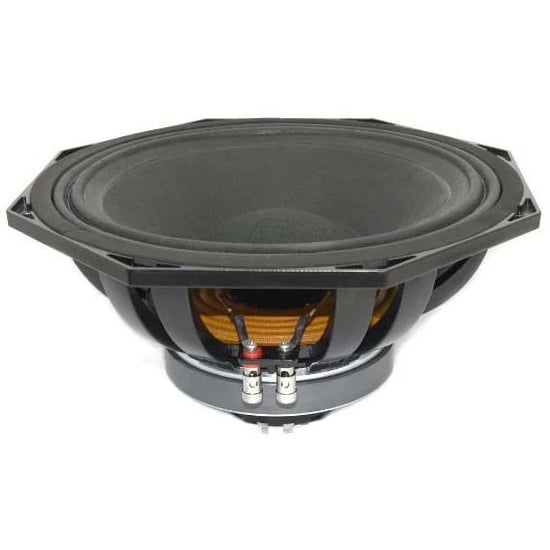

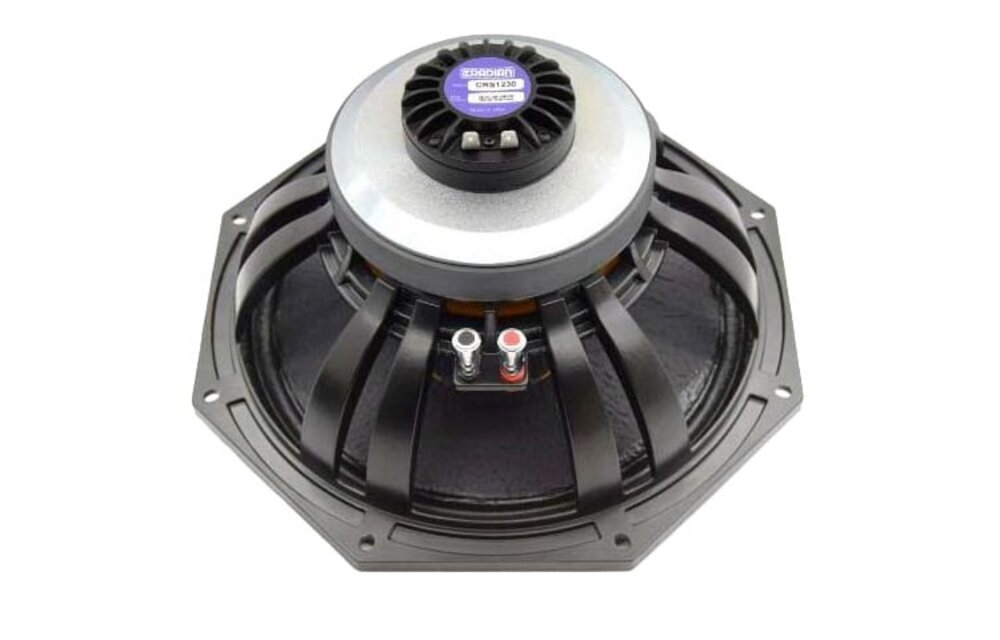

Radian 12CRF6430 12€ coaxial with planar ribbon HF
Designed to provide ultimate sound quality, the Radian 12CRF6430 stands out for its highly coherent coaxial configuration and planar ribbon high-frequency driver. The HF section uses a robust Kapton diaphragm with a neodymium magnet, offering an impressive frequency range up to 30 kHz and a sensitivity of 103.5 dB. The low-frequency driver features a 305 mm paper/Kevlar composite cone and a 64 mm copper-clad aluminum voice coil, supporting continuous program power of 600 W. Together, these elements create a versatile transducer perfect for audiophile-grade speakers and professional monitoring systems.
The Radian 12CRF6430 is engineered for low distortion and high fidelity. Dual aluminum demodulation rings in the LF/MF section reduce distortion, while completely separate LF and HF magnetic systems eliminate flux modulation and unwanted intermodulation effects. The 100° conical coverage pattern ensures even sound distribution throughout the listening area, with precise pattern control down to 800 Hz. This makes it suitable for both studio and high-end home audio applications, as well as demanding commercial sound reinforcement.
This coaxial driver is built for reliability and performance, with high-temperature polyimide voice coil formers and a rugged cast aluminum octagonal frame. The recommended enclosure volume ranges from 35 to 70 liters, allowing for flexible integration in custom or OEM designs. Optional accessories include a premium assembled crossover, making it easy to pair with advanced assembled crossovers for seamless integration in sophisticated audio systems.
With a balanced response, extended low-frequency performance, and the precision of planar ribbon technology, the Radian 12CRF6430 excels in systems requiring both accuracy and musicality. Its robust 600 W continuous program power handling, combined with low distortion and wide coverage, makes it a top choice for high-end audio installations and DIY speaker kit projects where exceptional sound is the priority. For those seeking an advanced solution in audio components, this driver offers a blend of innovation, durability, and superior sonic performance.
