The REDCATT 252TN is a compact 1.0" silk dome tweeter with a neodymium motor, low Fs and a tuned Helmholtz resonant chamber for versatile high-frequency performance in demanding loudspeaker designs.
Â
Highlights of the REDCATT 252TN
- 1.0" natural fiber silk dome tweeter with 4 ohm impedance
- Optimized neodymium magnetic circuit for compact, lightweight construction
- Helmholtz resonant chamber for improved low-frequency tweeter behavior
- Low 850 Hz resonant frequency supports flexible crossover design
- 93 dB sensitivity with 10 W AES, 20 W continuous and 40 W peak power handling
- Weather-sealed design for demanding installation environments
Â
Product details REDCATT 252TN

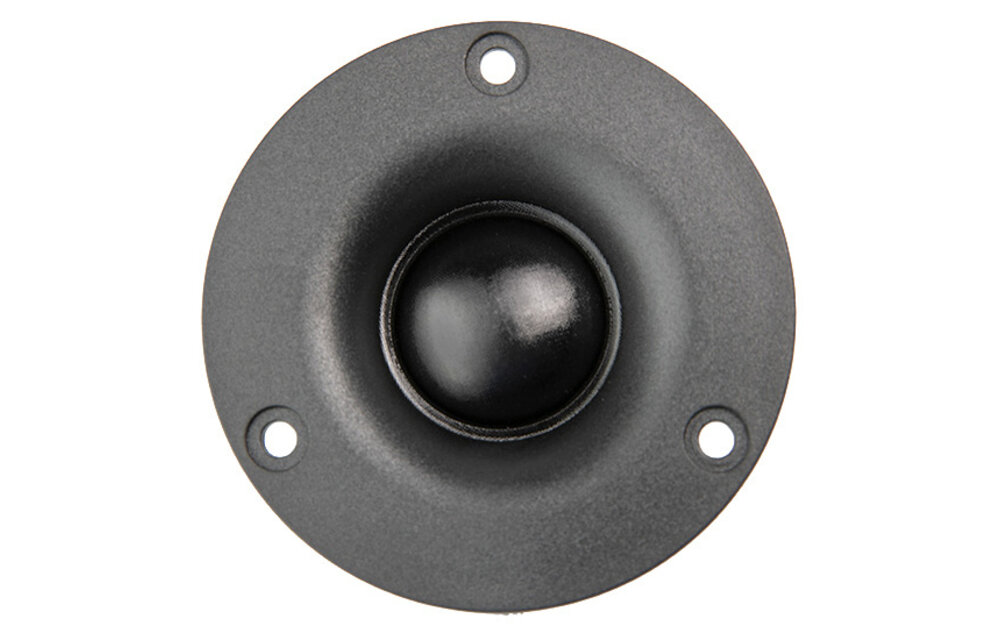

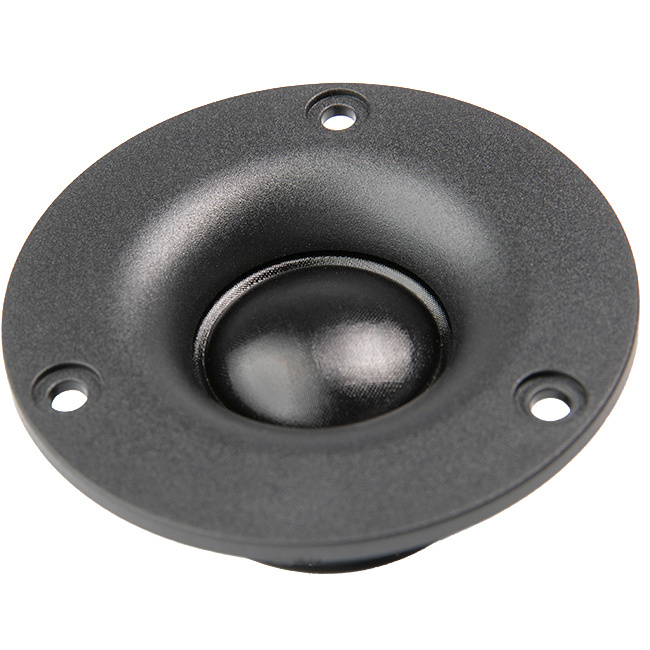

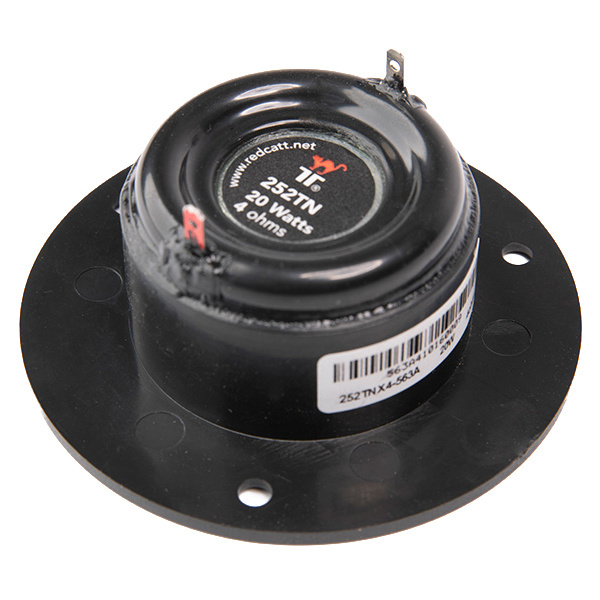

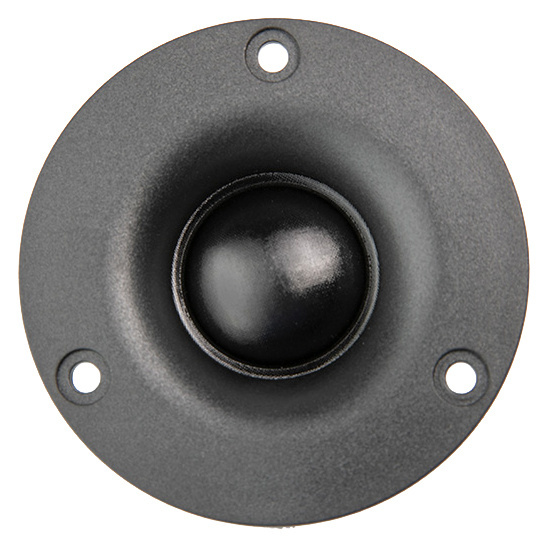

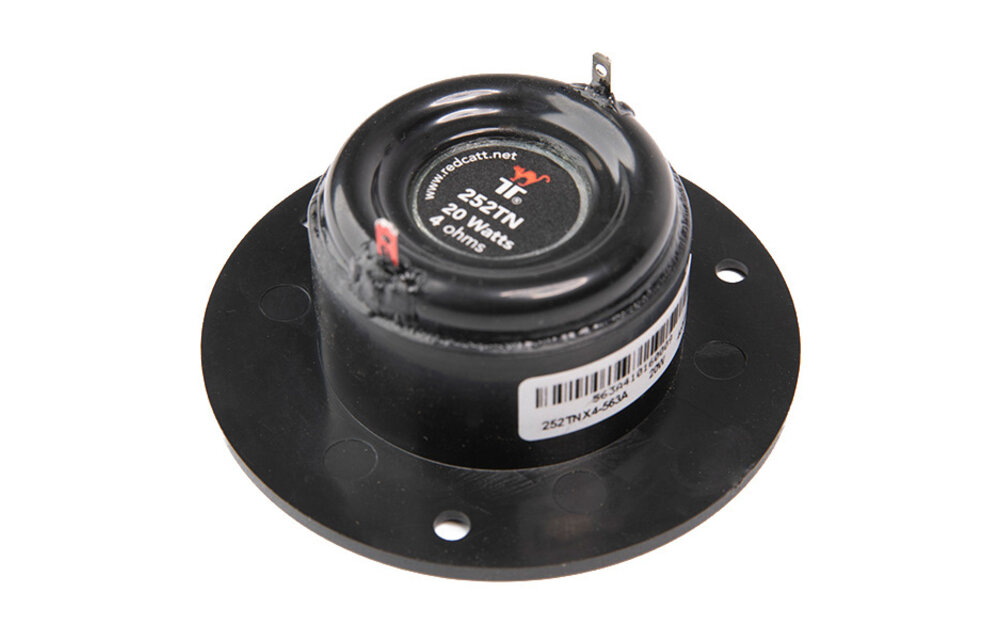

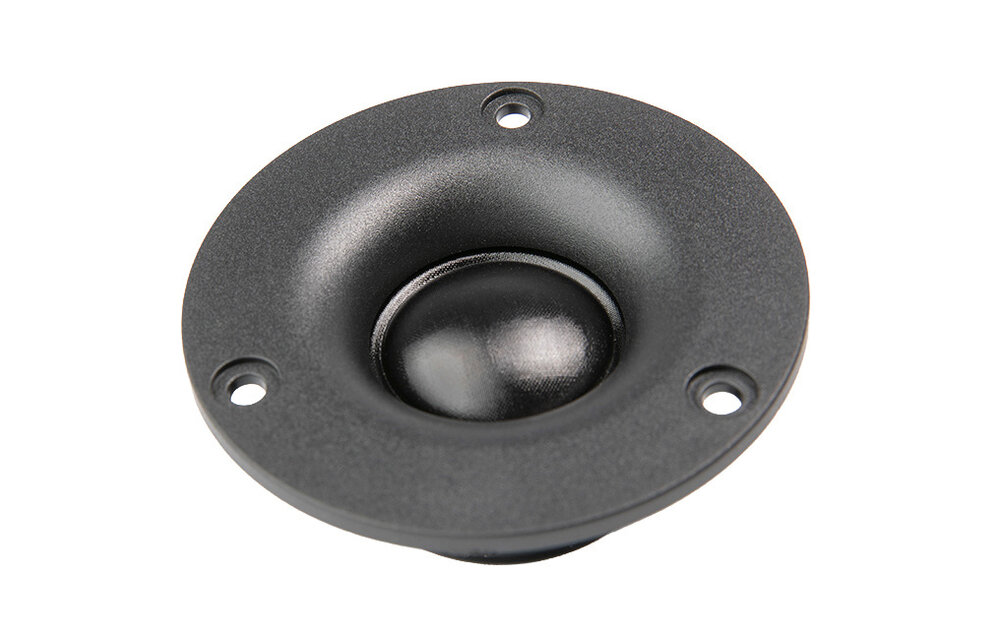

REDCATT 252TN 1.0" Silk Dome Tweeter 4 Ohm
Â
The REDCATT 252TN is a compact dome tweeter built around a natural fiber silk dome and an advanced neodymium-based magnetic circuit. Its lightweight construction, plastic basket and compact 69.80 mm overall diameter make it well suited for space-conscious loudspeaker projects without compromising high-frequency capability.
Â
A finely tuned Helmholtz resonant chamber helps the 252TN achieve a low 850 Hz resonant frequency. This gives designers more freedom when choosing the crossover point, making it a practical high-frequency driver for refined 2-way systems and other compact tweeters applications.
Â
With 93 dB sensitivity, 4 ohm rated impedance and power handling of 10 W AES, 20 W continuous and 40 W peak, the 252TN delivers strong performance for its size. The aluminum former, CCAW winding wire and 1.6 mm winding height contribute to a focused design intended for efficient, reliable high-frequency reproduction.
Â
The 252TN is designed for broad application flexibility, including smaller bookshelf speakers, portable systems, hi-fi floor-standing towers, automotive audio, prosumer studio monitors, compact 2-way PA systems and column arrays. Its weather-sealed construction further extends its usability in demanding environments.
