The REDCATT 25TF-X4A is a 1.0" 4 ohm dome tweeter with an aluminium dome, ferrite motor and integrated waveguide, designed for balanced high-frequency reproduction in compact speaker systems.
Â
Highlights of the REDCATT 25TF-X4A
- 1.0" aluminium dome with poly-silk surround
- Integrated waveguide for straightforward implementation
- Weather-sealed construction with coated metal parts
- Ferrite magnet system with FEM-optimized design
- 10 W AES, 20 W continuous and 40 W peak power handling
- 89.50 dB sensitivity with a low 1500 Hz resonant frequency
Â
Product details REDCATT 25TF-X4A

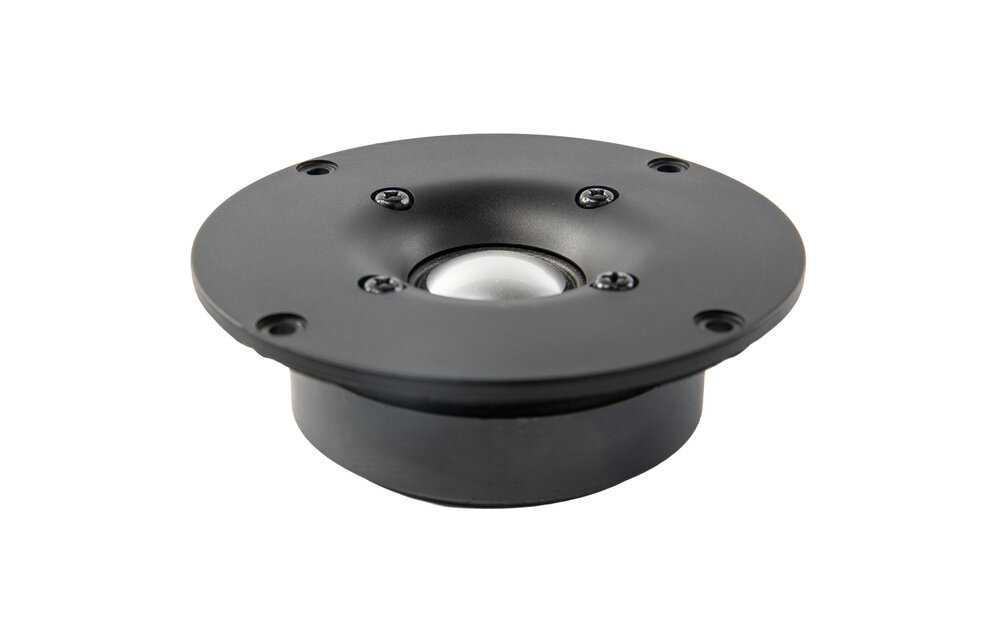

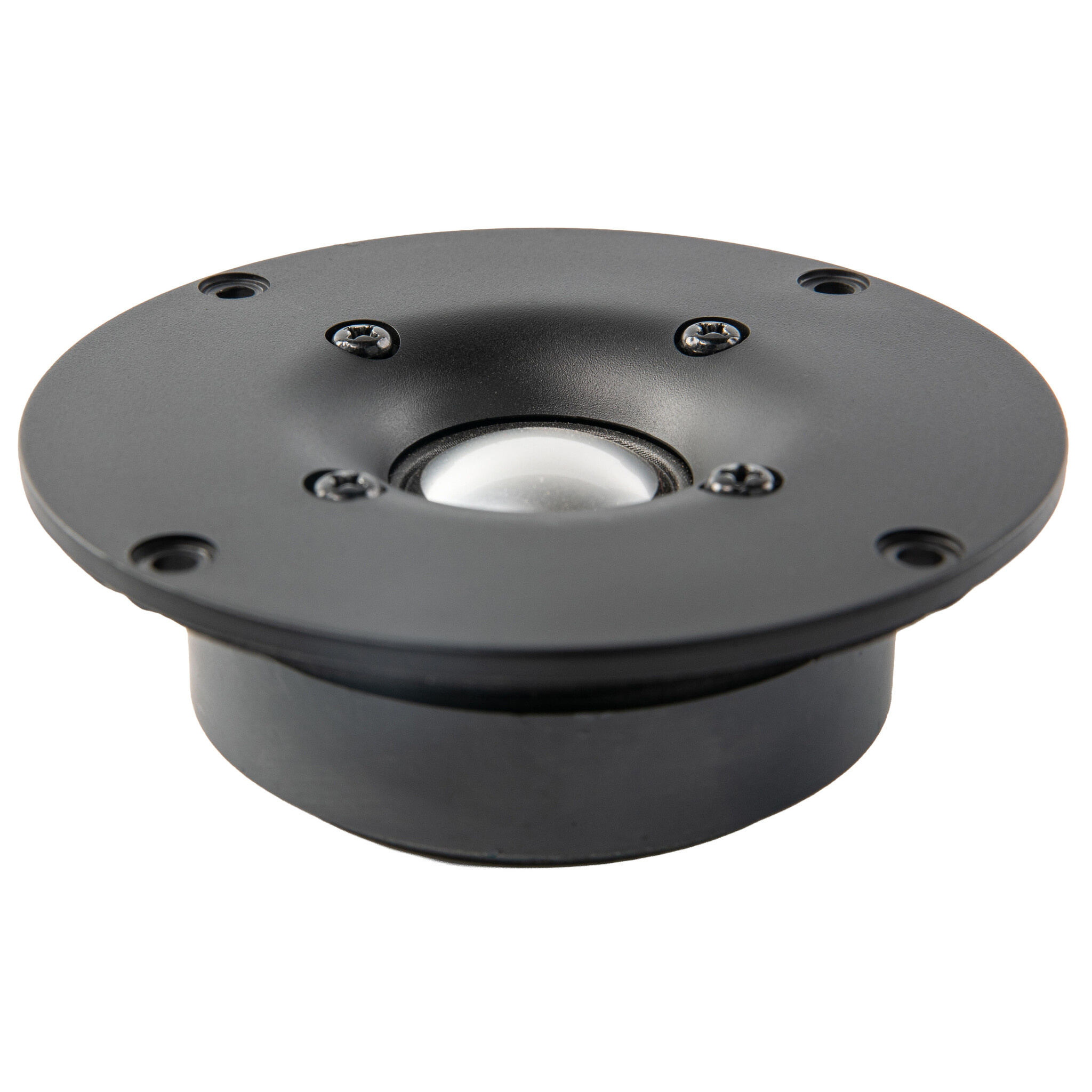

REDCATT 25TF-X4A 1.0" Aluminum Dome Tweeter 4 Ohm
Â
The REDCATT 25TF-X4A is a compact dome tweeter built around an aluminium dome that is carefully attached to a poly-silk surround. Its integrated waveguide supports easy implementation in new designs, while the weather-sealed construction and coated metal parts make it suitable for demanding installations.
Â

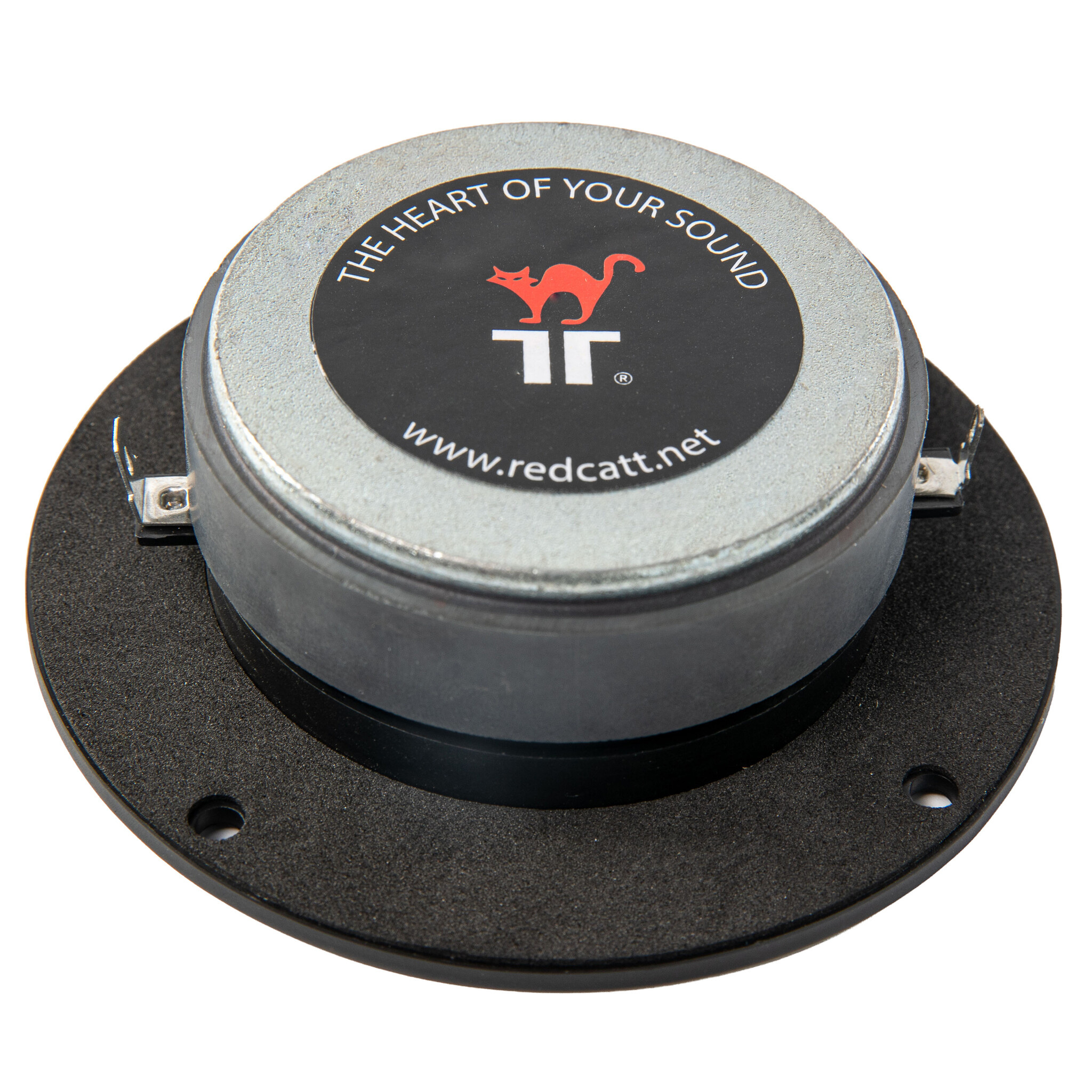

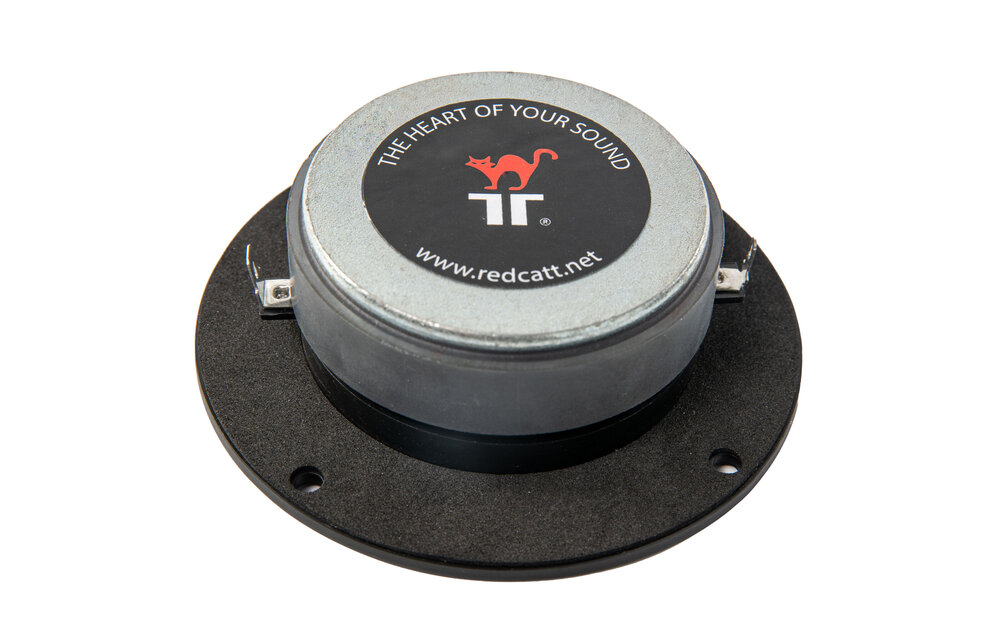

For stable high-frequency performance, this tweeter uses a ferrite magnet system that delivers a robust and consistent magnetic field. The motor design is FEM optimized and includes a small resonant chamber, contributing to a balanced frequency response and a resonant frequency of 1500 Hz.
Â
With 4 ohm rated impedance, 89.50 dB sensitivity and power handling of 10 W AES, 20 W continuous and 40 W peak, the 25TF-X4A is well suited to compact 2-way speaker projects. Recommended applications include studio monitors, 2-way Hi-Fi systems, outdoor products, compact PA tops, column arrays, portable PA and commercial installations.
Â
The driver is designed with practical mounting in mind. It has a 103.50 mm overall diameter, a 93.50 mm bolt circle, four mounting holes and a 34.20 mm mounting depth from flange to rear. The plastic carrier, precision assembly and 0.52 kg net weight make it a reliable choice for high-quality audio components and custom loudspeaker builds.
