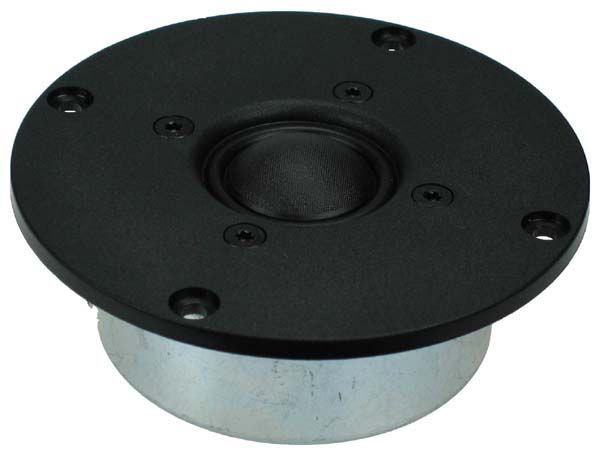

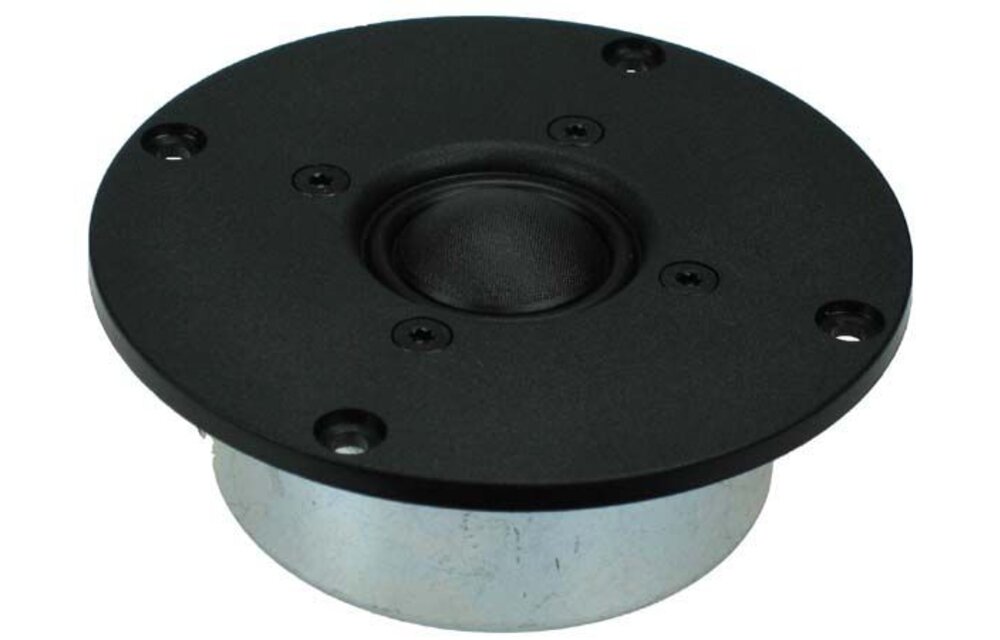

Seas Prestige 27TDFC/TV - H1210-06 1'' Fabric Dome Tweeter
The 27TDFC/TV is a High Definition precoated fabric dome tweeter with a wide, soft polymer surround and a shielded magnet system with a rear chamber. Sonotex precoated fabric diaphragm with high consistency and excellent stability against variations in air humidity. Sonomax surround for low resonance and excellent mechanical linearity.
Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. The shielded magnet system allows use in close proximity to CRT screens. Using the screening can as a rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies.
The chassis is precision molded from glass fiber reinforced plastic, and its front design offers optimum radiation conditions.
PRODUCT SPECIFICATIONS
Tweeter Type | Fabric Dome |
Cone / Dome Diameter | 1'' |
Impedance | 6 ohms |
Power Handling (RMS) | 90 Watts |
Frequency Response | 2,000 to 25,000 Hz |
Sensitivity | 89.5 dB 2.83V/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 800 Hz |
DC Resistance (Re) | 4.8 ohms |
Voice Coil Inductance (Le) | 0.05 mH |
