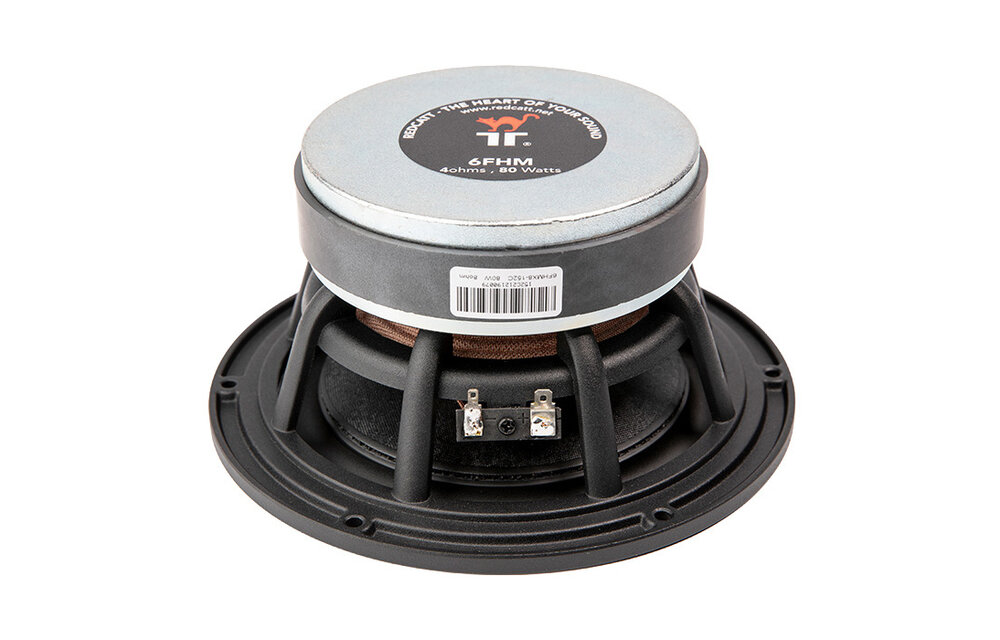

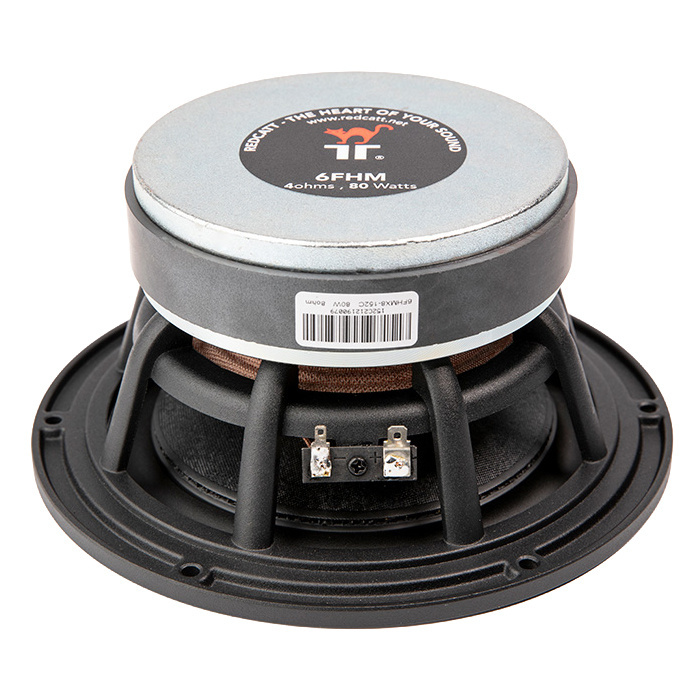

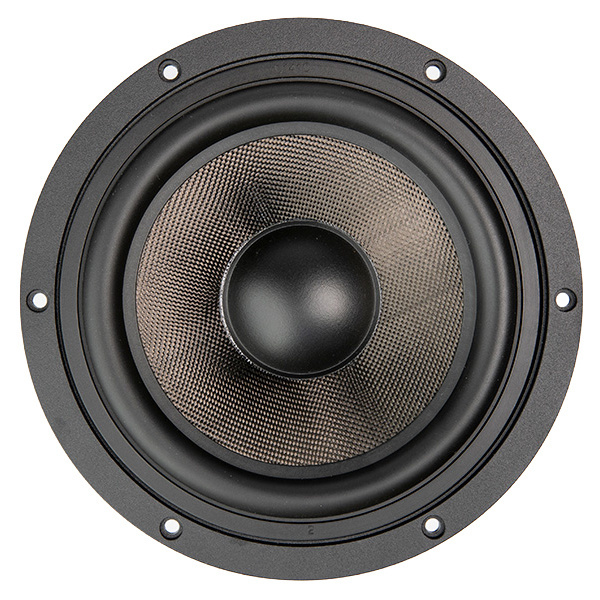

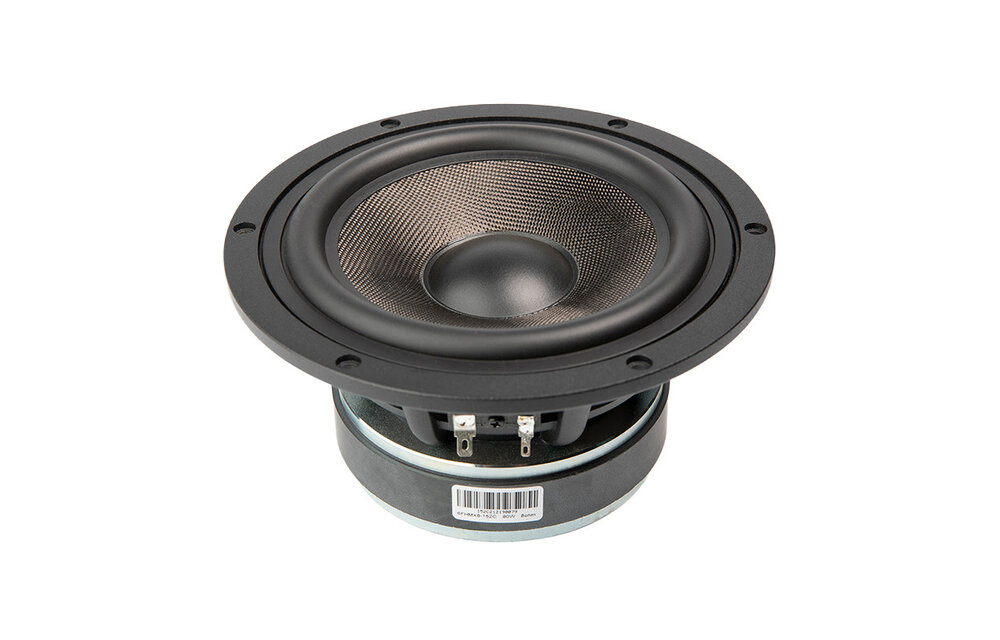

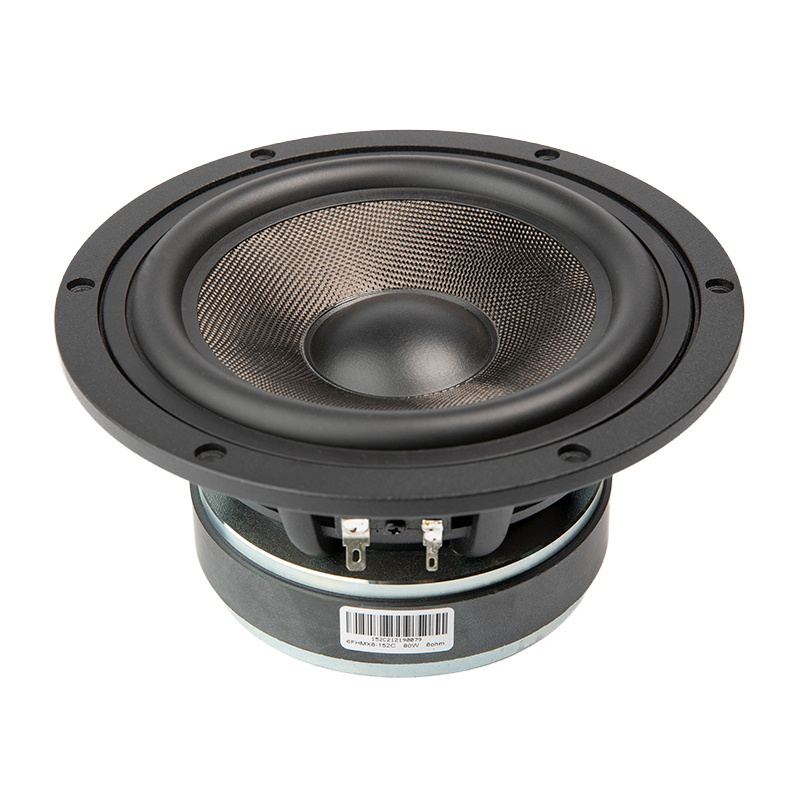

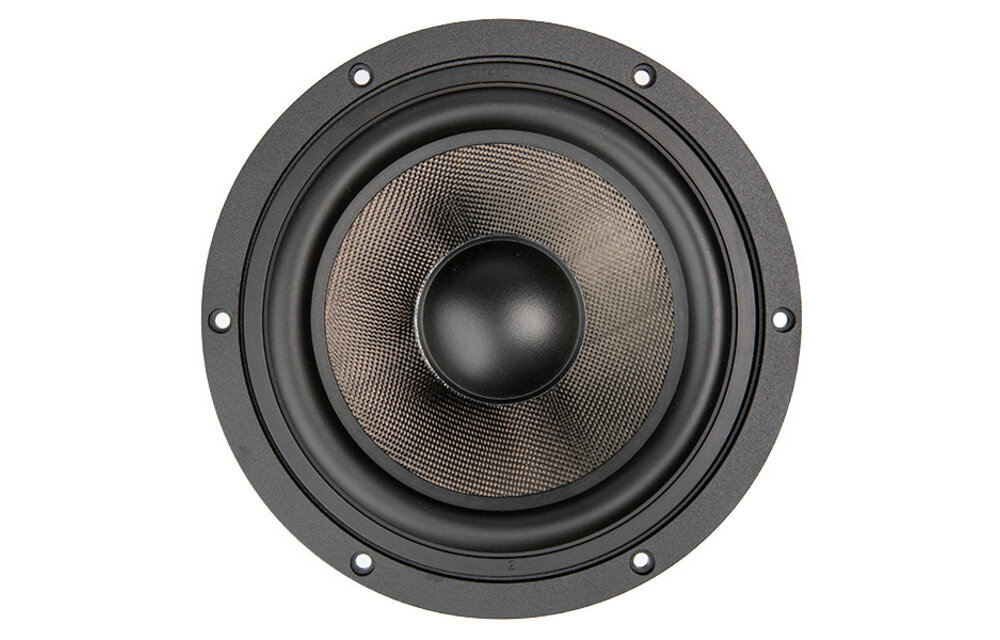

The REDCATT 6FHM is a high-efficiency 6.0" bass-mid woofer with an 8 Ohm impedance, a carbon-fiber Nomex honeycomb cone and low-distortion motor design for compact hi-fi and professional loudspeaker projects.
Â
Highlights of the REDCATT 6FHM
- 6.0" mid-woofer with 8 Ohm nominal impedance
- 3-layer cone with 1k carbon fiber skins and Nomex honeycomb core
- FEM-optimized ferrite motor structure for low harmonic distortion
- 89.01 dB sensitivity with 40 W AES, 80 W continuous and 160 W peak power handling
- 36 Hz resonant frequency and extended working range
- Recommended for compact 2-way PA tops and hi-fi mid-woofer applications
Â
Product details REDCATT 6FHM
REDCATT 6FHM 6.0" Bass-Mid Woofer 8 Ohm
Â
The REDCATT 6FHM is a high-efficiency bass-mid woofer built around a 3-layer cone construction. Its 1k carbon fiber skins are bonded to a Nomex honeycomb core, creating a lightweight and rigid diaphragm that helps push cone break-up modes higher in frequency. This makes the driver well suited for compact systems that need strong mid-bass output and clean midrange behaviour.
Â
The motor system uses a ferrite magnet and FEM-optimized geometry to reduce harmonic distortion. With 89.01 dB sensitivity, 8 Ohm impedance and a 33 mm voice coil on a Kapton former, this woofer combines efficient output with controlled excursion. Power handling is rated at 40 W AES, 80 W continuous and 160 W peak.
Â
Mechanical details support reliable installation in custom audio components and loudspeaker builds. The driver uses an aluminum basket, NBR rubber surround, Nomex spider and hard-anodized reinforced aluminum dust cap. Mounting dimensions include a 181.5 mm overall diameter, 151 mm baffle cutout, 169.5 mm bolt circle, six mounting holes and 81.7 mm mounting depth.
Â
For enclosure design, the 6FHM works well in bass reflex alignments. REDCATT recommends 10 liters tuned to 38 Hz for a balanced general-purpose response, with an approximate -3 dB point of 35 Hz and a 28 Hz high-pass filter. Alternative alignments include 8 liters tuned to 41 Hz for higher output and strong mid-bass, or 10 liters tuned to 34 Hz for extended low-frequency performance with suitable high-pass protection.
