Tymphany's BC25SC08-04 4 ohm 1" silk dome tweeter is surprisingly efficient for its size. With natural response up to 20,000 Hz it is a great choice where space is at a minimum.
Highlights
Product Details

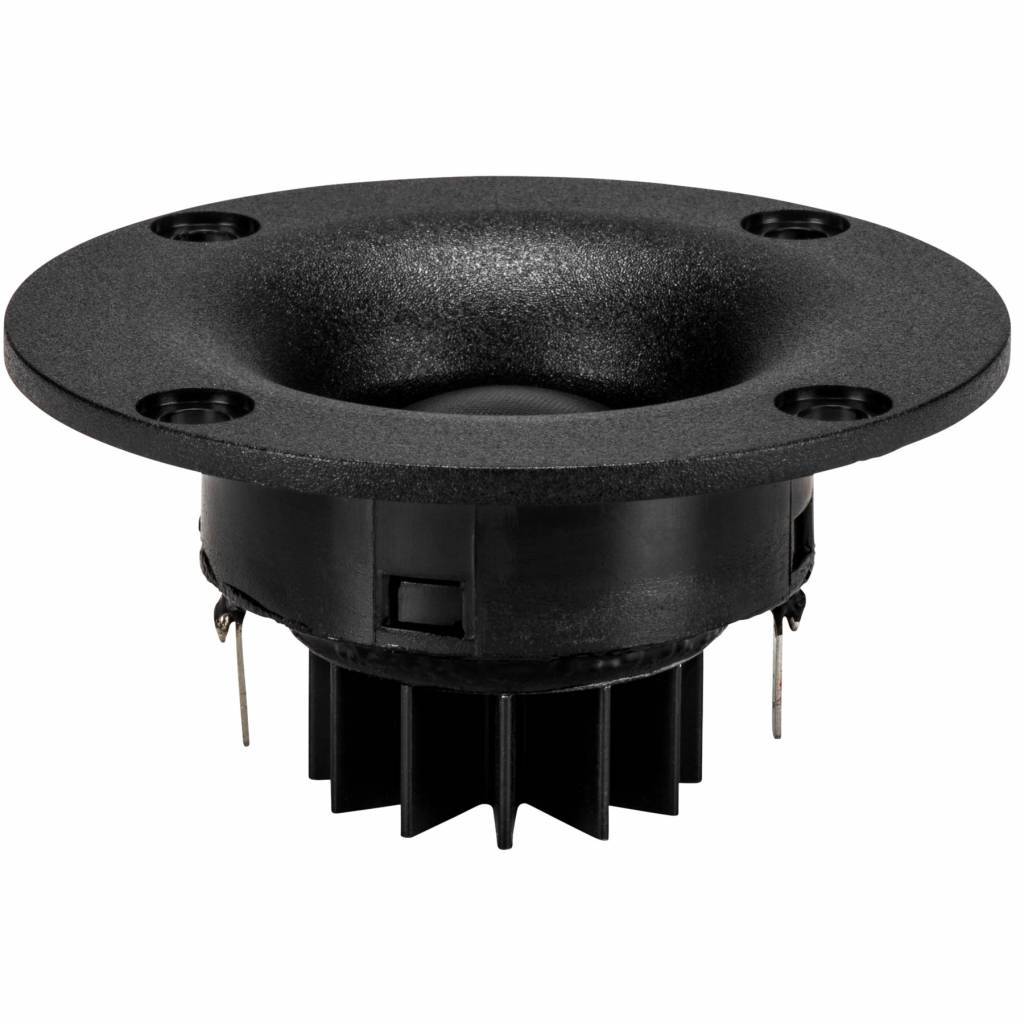

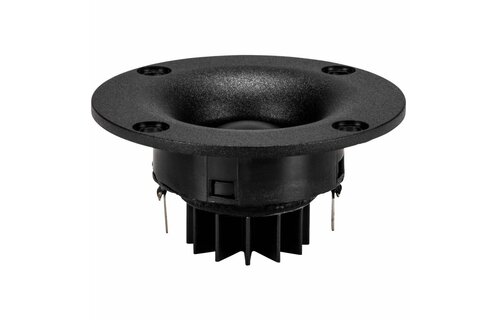

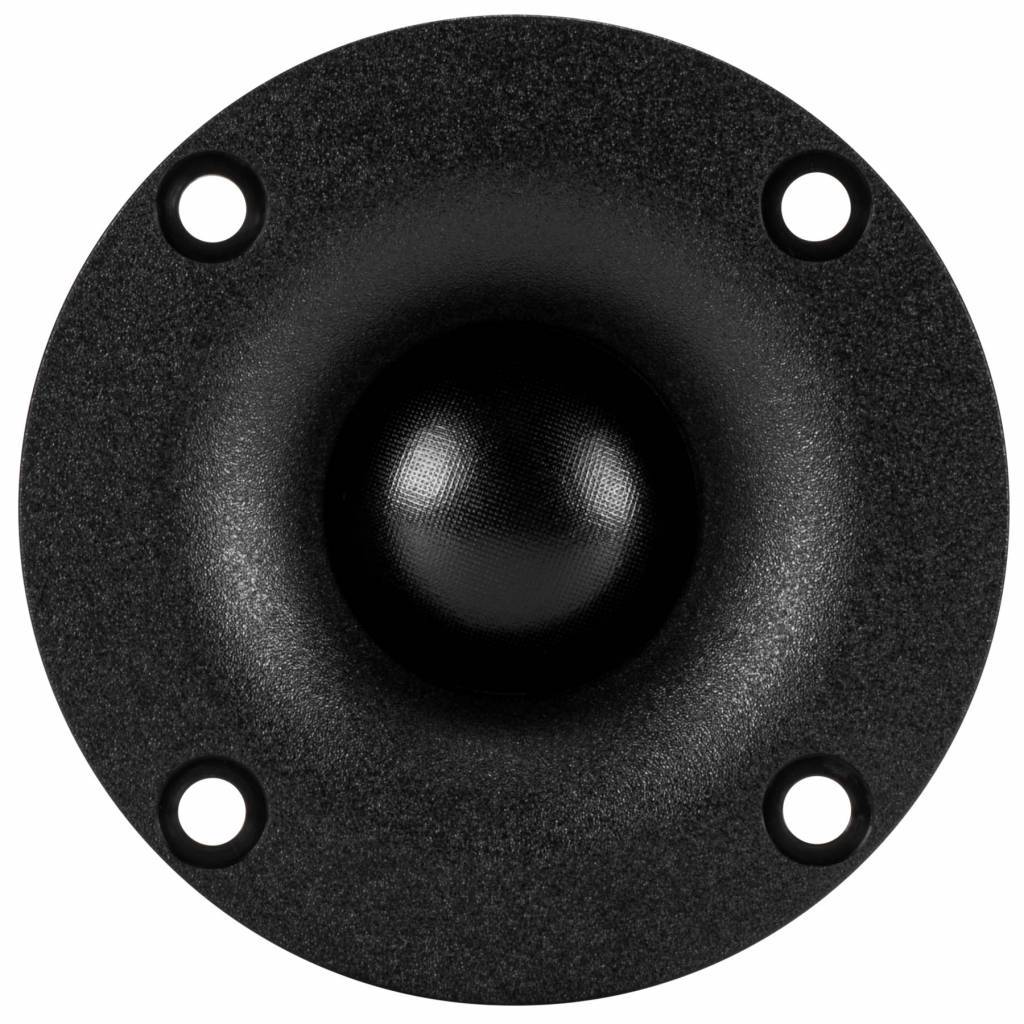

Peerless by Tymphany BC25SC08-04 1" Silk Dome Tweeter with Waveguide

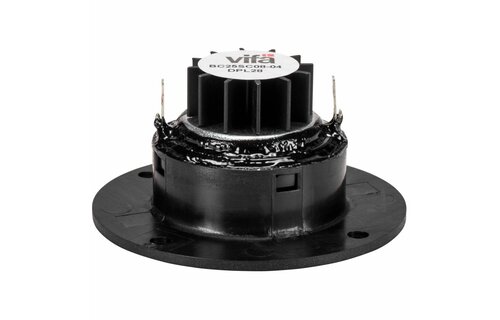

This BC family tweeter features a 4 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the NdFeB motor, providing enhanced cooling of the voice coil. The tweeter comes with a compact faceplate with recessed mounting holes. A finned heat sink has been added for improved power handling.
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 1" |
Impedance | 4 ohms |
Power Handling (RMS) | 100 Watts |
Frequency Response | 2500 to 18,000 Hz |
Sensitivity | 98.8 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 1,660 Hz |
DC Resistance (Re) | 2.8 ohms |
Voice Coil Inductance (Le) | 0.02 mH |
Mechanical Q (Qms) | 4.9 |
Electromagnetic Q (Qes) | 1.53 |
Total Q (Qts) | 1.17 |
MOUNTING INFORMATION
Overall Outside Diameter | 2.75” |
Cutout Diameter | 1.75” |
Depth | 1.32" |
