The REDCATT CX6F140F is a compact, high-efficiency coaxial woofer for professional loudspeaker designs, combining a powerful low-frequency section with an integrated high-frequency assembly in an 8 Ohm format.
Â
Highlights of the REDCATT CX6F140F
- 6" coaxial design with combined LF and HF magnetic circuit
- 8 Ohm impedance with LF 100 W AES and HF 30 W AES power handling
- 95.50 dB sensitivity for efficient professional audio performance
- Hybrid ferrite and neodymium magnet system for strong output in a compact format
- Paper cone LF section with CNC-machined aluminum mini waveguide for the HF assembly
Â
Product details REDCATT CX6F140F

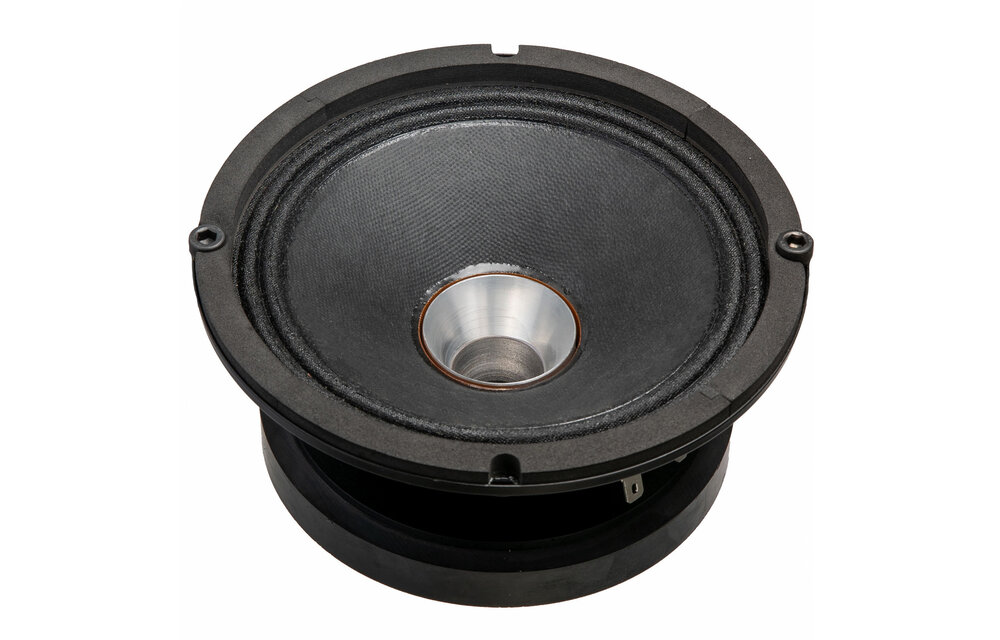

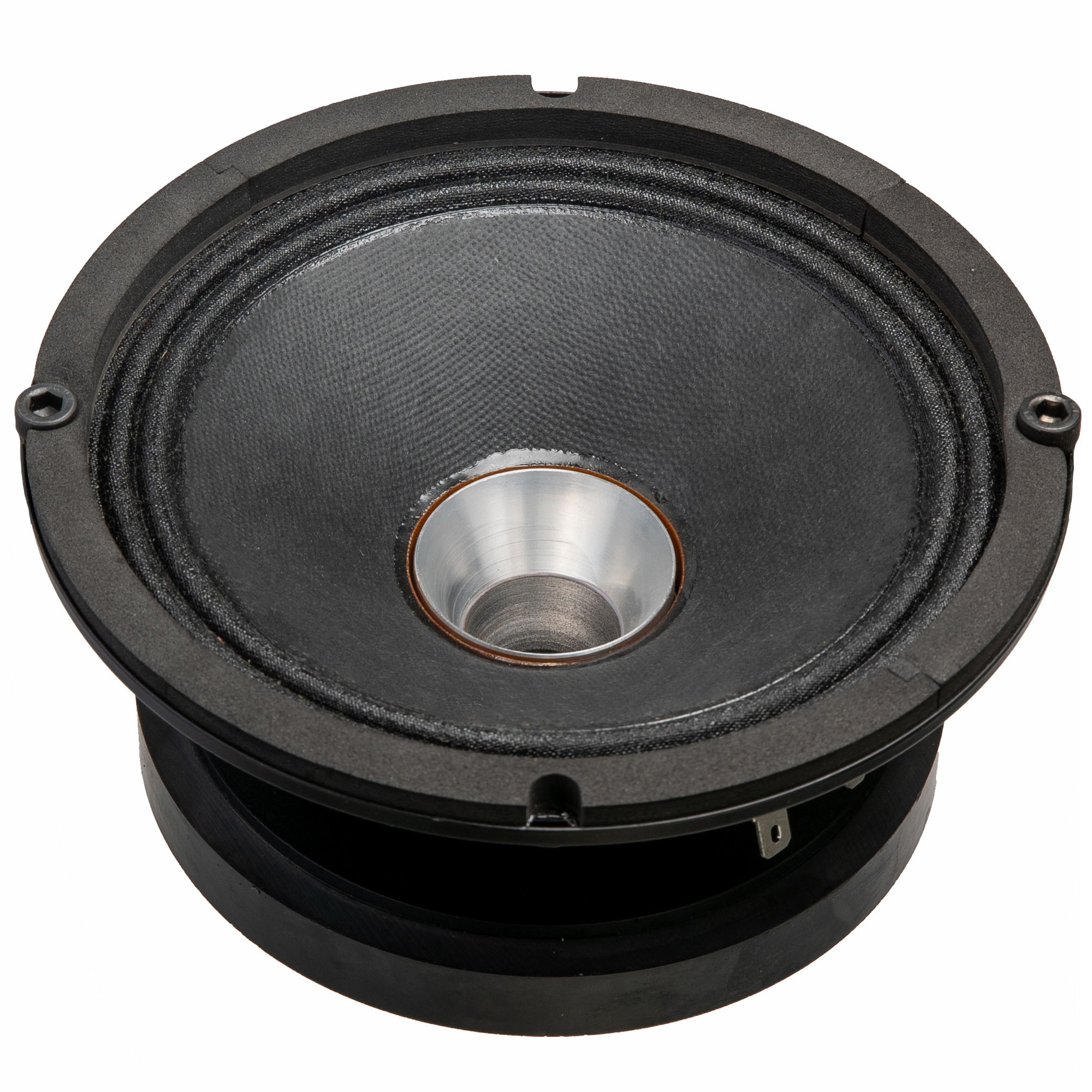

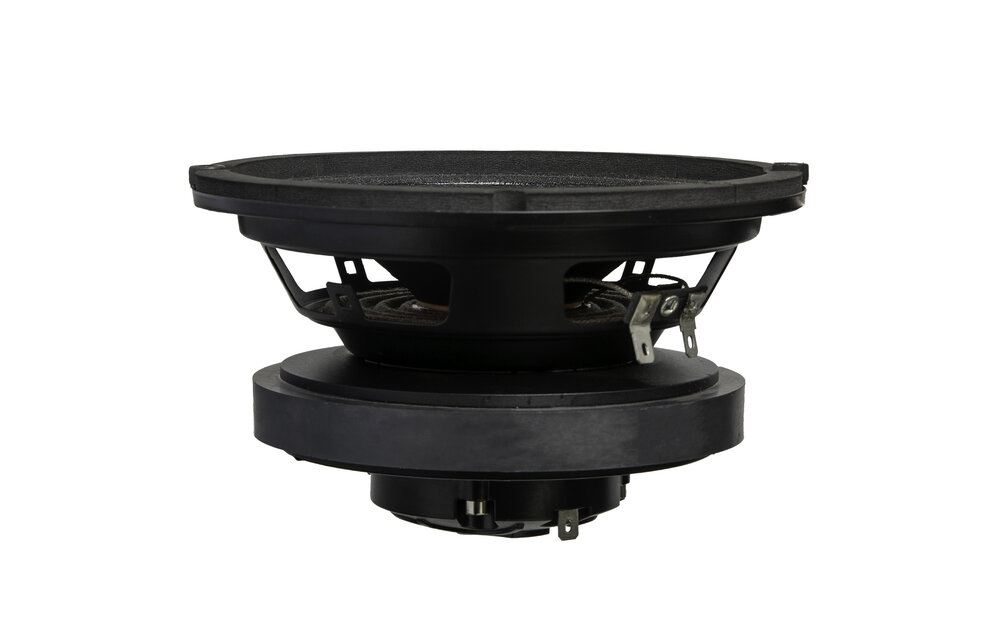

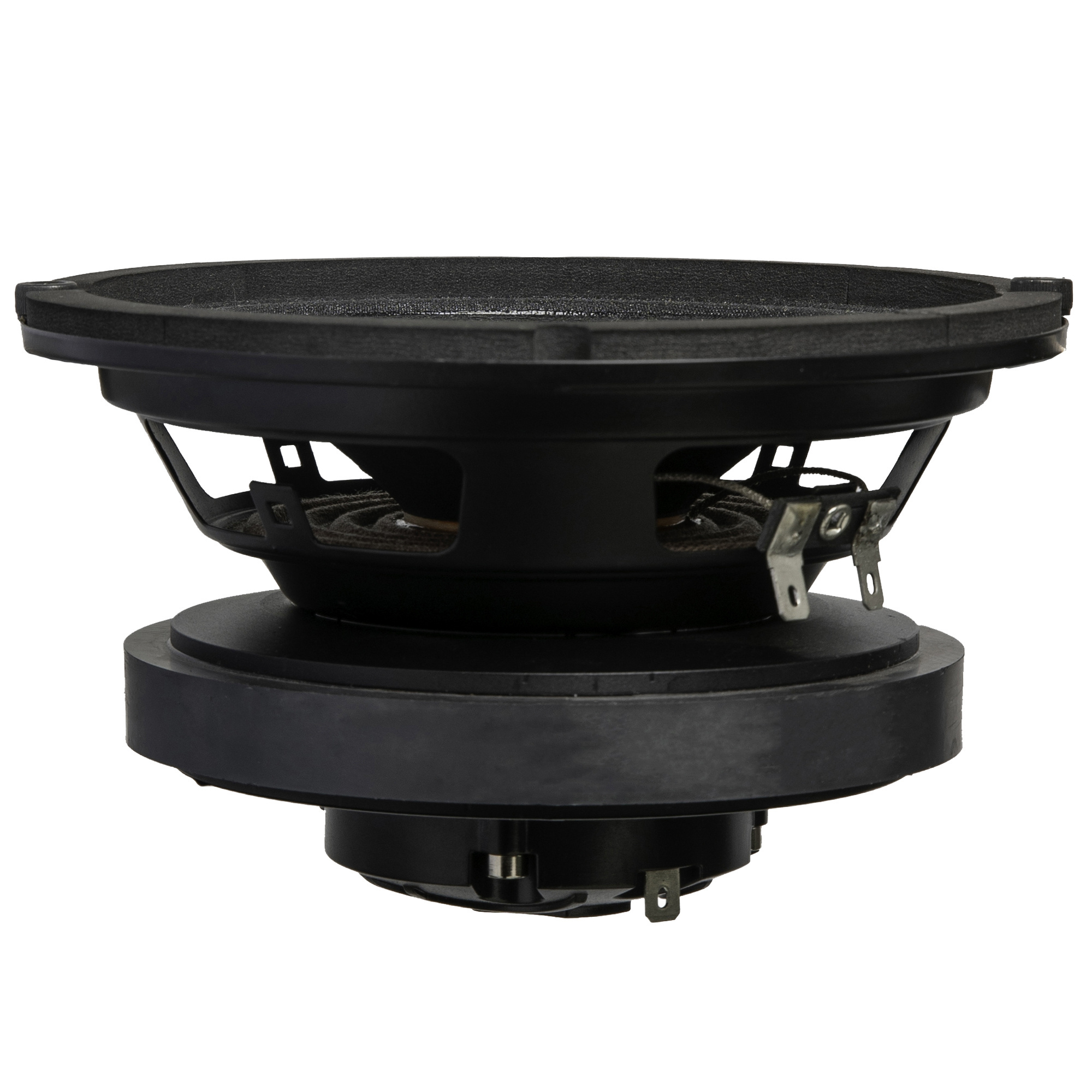

REDCATT CX6F140F 6" Coaxial Woofer 8 Ohm
Â
The REDCATT CX6F140F is built as a compact coaxial driver for professional speakers and custom loudspeaker projects where controlled output, efficiency and space-saving integration are important. Its LF and HF sections share a combined magnetic circuit, helping the driver deliver full-range performance from a single mounting position.
Â
The low-frequency section uses a REDCATT-developed paper pulp cone, supported by a fabric/PEN surround and Nomex spider. With 95.50 dB sensitivity, an LF voice coil diameter of 44.5 mm and LF 100 W AES power handling, this woofer is designed for strong performance in demanding compact systems.
Â
The high-frequency assembly is based around REDCATT’s dome design and uses a CNC-machined aluminum mini waveguide for precise alignment. The hybrid ferrite-neodymium magnetic circuit is engineered to reduce flux modulation, while an aluminum demodulation ring in the HF section supports stable operation.
Â
For enclosure design, the CX6F140F supports vented alignments from 5 to 12 liters, with tuning options from 95 Hz down to 70 Hz using a 50 mm port. Sealed alignments are also possible for very compact or sub-assisted audio components, including PA coaxial column and ceiling applications paired with an active subwoofer.
