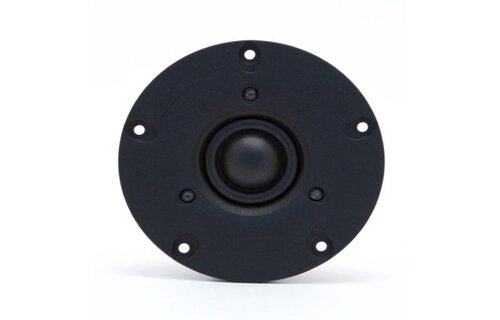

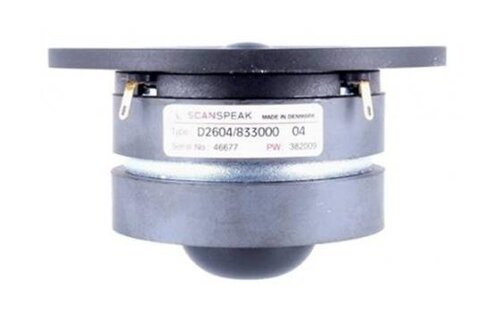

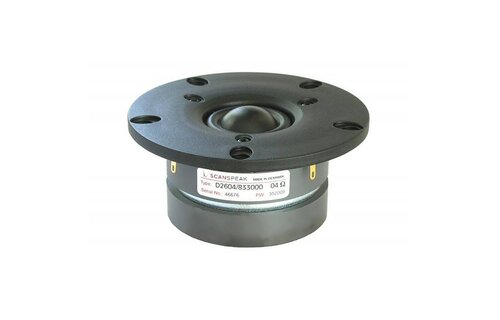

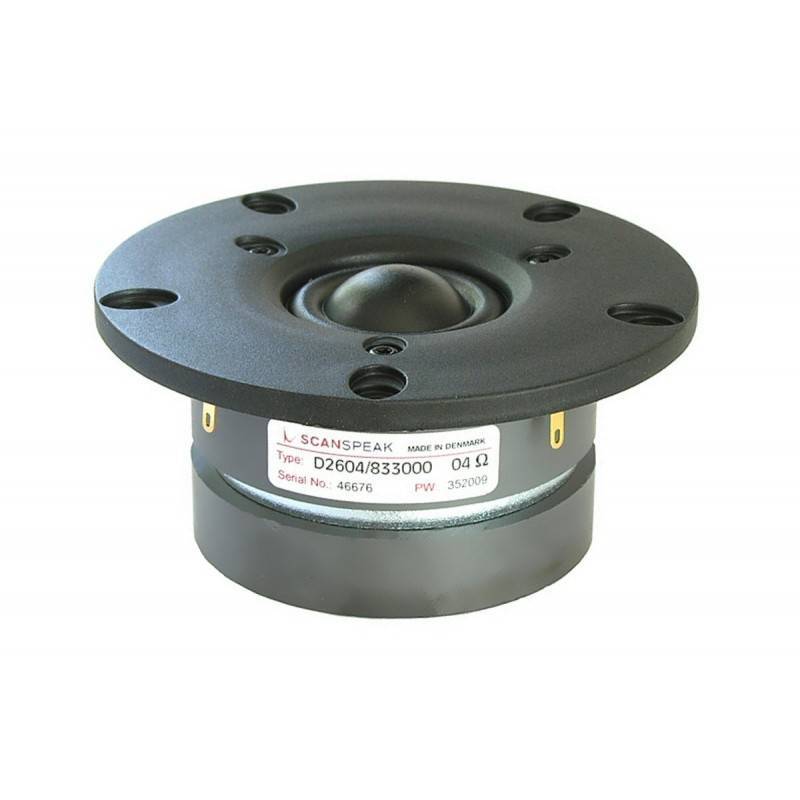

Scan-Speak Discovery D2604/833000 1" Textile Dome Tweeter
The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!
PRODUCT SPECIFICATIONS
Nominal Diameter | 1" |
Power Handling (RMS) | 100 Watts |
Power Handling (max) | - Watts |
Impedance | 4 ohms |
Frequency Response | - Hz |
Sensitivity | 93 dB 2.83V/1m |
Voice Coil Diameter | 1.02" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 475 Hz |
DC Resistance (Re) | 2.8 ohms |
Voice Coil Inductance (Le) | 0.04 mH |
Mechanical Q (Qms) | 2.55 |
Electromagnetic Q (Qes) | 0.71 |
Total Q (Qts) | 0.55 |
Compliance Equivalent Volume (Vas) | 0.0007 ft.³ |
BL Product (BL) | 2.2 Tm |
Mechanical Compliance of Suspension (Cms) | 0.27 mm/N |
Diaphragm Mass Inc. Airload (Mms) | 0.42g |
Maximum Linear Excursion (Xmax) | 0.3 mm |
Surface Area of Cone (Sd) | 8 cm2 |
