The Peerless DA32TX-08 1-1/4" corundum dome tweeter, built for industry leading performance, delivers amazing performance for an unbeatable value. With a low Fs and high excursion capability, this tweeter can handle extremely low crossover frequencies while producing minimal distortion. In addition, the on and off-axis response is so smooth this tweeter will be right at home in any reference quality system.
Highlights
Product Details

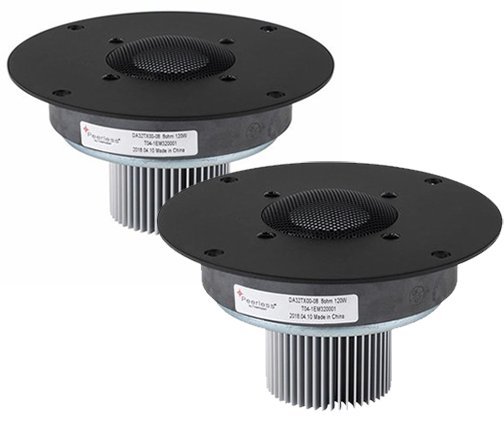

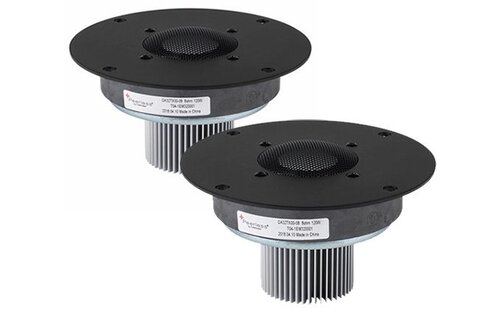

Peerless DA32TX00-08 1-1/4" Corondum Dome Tweeter Matched Pair

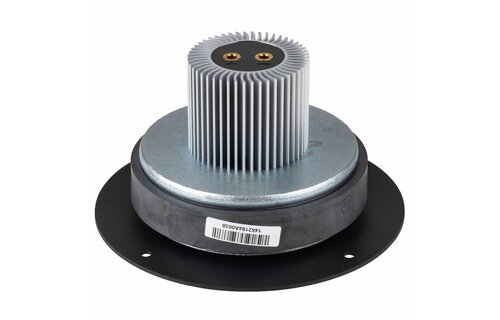

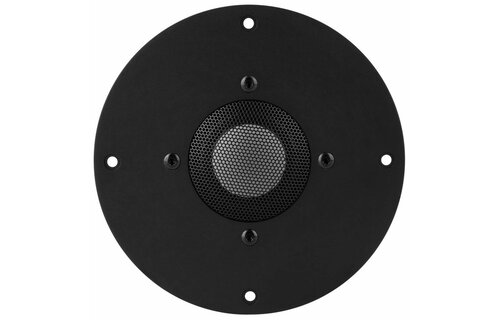

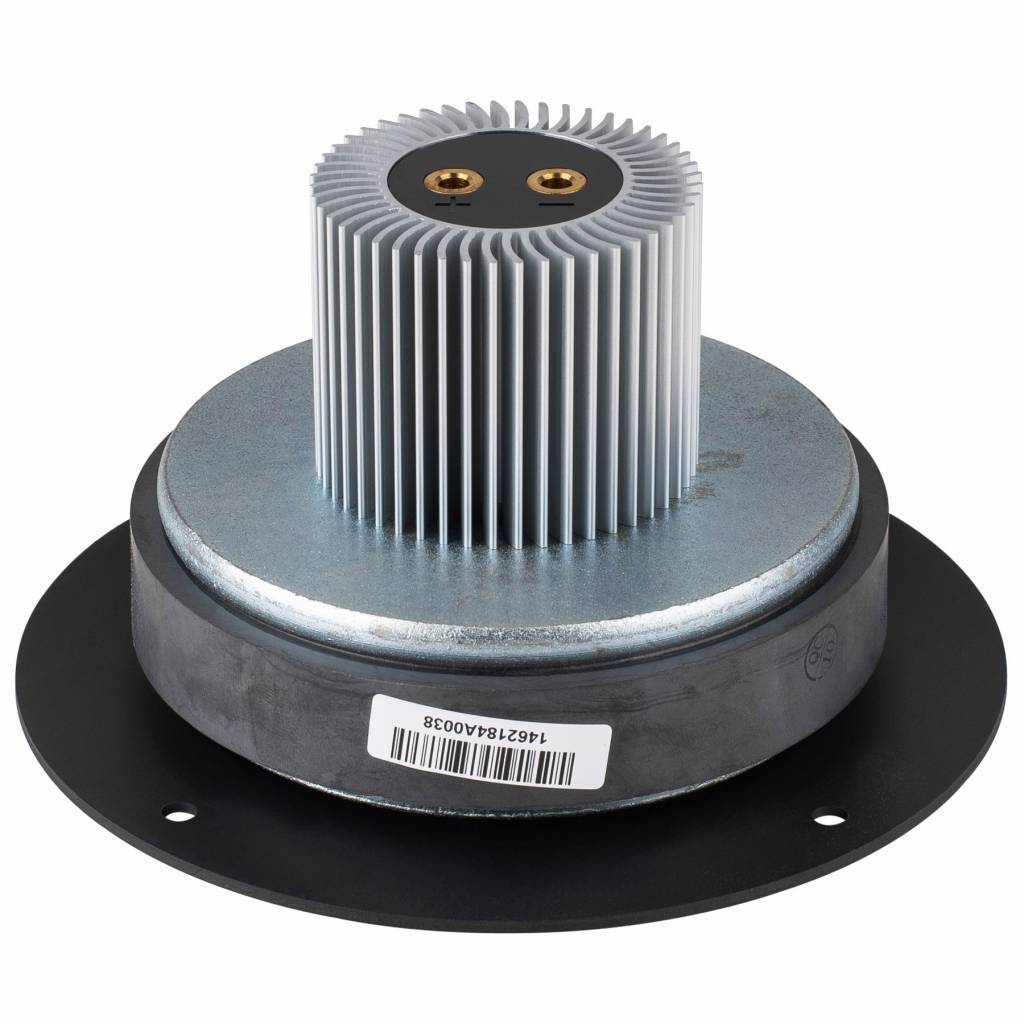

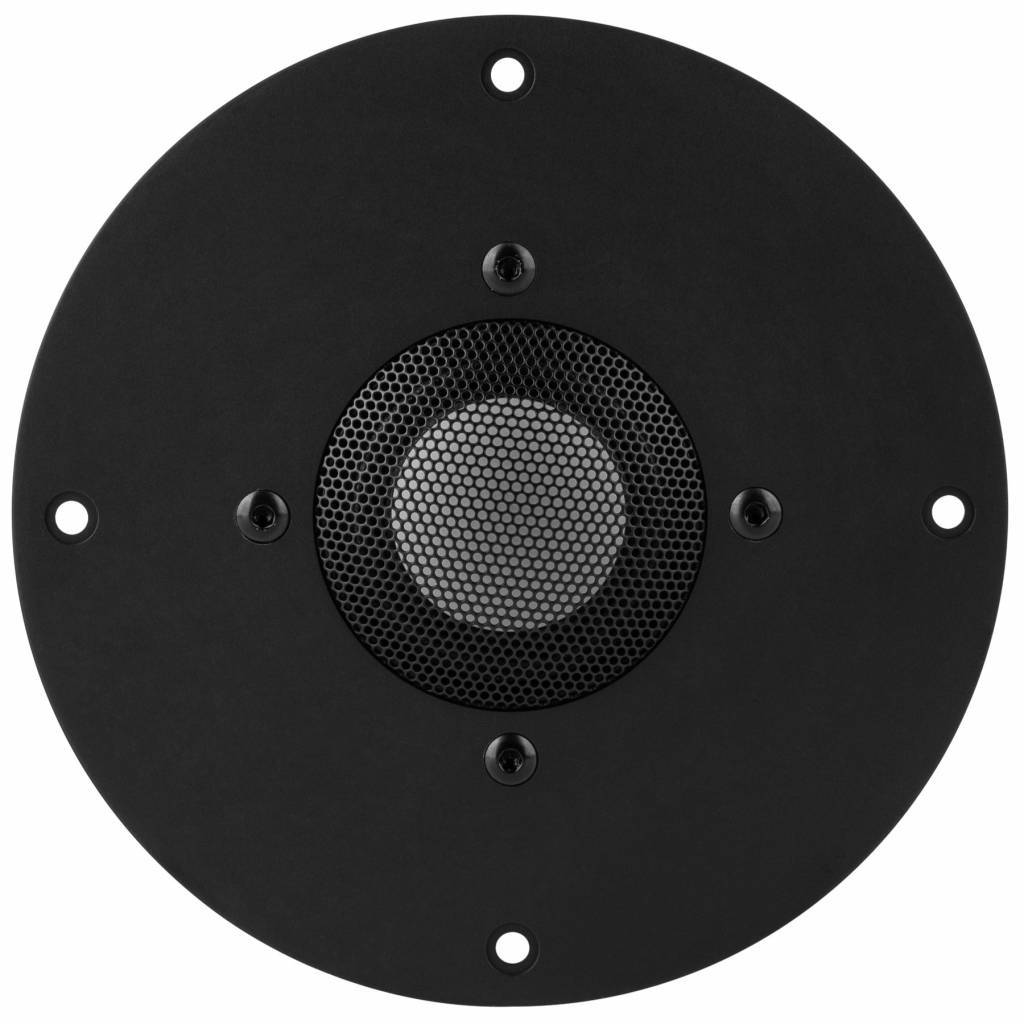

Peerless designed the DA32TX00-08 1-1/4" corundum dome tweeters for both hi-fi and professional applications. With their unique material and design enhancements, these tweeters are built for industry-leading performance and reliability. Corundum, one of natured hardest substances (9 out of 10 on the MOHS hardness scale), is extremely rigid with excellent damping which pushes any dome resonance well outside of the audible range keeping frequency response flat to 22,000 Hz and beyond. The DA32TX00-08 incorporates a unique rear chamber that lowers the resonant frequency and serves as a heatsink for improved power handling and negligible power compression. The massive FEA optimized underhung motor assembly provides incredible control for impressive dynamics, and includes a thick copper cap on the pole piece for lower inductance with minimal distortion. In addition, the optional metal grill (held in place magnetically) protects the fragile dome from foreign objects and curious fingers. Capable of handling crossover frequencies as low as 1,200 Hz, the DA32TX00-08 will present outstanding performance in almost any 2 or 3-way speaker designs.
PRODUCT SPECIFICATIONS
Tweeter Type | Corundum Dome |
Cone / Dome Diameter | 1-1/8" |
Impedance | 8 ohms |
Power Handling (RMS) | 120 Watts |
Frequency Response | 1,400 to 40,000 Hz |
Sensitivity | 89.8 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 498 Hz |
DC Resistance (Re) | 6.8 ohms |
Voice Coil Inductance (Le) | 0.02 mH |
Mechanical Q (Qms) | 2.43 |
Electromagnetic Q (Qes) | 0.72 |
Total Q (Qts) | 0.56 |
Maximum lineair excursion (Xmax) | 1 mm |
Surface Area of Cone (Sd) | 12 |
Diaphragm Mass Inc. Airload (Mms) | 0.5 |
MOUNTING INFORMATION
Overall Outside Diameter | 5.2" |
Cutout Diameter | 4.57" |
Depth | 2.72" |
