The Dayton Audio DC28F-8 1-1/8" silk dome tweeter's nearly unbeatable cost-to-performance ratio makes it a favorite, best-selling product. The "Silkie" is found in many, many successful loudspeaker projects!
Highlights
Product Details

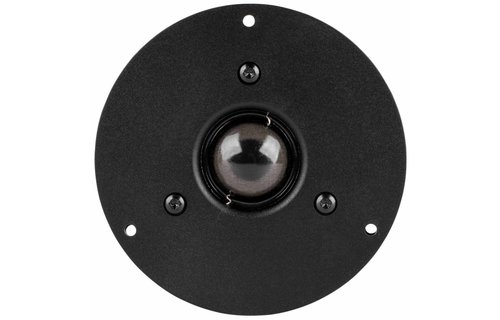

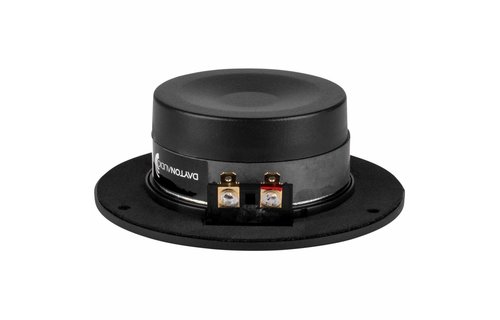

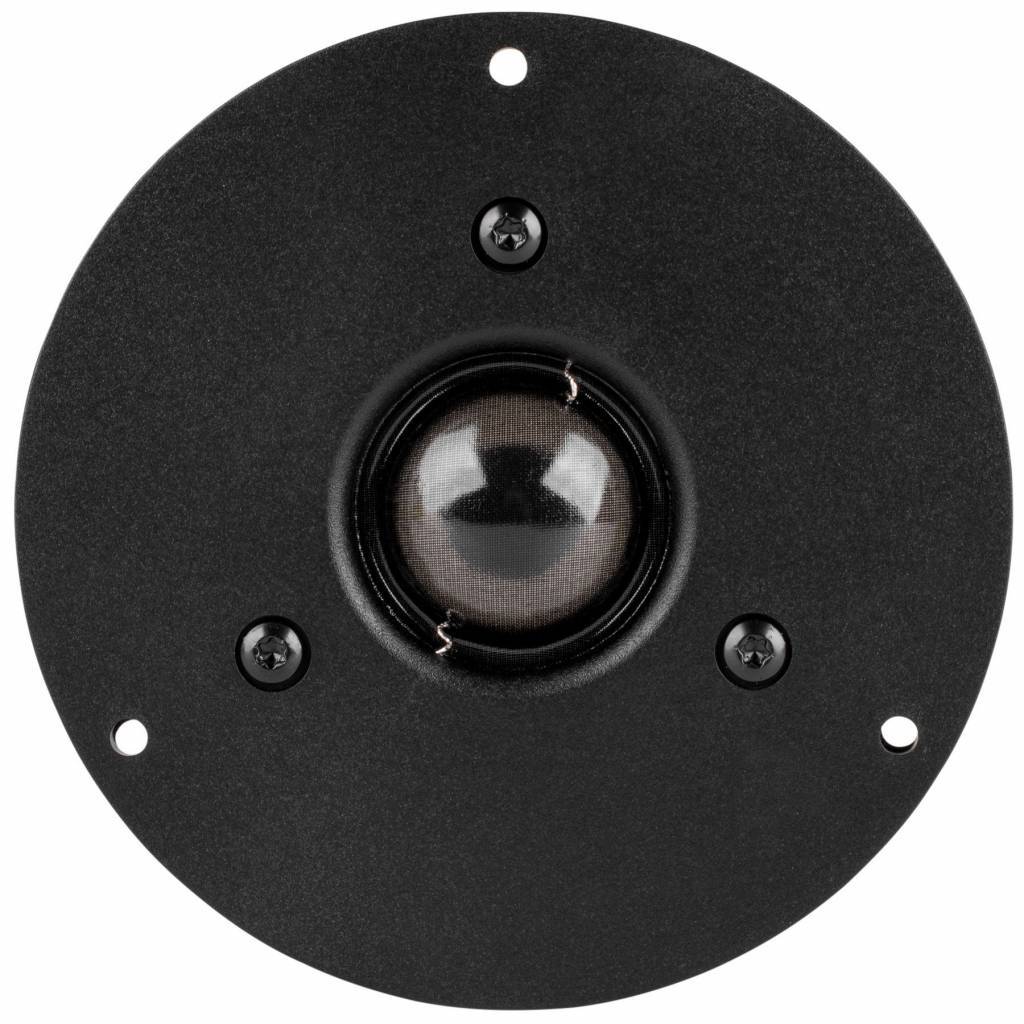

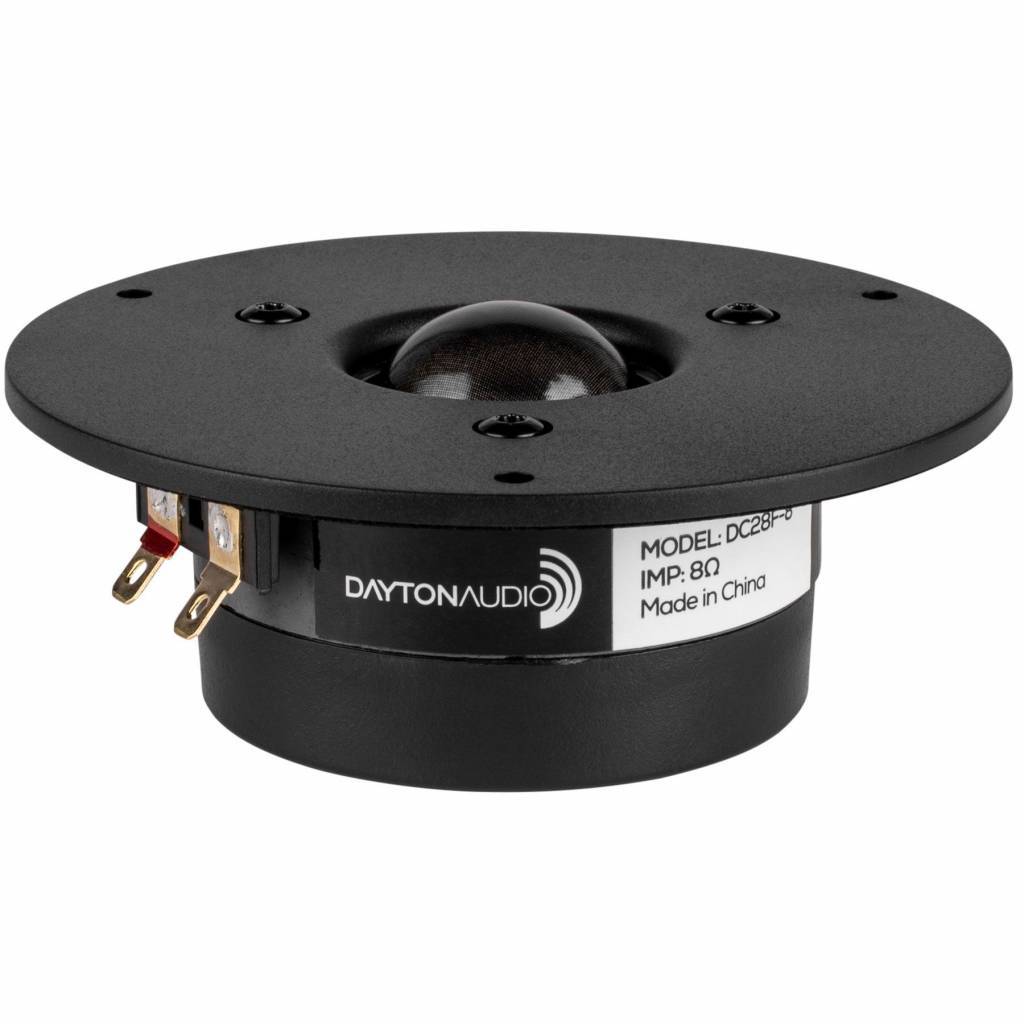

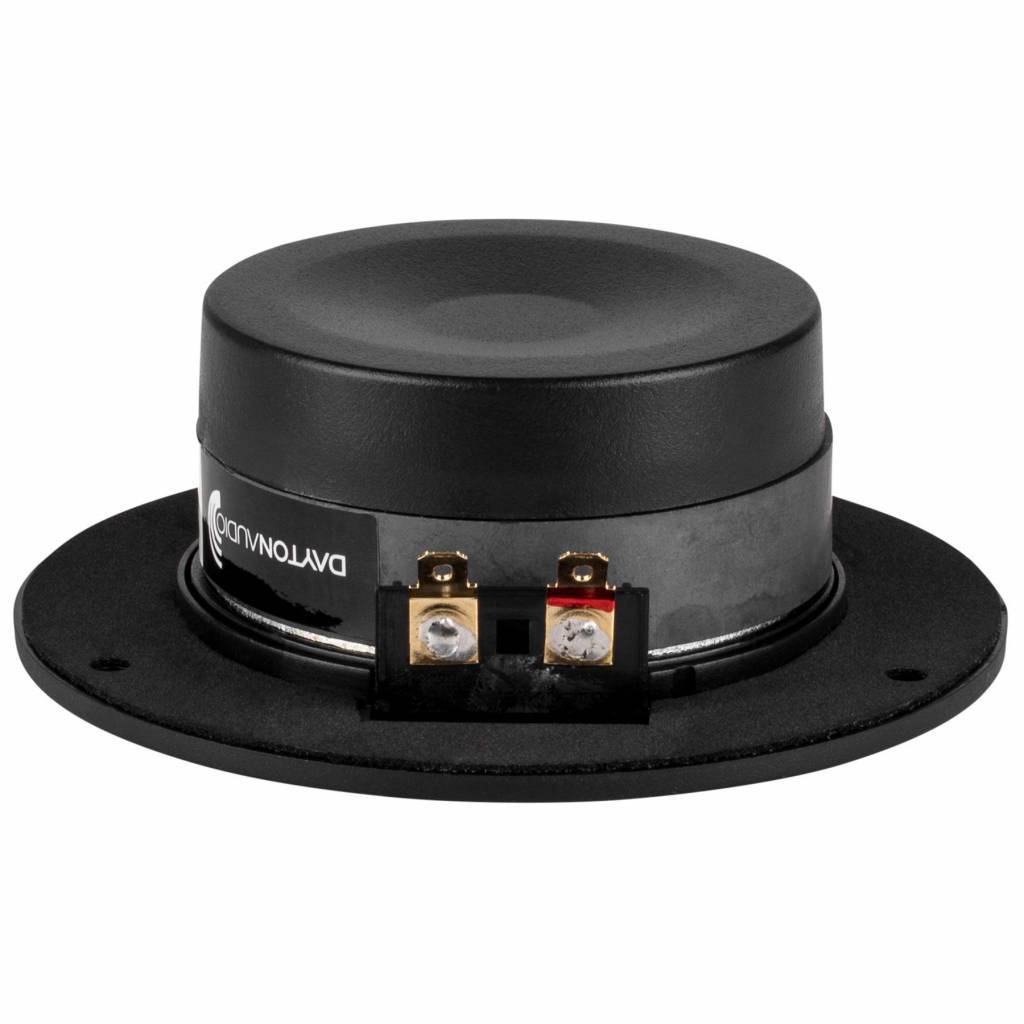

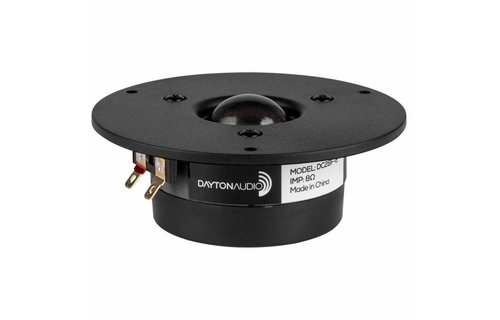

Dayton Audio DC28F-8 1-1/8" Silk Dome Tweeter
The famous "Silkie" – Dayton Audio's DC28F-8 1-1/8" Silk Dome Tweeter! Superior European design and performance at a fraction of the cost of similar audiophile high frequency transducers! Clinically tested and compared to Morel with amazingly similar results! Recommended for crossover points as low as 1,800 Hz!
PRODUCT SPECIFICATIONS
Tweeter Type | Soft Dome |
Cone / Dome Diameter | 1-1/8" |
Impedance | 8 ohms |
Power Handling (RMS) | 50 Watts |
Frequency Response | 1,300 to 20,000 Hz |
Sensitivity | 89 dB 1W/1m |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 637.2 Hz |
DC Resistance (Re) | 5.5 ohms |
Voice Coil Inductance (Le) | 0.09 mH |
Mechanical Q (Qms) | 0.82 |
Electromagnetic Q (Qes) | 0.90 |
Total Q (Qts) | 0.43 |
MOUNTING INFORMATION
Overall Outside Diameter | 4.33" |
Cutout Diameter | 2.71" |
Depth | 1.53" |
