Dayton Audio ES25NdXP-4 is a high quality 1" Ring Dome Neodymium Tweeter that offers outstanding performance at a reasonable price.
Highlights
Product Details

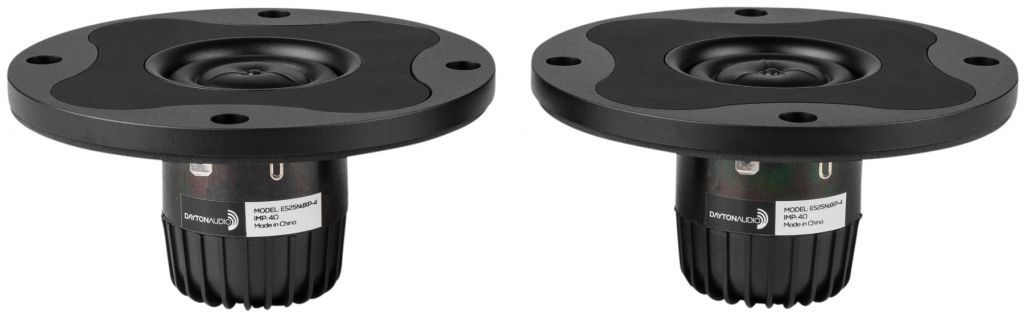

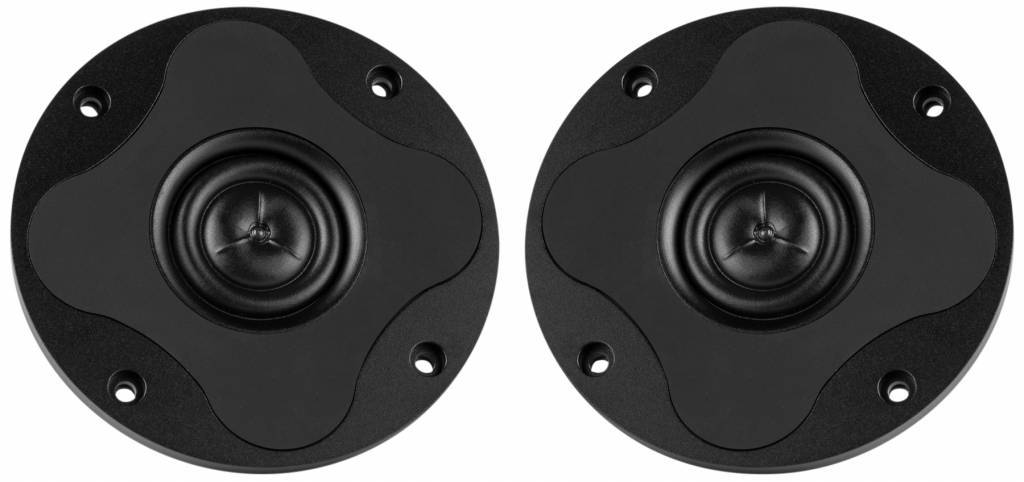

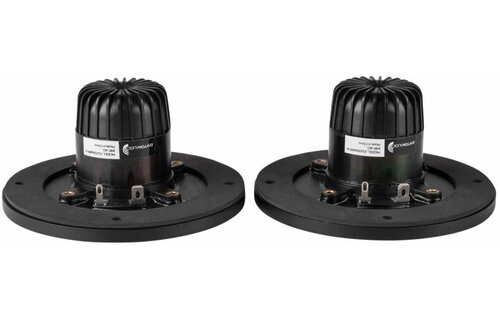

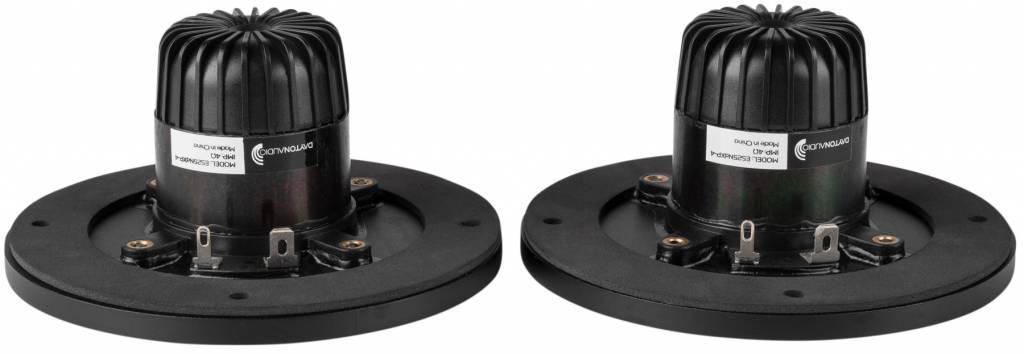

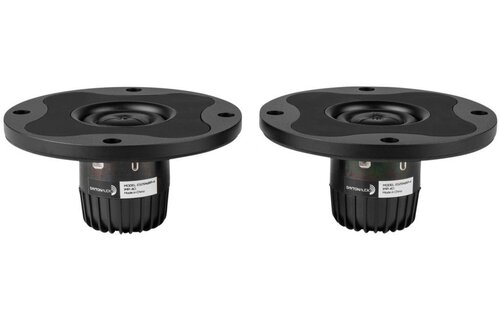

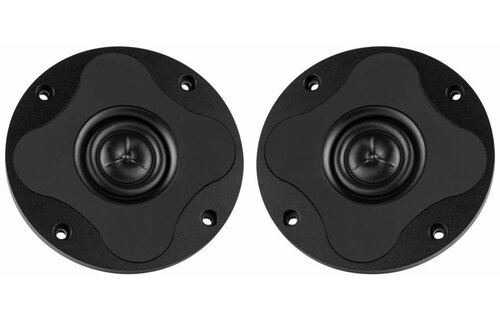

Dayton Audio ES25NdXP-4 Matched Pair 1" Ring Dome Neodymium Tweeter
Dayton Audio ES25NdXP-4 is a high quality 1" Ring Dome Neodymium Tweeter that offers outstanding performance at a reasonable price.
This model is only available in a matched pair
PRODUCT SPECIFICATIONS
Nominal Diameter | 2" |
Power Handling (RMS) | 30 Watts |
Power Handling (max) | 60 Watts |
Impedance | 4 ohms |
Frequency Response | 1500 to 40,000 Hz |
Sensitivity | 89 dB 2.83V/1m |
Voice Coil Diameter | 1" |
THIELE-SMALL PARAMETERS
Resonant Frequency (Fs) | 549 Hz |
DC Resistance (Re) | 2.78 ohms |
Voice Coil Inductance (Le) | 0.09 mH @ 10kHz |
Mechanical Q (Qms) | 3.82 |
Electromagnetic Q (Qes) | 0.75 |
Total Q (Qts) | 0.62 |
Mechanical Compliance of Suspension (Cms) | 0.25 mm/N |
BL Product (BL) | - |
Diaphragm Mass Inc. Airload (Mms) | 0.5 g |
Maximum Linear Excursion (Xmax) | 1 mm |
Surface Area of Cone (Sd) | 11.9 cm² |
MATERIALS OF CONSTRUCTION
Cone Material | Soft Dome |
Surround Material | Cloth |
Magnet Material | Neodymium |
MOUNTING INFORMATION
Overall Outside Diameter | 4.33" |
Baffle Cutout Diameter | 2.09" |
Depth | 2.13" |
Bolt Circle Diameter | 3.74" |
# Mounting Holes | 5 |
