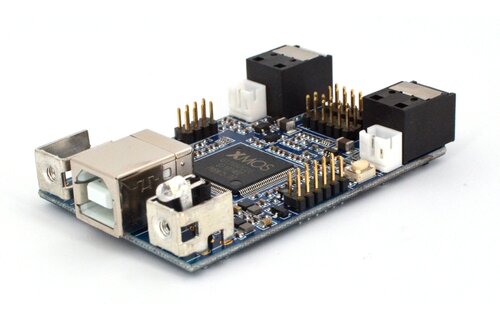

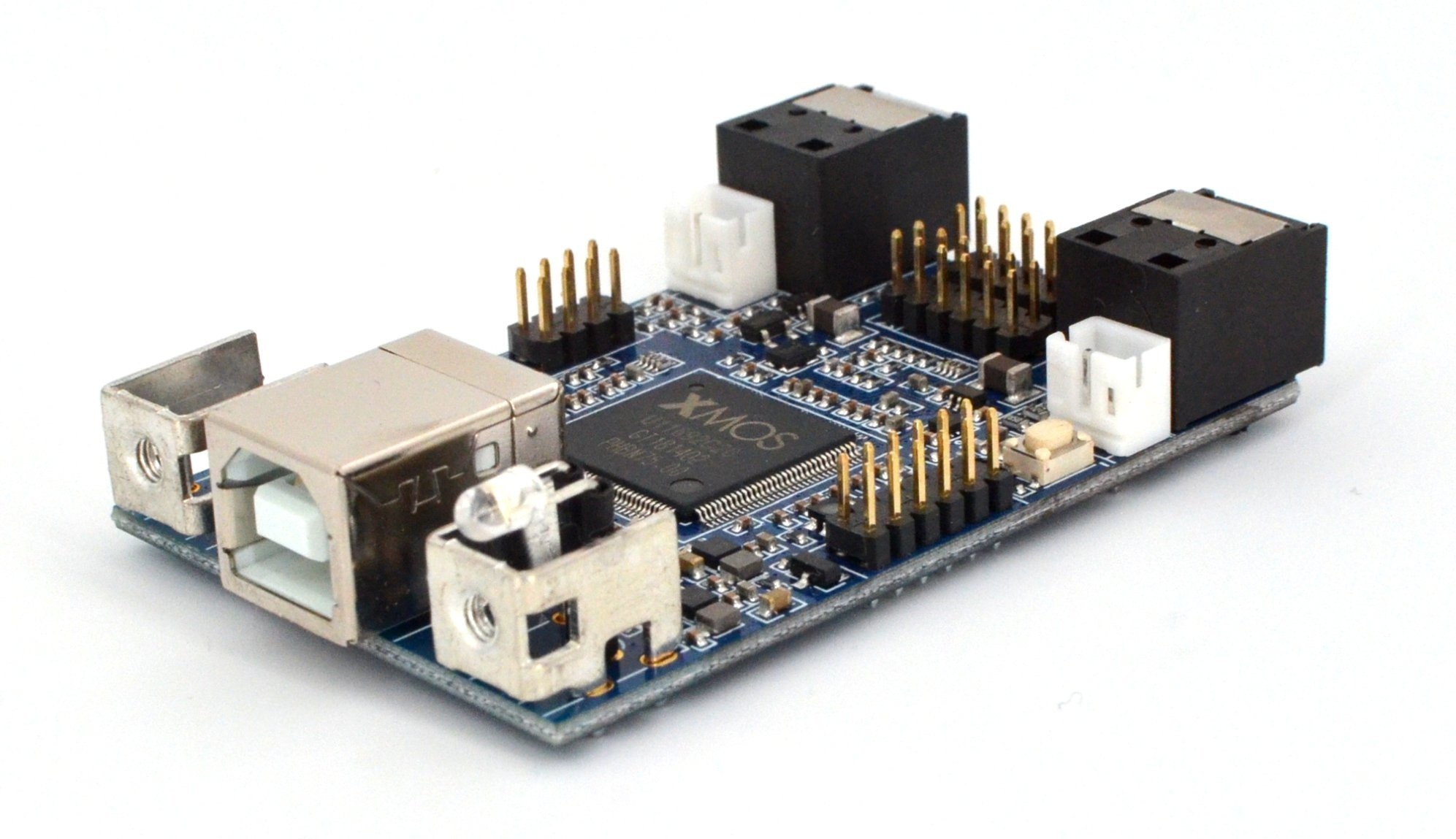

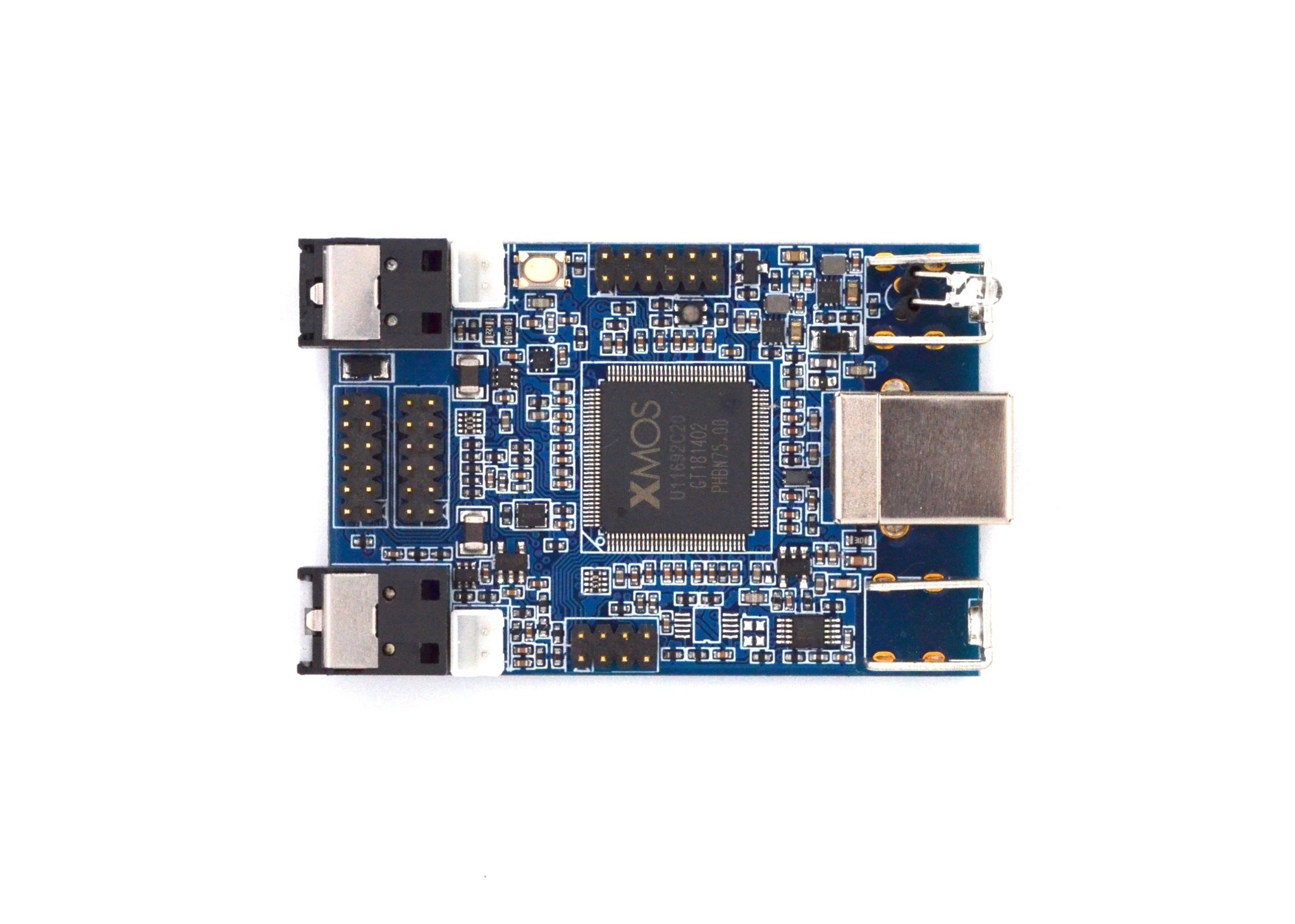

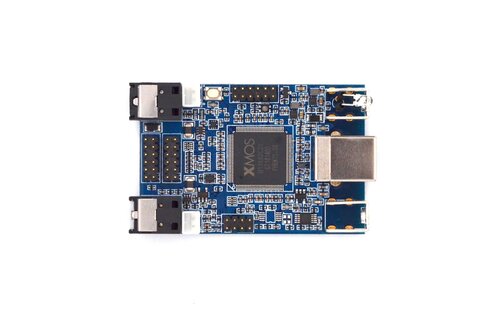

MCHStreamer Multi-Channel USB Interface Kit

Name: miniDSP MCHStreamer Multi-Channel USB Interface Kit
Brand: miniDSP
Price: 179.95 EUR
Availability: InStock

Show all Audio components

Merk: miniDSP

Compare

€ 148,72€ 179,95 3 In stock

The MCH-Streamer is a multi-channel asynchronous USB interface that supports a myriad of digital I/O formats and leverages miniDSP's XMOS expertise. Packaged on a tiny 40x62mm PCB, the MCHStreamer is a perfect fit for OEM/DIY integration or for Research &... Show more

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Product description

Hightlights

Multi-channel USB audio interface (up to 24x24)
Wide range of digital IO format depending on the loaded firmware: TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats
Native support up to 32bit / 384kHz
PDM to I2S converter for up to 16 MEMS microphones
USB 2.0 High speed and Audio class 2.0 device / Asynchronous USB synchronization
OS compatible: Win/Mac/Linux 2.0/Android/Ios (with Camera kit dongle)
Toslink (optical) and SPDIF (coax) transmitter and receiver
Flexible board powering option: USB powered or External DC input power

Product Specifications

MCHStreamer Multi-Channel USB Interface Kit

By loading one of the miniDSP-provided firmware packages, MCHStreamer supports optical TOSLINK, ADAT, S/PDIF (coax), I2S, TDM, DSD and PDM data formats. This USB Audio Class 2 (UAC2) compliant interface truly is the swiss-army knife for audio developers looking to provide an audio interface to PC/MAC/Linux, iOS and Android. It even supports format conversion from 16x PDM MEMS microphone to I2S which makes it a powerful tool for beamforming/voice algorithm development.

Product Downloads

What's in the box?

1 x MCHStreamer board
1 x 1m long USB audio cable
2 x Toslink audio cables
2 x 2x6pin (2mm pitch) header cable harness for I2S In/Out interfacing
1 x Coupon code for access to the Windows ASIO

Item	Description
USB Streaming engine	XMOS XCore 200 / USB 2.0 full speed - USB Audio class 2.0 compliant
Drivers	Driverless interface for Mac OS X v10.6.4 and up Free Windows ASIO driver (XP/Vista/7/8/Win10) Linux Alsa compliant driver Apple IoS (ipad/iphone) using Camera kit - multichannel audio streaming
Logic Level formats	SPDIF: Stereo in/out - 24bit up to 192kHz I2S: Up to 8ch bidirectional audio - 24/32bit up to 384kHz TDM8: Up to 24ch bidirection audio - 44.1/48/88.2/96k PDM: Up to 16ch audio recording - 24bit up to 48kHz DSD: Up to 8ch DSD64/128/256 Consult user manual for more details
Optical input & Output	Toslink: Stereo support up to 44.1/48/88.2/96/176.4 kHz ADAT : 8ch ADAT mode @ 48/44.1k and 4ch ADAT mode @ 96kHz
Expansion connector	2 x 12pin, 2mm pitch expansion connector for connectivity to hardware.
Mounting	2 x Right Angle brackets allow easy chassis mounting with M3 threaded hole.
Power supply	USB powered OR 5Vdc external supply via header - 300mA requirement
Dimensions (H x W x D) mm	13 x 40 x 62 mm
