    SHD Power | All In One Amplifier | Dirac Live calibration

    € 1.487,56€ 1.799,95 5 In stock expected on //doc.soundimports.nl/pdf/brands/MiniDSP/SHD%20Power/SHD%20Power%20User%20Manual.pdf
    Streaming All In One Amplifier with Dirac Live® Digital Room Correction, Volumio Network streamer, 2x120Wrms Amplifiers, 450MHz Sharc DSP processor, DSP toolbox for subwoofer or multiway speaker.... Show more
    • 24h express shipping available
    • Low international shipping rates
    • Same day shipping
    • In-house technical support

    Product description

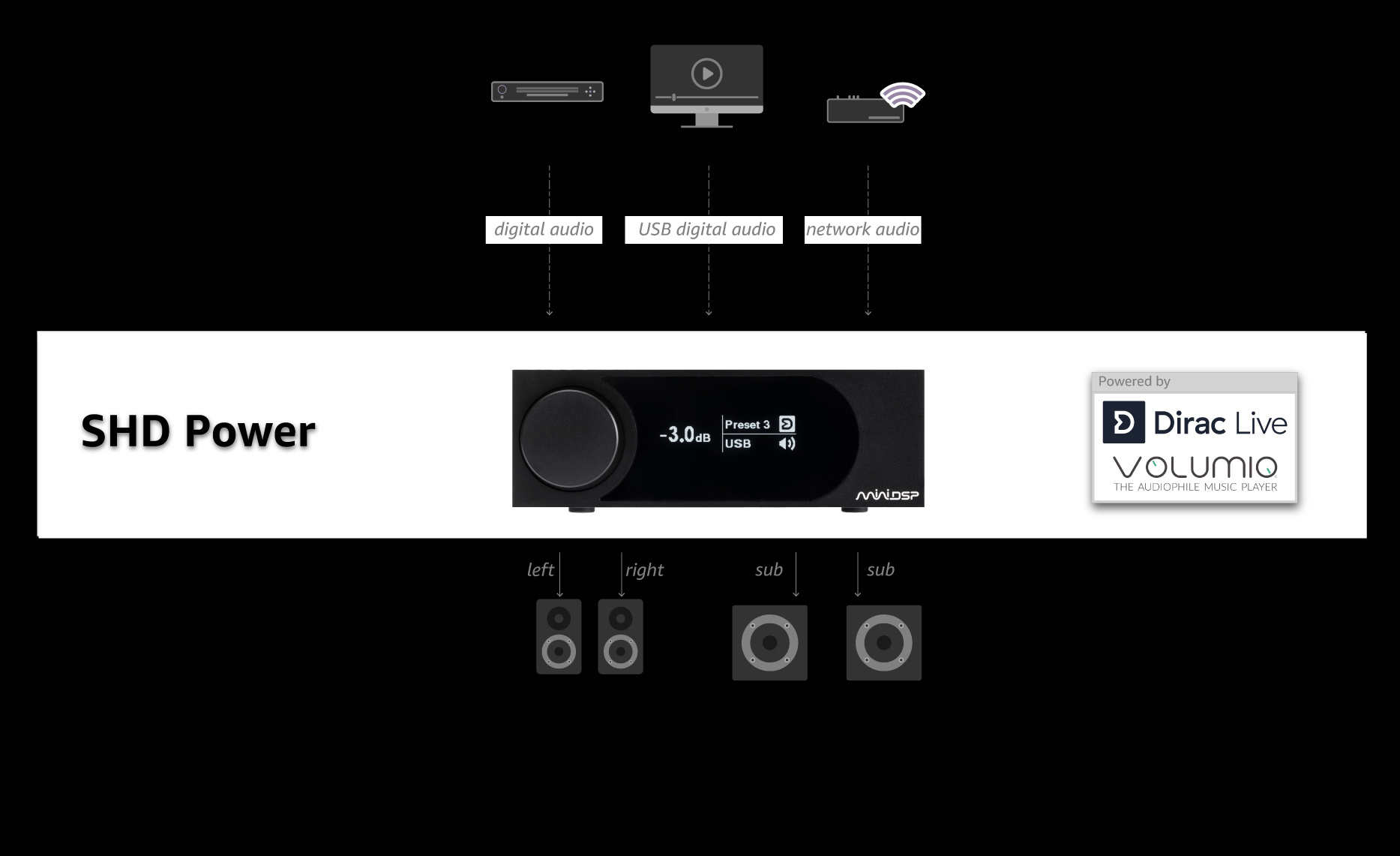

    Streaming All In One Amplifier with Dirac Live® Digital Room Correction, Volumio Network streamer, 2x120Wrms Amplifiers, 450MHz Sharc DSP processor, DSP toolbox for subwoofer or multiway speaker.



    Highlights

    • Processor: 32-bit floating-point 450MHz Analog Devices SHARC DSP
    • 32bit Audiophile converters
    • Proprietary custom 2 x 120W amplifier (8Ohms/4Ohms), SNR >110dB (at 1kHz A-weighted, 120W in 8Ω), Embedded PCM1795 DAC chipset + TPA3255 Class D chipset
    • Powered by Dirac Live® 2.0 Digital Room Correction
    • Quad core ARM processor for network audio streaming - Preloaded with Volumio

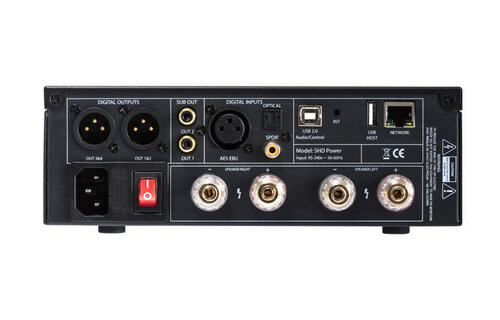

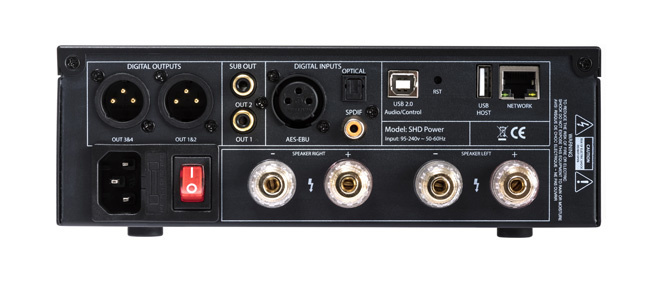

    • Inputs: Stereo digital (USB Audio/AES-EBU/SPDIF/Optical)
    • Outputs: 2 x 120W amplifier output , 2 x analog out (Unbalanced RCA), 4 x digital AES-EBU
    • USB audio recording feature (4xCH processed output via USB audio to record digital inputs)

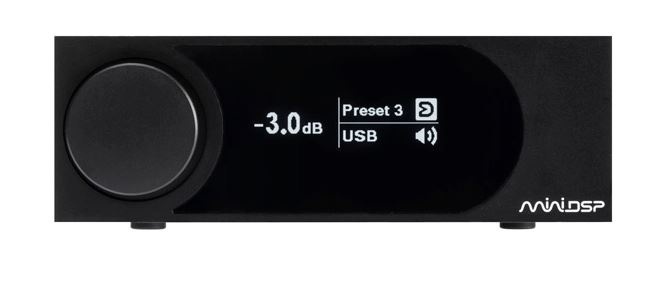

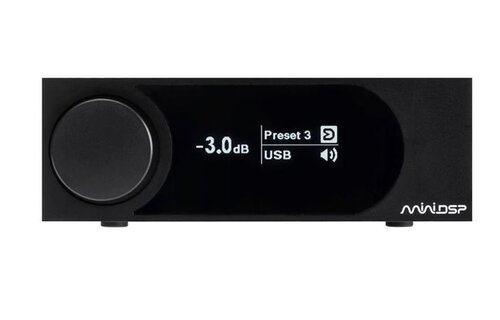

    • White/Black OLED front panel controller



    Product details

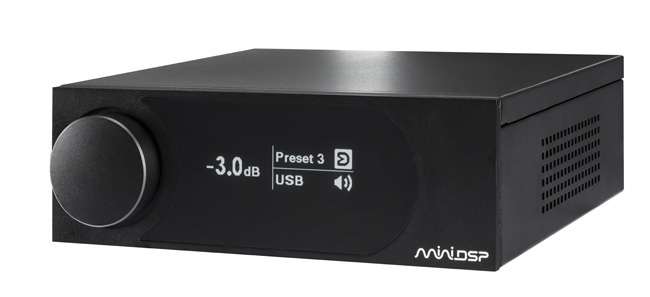

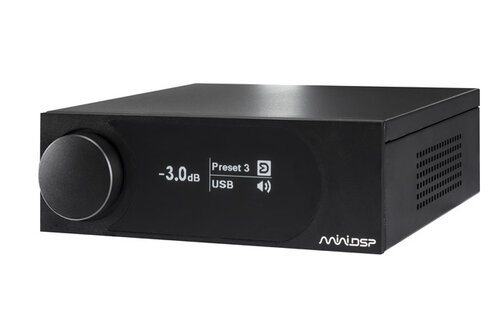

    MiniDSP SHD Power | All In One Amplifier | Dirac Live calibration



    MiniDSP is proud to introduce the latest member of the SHD (“Streaming High Definition”) processor family. As with all SHD Series processors, the SHD Power includes Dirac Live®, the world’s premier room correction so-lution, and a full suite of miniDSP’s powerful but user-friendly audio tun-ing software. Dirac Live calibration uses our popular UMIK-1 microphone and Dirac’s easy-to-use calibration tool.



    What's in the box: Dirac Series Audio Processor — SHD Power • USB Wifi 2.4GHz adaptor • Dirac Live license for miniDSP - Full Range correction • IR remote • IEC power plug (UK/EU/US)

    Specifications

    Article number
    SHD Power
