U-DIO8 Multichannel USB to AES-EBU or SPDIF interface

Name: miniDSP U-DIO8 Multichannel USB to AES-EBU or SPDIF interface
Brand: miniDSP
Price: 399.95 EUR
Availability: InStock

Show all Home audio

Merk: miniDSP

Compare

€ 330,54€ 399,95 1 In stock

Multichannel USB to AES-EBU or SPDIF interface for up to 8ch input & outputs, USB asynchronous with up to 192kHz, Sample Rate Conversion on all inputs, Standard TASCAM DB25 connectivity.... Show more

24h express shipping available
Low international shipping rates
Same day shipping
In-house technical support

Product description

Multichannel USB to AES-EBU or SPDIF interface for up to 8ch input & outputs, USB asynchronous with up to 192kHz, Sample Rate Conversion on all inputs, Standard TASCAM DB25 connectivity.

Highlights

5.1/7.1 USB audio interface
Broadcasting/Studio/Live Sound AES-EBU or SPDIF interface
Multi-room audio streaming

Product details

miniDSP U-DIO8

Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

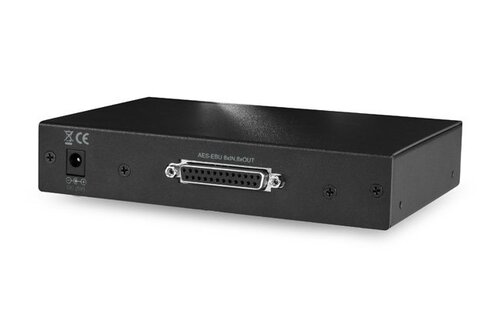

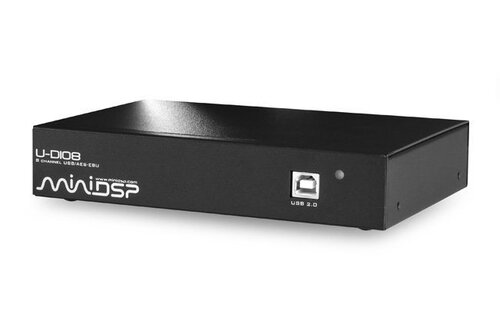

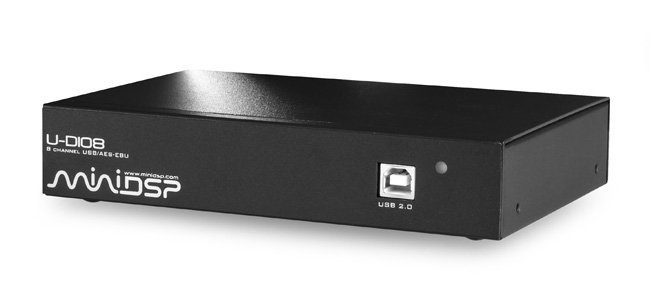

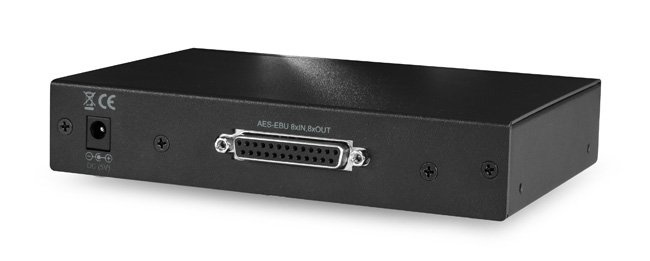

The miniDSP UDIO-8 is a pocket size USB Asynchronous interface with support for up to 8 channels of audio recording and 8 channels of playback. Inputs and outputs are digital and available in 2 versions (AES/EBU or SPDIF). A standard TASCAM pinout DB-25 connector to XLR (AES-EBU version) or DB25 to BNC (SPDIF version) is used for connectivity.

Thanks to 8 channels of high quality sample rate converters on all inputs, the UDIO-8 supports recording of any input rate (44.1~192k). On the output side, the digital output matches the playback sample rate selected in the driver.The UDIO-8 is an ideal solution for high-resolution multi-channel audio, computer-based (HTPC) home theater, live sound, surround-sound mixing and mastering.

NOTE: To insure correct impedance matching, note that UDIO comes in two versions. (AES-EBU or SPDIF) with different internal PCB assemblies. Please make sure to select the correct format you'd like to use.

Documents

What's in the box?

1 x U-DIO8 USB audio interface

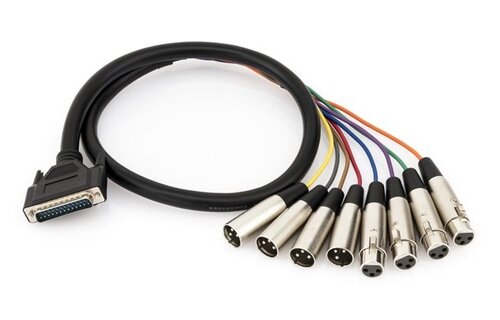

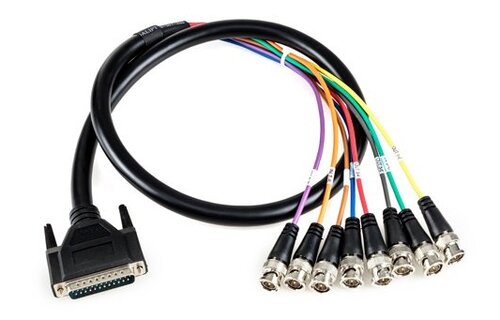

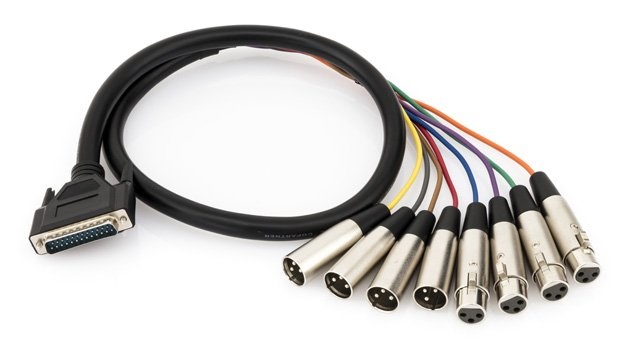

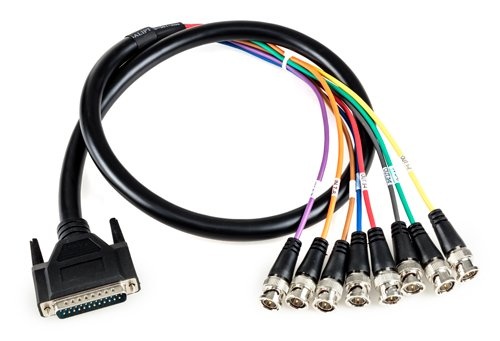

1 x DB25 to XLR cable (AES-EBU version selected) OR dB25 to BNC cable (SPDIF version selected)
1 x 1.5m USB type B cable
1 x 5V universal power supply with US/UK/EU/AU plug
1 x Coupon code for miniDSP plugin download for ASIO drivers/Firmware updates

PRODUCT SPECIFICATIONS

USB Streaming Engine	XMOS 16 core / USB 2.0 full speed - USB Audio class 2.0 compliant
Capabilities	8 channel PCM Input (recording) and Output (playback) over USB
USB Audio Class	USB Audio Class 2.0 device, Windows ASIO driver, Mac Osx driverless
Input/Ouput Configuration	8 in / 8 out
Audio Input Connectivity	4 x AES/EBU or SPDIF (8 channels) on DB-25 connector (Tascam pinout). Asynchronous sample rate conversion to convert AES-EBU input rates (32 to 216 kHz) to the recording rate configured in your software.
Audio Output Connectivity	4 x AES/EBU or SPDIF (8 channels) on DB-25 connector (Tascam pinout). Sample rate defined by the playback rate in software (44.1~192k)
TOSLINK Input	-
Accessories	dB25 to XLR cable, 1.5m long.
Dimensions	31 x 161 x 108 mm
Power	5Vdc external supply - 500mA requirement Universal supply provided with plugs for EU/UK/US/AU
Win/Mac Compatible	✔
USB Streaming Engine	XMOS 16 core / USB 2.0 full speed - USB Audio class 2.0 compliant
