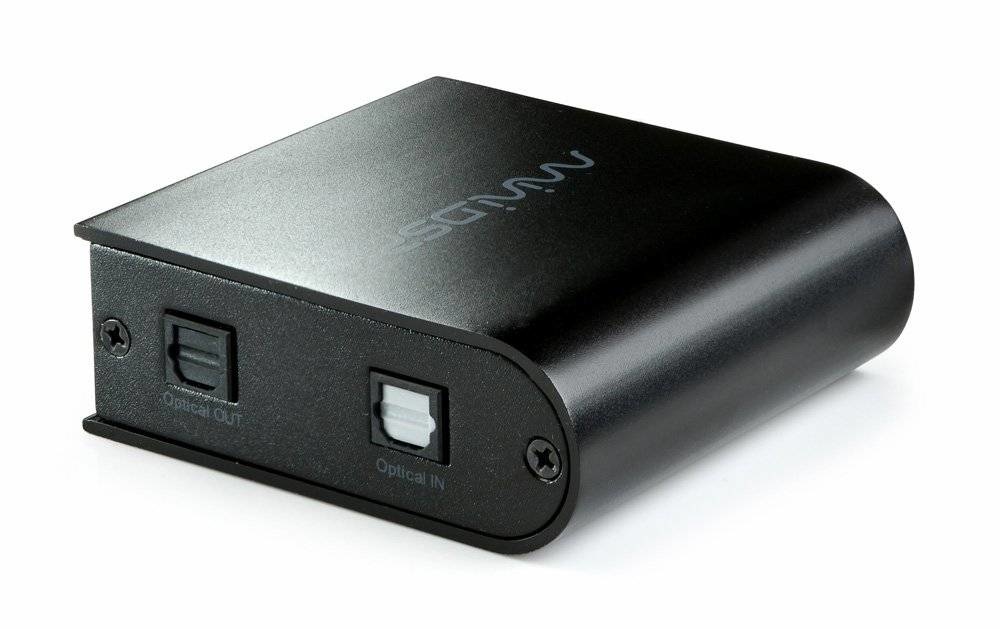

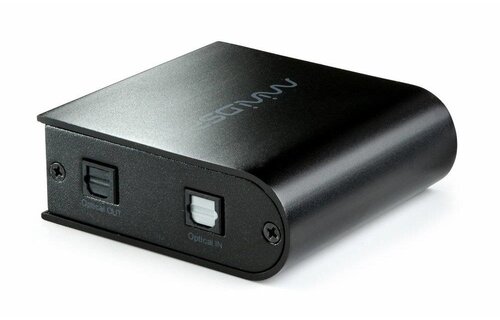

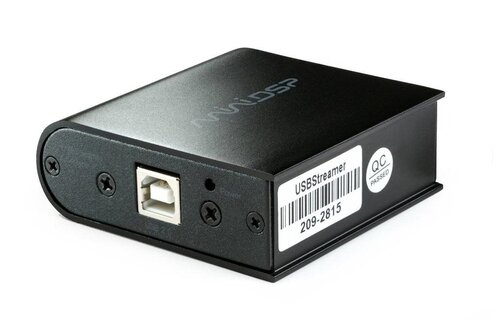

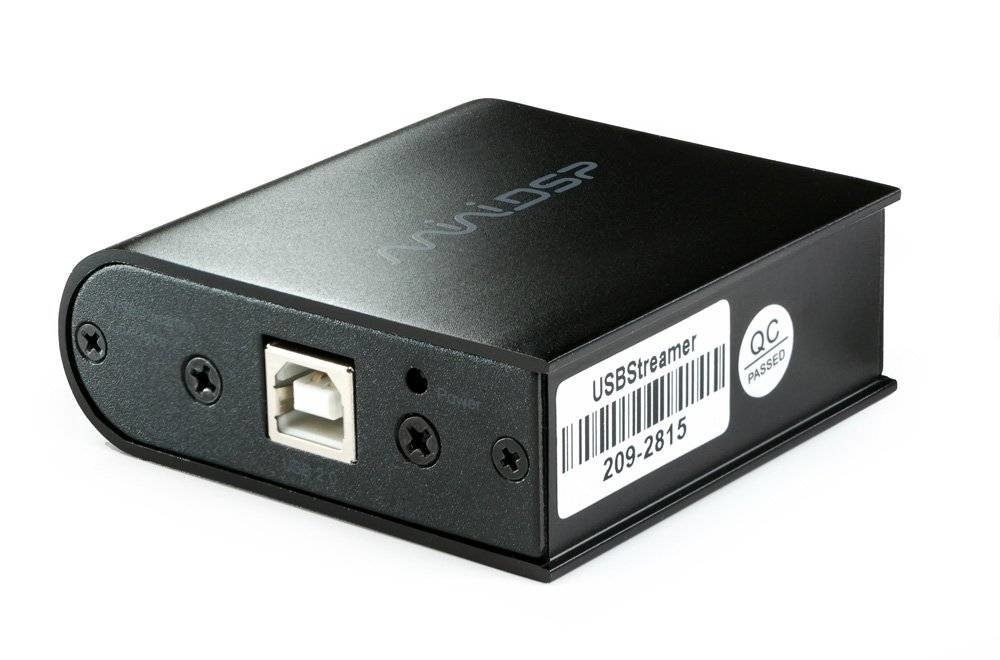

USBStreamer module in an aluminum enclosure. Operates as USB to Toslink (Stereo up to 192k) or USB to ADAT(up to 8channels at 48/44.1kHz)
USBStreamer Boxed Multi-Channel USB to ADAT/Toslink interface
Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.
The USBStreamer B is a miniature multi-channel USB to ADAT/Toslink interface with native support for audio files format up to 24bit/192kHz. Operating in ADAT or Toslink depending on the loaded firmware, the unit is versatile and very cost effective. In the ADAT mode, the USBStreamer B makes the retrofit of outboard DAC/ADC interfaces a child's play. A simple firmware update and one can enjoy streaming of stereo (Toslink) audio over the same optical connector.
The USBStreamer utilizes high speed USB2.0 along with the Audio Class 2.0 implementation to simultaneously provide up to 8channels of playback along with 8channel of recording over the ADAT standard. The unit is USB self powered and installed in a matter of seconds with compatible ASIO drivers for both Mac/Windows platforms. An easy and flexible system integration that follows the footsteps of the miniDSP product line.
What's in the box?
Mechanical Specifications
PRODUCT SPECIFICATIONS
Item | Description |
USB Streaming engine
| XMOS L2 core USB 2.0 full speed - USB Audio class 2.0 compliant |
Capabilities
| PLAYBACK: TOSLINK Stereo Mode up to 192kHz Multichannel ADAT mode: up to 8 channels at 48/44.1kHz Multichannel I2S mode: up to 8 channels RECORDING: TOSLINK Stereo Mode up to 192kHz Multichannel ADAT mode: up to 8 channels at 48/44.1kHz Multichannel I2S mode: up to 8 channels |
Drivers | 24bit support |
Resolution | Supported sample rate: 44.1/48/88.2/96/176.4/ 192kHz |
Sample rate
| Toslink sample rate: 44.1/48/88.2/96/176.4 kHz ADAT sample rate: 8ch ADAT mode @ 48/44.1k |
Toslink input | Optical receiver / 26Mbps |
Toslink output | Optical transmitter / 26Mbps |
Enclosure | Aluminum, sand blasted, anodyzed |
Power supply | USB powered |
Dimensions (H x W x D) mm | 24 x 64 x 67 mm |
